Graphene Heated Waist Massage Belt K-AMZCYD-A0V2

Wearable graphene heated waist massage belt with dual vibration motors, three temperature levels, timer control and mechanical lumbar support. Rated at 5V/6.5W for external USB and power-bank operation.

Heating Method	Graphene Flexible Cloth / Fabric Heating Film
Category	Health & Wellness Outdoor & Wearable Heating
Product Stage	Finished Product Reference
Application Market	Health & Wellness Outdoor & Wearable Heating
Technology Type	Flexible Electric Heating

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

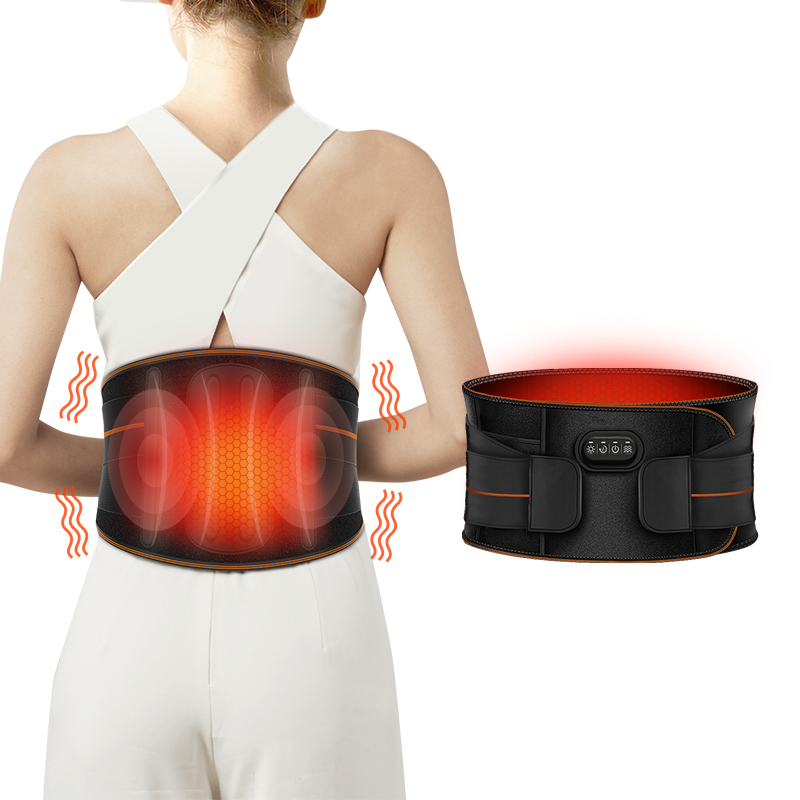

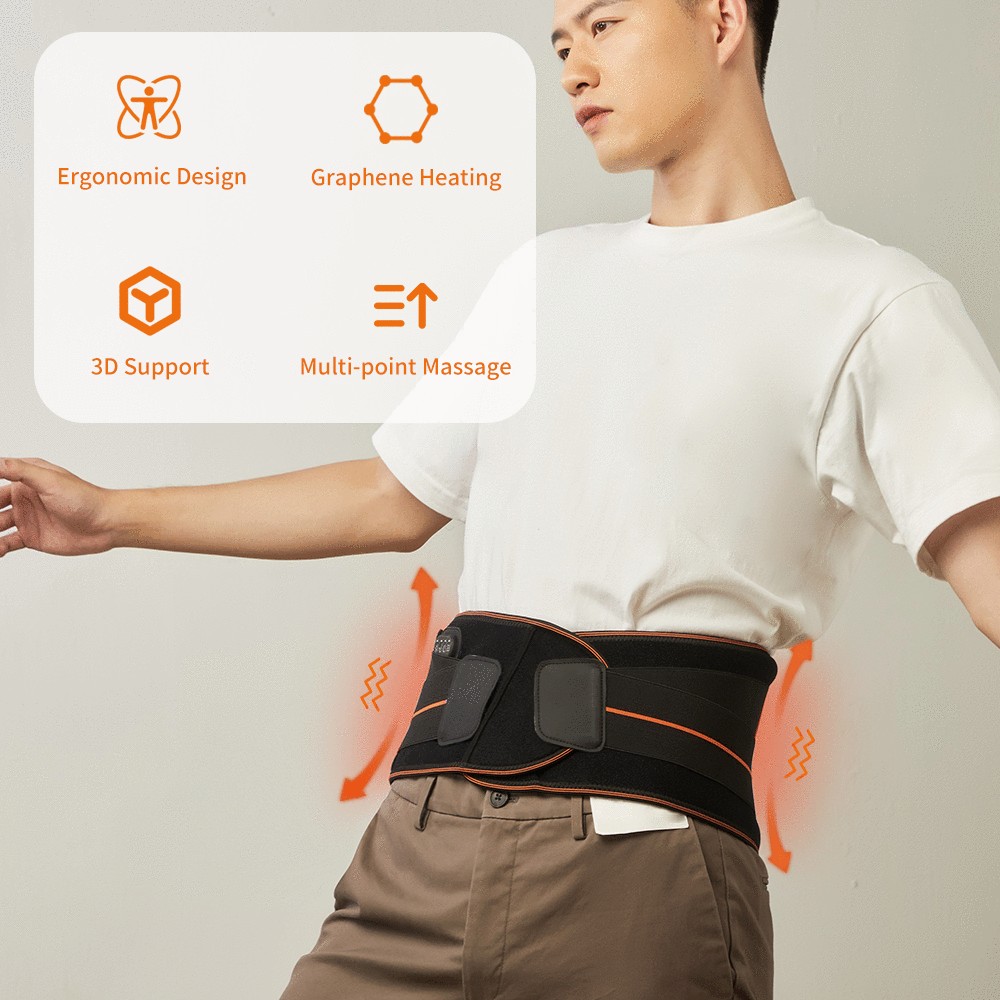

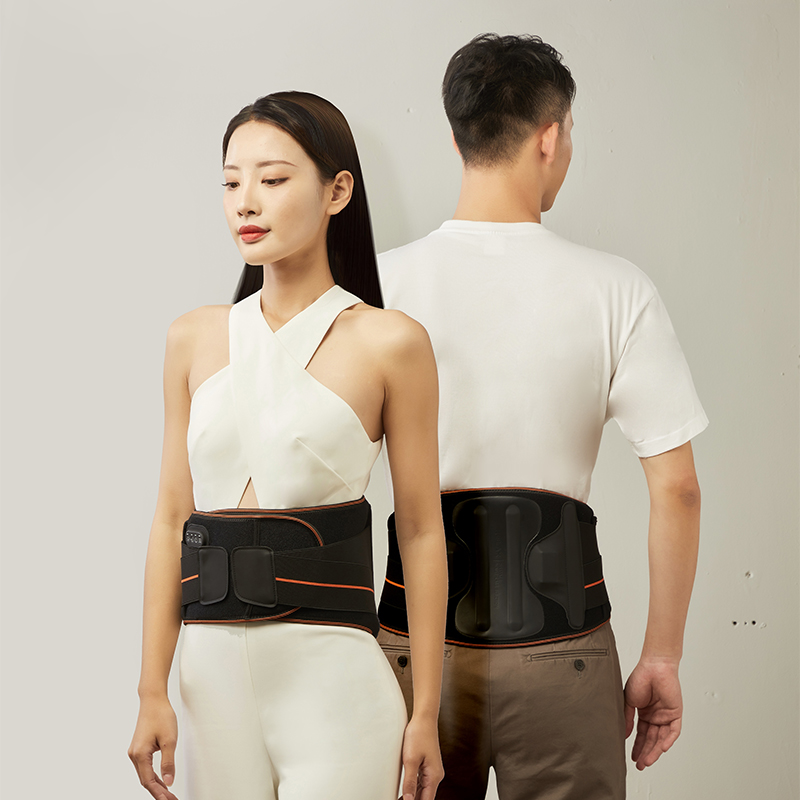

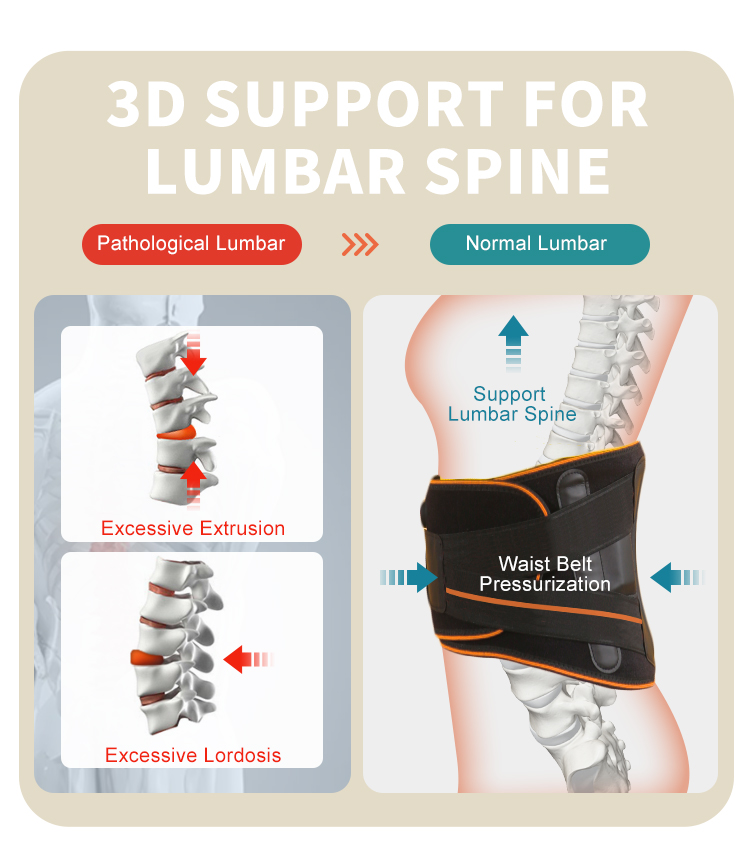

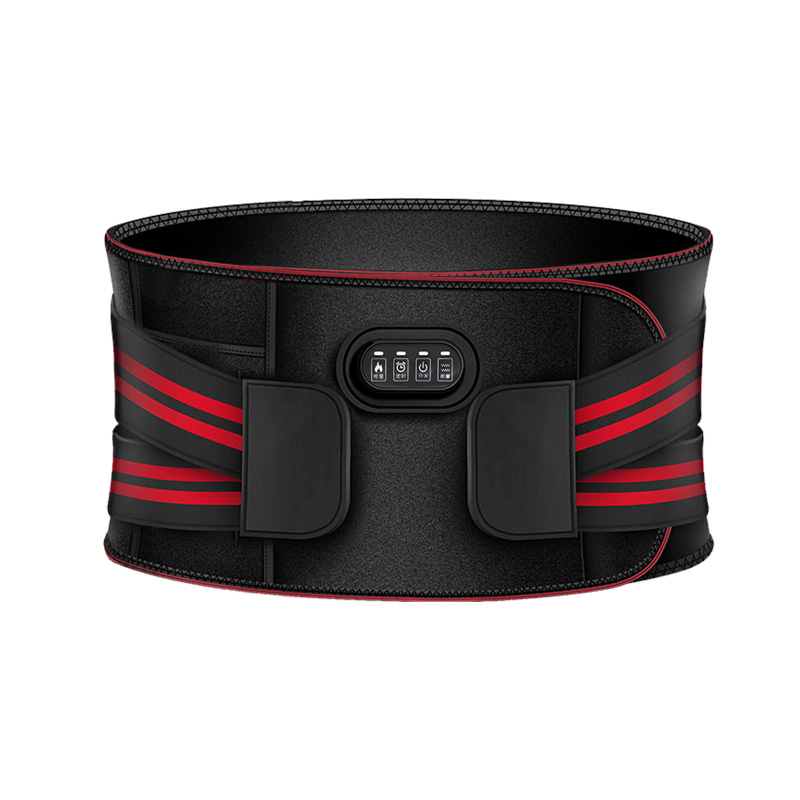

Graphene heated waist massage belt K-AMZCYD-A0V2 is a wearable warming and support product combining graphene heating, vibration massage and mechanical lumbar support. It is designed for localized use around the waist, abdomen and lower back, with a flexible wraparound structure suitable for home, office and portable use.

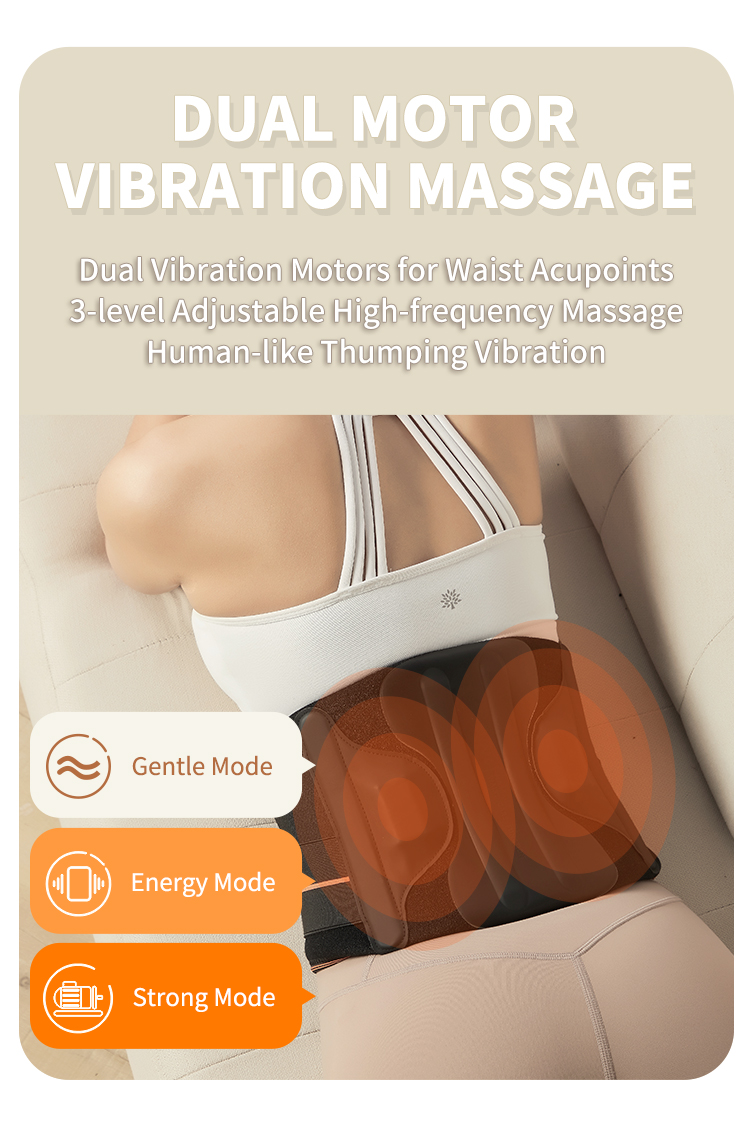

The belt operates at a rated 5V and 6.5W and provides three heating levels at approximately 45°C, 55°C and 65°C. Dual vibration motors provide three adjustable massage levels, while the integrated control panel also provides 15-, 30- and 45-minute timing settings.

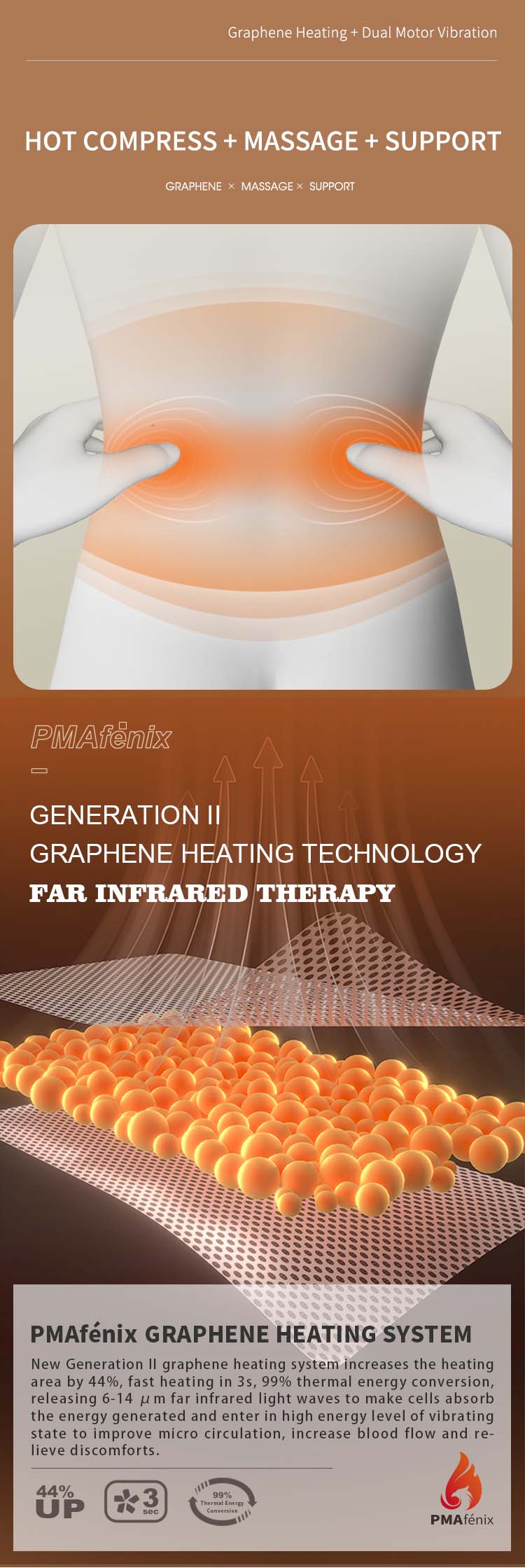

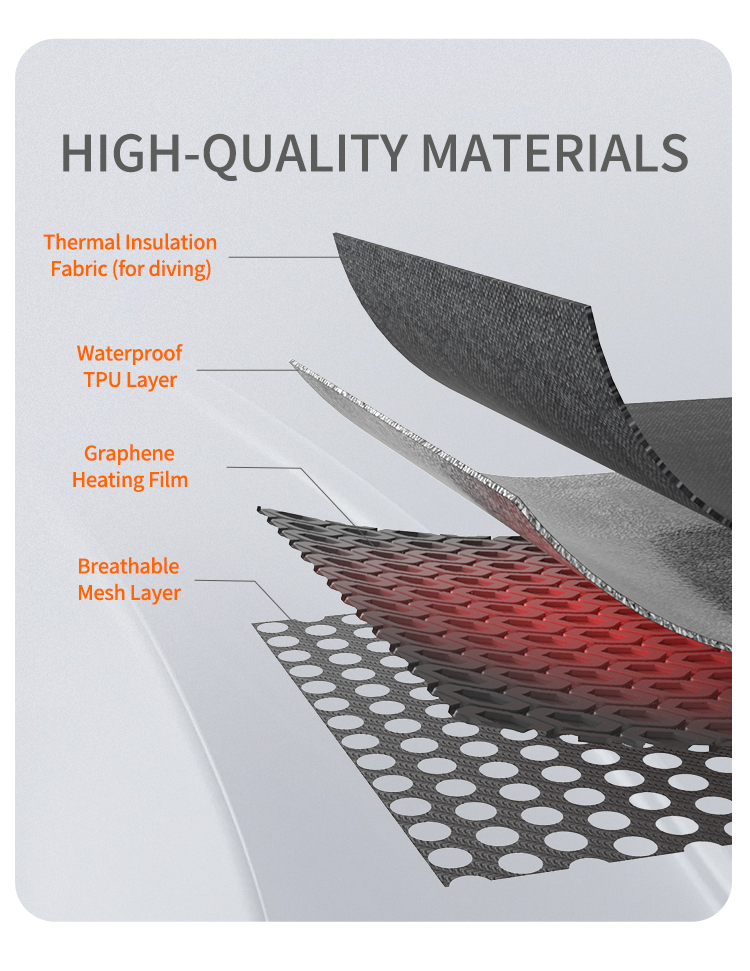

Its layered construction incorporates a flexible graphene heating film, waterproof TPU layer, breathable mesh layer and thermal-insulation textile. Resin support strips and high-elastic fixing bands provide structural waist support. The tested plush fabric consists of 91% polyester and 9% elastane. Available product materials also specify approximately 3-second heating and 6–14 μm far-infrared emission.

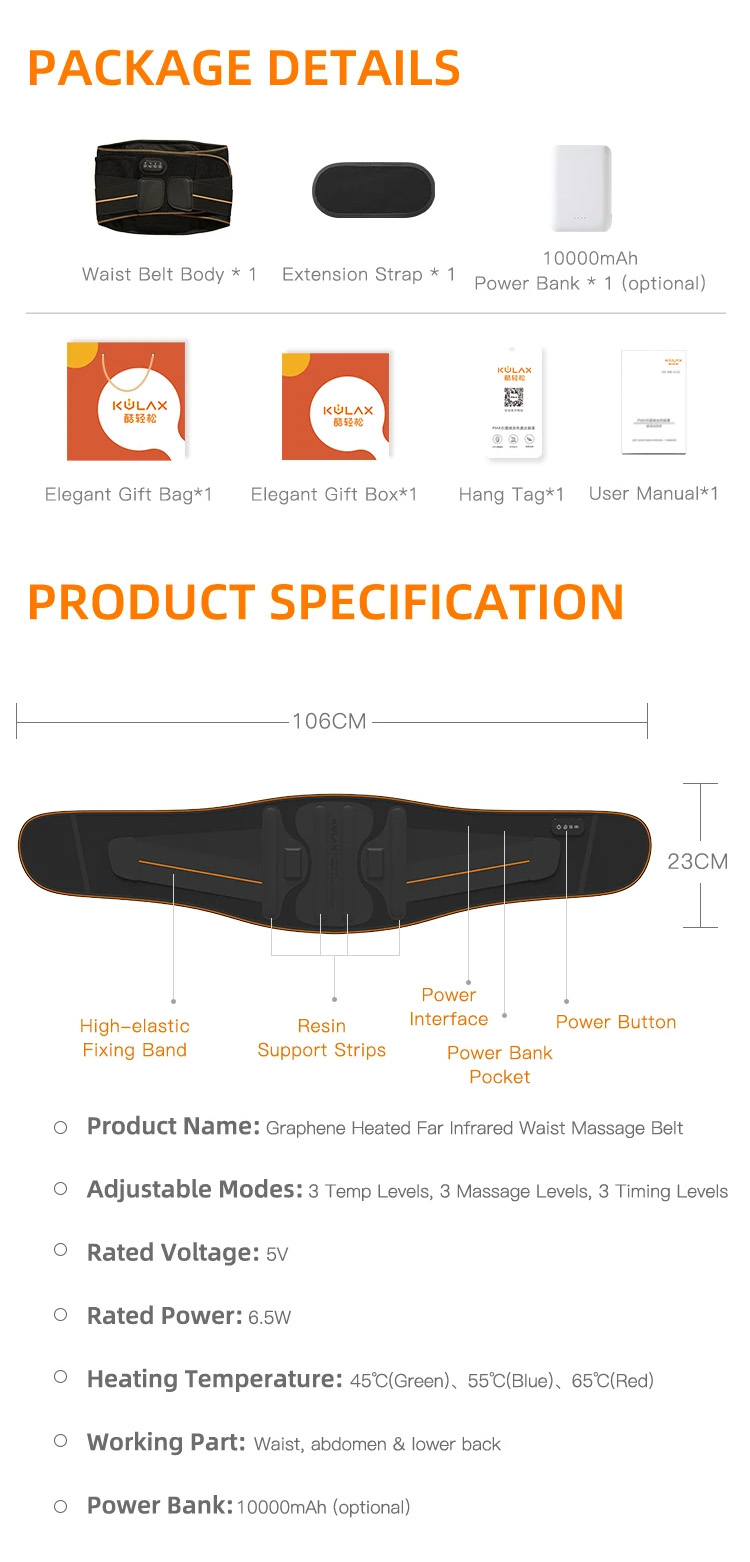

The finished belt measures approximately 106 × 23 cm and includes an extension strap for fit adjustment. Power is supplied through an external 5V USB connection, with a dedicated power-bank pocket and an optional 10000 mAh power bank shown in the available product configuration. OEM and ODM requirements can be evaluated according to dimensions, materials, heating and massage configuration, control functions, branding and packaging.

Key Specifications

Heating Method

Graphene Flexible Cloth / Fabric Heating Film

Heating Element

Cloth-based flexible graphene heating film

Materials

91% polyester / 9% elastane plush fabric, thermal-insulation textile, waterproof TPU layer, breathable mesh layer, resin support strips and elastic fixing bands

Dimensions

106 × 23 cm

Power Source

USB · Power Bank

Control

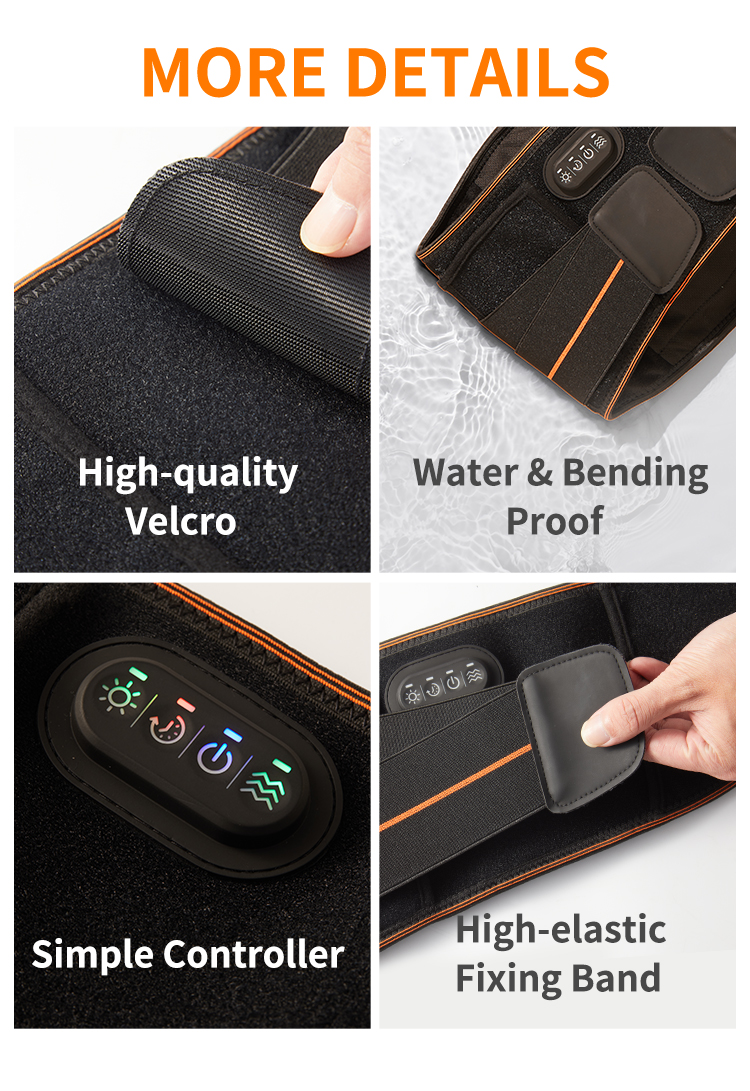

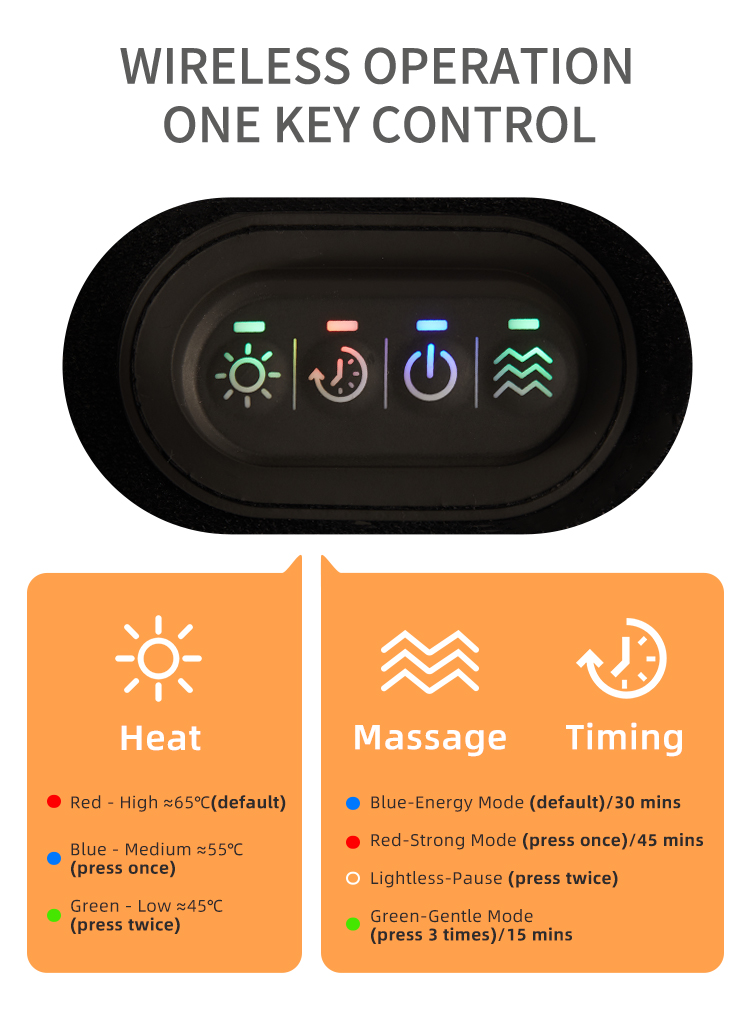

Integrated control panel with separate heating, vibration massage and timing functions, including three heating levels, three massage levels and 15 / 30 / 45-minute timer settings.

Cleaning / Washability

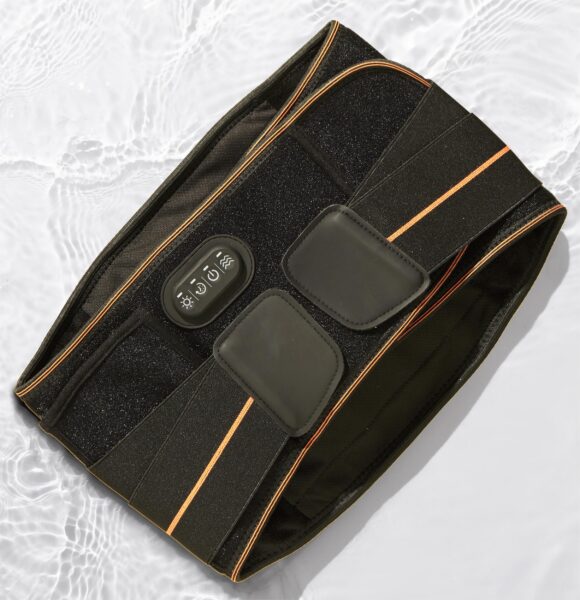

Disconnect the USB power source before cleaning. Product materials state that the belt can be water-washed after the power cable is unplugged; allow it to dry completely before reconnecting power and follow the supplied care instructions.

Rated Voltage

5 V

Rated Power

6.5 W

Product Size

106 × 23 cm

Temperature Levels

3 levels

Low Temperature

Approx. 45°C

Medium Temperature

Approx. 55°C

High Temperature

Approx. 65°C

Heating Time

Approx. 3 seconds

Far Infrared Wavelength

6–14 μm

Massage System

Dual vibration motors

Massage Levels

3 levels

Timing Levels

3 levels

Timer Settings

15 / 30 / 45 minutes

Heating Technology

Flexible graphene heating

Heating Element Structure

Graphene heating film integrated with a waterproof TPU layer and breathable mesh layer

Fabric Composition

91% polyester / 9% elastane (tested plush fabric)

Support Structure

Resin support strips with high-elastic fixing bands

Connector Type

USB power interface

Optional Power Bank

10000 mAh

Application

Waist, abdomen and lower back

Color

Black with orange accents

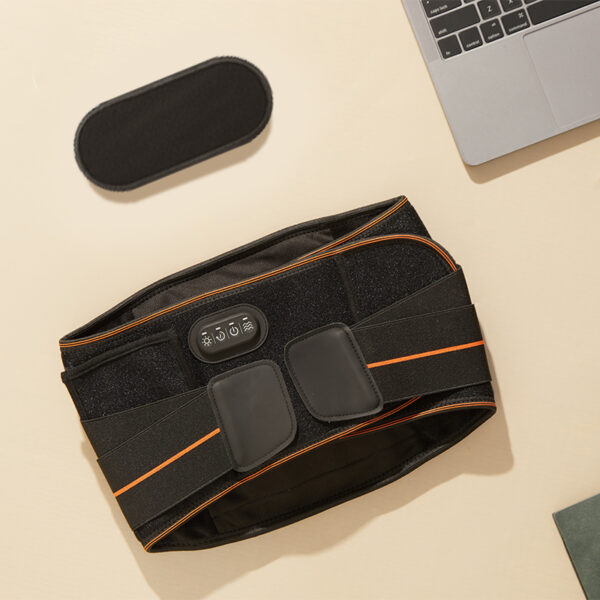

Extension Strap

Included

Electrical Protection Class

Class III

Ingress Protection

IPX0

Color Box Size

255 × 255 × 70 mm

Master Carton Size

540 × 450 × 330 mm

Packing Quantity

12 pcs/carton

Models & Variants

Model / Variant

K-AMZCYD-A0V2

Specification

Graphene heated waist massage belt with 5V/6.5W rated input, three heating levels, dual-motor vibration massage, three timing settings and lumbar support structure.

Customization & Supply

Customization Service

Available

Customization Options

Dimensions, textile materials, color, graphene heating-film layout, heating temperature settings, vibration-massage configuration, timer and control functions, power interface, branding and packaging can be evaluated according to project requirements.

MOQ

MOQ can be discussed according to customer project requirements, material selection and customization specifications.

Production Lead Time

Production lead time is confirmed according to order quantity, material selection, heating and massage configuration, and customization requirements.

Commercial Notes

OEM and ODM requirements can be evaluated according to belt dimensions, materials, graphene heating configuration, vibration-massage system, temperature and timer settings, power configuration, branding and packaging. Final specifications, MOQ and delivery schedule are confirmed during project review and quotation.
