D10

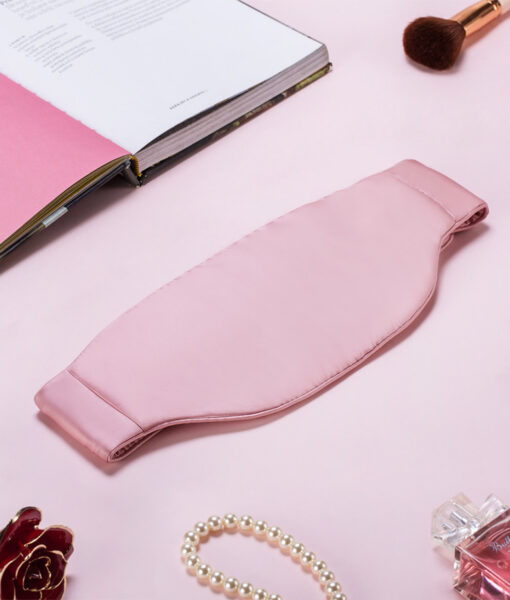

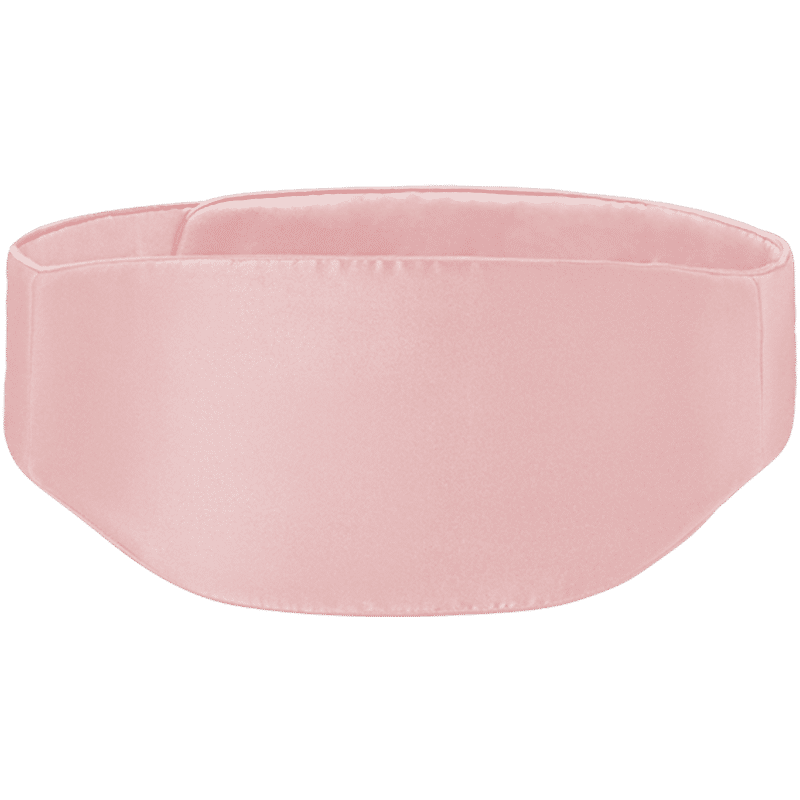

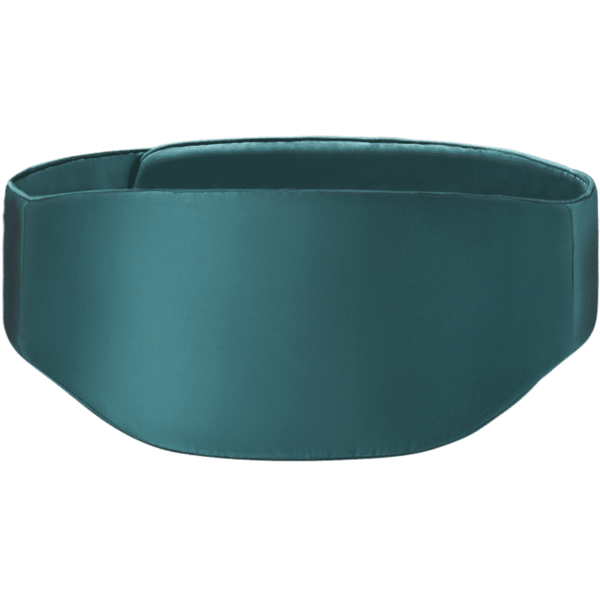

D10 Graphene Heated Silk Abdomen Belt

Low-voltage graphene heated abdomen belt made with mulberry silk outer fabric and polyester filling. The D10 features USB power, three adjustable temperature levels, a wired controller and a wrap-around textile structure for personal abdomen and waist warming.

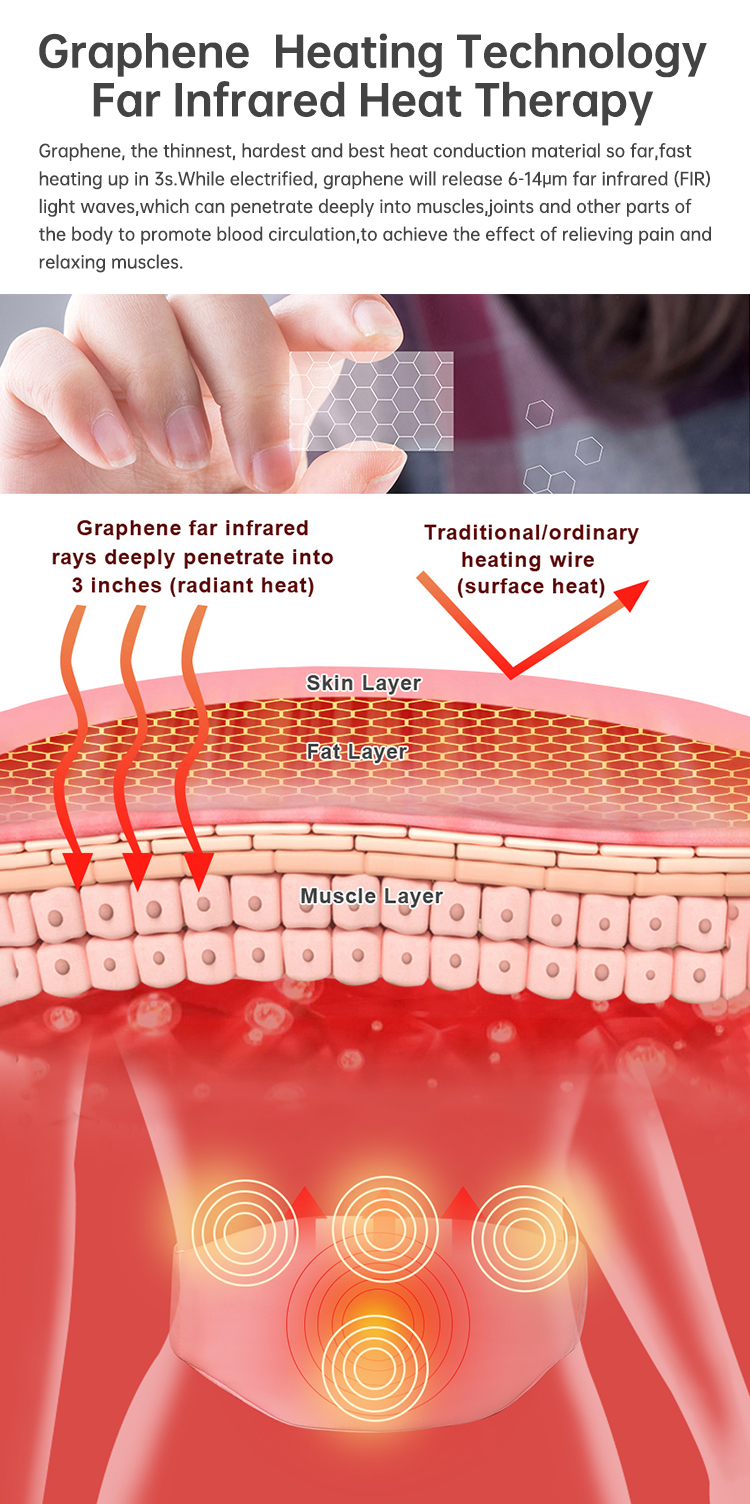

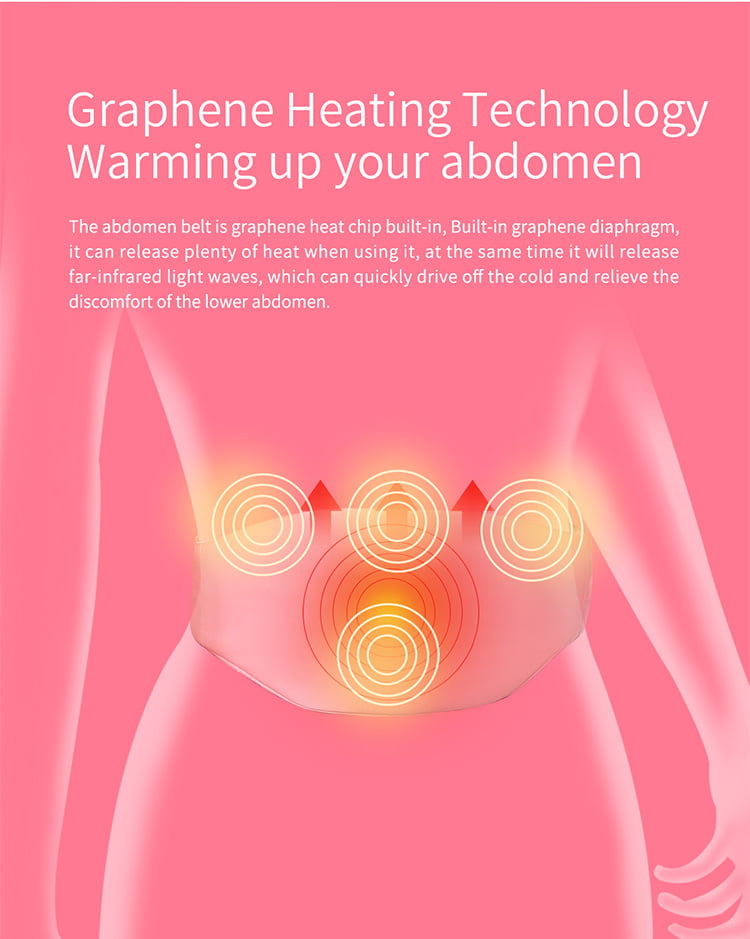

Heating Method	PI-Based Graphene Flexible Heating Film
Category	Health & Wellness
Product Stage	Finished Product Reference
Application Market	Outdoor & Wearable Heating
Technology Type	Flexible Electric Heating

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Key Specifications

Heating Method

PI-Based Graphene Flexible Heating Film

Heating Element

Graphene heating module

Materials

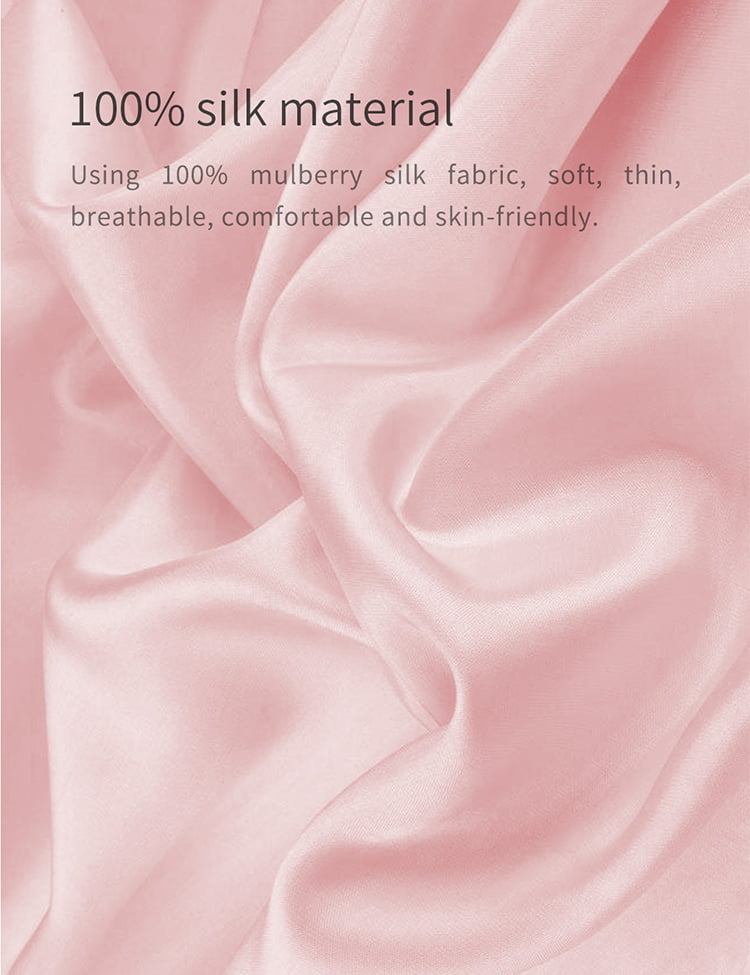

100% mulberry silk outer fabric with 100% polyester filling.

Dimensions

99.5 × 14 cm

Power Source

USB · Power Bank

Control

Wired one-button temperature control with three heating levels: Low 41–45°C, Medium 52–56°C and High 63–67°C. Press and hold the power button for approximately 3 seconds to switch on, then short press to change temperature level.

Cleaning / Washability

hand_washable

Temperature Settings

3 levels

Low Temperature

41–45°C

Medium Temperature

52–56°C

High Temperature

63–67°C

Input Voltage

DC 5V

Input Current

2 A

Power Connection

Micro USB

Battery

No built-in battery

Electrical Class

Class III

Silk Weight

16 momme

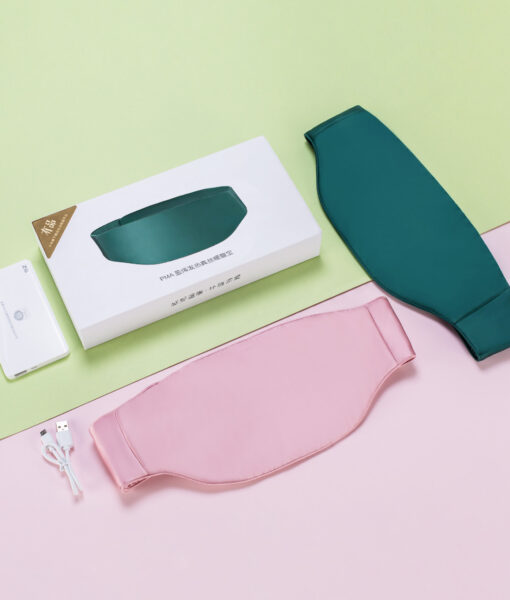

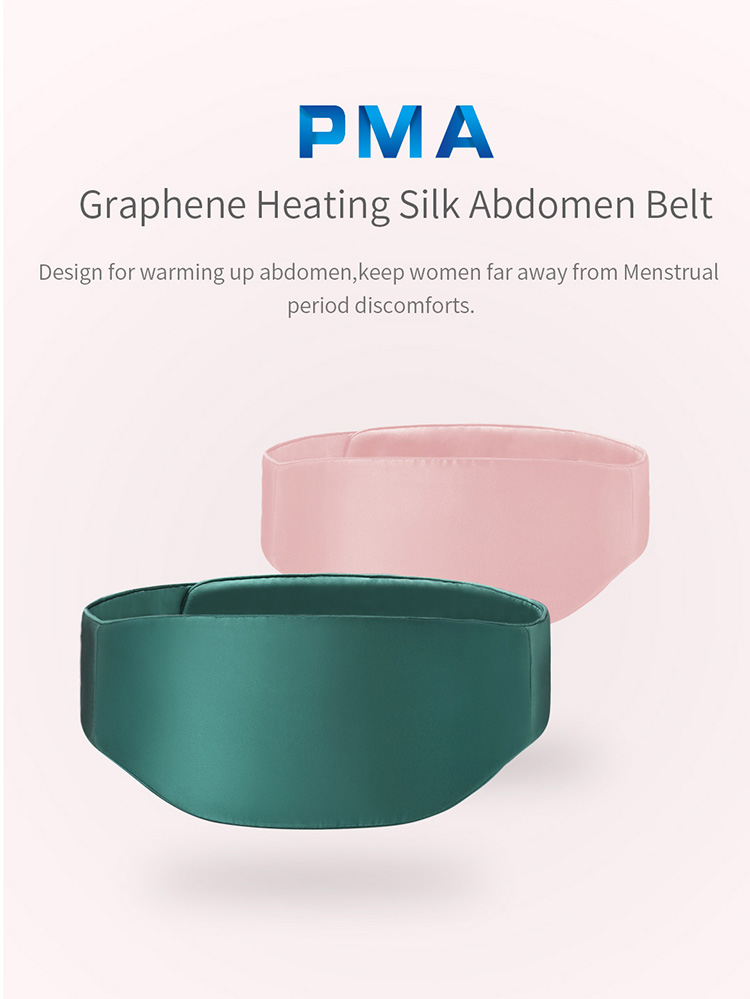

Available Colors

Pink / Dark Green

Application Position

Abdomen / Waist

Washing

Hand wash at ≤30°C; remove the power cable before washing and air dry naturally

Models & Variants

Model / Variant

D10

Specification

USB-powered model without built-in battery; 99.5 × 14 cm

Customization & Supply

Customization Service

Available

Commercial Notes

Available documentation includes product-specific CE EMC, RoHS, electrical safety and textile safety test records for model PMA-D10. Commercial terms, MOQ and production lead time are subject to project confirmation.
