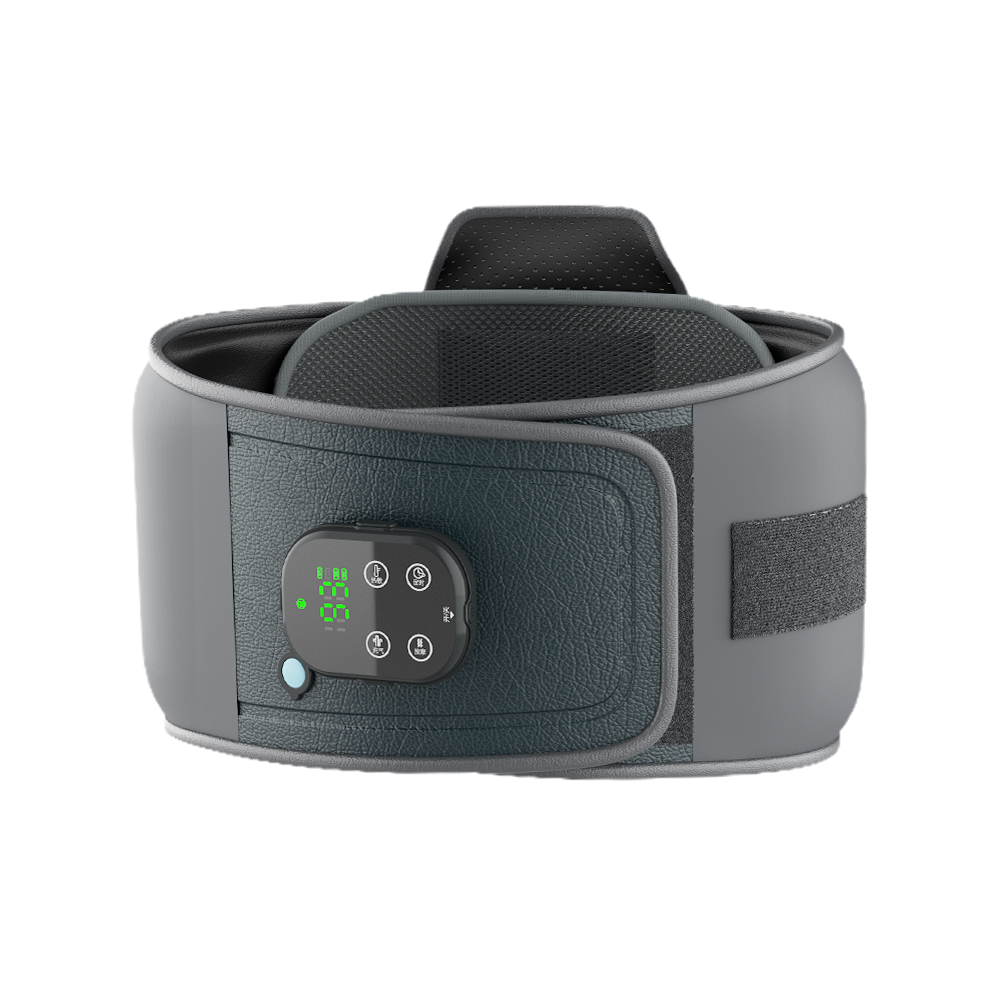

HA(Z)60-HMBDXM-01

Graphene Airbag Lumbar Support Belt

5V graphene airbag lumbar support belt with H-shaped pneumatic support, three-level heating, automatic inflation and portable power-bank operation.

Heating Method	PI-Based Graphene Flexible Heating Film
Category	Health & Wellness
Product Stage	Finished Product Reference
Application Market	Health & Wellness
Technology Type	Flexible Electric Heating

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

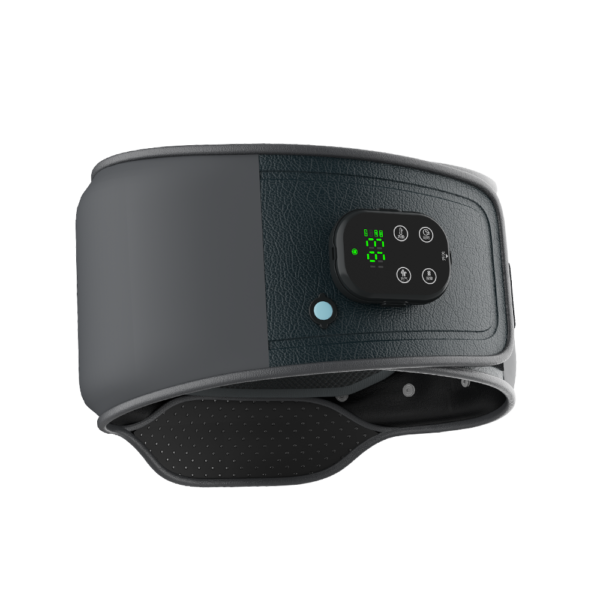

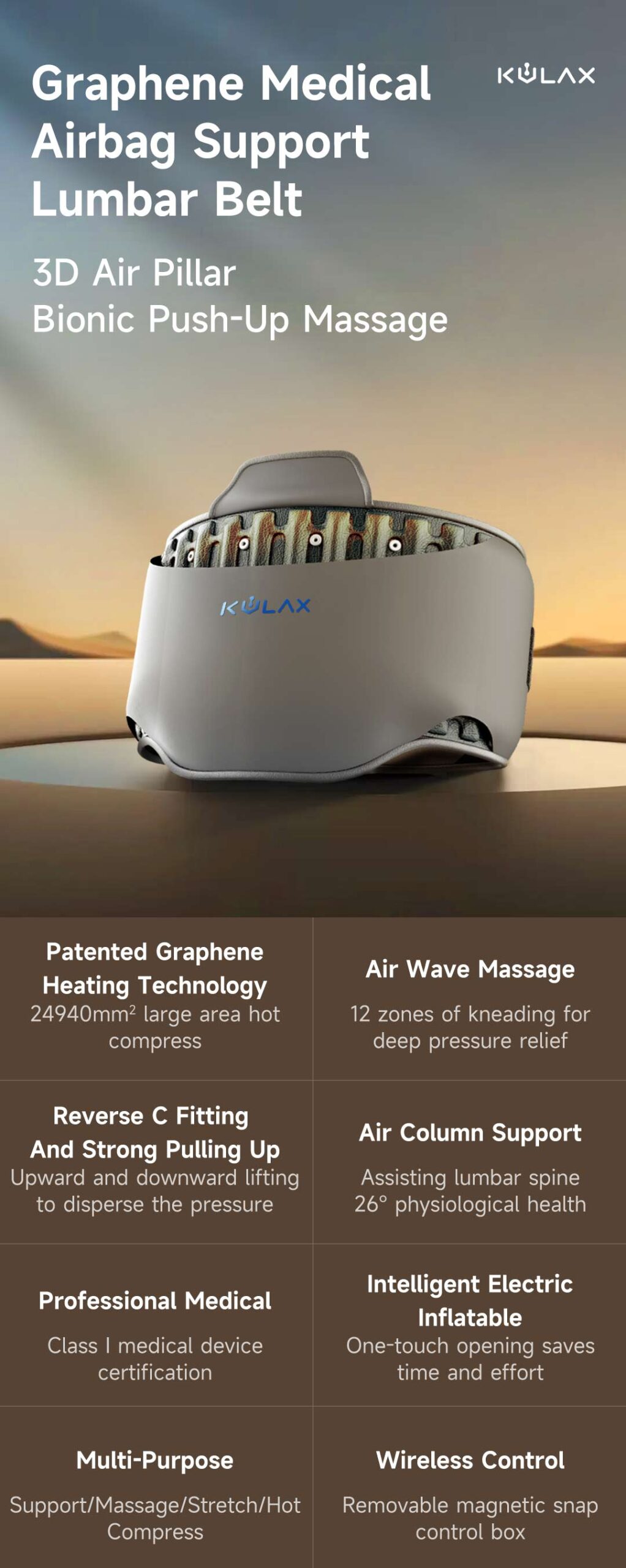

Graphene airbag lumbar support belt HA(Z)60-HMBDXM-01 combines graphene heating with an inflatable lumbar-support system for daily waist and lower-back support applications.

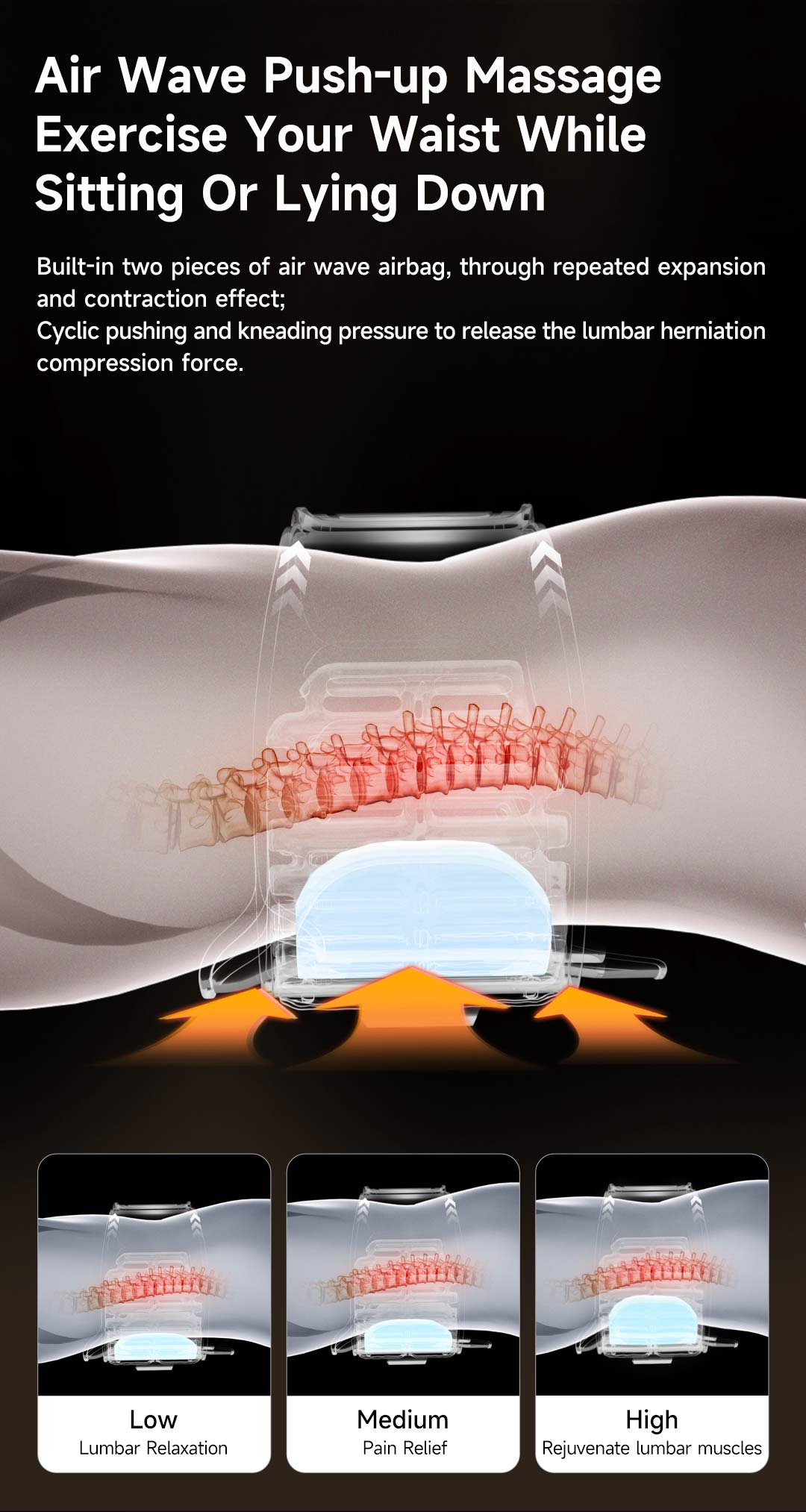

The product uses an H-shaped airbag structure to provide adjustable support across the lumbar area and both sides of the waist. A five-layer TPU airbag construction is paired with an automatic electric pump, enabling approximately 15-second inflation and 5-second deflation for convenient pressure adjustment.

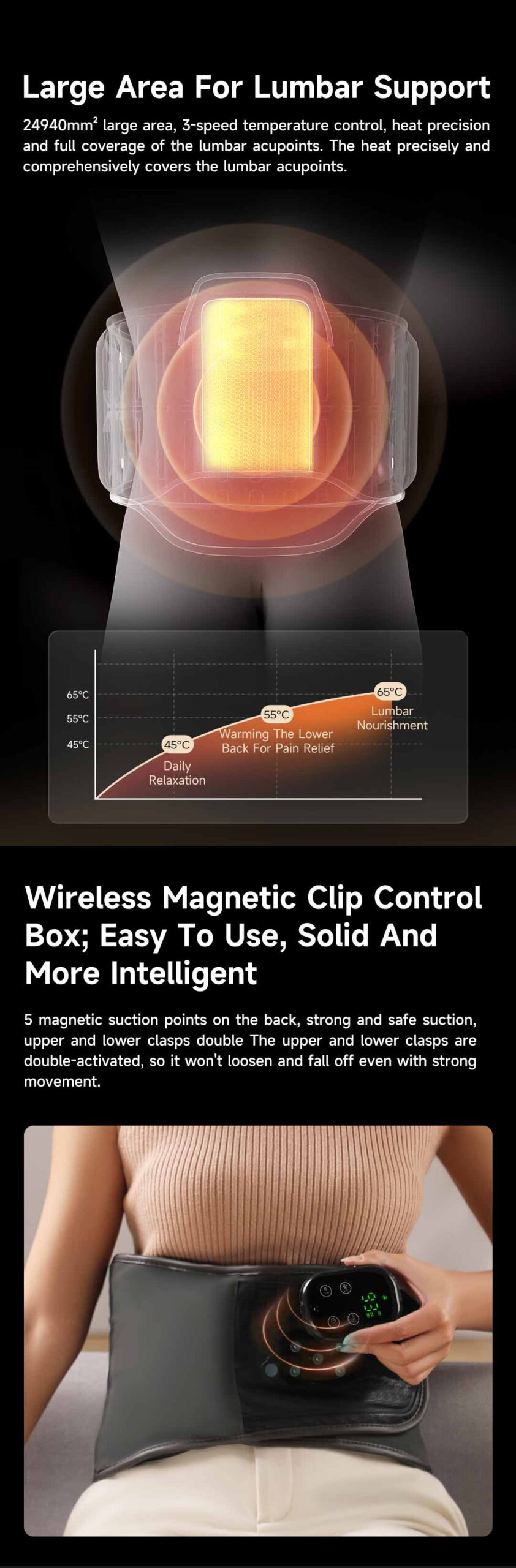

The detachable graphene heating module connects to the belt through a Type-C interface and provides three temperature ranges: 45–52°C, 55–62°C and 65–72°C. The 26° ergonomic support structure follows the natural lumbar curve while breathable skin-contact materials improve wearing comfort.

HA(Z)60-HMBDXM-01 operates from a 5V/2A low-voltage power system and supports portable power-bank operation.

For B2B projects, PMA provides OEM and ODM customization covering belt dimensions, airbag structure, support configuration, graphene heating system, textile materials, controller, color, branding, accessories, labels and packaging.

Key Specifications

Heating Method

PI-Based Graphene Flexible Heating Film

Heating Element

Detachable graphene flexible heating film

Materials

Breathable textile · 5-layer TPU airbag · structural support components · graphene flexible heating film

Power Source

Power Bank

Control

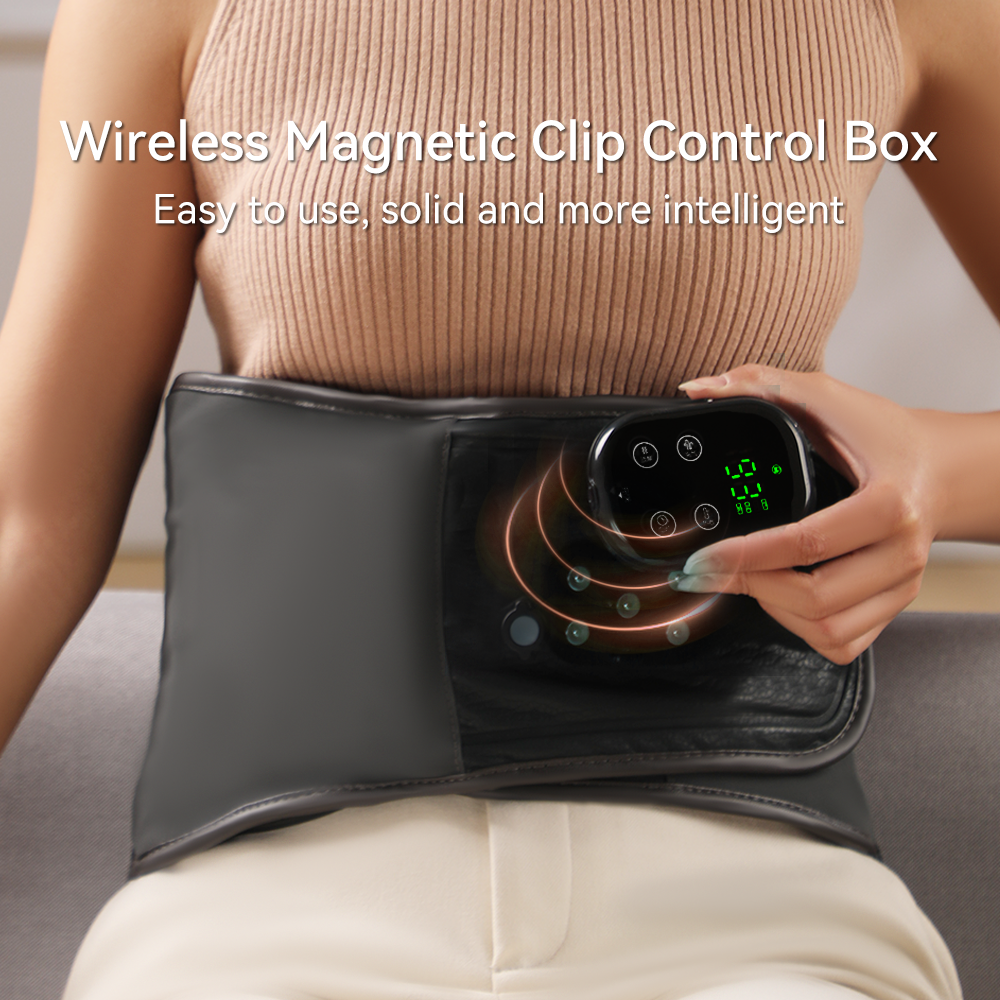

Electronic control for three-level graphene heating and automatic airbag inflation and deflation.

Cleaning / Washability

Detach the graphene heating module and electronic components before cleaning. Keep electrical connectors dry and allow the textile body to dry completely before reassembly.

Input

5 V / 2 A

Heating Levels

3 levels

Low Temperature

45–52°C

Medium Temperature

55–62°C

High Temperature

65–72°C

Airbag Structure

H-shaped lumbar support airbag

Airbag Construction

5-layer TPU airbag

Inflation System

Automatic electric pump

Inflation Time

Approx. 15 s

Deflation Time

Approx. 5 s

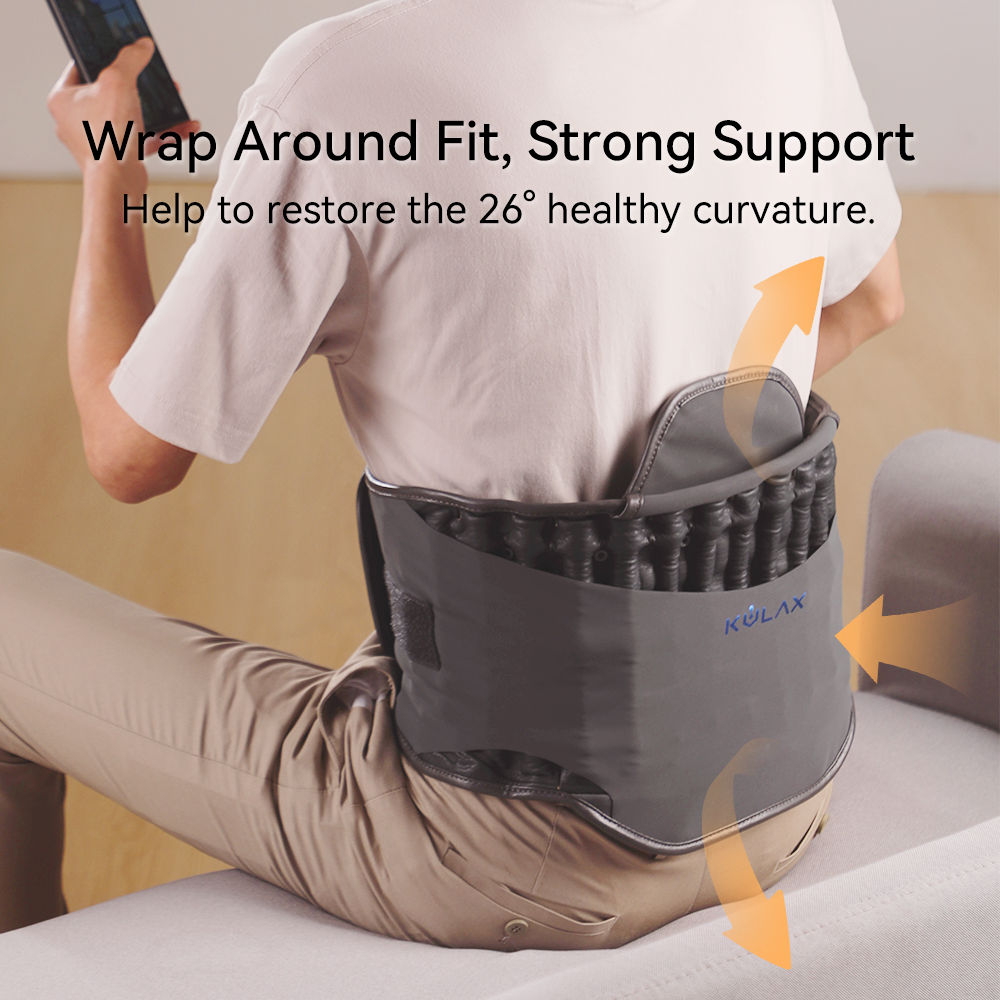

Support Curve

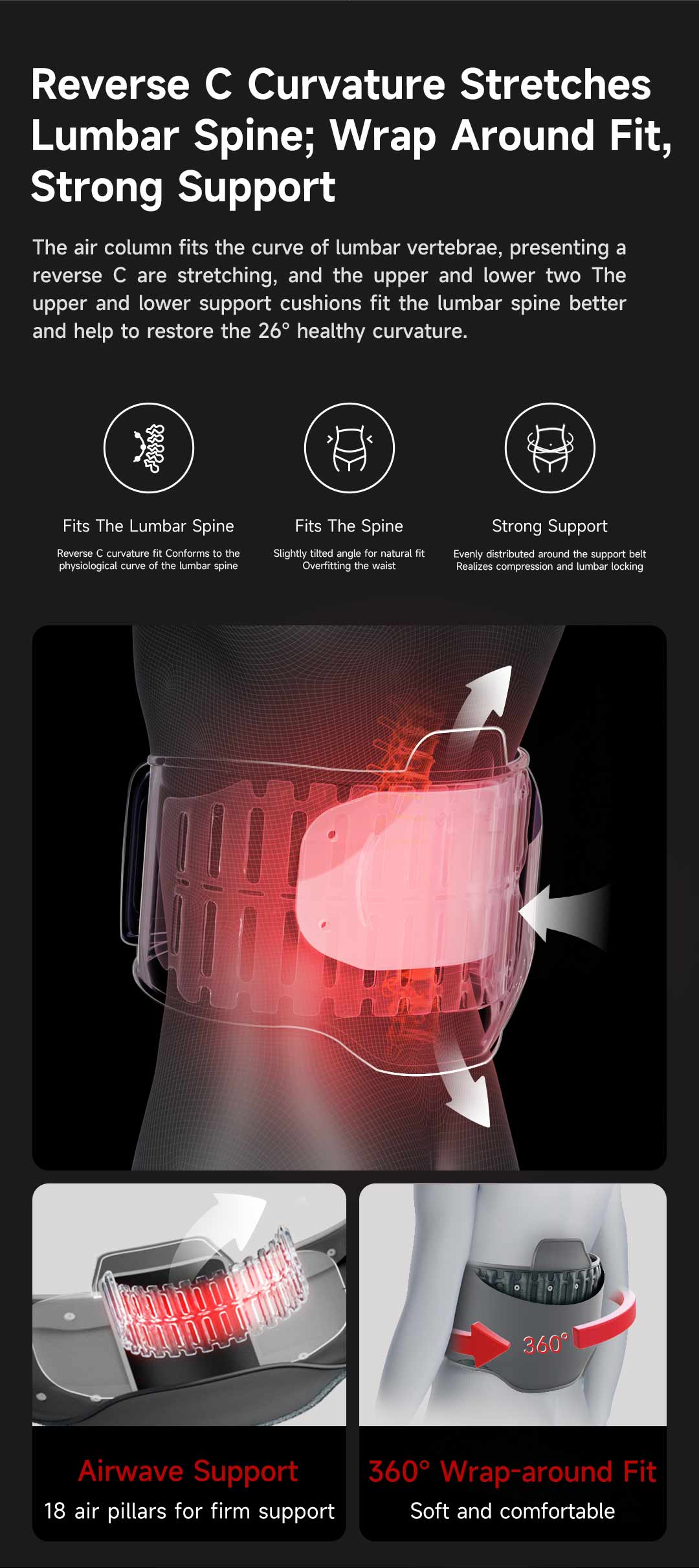

26° ergonomic lumbar curve

Heating Module Connection

Detachable Type-C connection

Heating Module Mounting

Hook-and-loop detachable mounting

Recommended Power Bank

5000 mAh

High-Level Runtime

Approx. 2 h

Medium-Level Runtime

Approx. 3 h 12 min

Low-Level Runtime

Approx. 4 h 01 min

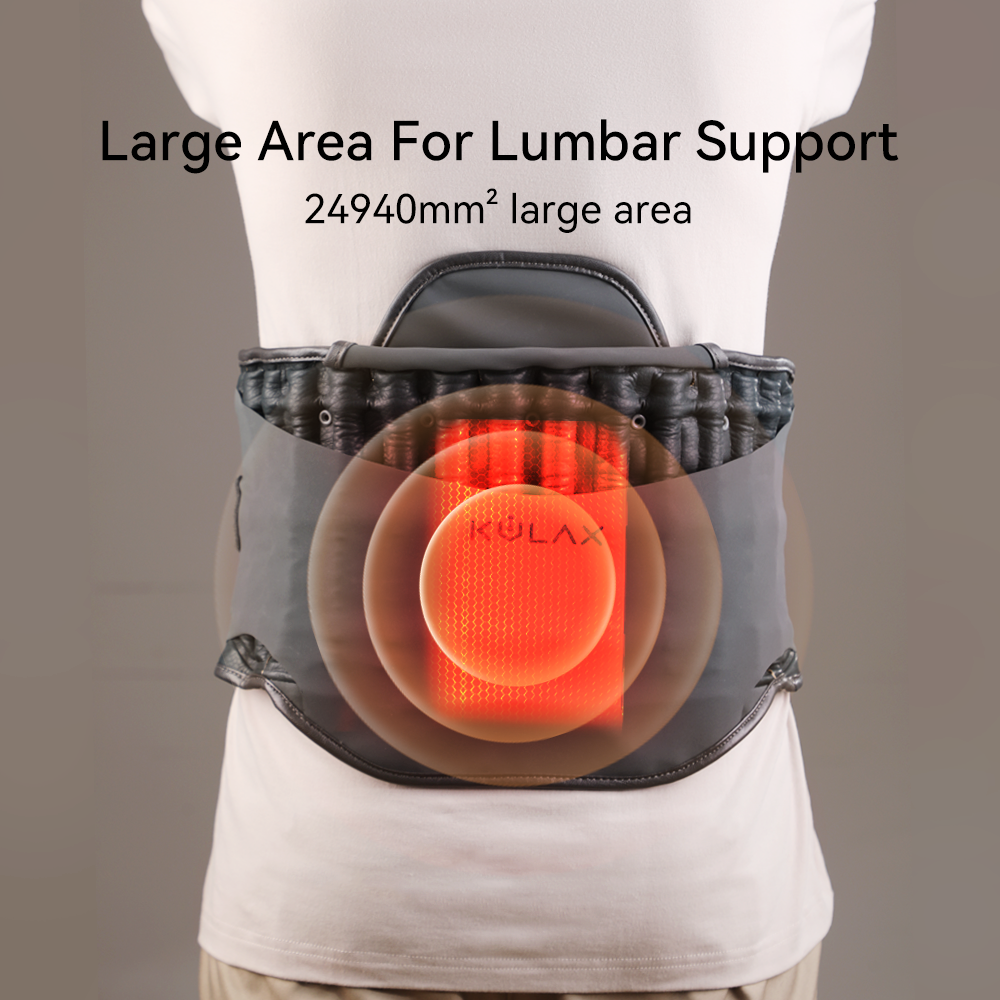

Support Area

Lumbar region and both sides of the waist

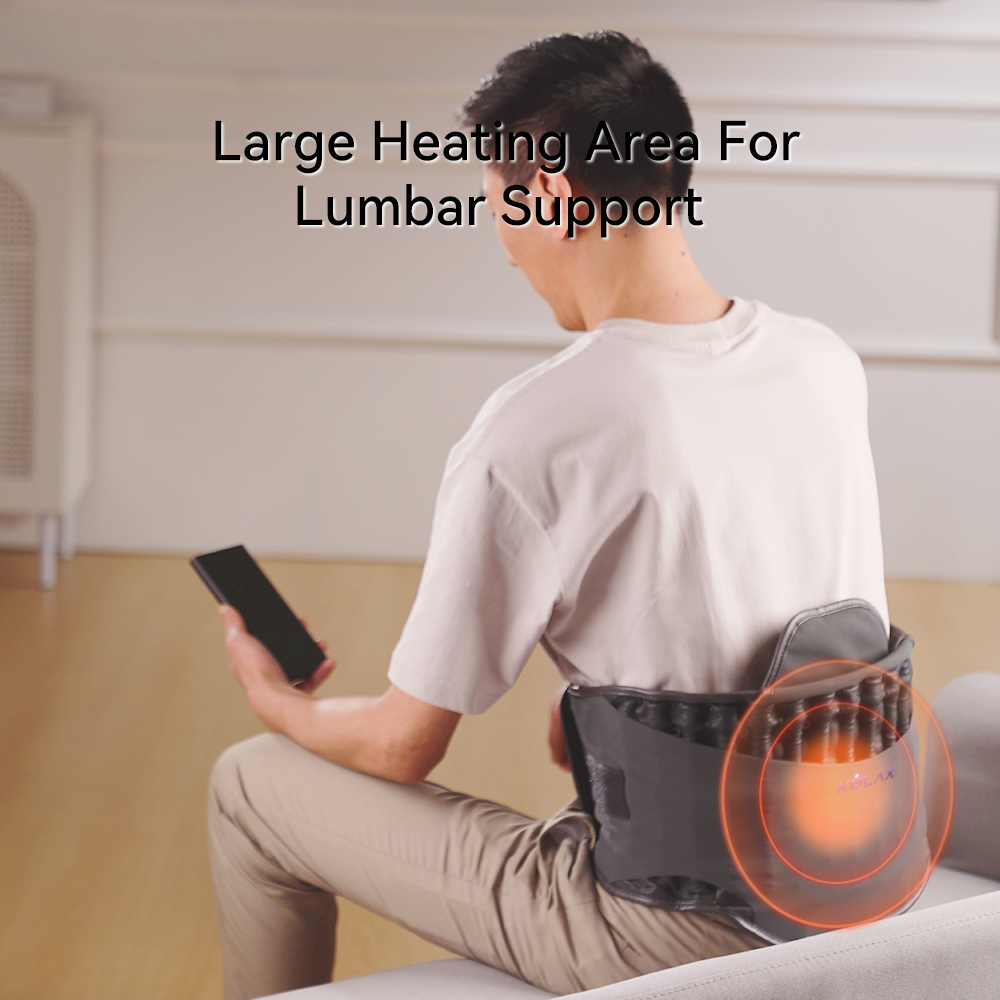

Heating Area

Lumbar area

Application

Home · Office · Travel · Daily Lumbar Support

Models & Variants

Model / Variant

HA(Z)60-HMBDXM-01

Specification

5V / 2A · H-shaped airbag support · 3-level graphene heating · Automatic inflation and deflation

Customization & Supply

Customization Service

Available

Customization Options

OEM and ODM customization is available for belt dimensions, airbag structure, lumbar-support configuration, graphene heating system, textile materials, controller, power configuration, color, logo, accessories, labels and packaging.

MOQ

Project-based MOQ

Production Lead Time

Scheduled according to the confirmed specification, sample approval and production plan.

Commercial Notes

PMA provides OEM, ODM and custom engineering support for airbag lumbar-support products, covering pneumatic structure, graphene heating integration, controller development, material selection, structural optimization, branding, packaging, sample validation and manufacturing coordination.
