K-A10Pro-B0V2

A10 Pro Graphene Heated Waist Belt

A 5V graphene heated waist belt with 10W rated power, three temperature levels, digital display, adjustable support and wearable low-voltage heating.

Heating Method	Graphene Flexible Cloth / Fabric Heating Film
Category	Health & Wellness Outdoor & Wearable Heating
Product Stage	Finished Product Reference
Application Market	Health & Wellness Outdoor & Wearable Heating
Technology Type	Flexible Electric Heating

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

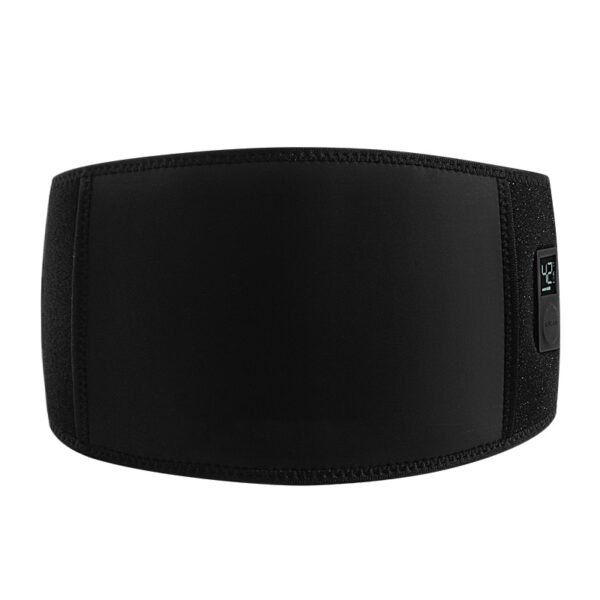

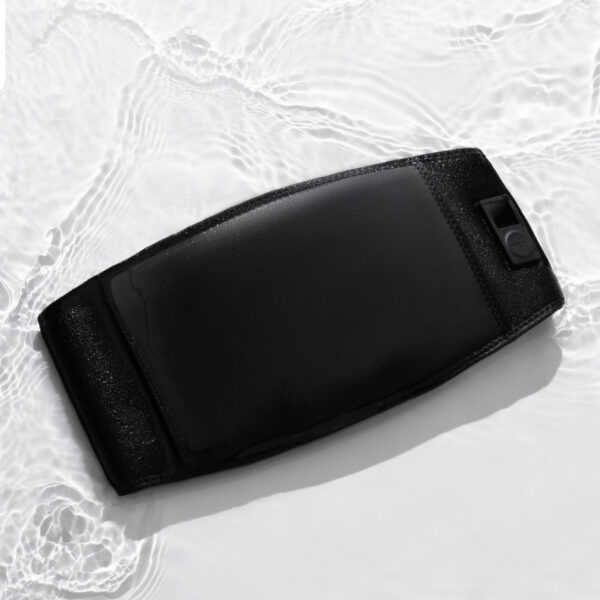

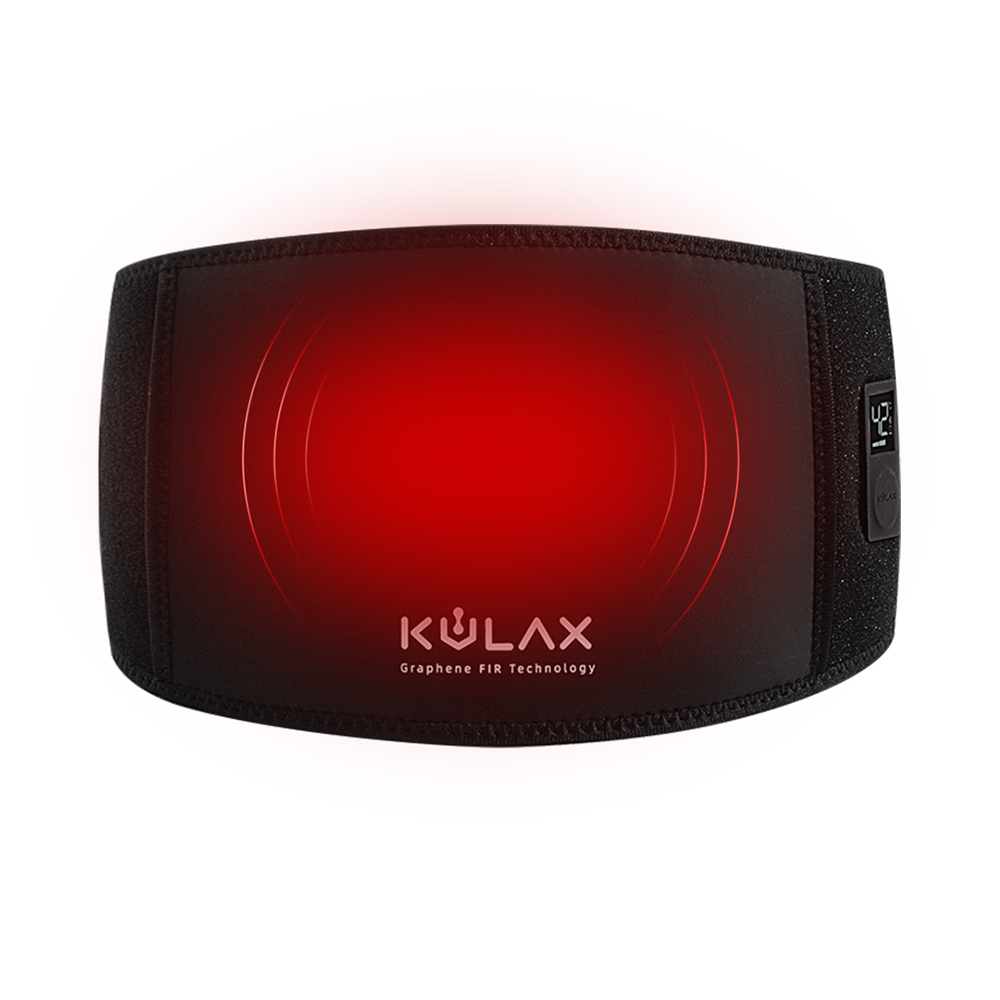

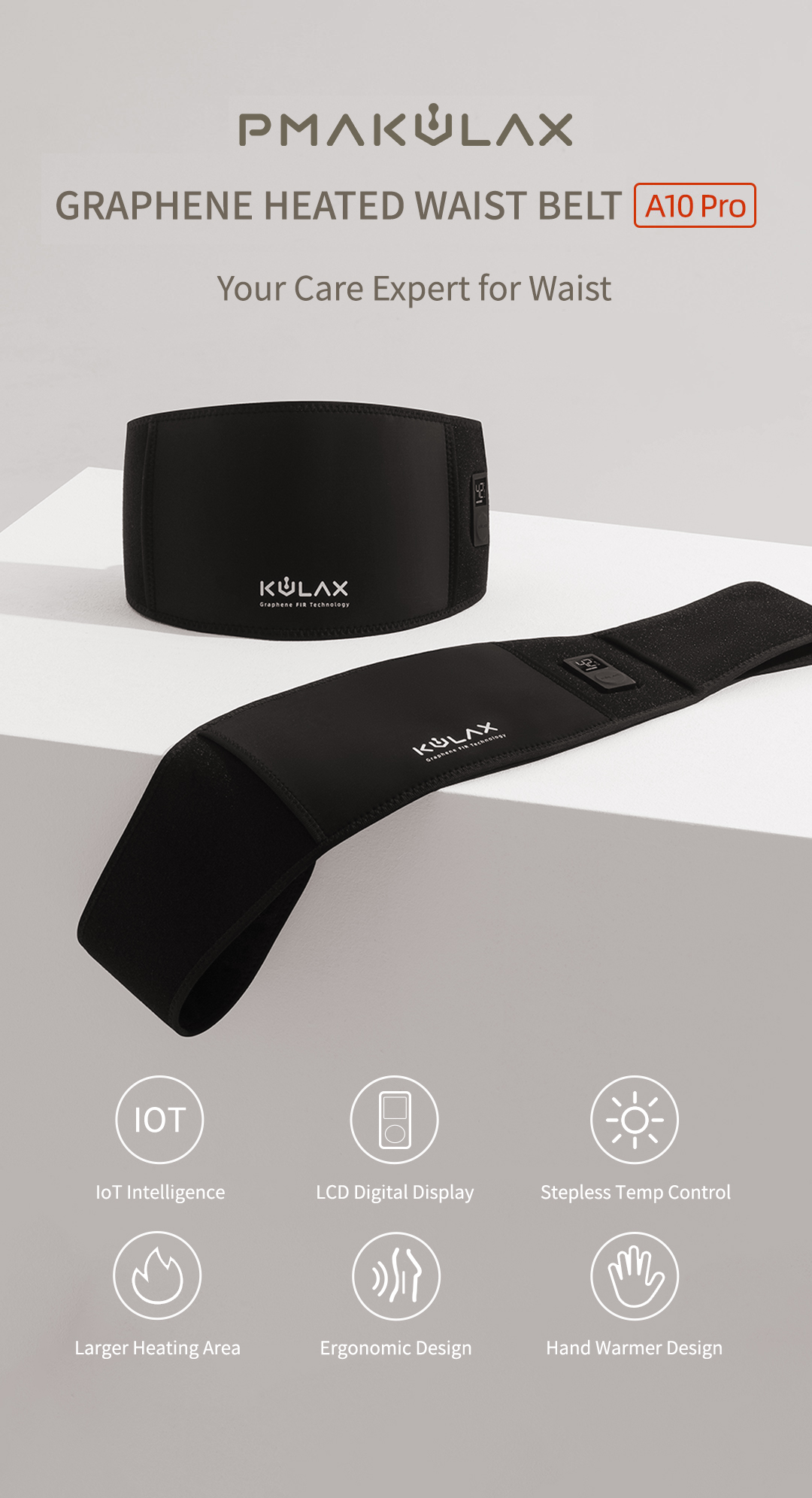

The A10 Pro graphene heated waist belt is a 5V wearable heating product designed for controlled warmth around the waist and lower-back area.

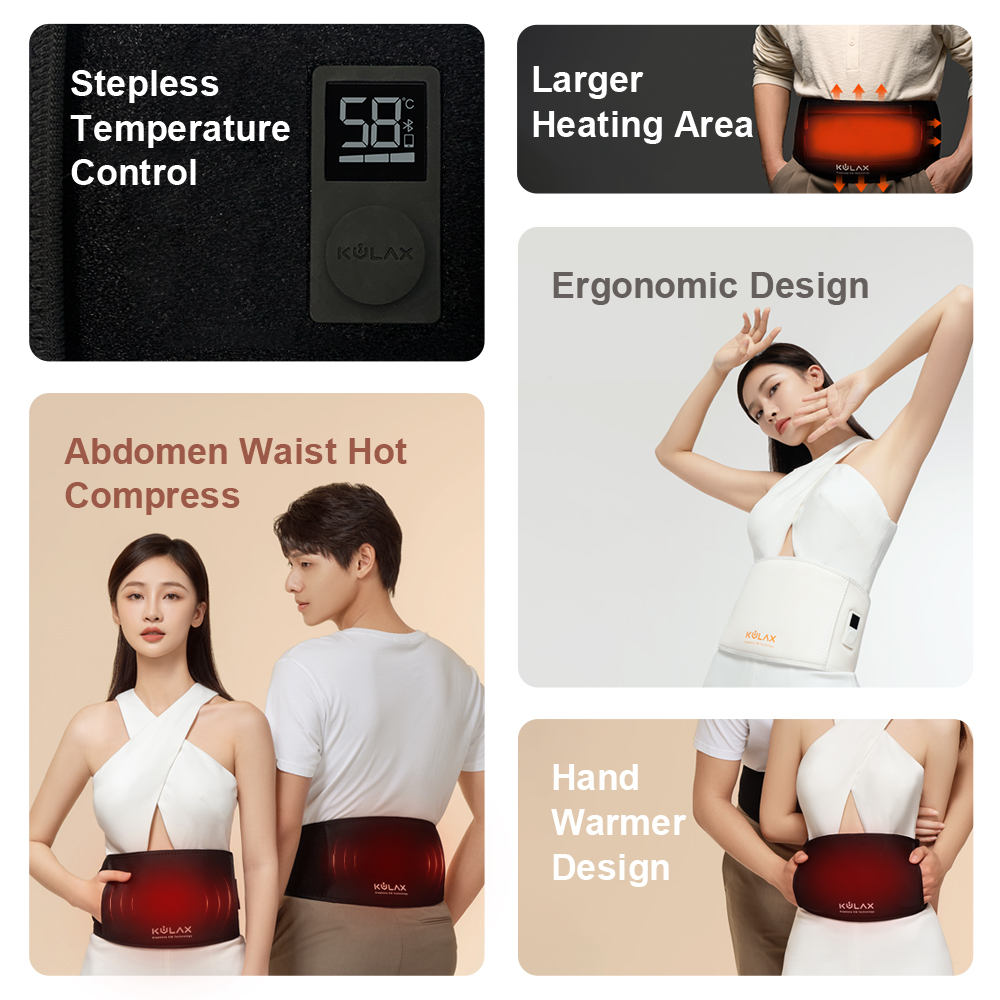

The product operates from an external 5V DC power source with a rated power of 10W. Three temperature levels are provided, with approximately 40–45°C for the low setting, 45–50°C for the medium setting and 50–58°C for the high setting. The built-in display allows the selected temperature level to be viewed directly on the controller.

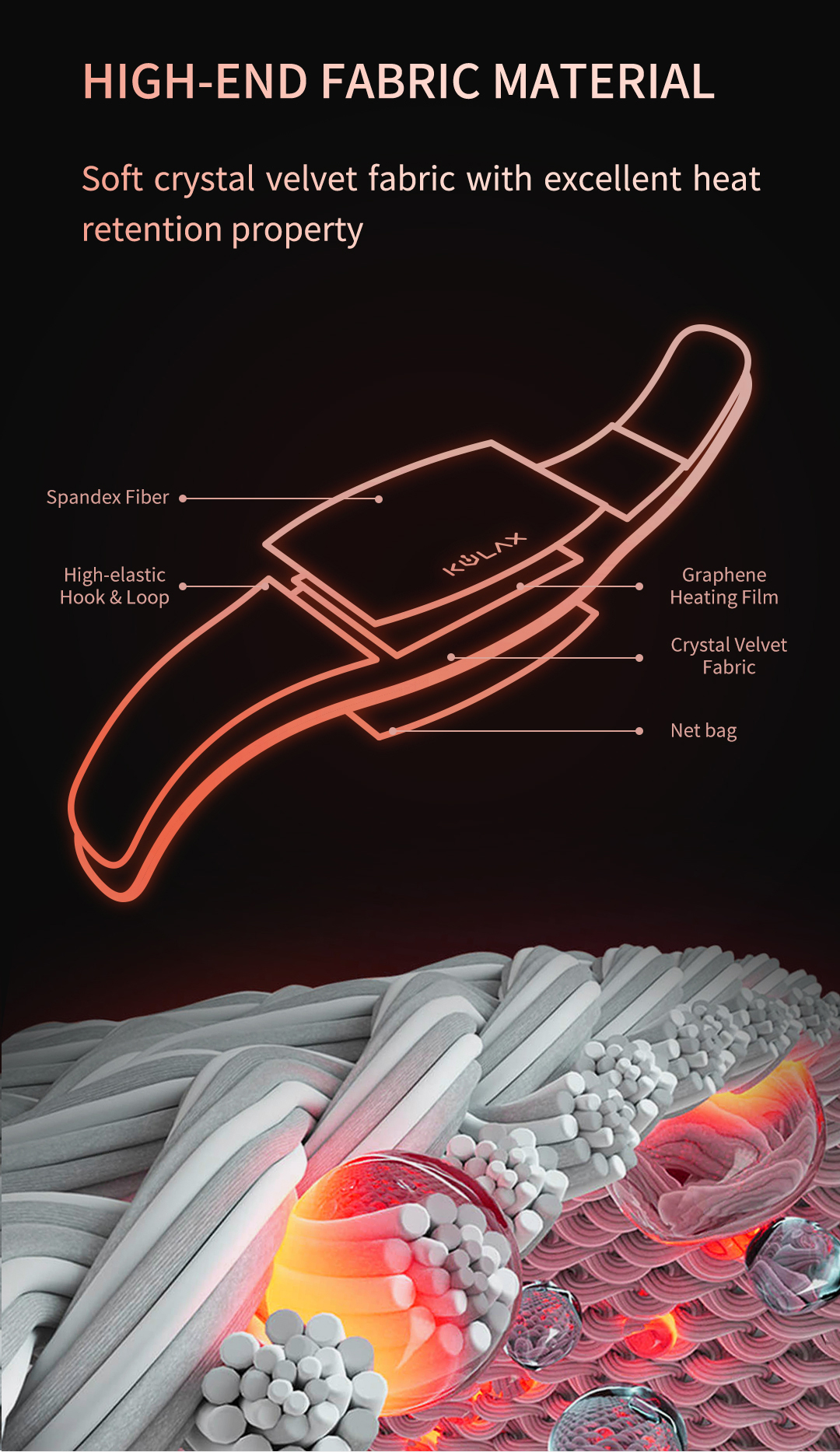

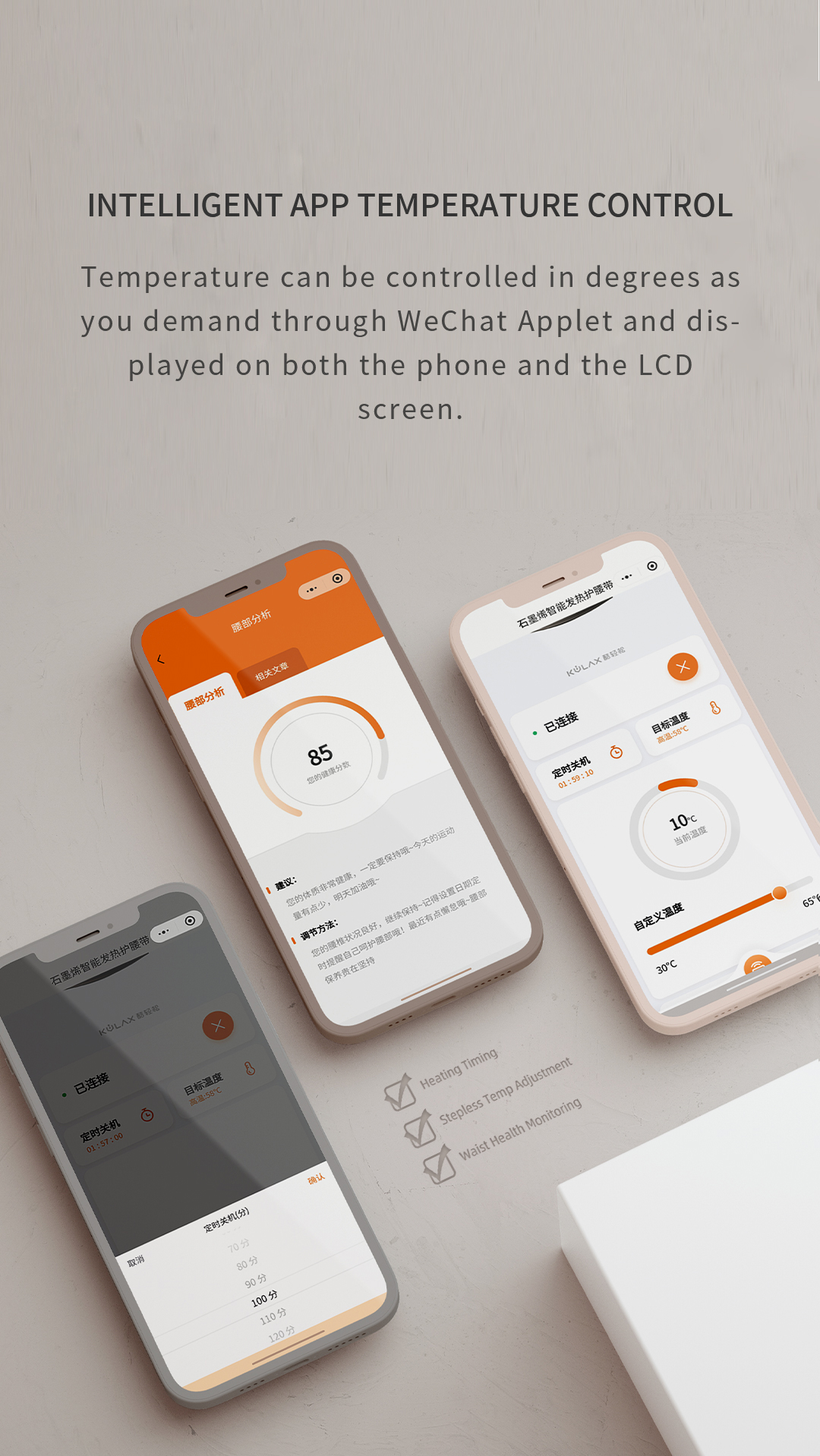

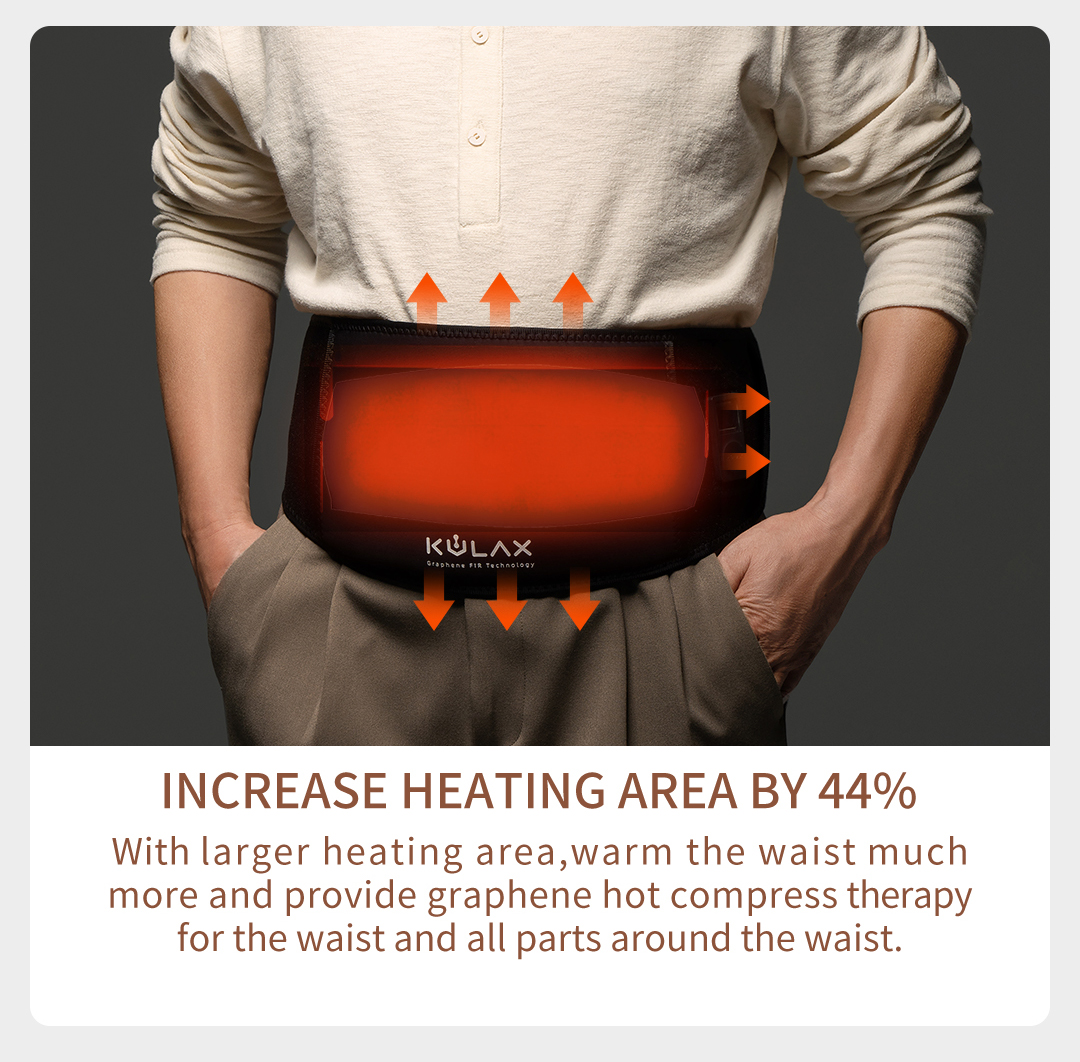

The belt uses a flexible textile construction with an enlarged heating area, adjustable fastening and integrated hand-warmer pockets. Compatible mobile control functions shown in the available product materials support temperature and timing adjustment through a connected smart device.

The tested black waist-belt sample includes nylon, spandex and polyester textile components. Electrical safety testing confirms the K-A10Pro-B0V2 model as a Class III portable appliance operating from a 5V DC supply with a maximum rated power of 10W.

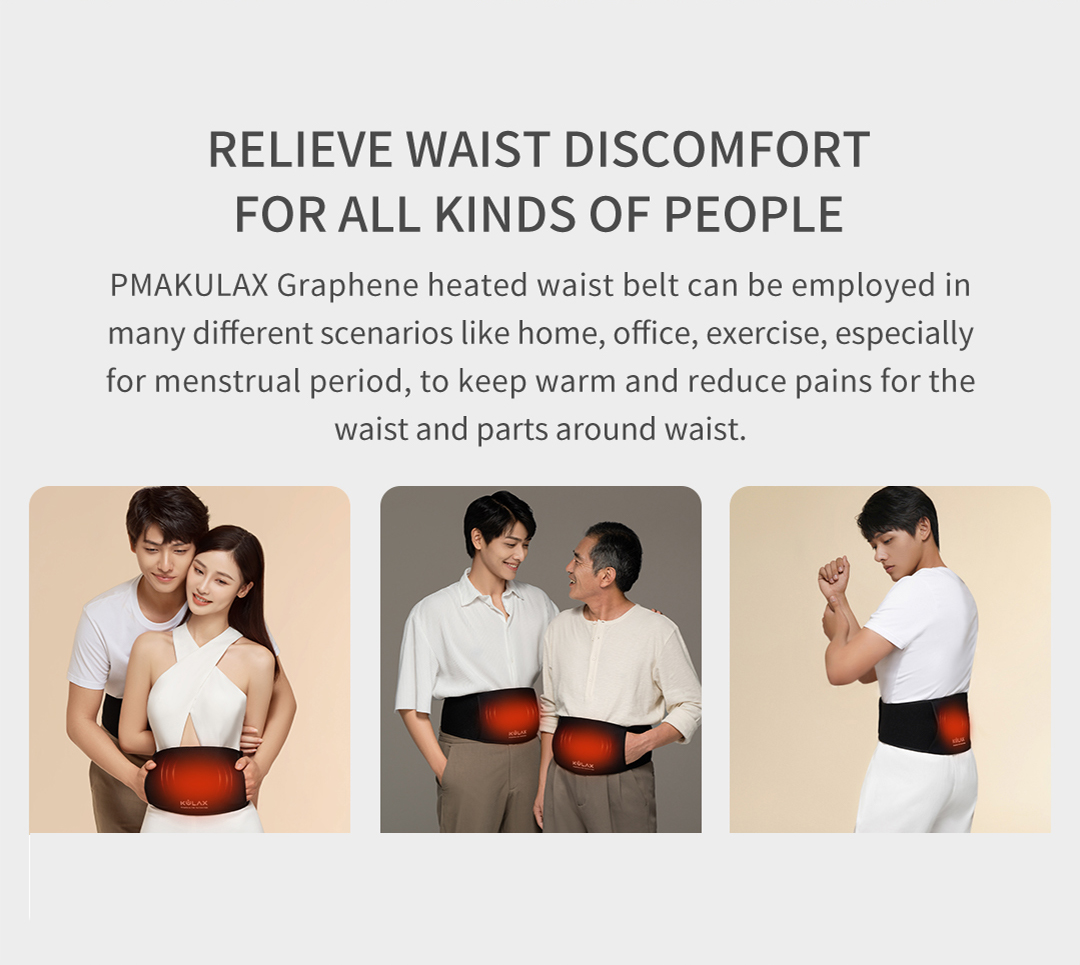

The A10 Pro is suitable for personal warming, home use, office use and wearable cold-weather applications. OEM and ODM requirements such as textile configuration, exterior color, branding, packaging and selected control functions can be reviewed according to project specifications.

Key Specifications

Heating Method

Graphene Flexible Cloth / Fabric Heating Film

Heating Element

Flexible graphene heating film

Materials

Nylon, spandex and polyester textile components with flexible graphene heating structure

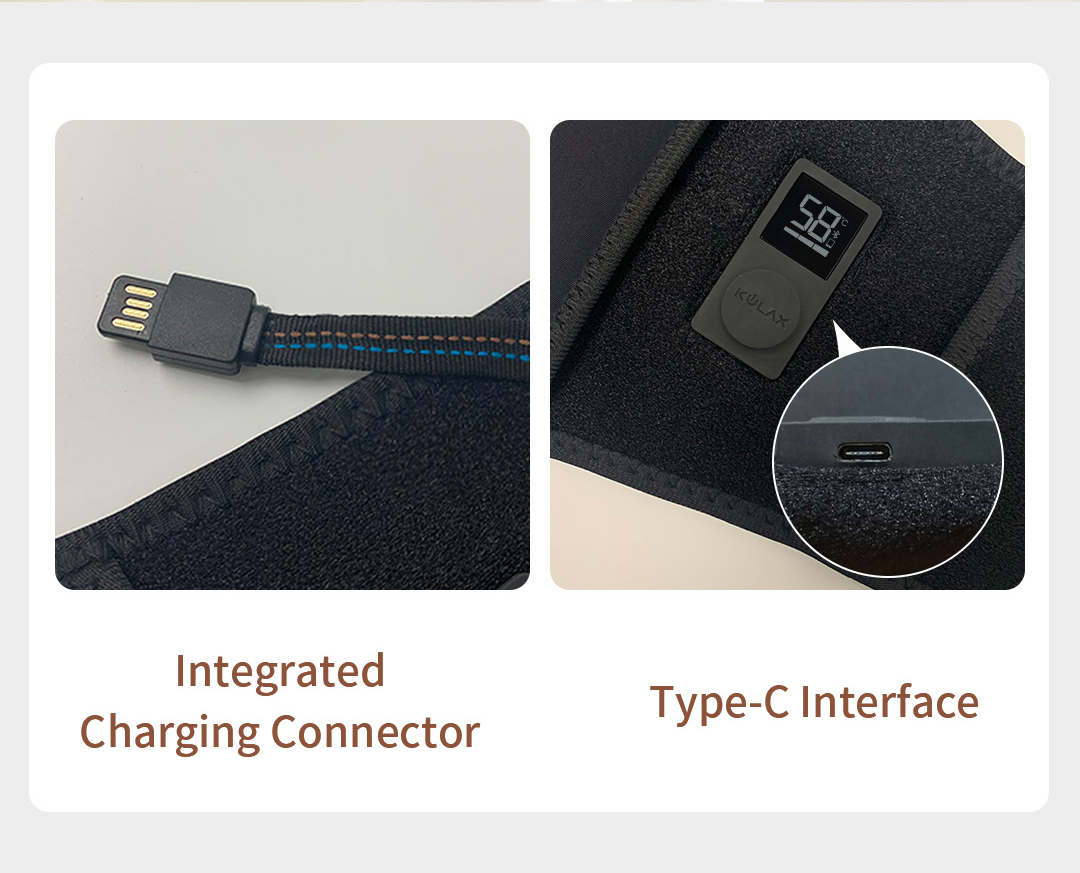

Power Source

USB · Power Bank · Adapter

Control

Electronic three-level temperature control with LCD display. The specified temperature ranges are approximately 40–45°C, 45–50°C and 50–58°C. Compatible mobile control functions support temperature and timing adjustment.

Cleaning / Washability

Disconnect the product from the power source before cleaning. Hand wash gently and keep the controller, connector and electronic components protected from prolonged water exposure. Do not wring aggressively. Allow the product to dry completely before reconnecting to power.

Rated Voltage

5V DC

Rated Power

10W

Temperature Levels

3 Levels

Low Temperature

40–45°C

Medium Temperature

45–50°C

High Temperature

50–58°C

Control Type

Electronic temperature control with digital display

Heating Element

Flexible graphene heating film

Heating Area

Enlarged waist heating area

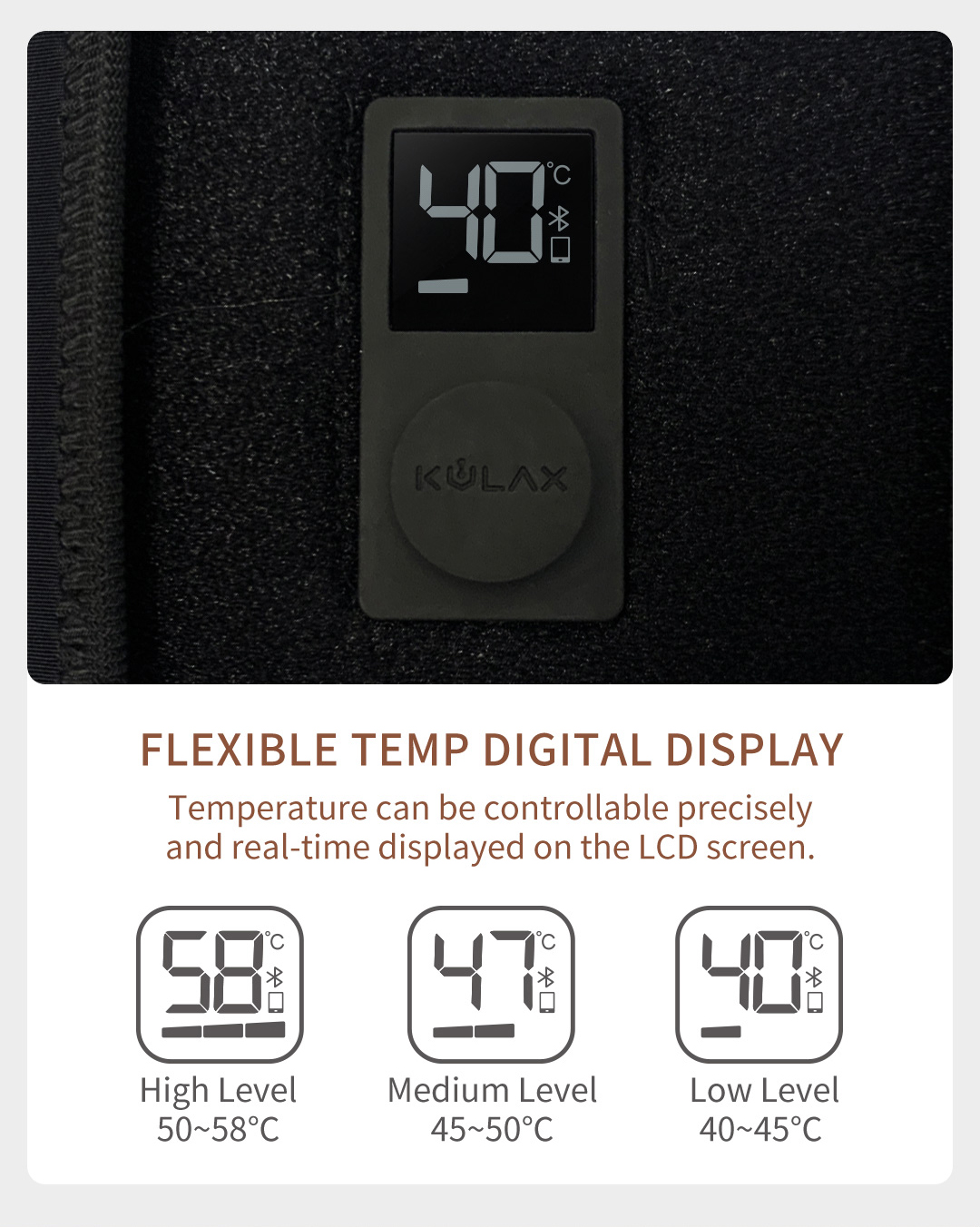

Display

LCD temperature display

Mobile Control

Compatible smart-device control for temperature and timing adjustment

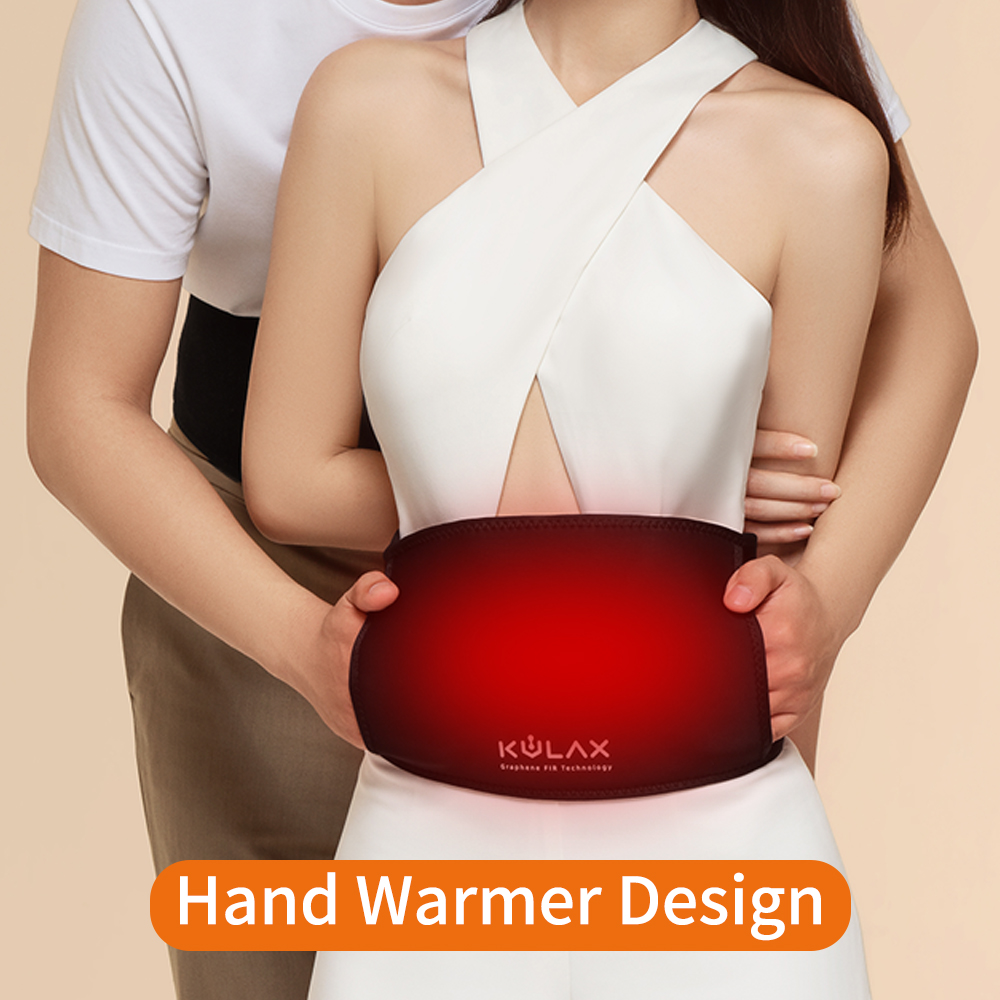

Hand-Warmer Design

Integrated two-sided hand-warmer pockets

Safety Classification

Class III appliance

Water Protection

IPX0

Appliance Type

Portable

Operating Mode

Continuous operation

Heating Element Type

Film-type electric heating element

Smooth Fabric - Tested Sample

Nylon 85.8%; Spandex 14.2%

Black Fleece - Tested Sample

Polyester 100%

End Fleece - Tested Sample

Nylon 88.0%; Spandex 12.0%

Models & Variants

Model / Variant

K-A10Pro-B0V2

Specification

A10 Pro graphene heated waist belt with 5V operation, 10W rated power, three-level temperature control and digital display.

Customization & Supply

Customization Service

Available

Customization Options

Textile material, exterior color, heating configuration, branding, packaging and selected control functions can be discussed according to OEM/ODM project requirements.

Commercial Notes

OEM/ODM requirements are reviewed according to textile structure, heating configuration, control functions, exterior finish, branding, packaging and order quantity. Final MOQ, lead time and customized specifications are subject to project confirmation.
