HA(R)10-HMBDH-01

Graphene Heated Massage Belt

Graphene heated massage belt with three-level heating, three-level vibration, timer control, detachable wireless controller and a built-in 5000mAh battery.

Heating Method	PI-Based Graphene Flexible Heating Film
Category	Health & Wellness Home & Textile Heating
Product Stage	Finished Product Reference
Application Market	Health & Wellness Home & Textile Heating
Technology Type	Flexible Electric Heating

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

Graphene heated massage belt HA(R)10-HMBDH-01 combines graphene heating and vibration massage in a wearable waist-care product designed for daily wellness applications.

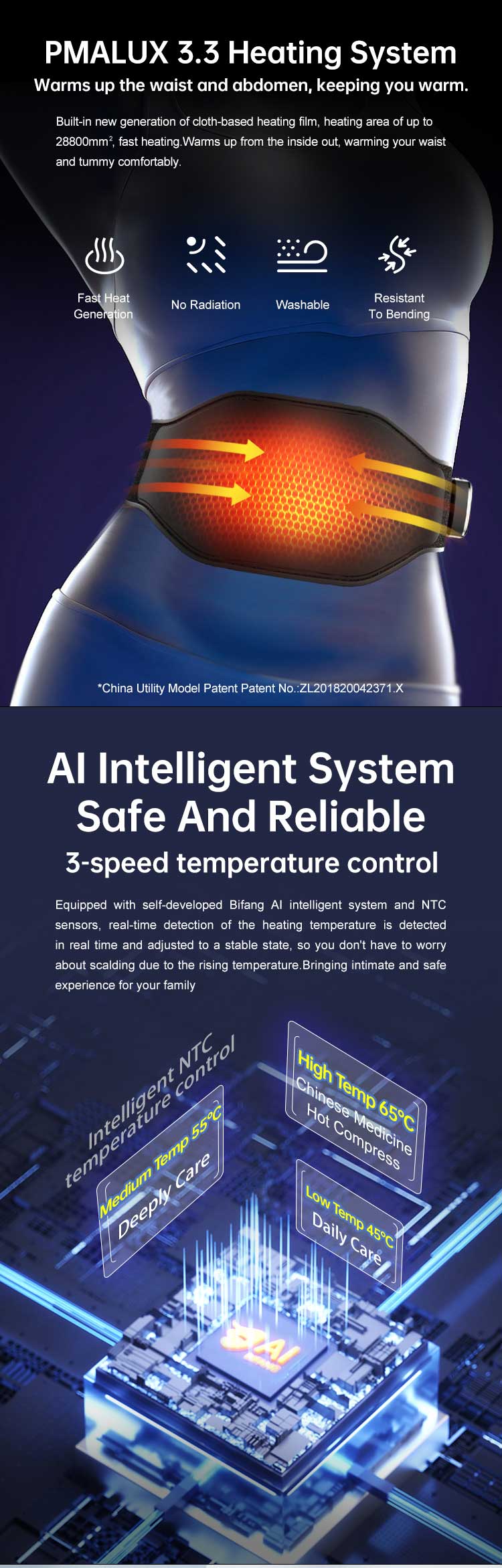

The belt provides three selectable heating temperatures at 45°C, 55°C and 65°C together with three vibration massage levels. A detachable wireless integrated controller allows convenient adjustment of heating, massage and timer settings.

The built-in 5000mAh battery supports portable use without requiring an external power bank during operation. The timer can be set to 30, 60 or 90 minutes, with 30 minutes used as the default working time.

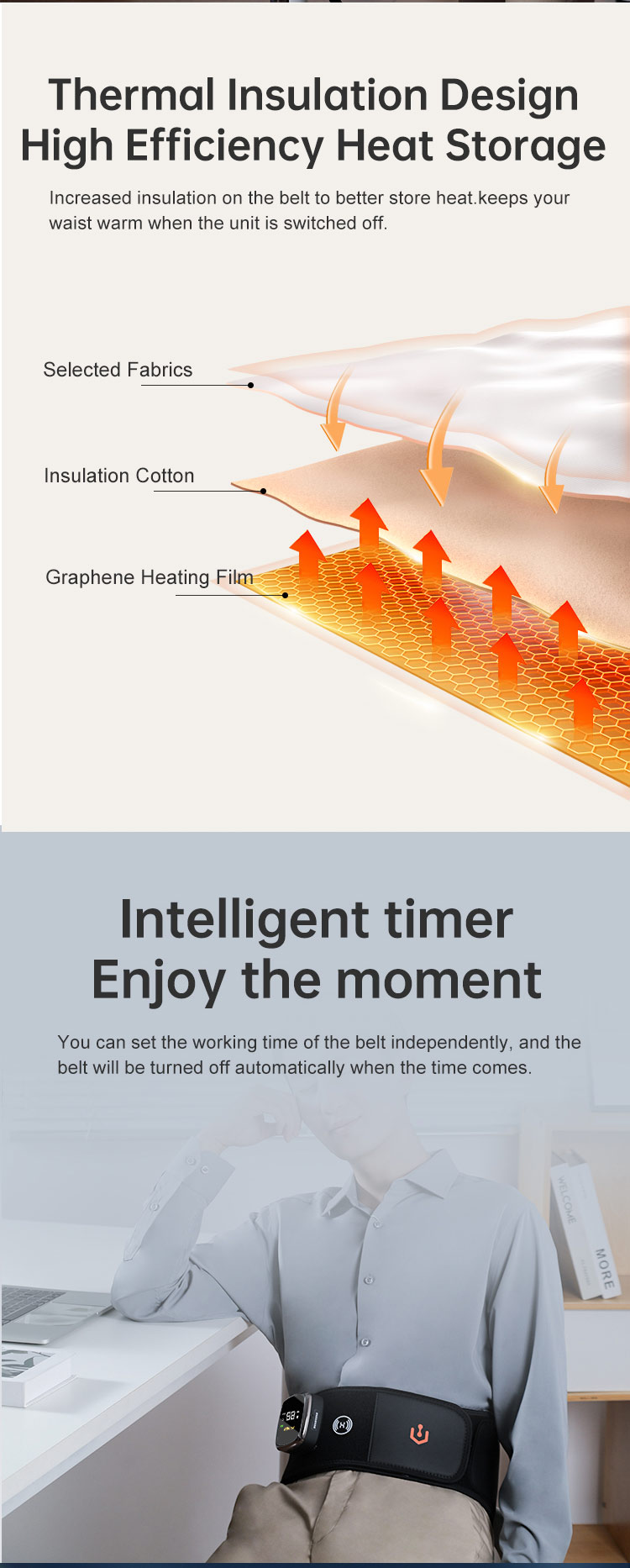

The waist area incorporates internal and external foam insulation to improve heat retention, while the skin-contact textile structure is designed for breathable and comfortable wear.

HA(R)10-HMBDH-01 is suitable for home, office, travel and other daily wellness environments.

For B2B projects, PMA provides OEM and ODM customization covering belt dimensions, textile materials, graphene heating configuration, vibration system, controller, battery configuration, colors, branding, accessories, labels and packaging.

PMA also supports specification review, sample development, functional validation and manufacturing coordination for customized graphene heated massage belt projects.

Key Specifications

Heating Method

PI-Based Graphene Flexible Heating Film

Heating Element

Graphene flexible heating system

Materials

Breathable textile · internal and external foam insulation · graphene heating system · electronic control components

Power Source

Battery

Control

Detachable wireless integrated controller with three heating levels, three vibration massage levels and 30 / 60 / 90-minute timer control.

Cleaning / Washability

Keep the controller, battery and electrical interfaces dry. Clean the textile surface according to the applicable care instructions and allow the product to dry completely before use.

Input

5 V / 2 A

Battery Capacity

5000 mAh

Temperature Levels

3 levels

Low Temperature

45°C

Medium Temperature

55°C

High Temperature

65°C

Vibration Levels

3 levels

Timer

30 / 60 / 90 min

Default Working Time

30 min

Controller

Detachable wireless integrated controller

High-Level Runtime

Approx. 3 h 40 min at 65°C + Level 3 vibration

Medium-Level Runtime

Approx. 5 h 21 min at 55°C + Level 2 vibration

Low-Level Runtime

Approx. 6 h 54 min at 45°C + Level 1 vibration

Charging Time

Approx. 3 h 30 min

Heating Technology

Graphene electric heating

Massage Technology

Vibration massage

Thermal Structure

Internal and external foam heat-retention structure

Application Area

Waist

Application

Home · Office · Travel · Daily Wellness

Models & Variants

Model / Variant

HA(R)10-HMBDH-01

Specification

5V / 2A · 5000mAh built-in battery · 45°C / 55°C / 65°C heating · 3-level vibration massage

Customization & Supply

Customization Service

Available

Customization Options

OEM and ODM customization is available for belt dimensions, textile materials, graphene heating configuration, vibration system, controller, battery configuration, colors, logo, accessories, labels and packaging.

MOQ

MOQ based on customer project requirements

Production Lead Time

Scheduled according to the confirmed specification, sample approval and production plan.

Commercial Notes

PMA provides OEM, ODM and custom engineering support for heated massage belt projects, covering graphene heating integration, vibration configuration, controller development, battery system, textile selection, appearance design, branding, packaging, sample validation and manufacturing coordination.

Visual Details
