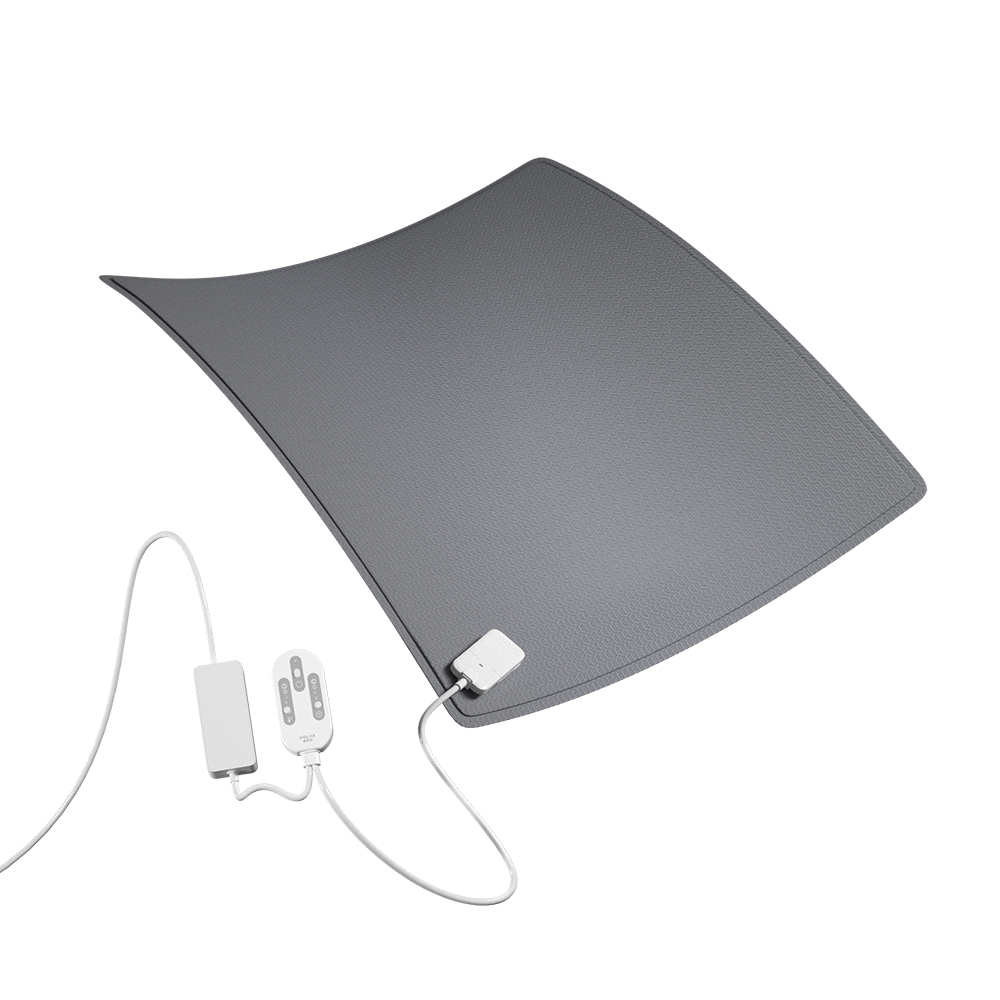

K-DRT-W5V1 Series

Graphene Heated Mattress Pad

24 V graphene heated mattress pad available in single and double sizes, with three-level temperature control, timed operation, detachable controls and independent left/right control on the double configuration.

Heating Method	Graphene Flexible Cloth / Fabric Heating Film
Category	Home & Textile Heating
Product Stage	Finished Product Reference
Application Market	Home & Textile Heating
Technology Type	Flexible Electric Heating

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

The Graphene Heated Mattress Pad is a 24 V low-voltage bedding heating product designed for home and sleep-environment warming applications. It integrates a flexible graphene heating element into a multi-layer textile construction and is available in single and double configurations.

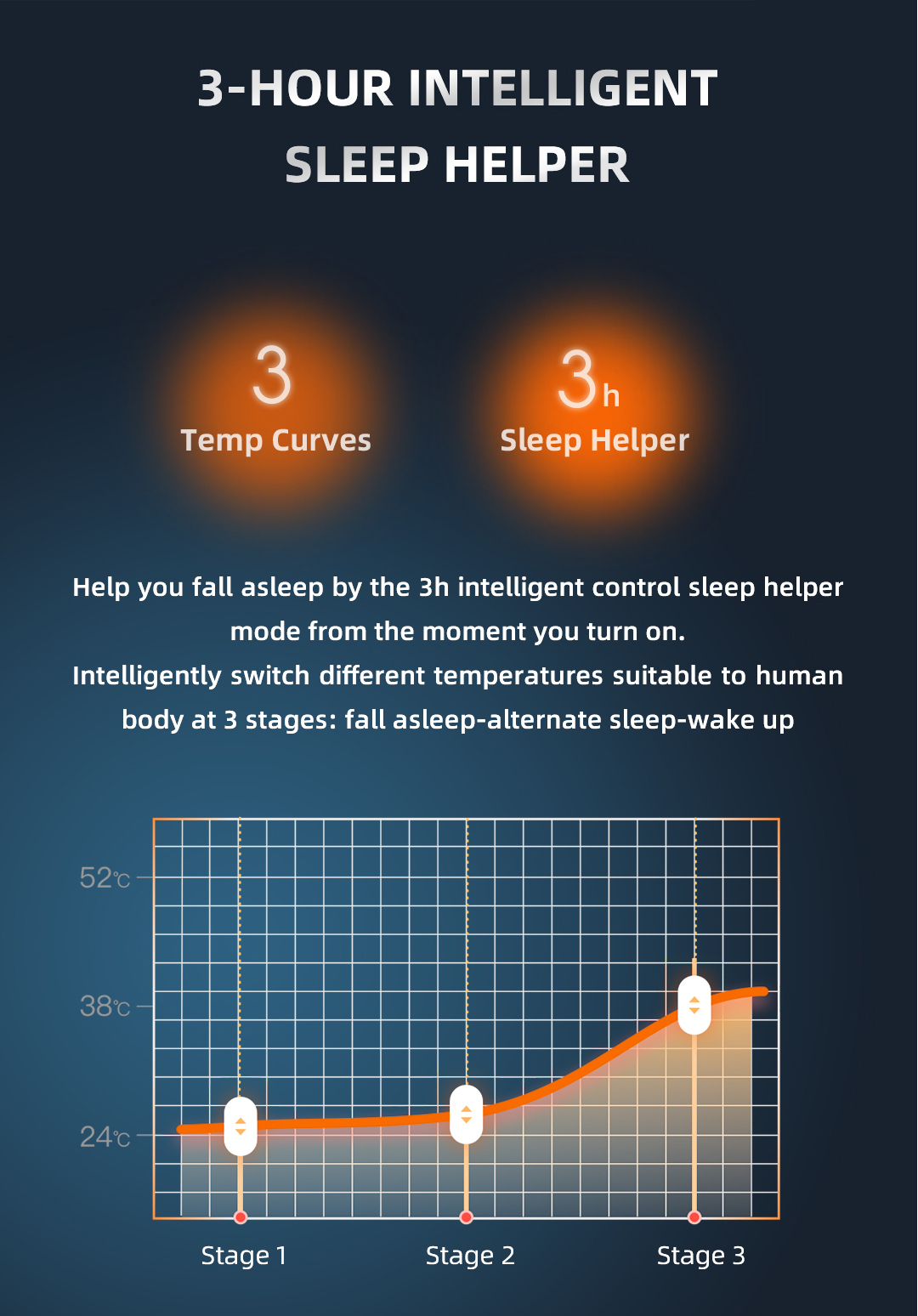

The K-DRT-W5V1 series supports three-level temperature control, timed operation and a staged sleep-mode control program. The double-size version uses independent left and right control zones for individual temperature adjustment.

Detachable electrical components allow the textile body to be cleaned according to the applicable care instructions. OEM and ODM options include size, textile material, controller configuration, plug type, packaging and branding.

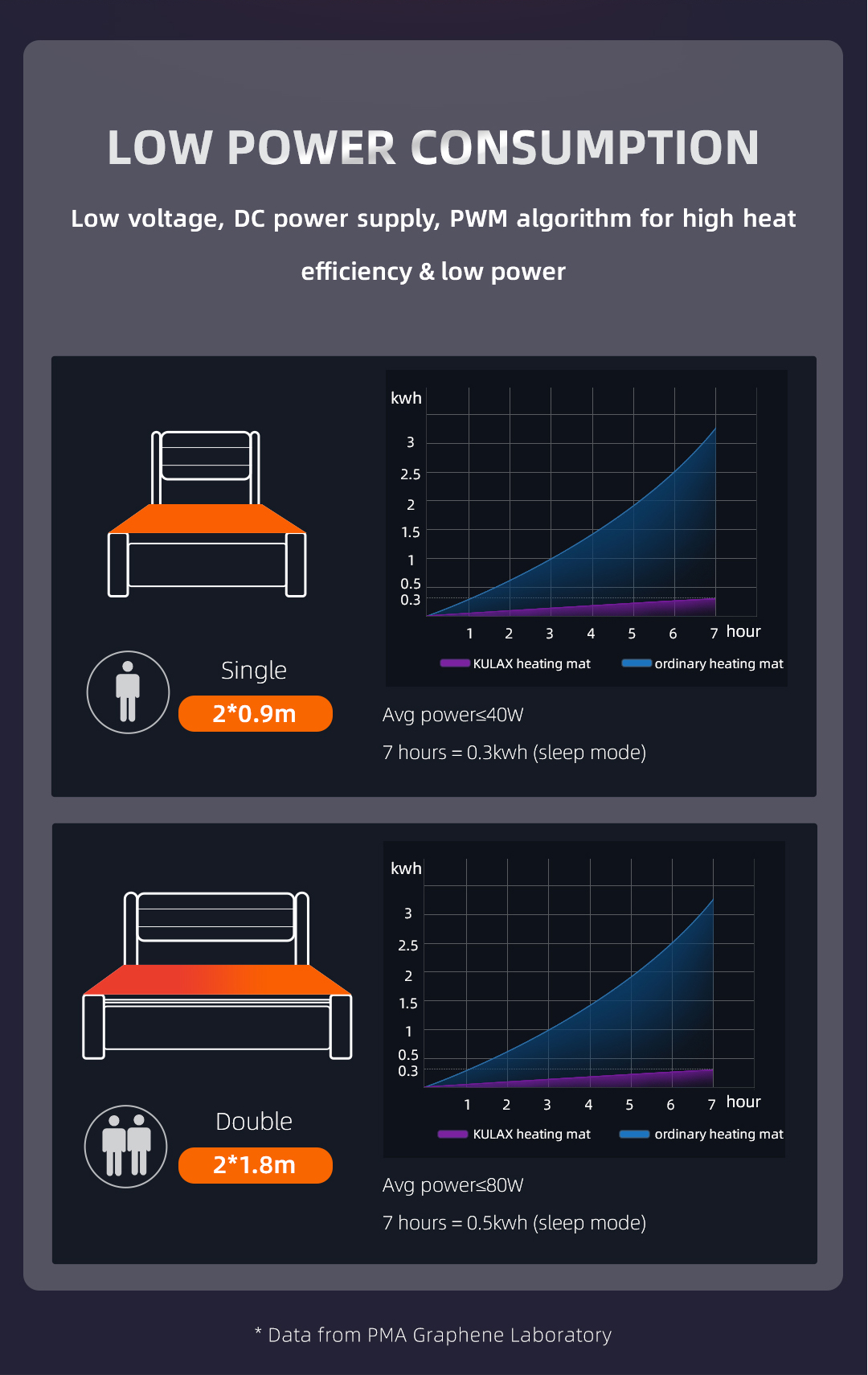

Standard reference configurations include the K-DRT-W5V1S single model at 2000 × 900 mm with 65 W rated power and the K-DRT-W5V1D double model at 2000 × 1800 mm with 120 W rated power. Both configurations use a 24 V power system.

Key Specifications

Heating Method

Graphene Flexible Cloth / Fabric Heating Film

Heating Element

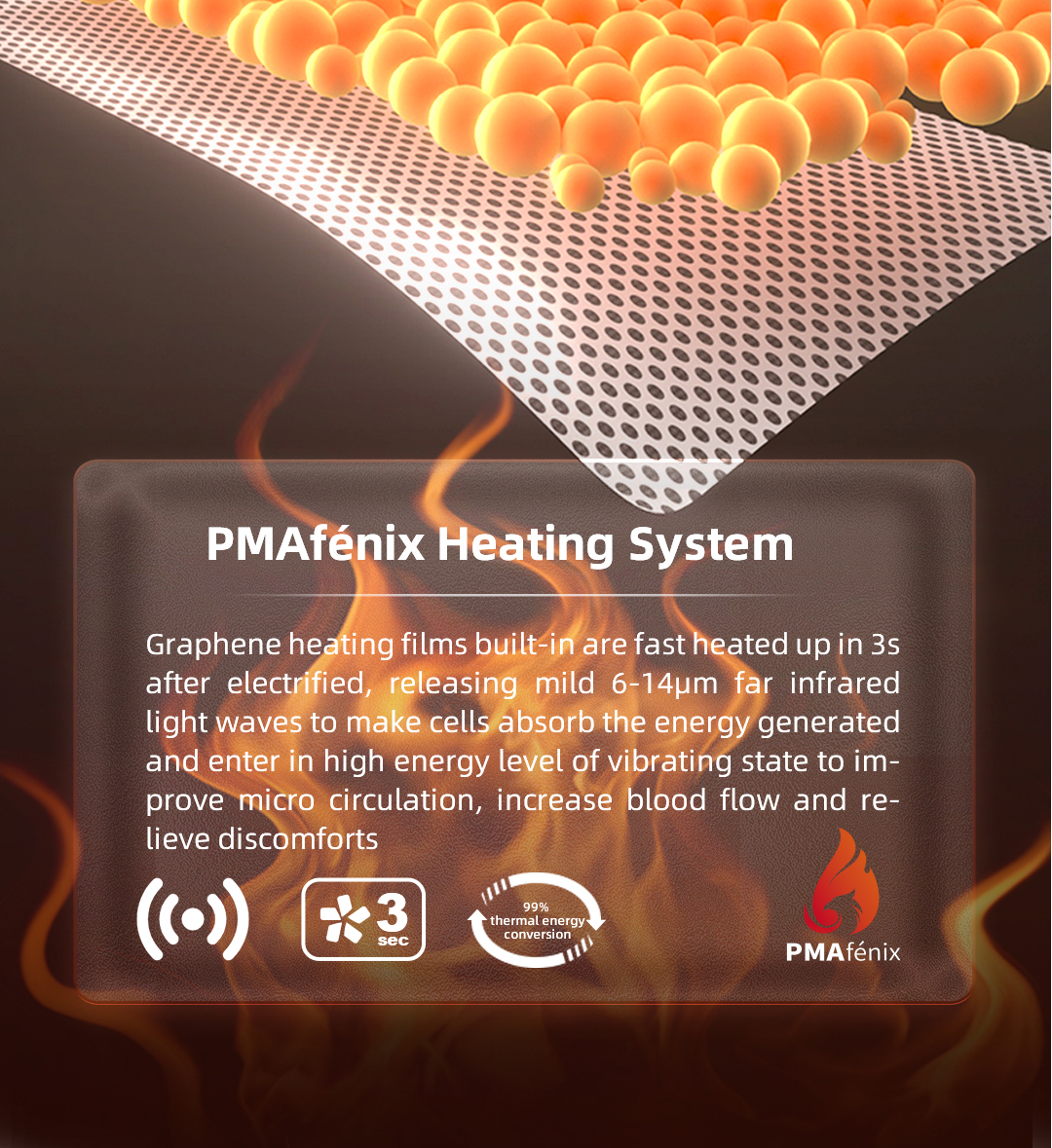

Graphene flexible heating film

Materials

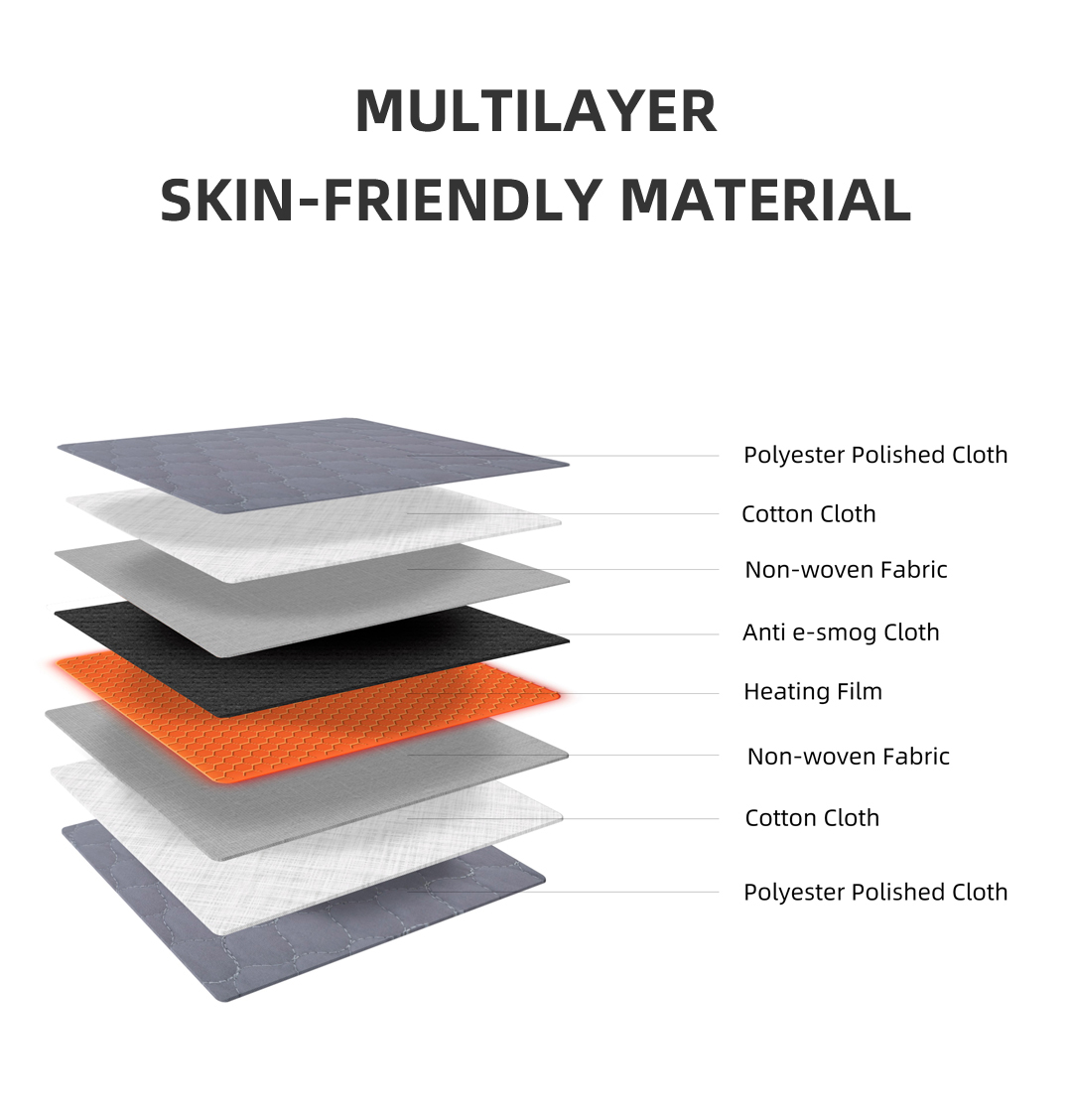

Polyester fabric · cotton cloth · non-woven fabric · graphene heating film

Dimensions

Single: 2000 × 900 mm Double: 2000 × 1800 mm

Power Source

USB · Power Bank

Control

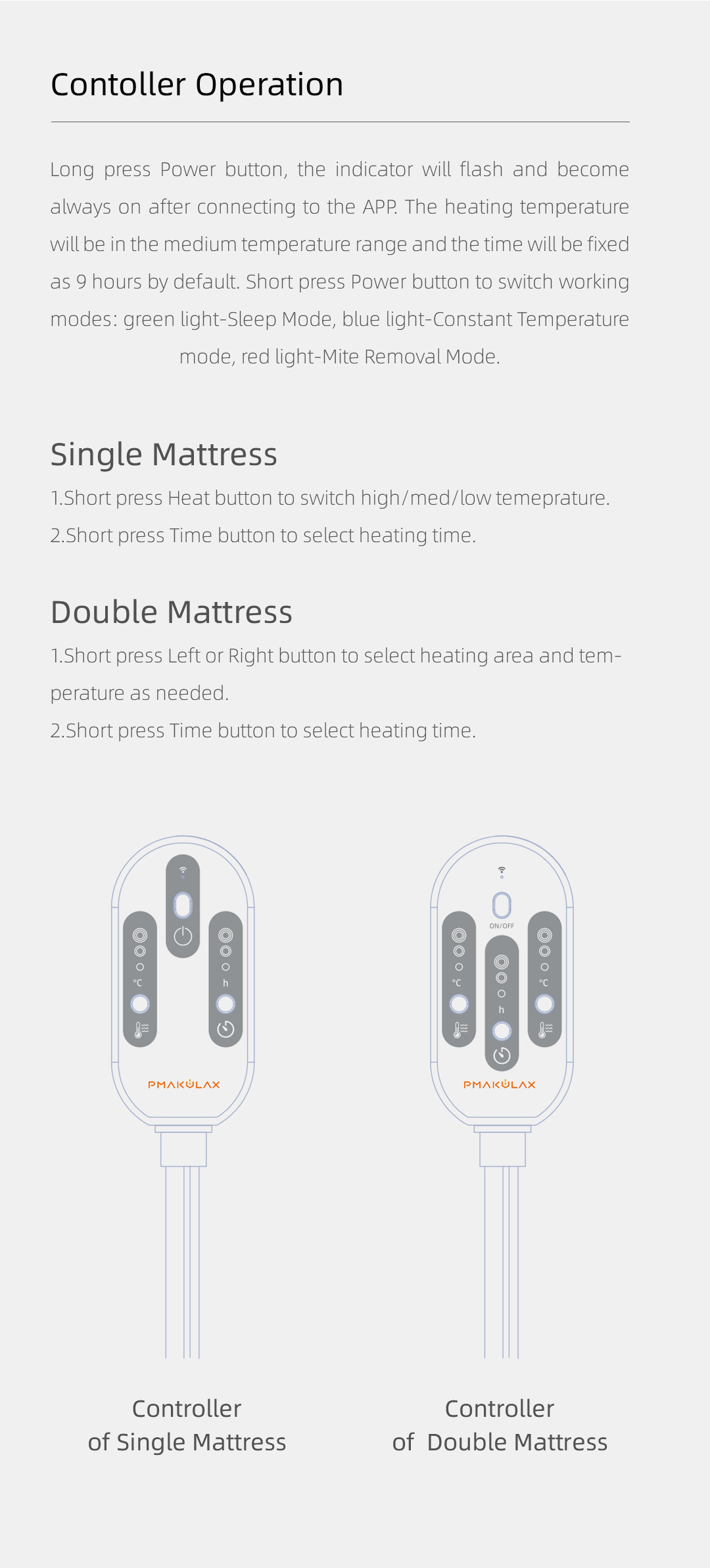

Three-level temperature control with timed operation and a staged sleep-mode program. The double configuration provides independent left/right temperature control.

Cleaning / Washability

Machine washable after detaching the electrical control components. Follow the applicable care instructions before washing and reconnect only after the textile body is completely dry.

Rated Voltage

24 V

Rated Power

Single: 65 W · Double: 120 W

Product Weight

Single: 1000 g · Double: 1860 g

Temperature Control

3 levels

Timer

Timed operation with staged sleep-mode control

Double-Size Control

Independent left/right control

Temperature Sensor

NTC temperature sensing

Connector

Detachable 9-pin connector

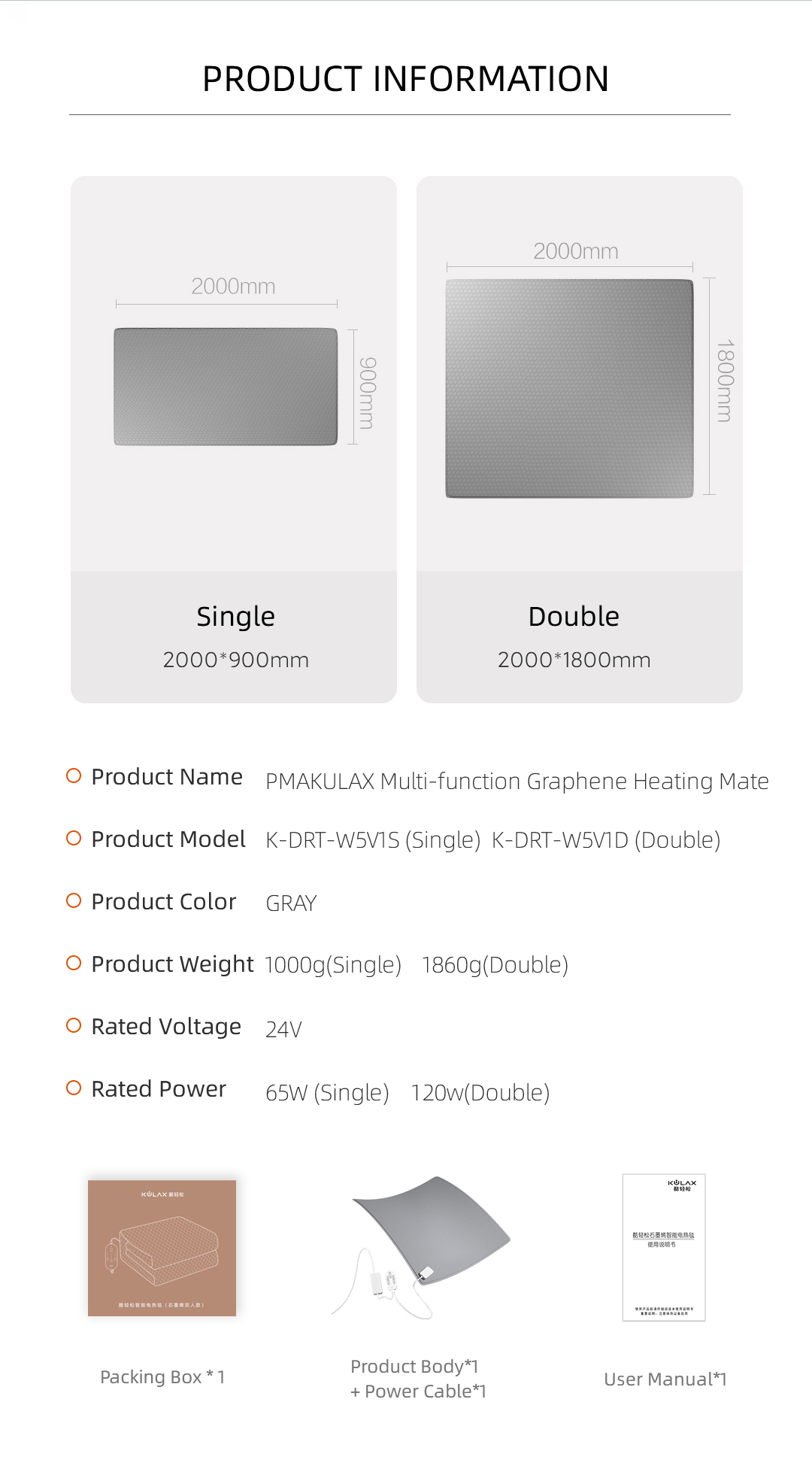

Models & Variants

Model / Variant

K-DRT-W5V1S

Specification

Single · 2000 × 900 mm · 24 V · 65 W · 1000 g · Gray

Model / Variant

K-DRT-W5V1D

Specification

Double · 2000 × 1800 mm · 24 V · 120 W · 1860 g · Gray · Independent left/right control

Customization & Supply

Customization Service

Available

Customization Options

OEM and ODM customization is available for product size, textile material, controller configuration, plug type, branding and packaging. Available material options include multi-layer fabric, flannel, coral fleece and other project-specific textile configurations. Controller function, shape and APP-related requirements can be discussed according to the target project.

Commercial Notes

Quotation is based on product size, textile material, controller configuration, plug type, branding, packaging, quantity and destination-market requirements.
