M10
Ref: M10

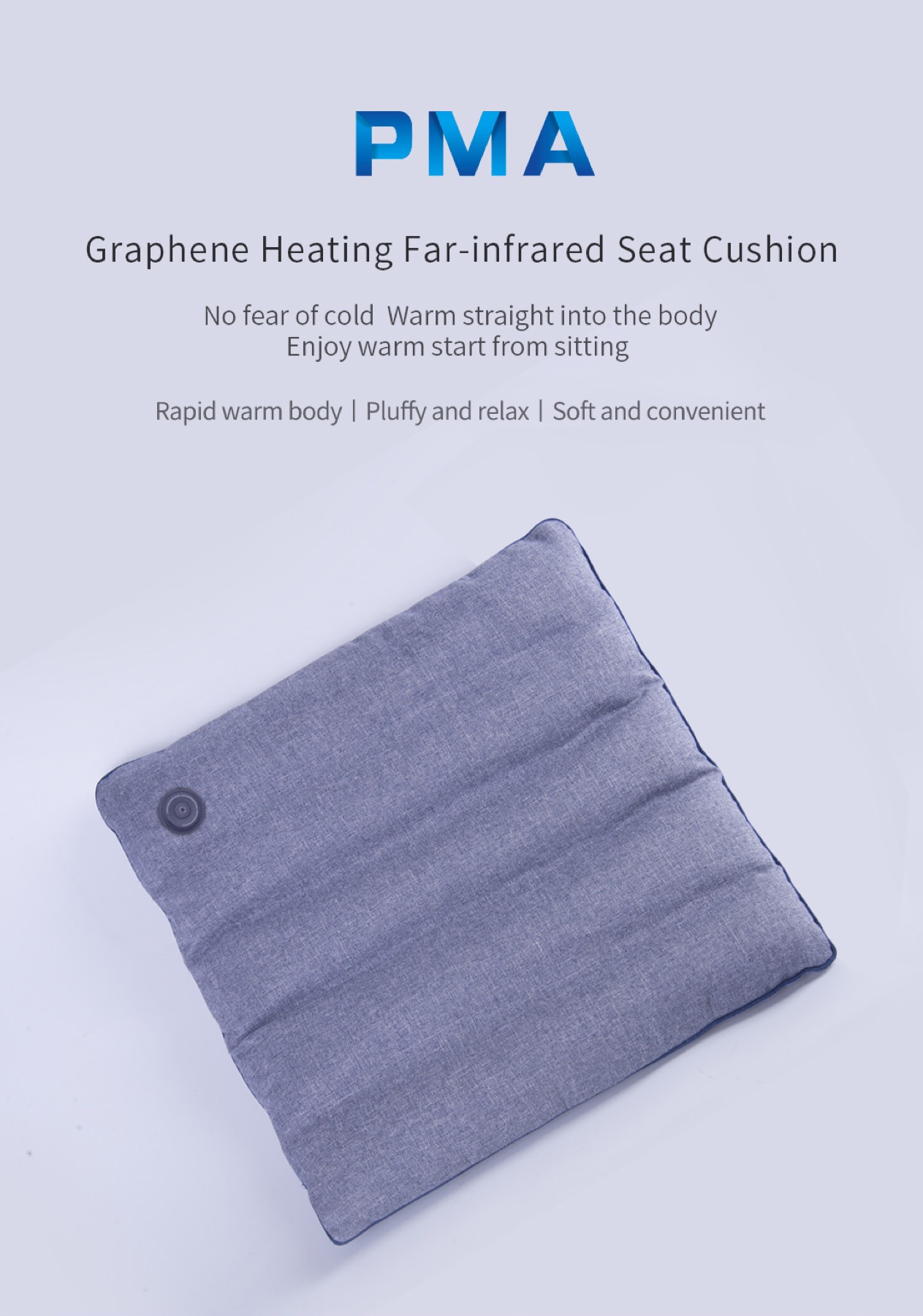

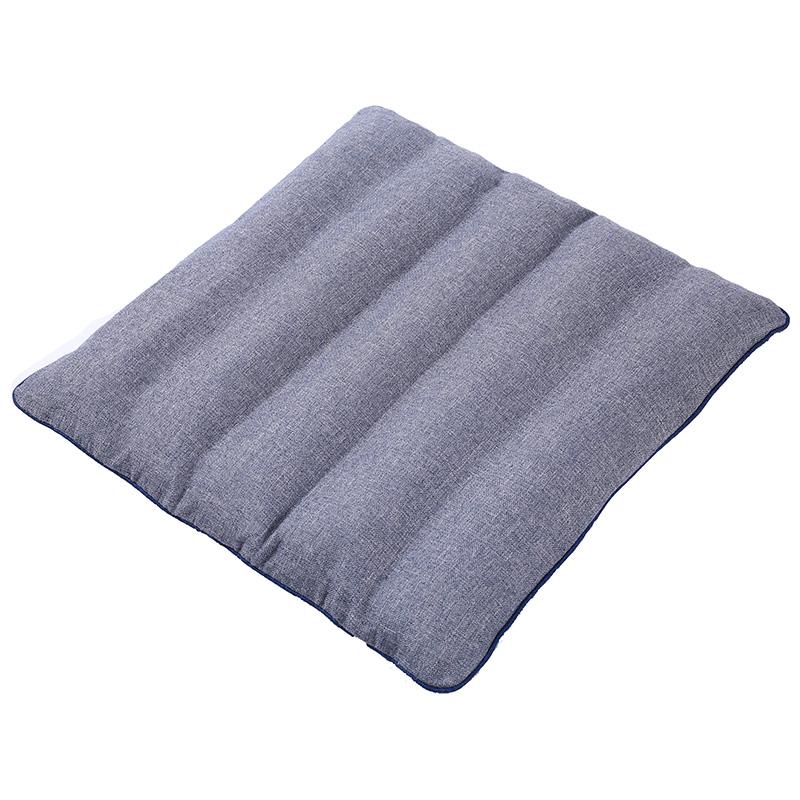

Graphene Heating Seat Cushion
Graphene heating seat cushion with a 45 × 45 cm padded structure, 5V USB power input and three adjustable temperature levels. Designed for chairs, office seating, vehicles and other personal warming applications, with OEM and ODM customization for size, fabric, color, heating configuration, branding and packaging.
| Heating Method | Graphene Flexible Cloth / Fabric Heating Film |
|---|---|
| Category | |
| Product Stage | |
| Application Market | |
| Technology Type |
Product Data
Technical & Commercial Information
Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.
Key Specifications
Heating Method
Graphene Flexible Cloth / Fabric Heating Film
Heating Element
Graphene flexible heating film system
Materials

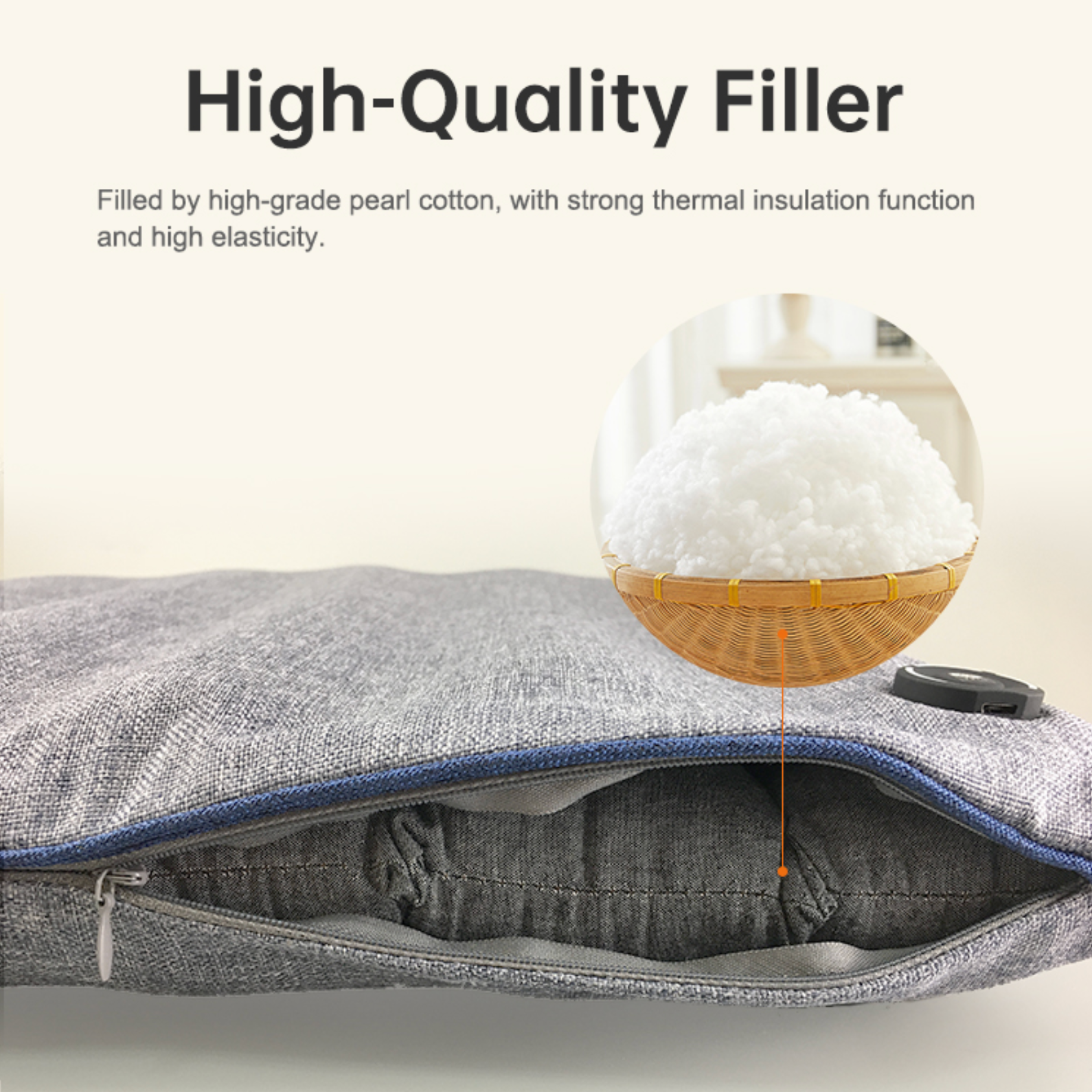

Outer cover: Cotton-linen blend fabric (Resilient Breathable removable cover-insulating filler) · Heating element: Graphene flexible heating film (Five-section heating configuration) · Cushion core: Slow-rebound pearl cotton (Resilient thermal-insulating filler)
Dimensions
45 × 45 cm

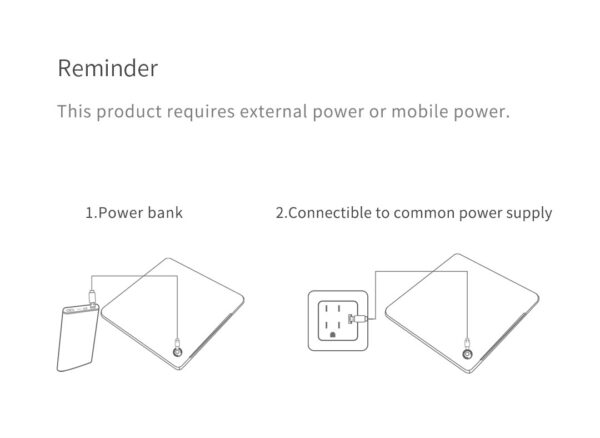

Power Source
USB · Battery
Control
Temperature levels: Low: Target 42.5°C, 40–45 °C; Medium: Target 47.5°C, 45–50 °C; High: Target 52.5°C, 50–55 °C
Control methods: Button Control
Control methods: Button Control
Rated Voltage
5 V
Rated Current
2 A
Rated Power
10 W
Connector / Interface
USB power interface
Operating Temperature
40–55°C
Heat-up Time
3 seconds
Temperature Uniformity

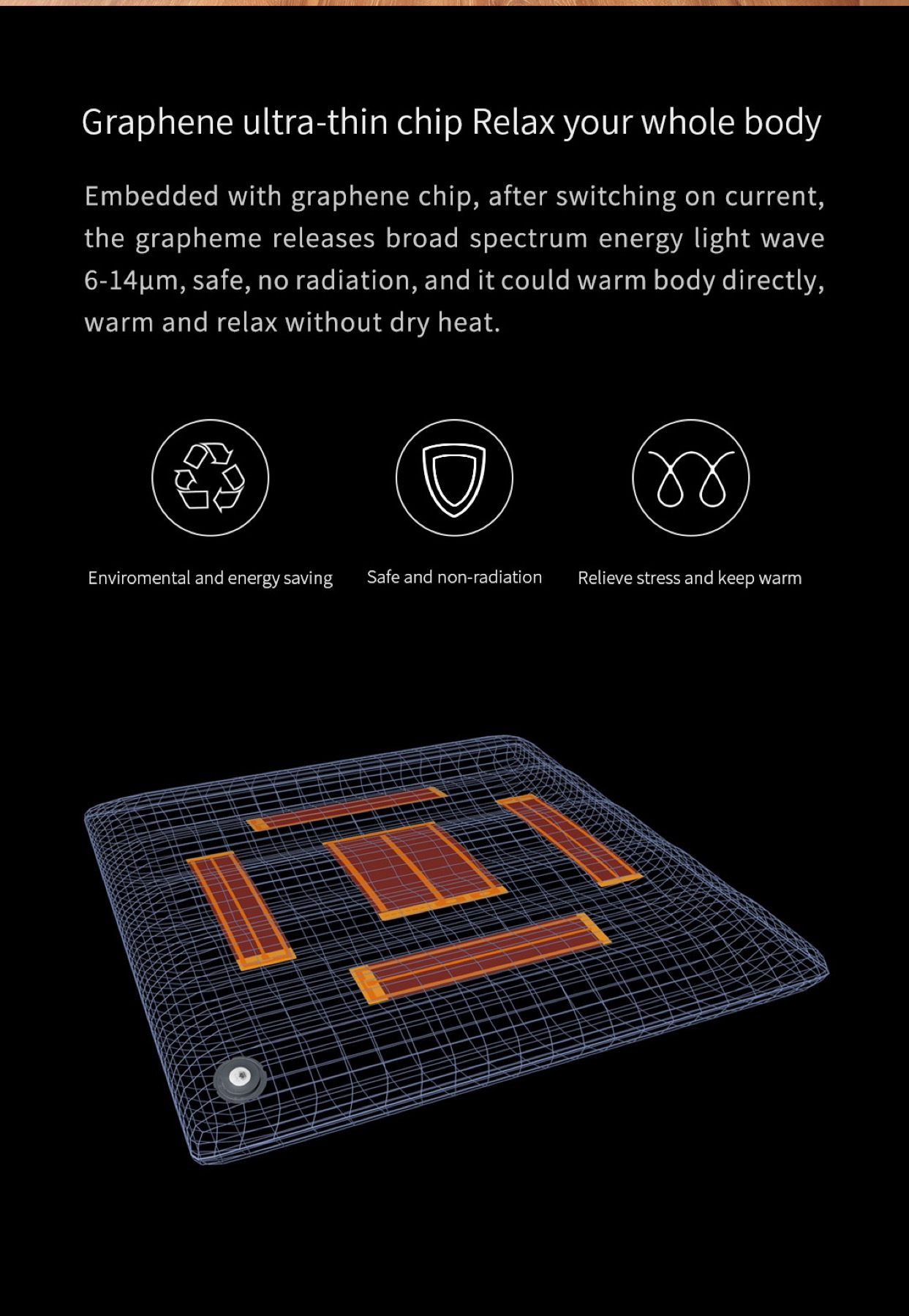

Five distributed graphene heating sections provide broad-area heating across the seating surface.
Far-Infrared Wavelength
6–14 μm
Protection Features
Low-voltage 5 V DC power architecture with three controlled temperature levels.
Operating Environment

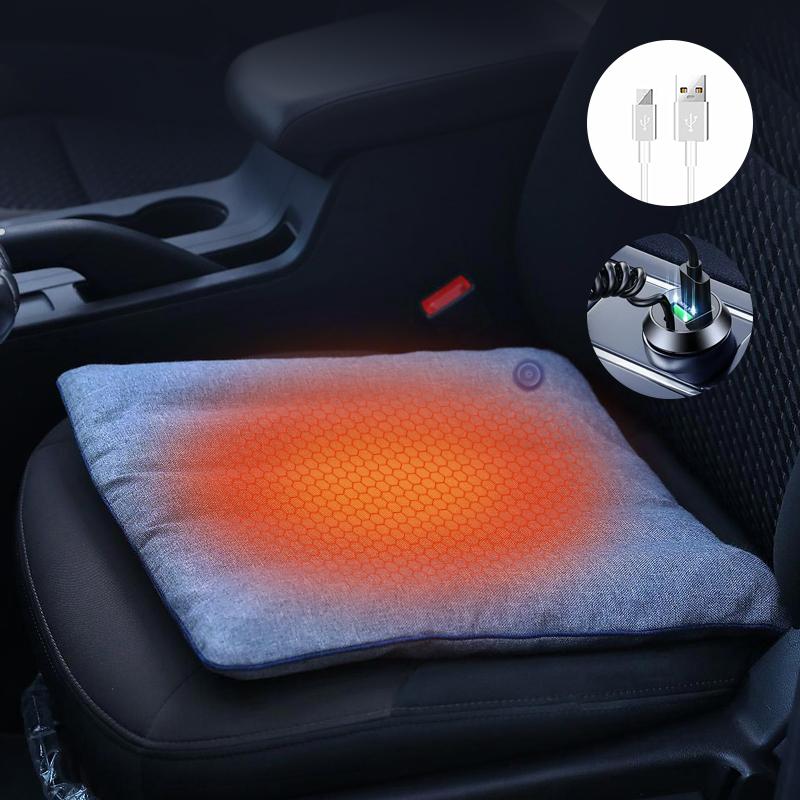

Indoor and portable seating applications including home, office, vehicle and sheltered outdoor use.
Storage Conditions
Store in a dry environment with the USB connector and power interface protected from moisture.

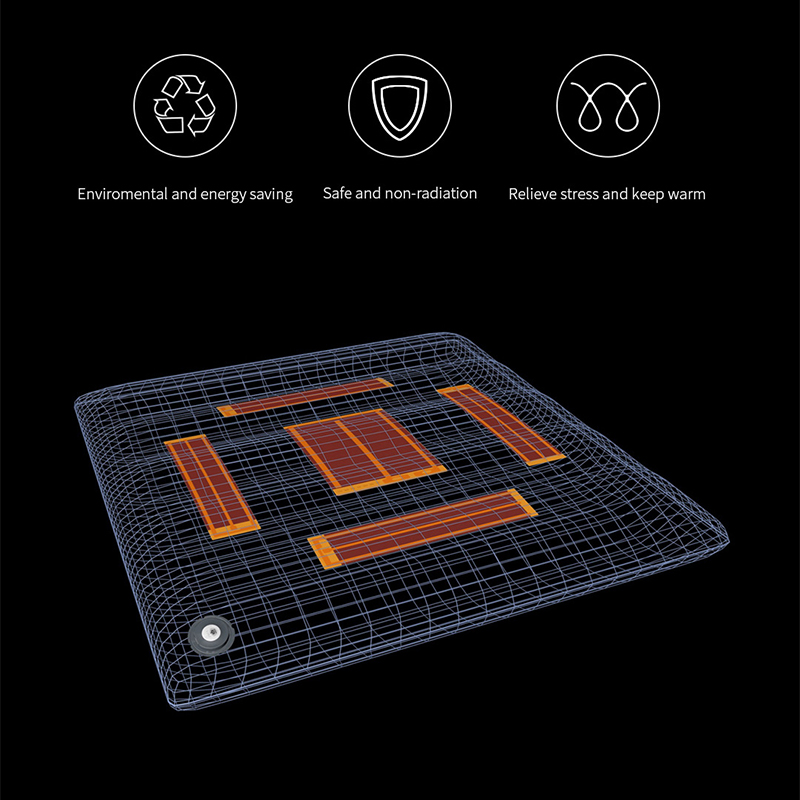

Structure Layers

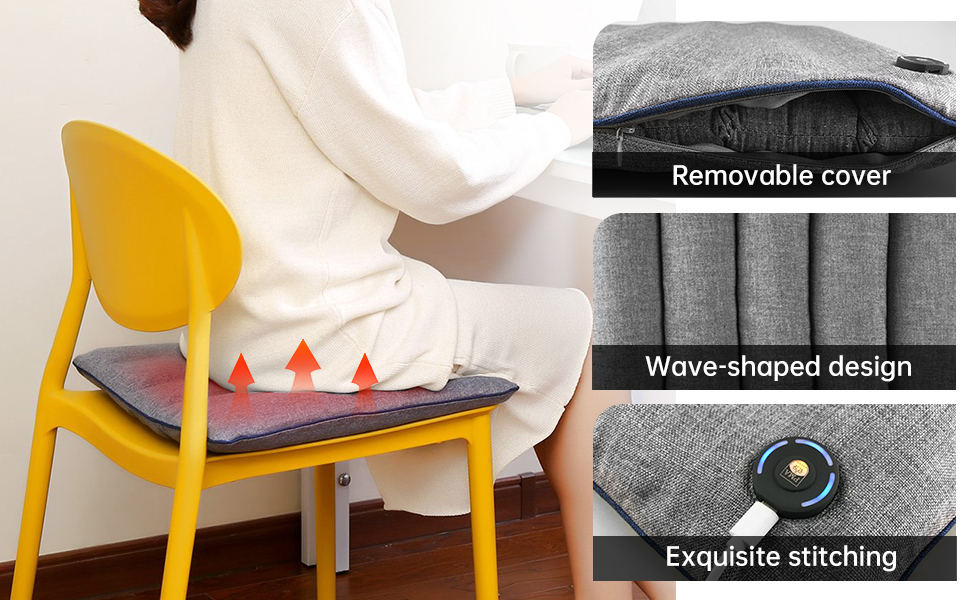

1. Outer Fabric Cover - Cotton-linen blend fabric - Breathable removable outer seating surface; 2. Cushion Filling - Slow-rebound pearl cotton - Provides cushioning, resilience and thermal insulation; 3. Graphene Heating Layer - Graphene flexible heating film - Generates distributed electric heat across the seating area; 4. Inner Support Layer - Textile support structure - Supports and stabilizes the heating and cushion assembly
Color / Finish
Gray standard version; fabric and color can be customized.
Model
M10
Models & Variants
Model / Variant
M10
Specification
Dimensions: 45 × 45 cm; Voltage: 5 V DC; Power: 10 W; Temperature: 40–55 °C, three adjustable levels; Notes: USB-powered graphene heating seat cushion
Customization & Supply
Customization Service
Available
Customization Options
Customizable items: Shape, Dimensions, Voltage, Power, Temperature, Heating Zones, Controller, Material, Color, Logo, Packaging, accessories, Other.
Heating layout, dimensions, fabric, color, temperature settings, electrical configuration, controller, branding and packaging can be configured for project requirements. Final electrical and structural specifications are defined during engineering review.
Customer inputs: Dimensions and shape: Target dimensions, seat shape or drawing (initial); Electrical specification: Required voltage, power source and connector (initial); Heating requirement: Temperature range, number of heat levels and heating-zone requirements (quotation); Branding and packaging: Logo artwork, color, label and packaging requirements (mass_production).
Private label: Available.
Packaging options: Standard Export Packaging - Protective individual product packaging with outer export carton (According to order configuration); Custom Retail Packaging - Customized color box, labels and brand artwork (Based on packaging specification and order quantity).
Heating layout, dimensions, fabric, color, temperature settings, electrical configuration, controller, branding and packaging can be configured for project requirements. Final electrical and structural specifications are defined during engineering review.
Customer inputs: Dimensions and shape: Target dimensions, seat shape or drawing (initial); Electrical specification: Required voltage, power source and connector (initial); Heating requirement: Temperature range, number of heat levels and heating-zone requirements (quotation); Branding and packaging: Logo artwork, color, label and packaging requirements (mass_production).
Private label: Available.
Packaging options: Standard Export Packaging - Protective individual product packaging with outer export carton (According to order configuration); Custom Retail Packaging - Customized color box, labels and brand artwork (Based on packaging specification and order quantity).
Commercial Notes
OEM and ODM programs support customized seat-cushion dimensions, fabric, color, heating configuration, control method, branding and packaging.
Tooling notes: Standard M10 configuration does not require new tooling. Custom shapes or structural changes are evaluated separately.
Tooling notes: Standard M10 configuration does not require new tooling. Custom shapes or structural changes are evaluated separately.
Related Technical Resources
Test Report
View Report
Heated Seat Cushion CE EMC Test Report
CE-EMC record associated with Graphene Heating Seat Cushion.
Certificate
View Certificate
Heated Seat Cushion CE Certificate
CE record associated with Graphene Heating Seat Cushion.
Test Report
View Report
Heated Seat Cushion RoHS Test Report
RoHS record associated with Graphene Heating Seat Cushion.
Visual Details
Product Information

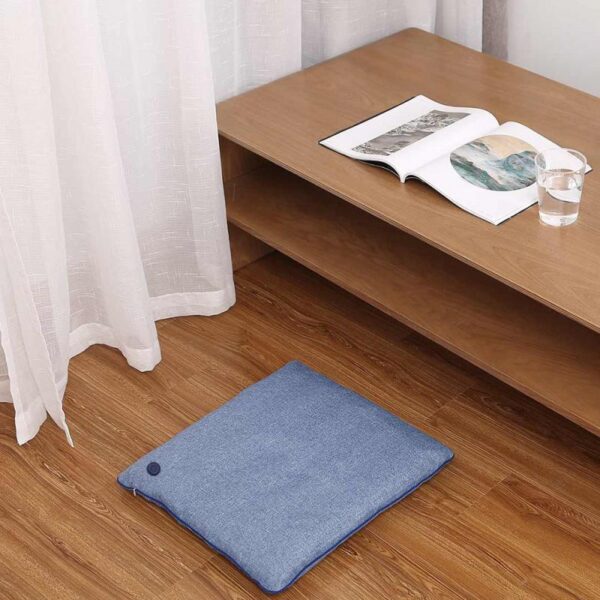

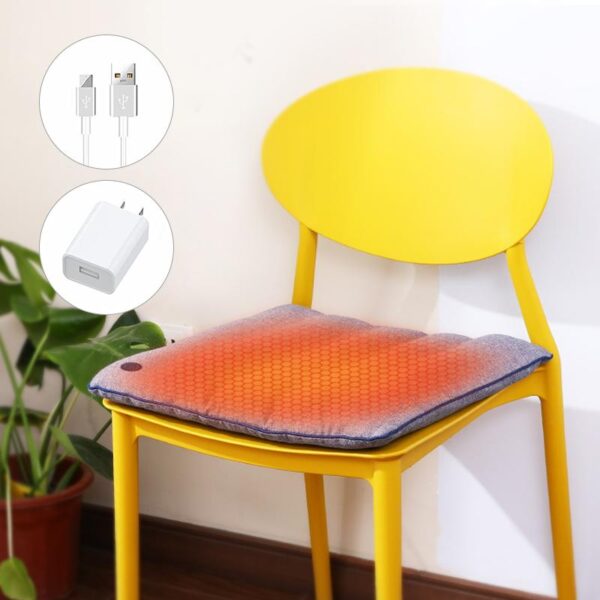

Application Views

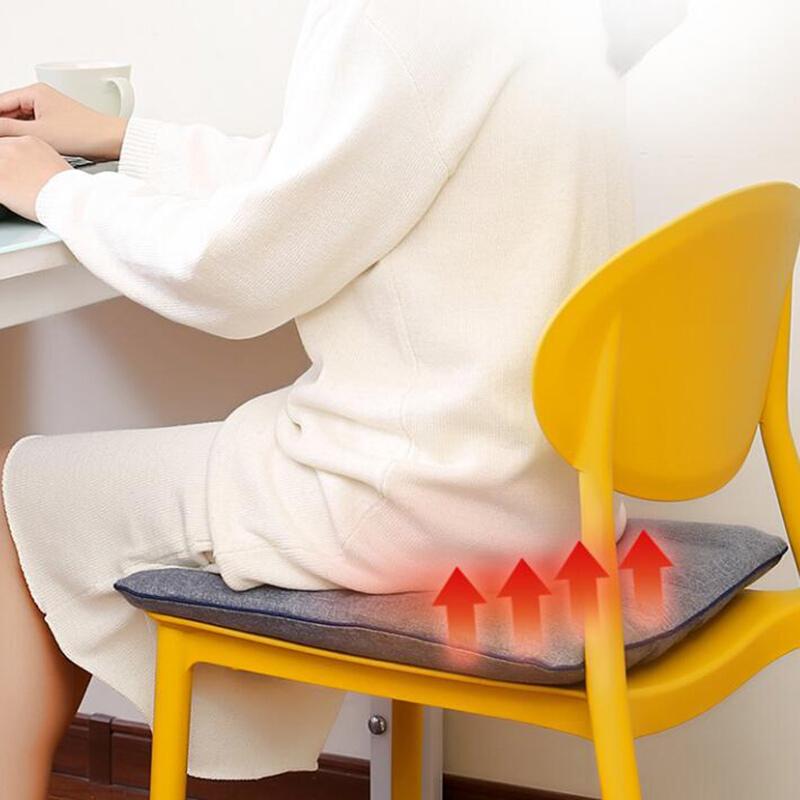

Product in Use
