K-ZNRFB-B2V1

Graphene Far Infrared Heating Pad with Tourmaline Jade

24V graphene far infrared heating pad with tourmaline jade elements, three adjustable temperature levels, 120-minute auto power-off and a 63 × 32 cm flexible textile design.

Heating Method	Graphene Flexible Cloth / Fabric Heating Film
Category	Health & Wellness Home & Textile Heating
Product Stage	Finished Product Reference
Application Market	Health & Wellness Home & Textile Heating
Technology Type	Flexible Electric Heating

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

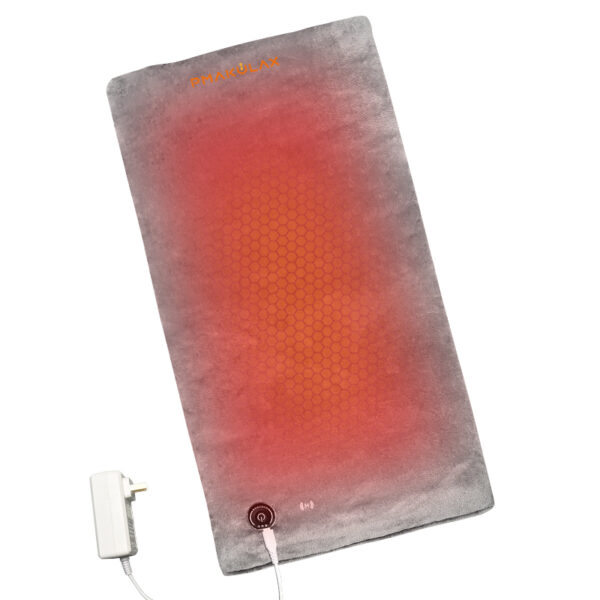

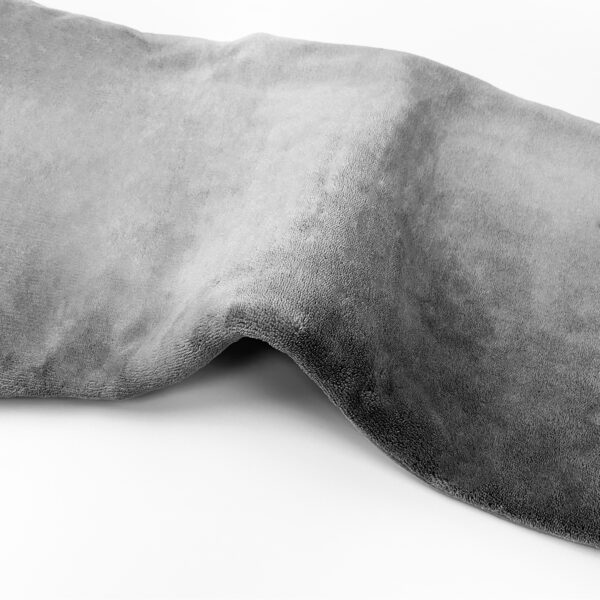

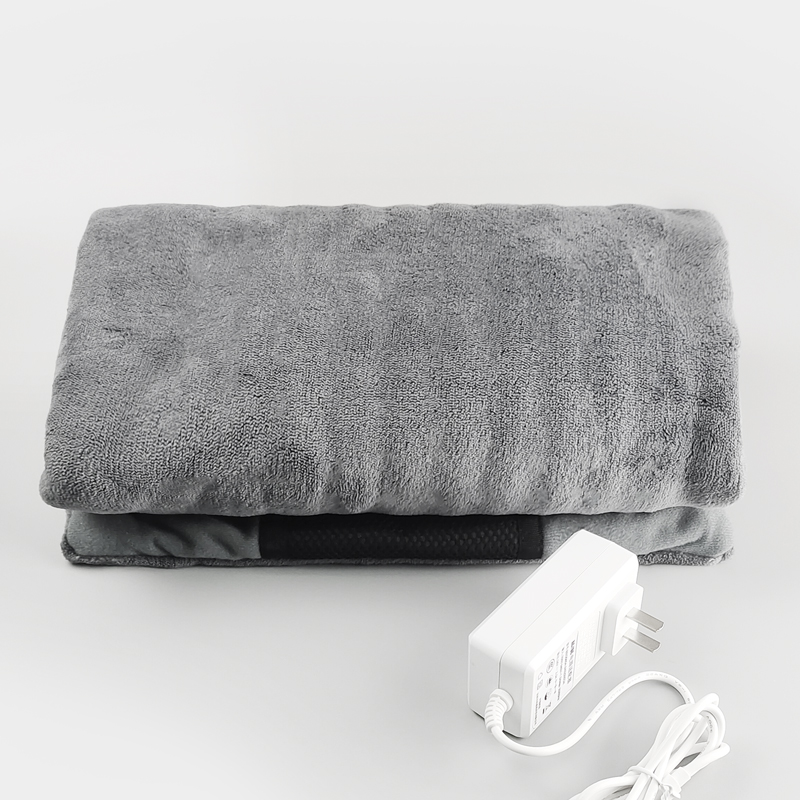

Graphene far infrared heating pad with tourmaline jade is a flexible electric warming pad designed for localized body warming across areas such as the abdomen, waist, back and legs. The 63 × 32 cm pad combines a soft crystal velvet surface with an integrated graphene heating element and weighted ceramic filling.

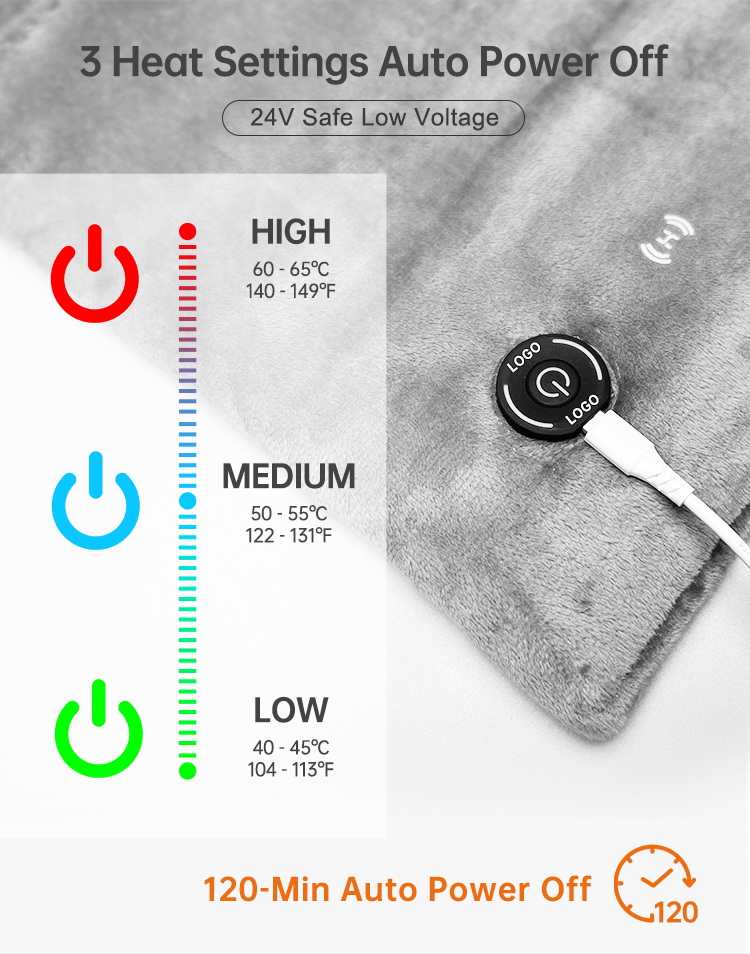

The heating system operates at 24V DC with a rated power of 50W. Three adjustable temperature levels provide approximately 40–45°C, 50–55°C and 60–65°C heating ranges. An electronic controller provides temperature selection, and the product includes a 120-minute automatic power-off function.

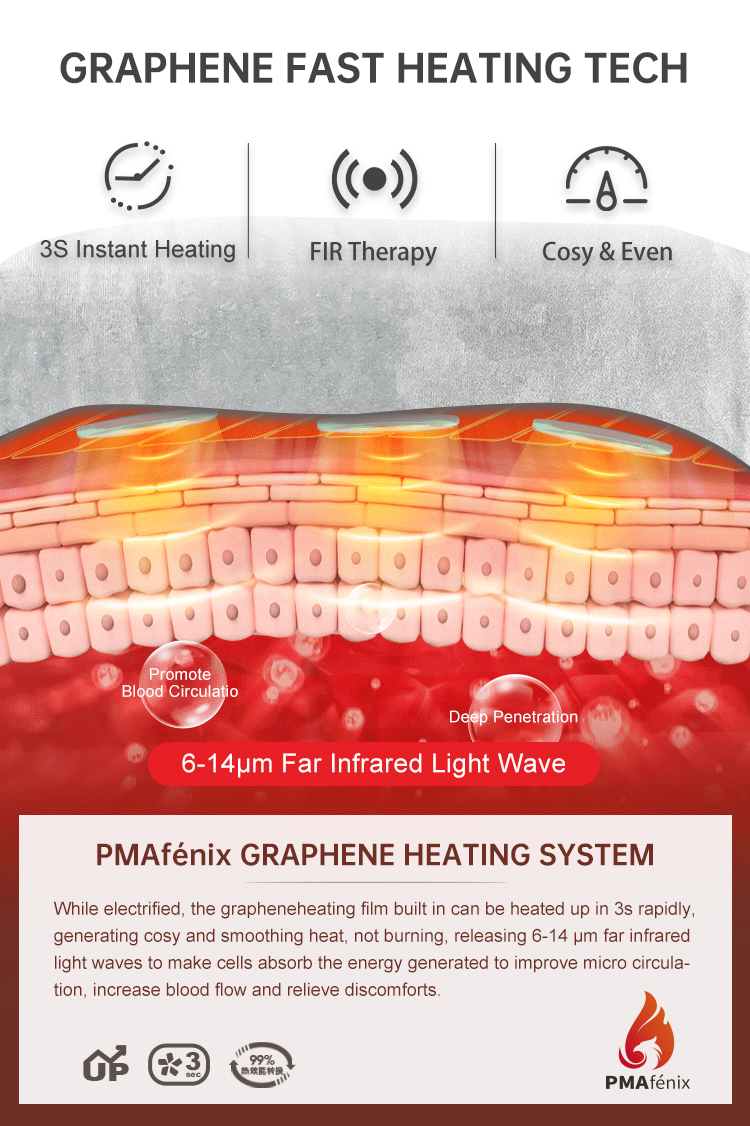

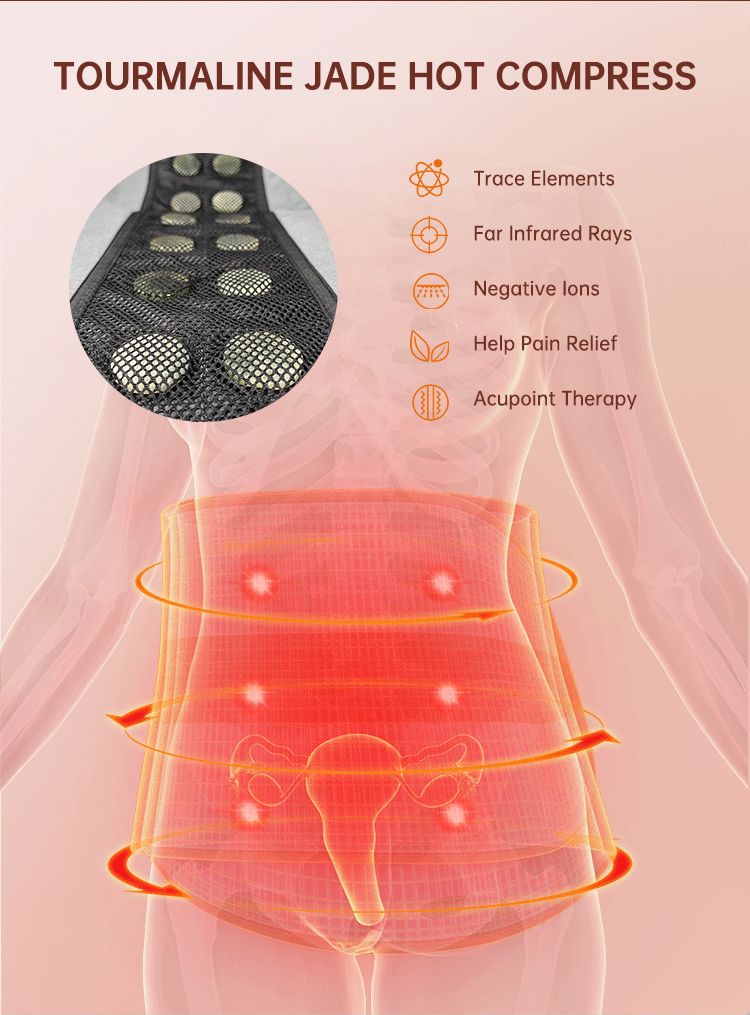

The internal construction combines graphene heating with tourmaline jade elements. Available product materials specify approximately 3-second rapid heating and 6–14 μm far infrared emission. The flexible pad can be positioned on different areas of the body according to the required warming application.

The outer fabric is crystal velvet, while the filling is specified as weighted ceramsites. OEM and ODM configurations can be evaluated according to product size, fabric, filling material, heating element, temperature settings, color, branding and packaging.

Key Specifications

Heating Method

Graphene Flexible Cloth / Fabric Heating Film

Heating Element

Cloth-based flexible graphene heating element

Materials

Crystal velvet outer fabric, polyester textile components, weighted ceramsite filling and tourmaline jade elements

Dimensions

63 × 32 cm

Power Source

Adapter

Control

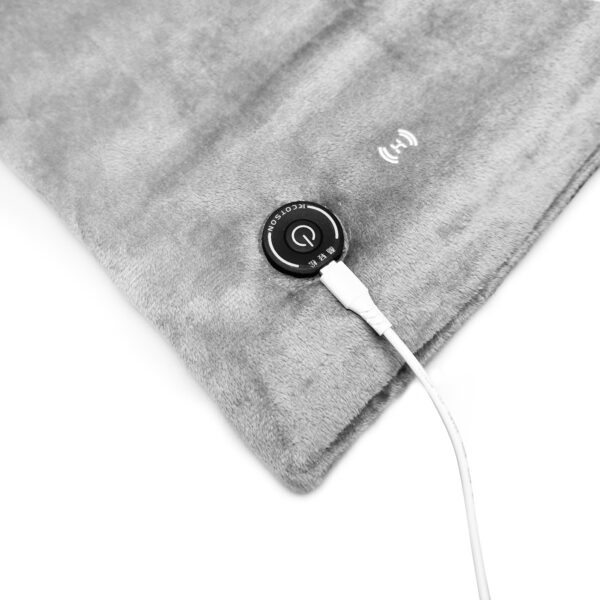

Electronic button controller with three adjustable temperature levels and 120-minute automatic power-off.

Cleaning / Washability

Disconnect the power supply before cleaning. Keep the controller, connector and electrical components dry. Clean the textile surface gently according to the care requirements of the integrated heating structure.

Rated Voltage

24 V DC

Rated Power

50 W

Product Size

63 × 32 cm

Temperature Levels

3 levels

Low Temperature

40–45°C

Medium Temperature

50–55°C

High Temperature

60–65°C

Auto Power-Off

120 minutes

Heating Time

Approx. 3 seconds

Far Infrared Wavelength

6–14 μm

Heating Technology

Flexible graphene heating

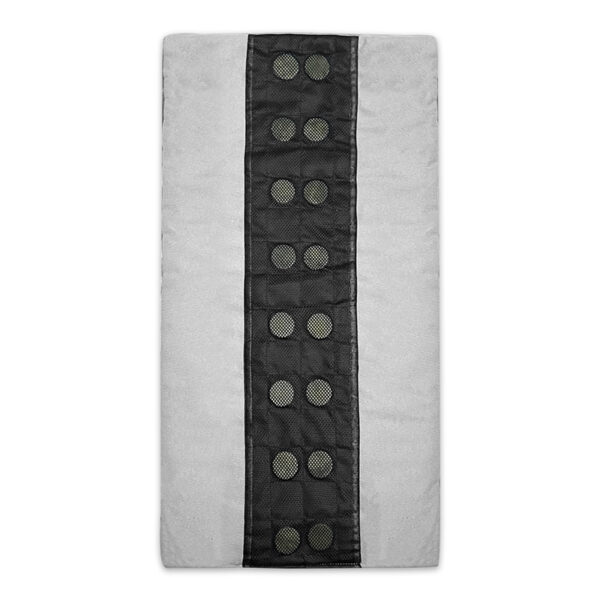

Heating Element Structure

Black flexible heating fabric

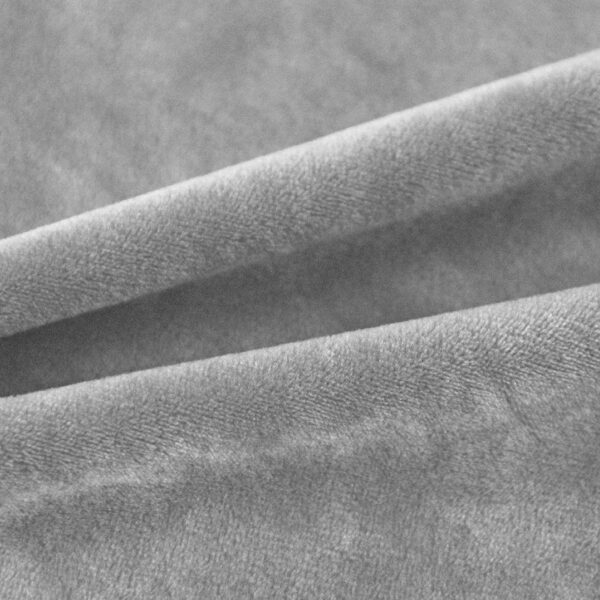

Fabric

Crystal velvet

Textile Fiber

Polyester fiber

Filling

Weighted ceramsites

Thermal Elements

Tourmaline jade elements

Color

Gray

Electrical Protection Class

Class III

Ingress Protection

IPX0

Operating Mode

Short-time operation

Control System

Electronic control

Product Form

Portable flexible heating pad

Models & Variants

Model / Variant

K-ZNRFB-B2V1

Specification

63 × 32 cm graphene far infrared heating pad with 24V DC input, 50W rated power, three temperature levels, tourmaline jade elements and 120-minute automatic power-off.

Customization & Supply

Customization Service

Available

Customization Options

Color, product dimensions, fabric, filling material, graphene heating element, temperature settings, controller, branding and packaging can be evaluated according to project requirements.

MOQ

MOQ can be discussed according to customer project requirements, material selection and customization specifications.

Production Lead Time

Production lead time is confirmed according to order quantity, material selection, heating configuration and customization requirements.

Commercial Notes

OEM and ODM requirements can be evaluated according to product dimensions, fabric, filling material, graphene heating configuration, temperature settings, controller, branding and packaging. Final specifications, MOQ and delivery schedule are confirmed during project review and quotation.
