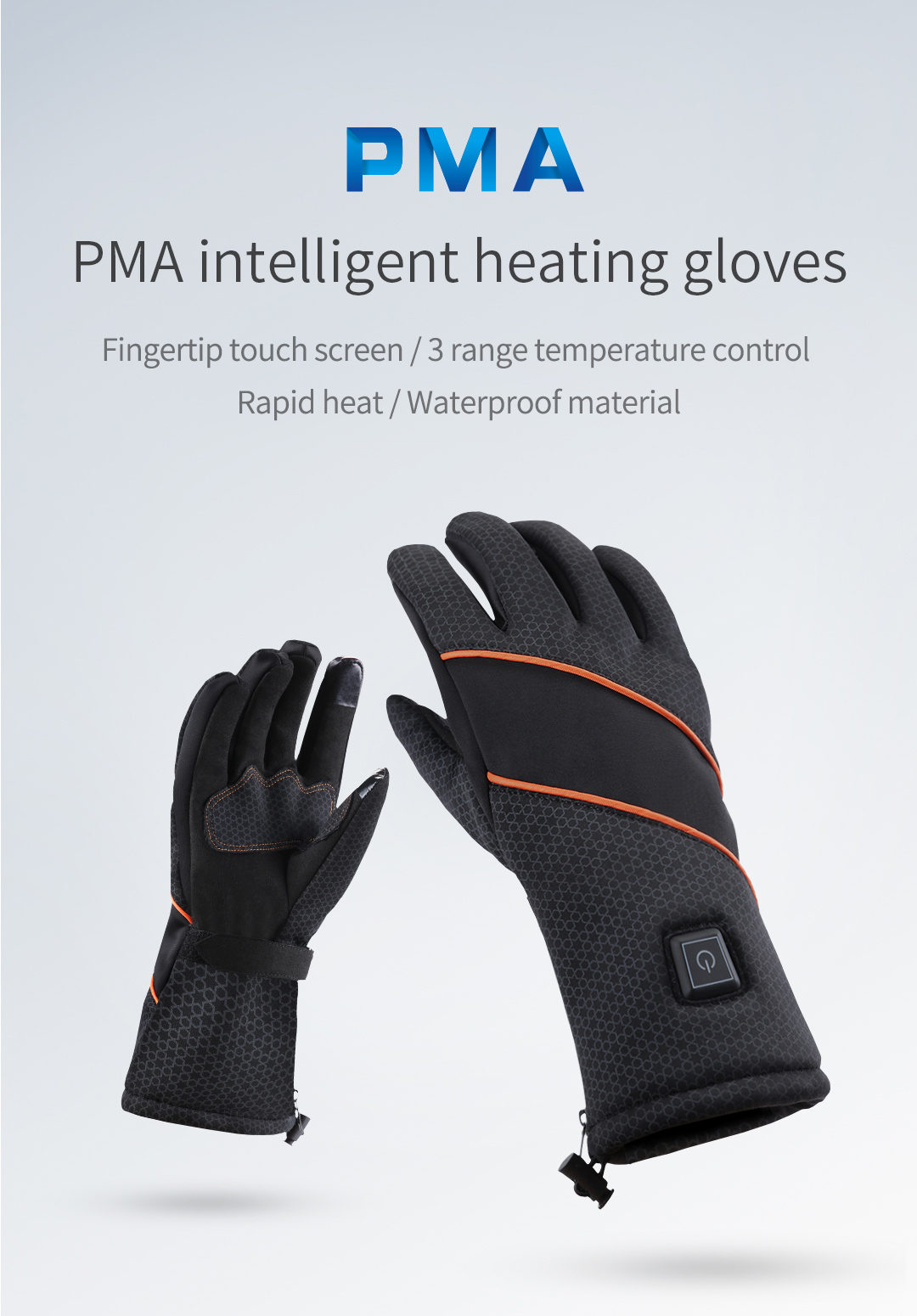

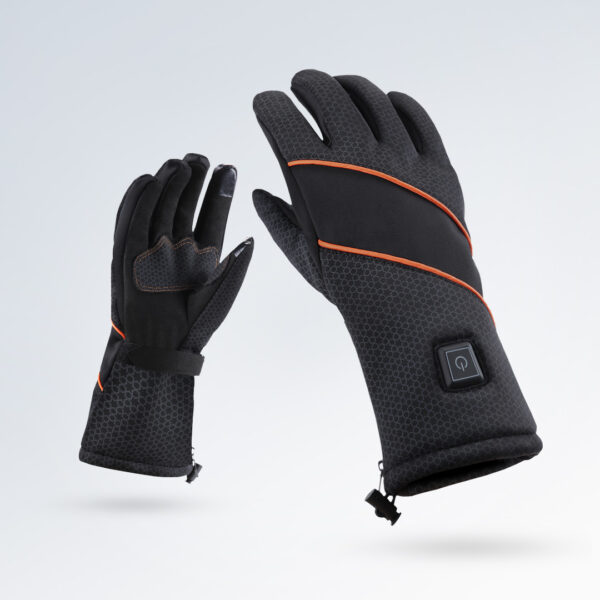

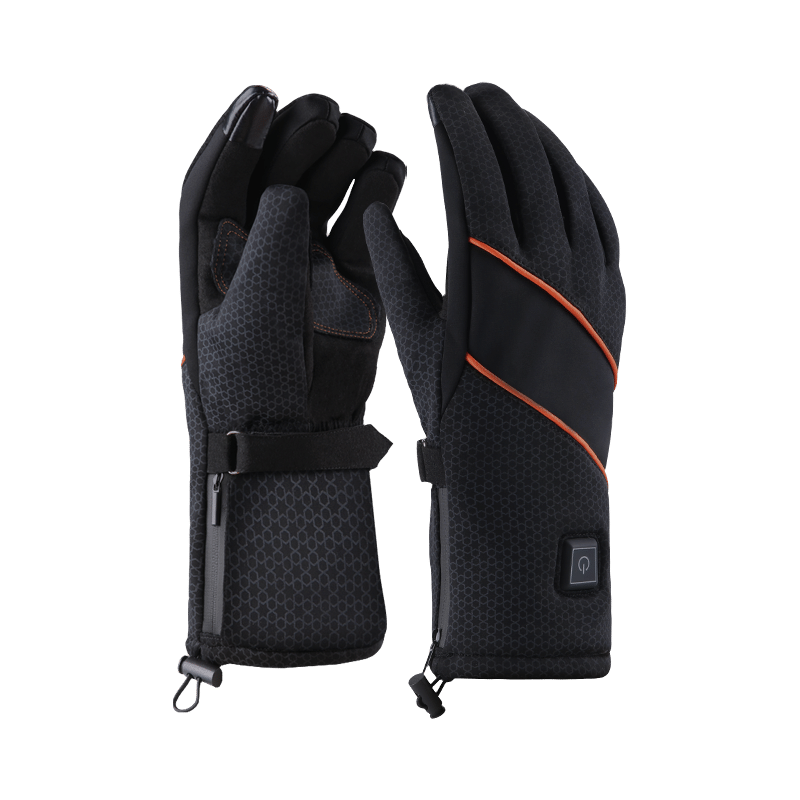

X20 Electric Heated Gloves: black glove palm and back views.
PMA-X20

X20 Electric Heated Gloves

A 5V electric heated glove with resistance-wire heating, three temperature levels, touchscreen fingertips, extended wrist coverage and removable low-voltage power support.

Heating Method Resistance Wire Heating
Category
Product Stage
Application Market
Technology Type
Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

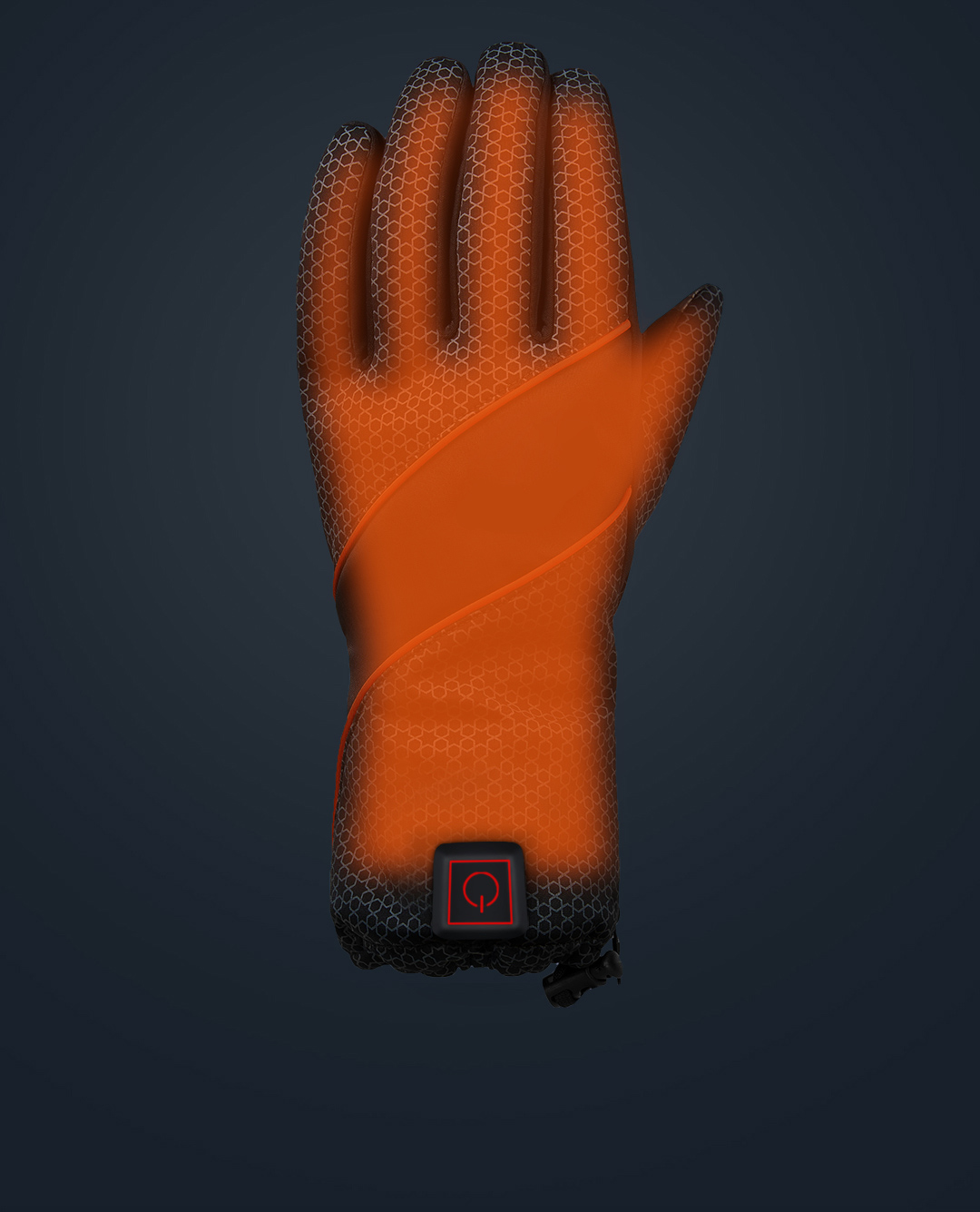

The X20 electric heated gloves are designed for low-voltage personal warming in outdoor and cold-weather applications. The gloves combine resistance-wire heating with a full-hand warming layout, extended wrist coverage and a protective textile construction for everyday outdoor use.

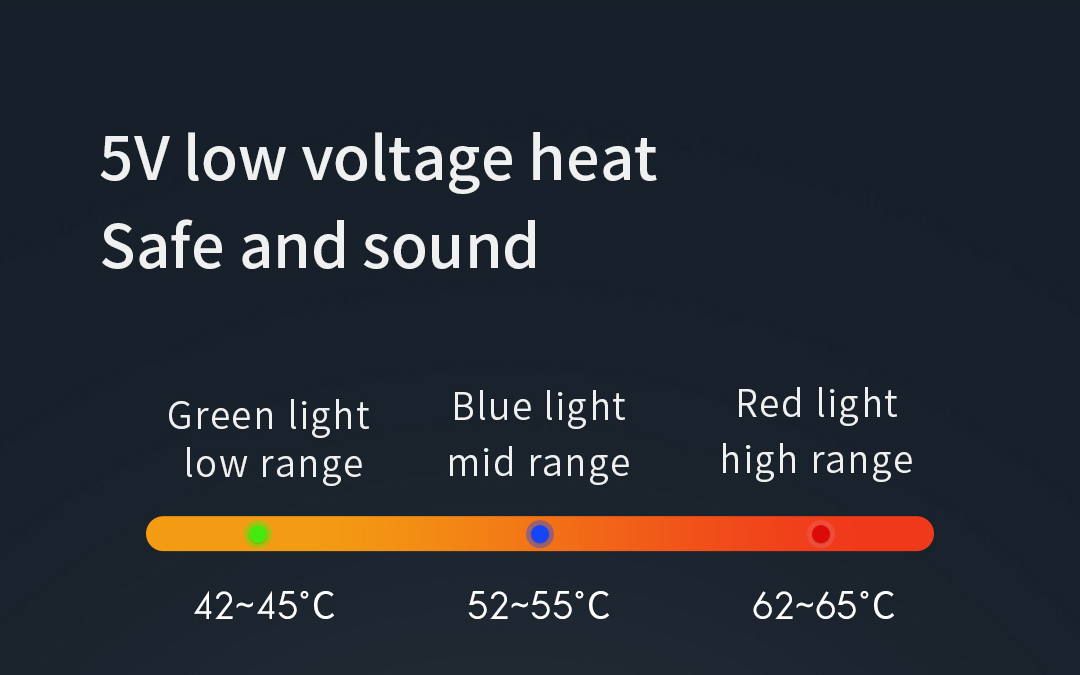

A three-level temperature controller allows the heating output to be adjusted between low, medium and high settings. Product materials indicate approximate temperature ranges of 42–45°C, 52–55°C and 62–65°C for the three respective levels.

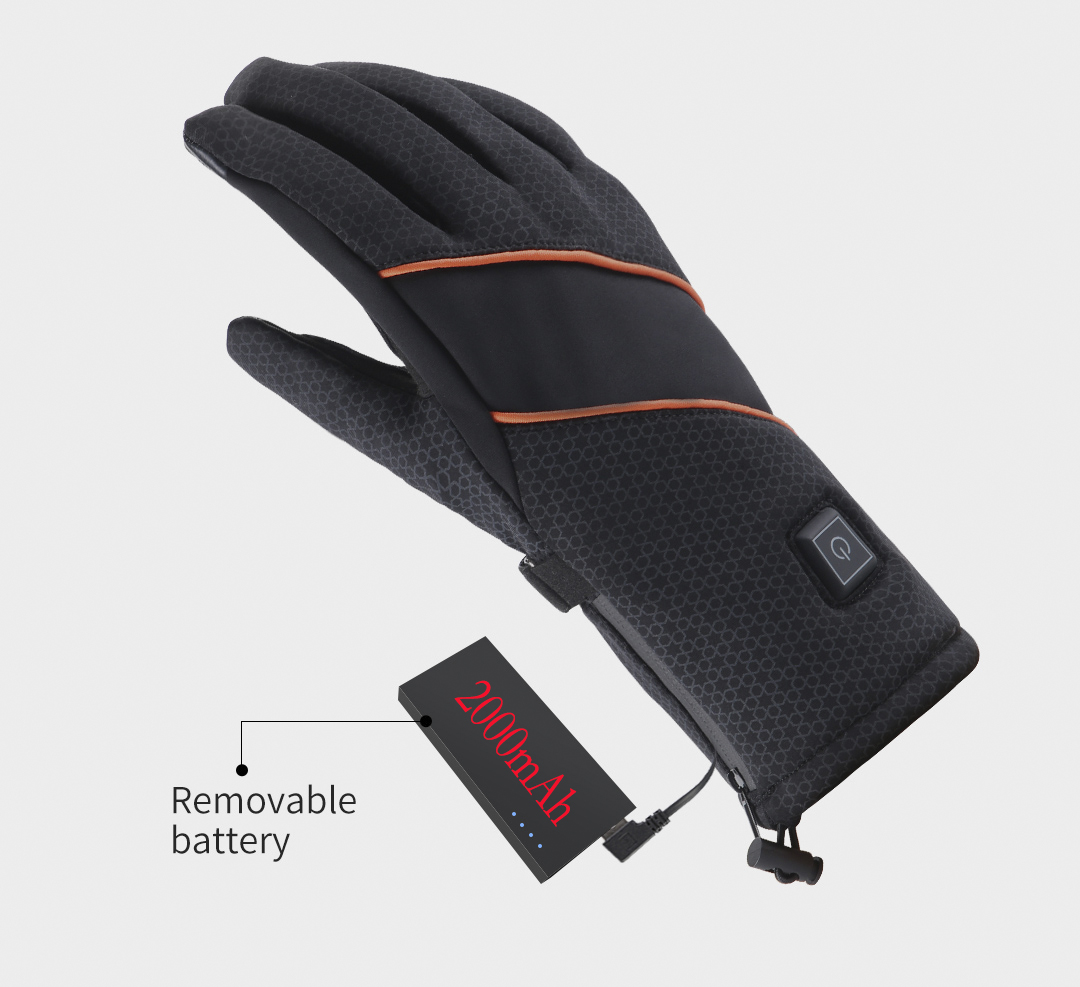

The gloves use a removable power module connected through a USB-based low-voltage power system. The heating function can be controlled from the button positioned near the wrist, while the conductive fingertip structure allows compatible touchscreen devices to be operated without removing the gloves.

The X20 uses a multi-layer textile construction with nylon, spandex and polyester materials verified in textile testing. Additional design features include a non-slip palm, soft inner lining and extended wrist structure. The gloves are intended for outdoor, commuting, riding and other cold-environment applications.

OEM and ODM requirements such as branding, packaging and product configuration can be reviewed according to project specifications.

Key Specifications

Heating Method
Resistance Wire Heating
Heating Element
Resistance wire heating element
Materials
Nylon and spandex outer fabric · polyester middle and lining layers
Dimensions
One Size; approximately 29 × 13 cm
Power Source
USB · Power Bank
Control
Three-level electronic heating control with low, medium and high temperature settings. The controller is positioned near the wrist for direct adjustment during use.
Cleaning / Washability
Remove and disconnect the power module before cleaning. Clean the glove surface gently and keep the USB connector, controller and heating components dry. Do not immerse powered electrical components in water.
Rated Voltage
5V
Heating Method
Resistance wire heating
Temperature Levels
3 Levels
Low Temperature
42–45°C
Medium Temperature
52–55°C
High Temperature
62–65°C
Weight
230 g ± 10 g
Size
One Size
Approximate Dimensions
Length 29 cm × Width 13 cm
Color
Black

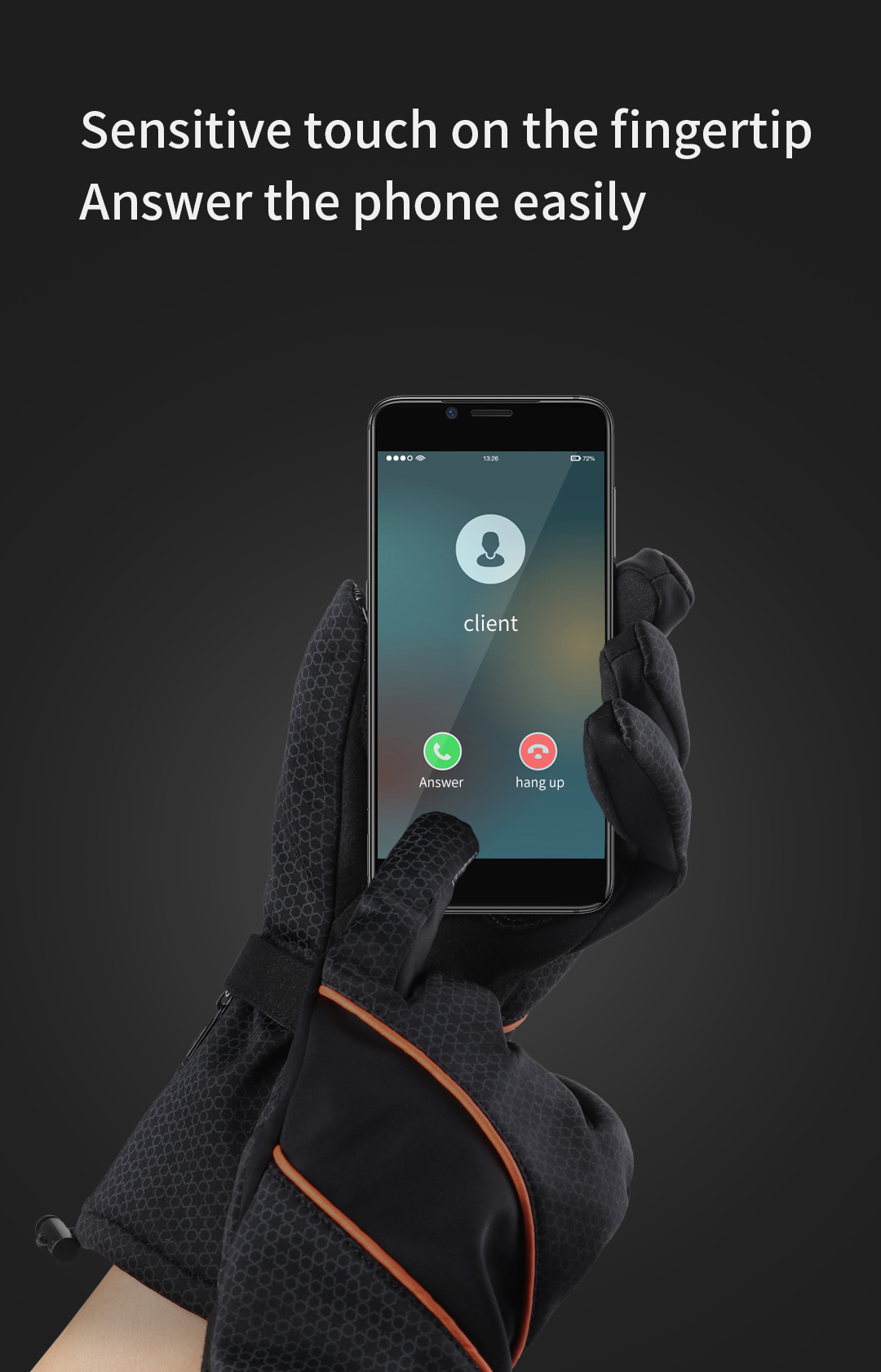

Touchscreen Function
Conductive fingertip for compatible touchscreen devices
Power Module
Removable low-voltage power module
Power Connection
USB connection
Palm
Non-slip palm
Inner Lining
Soft velvet-style lining

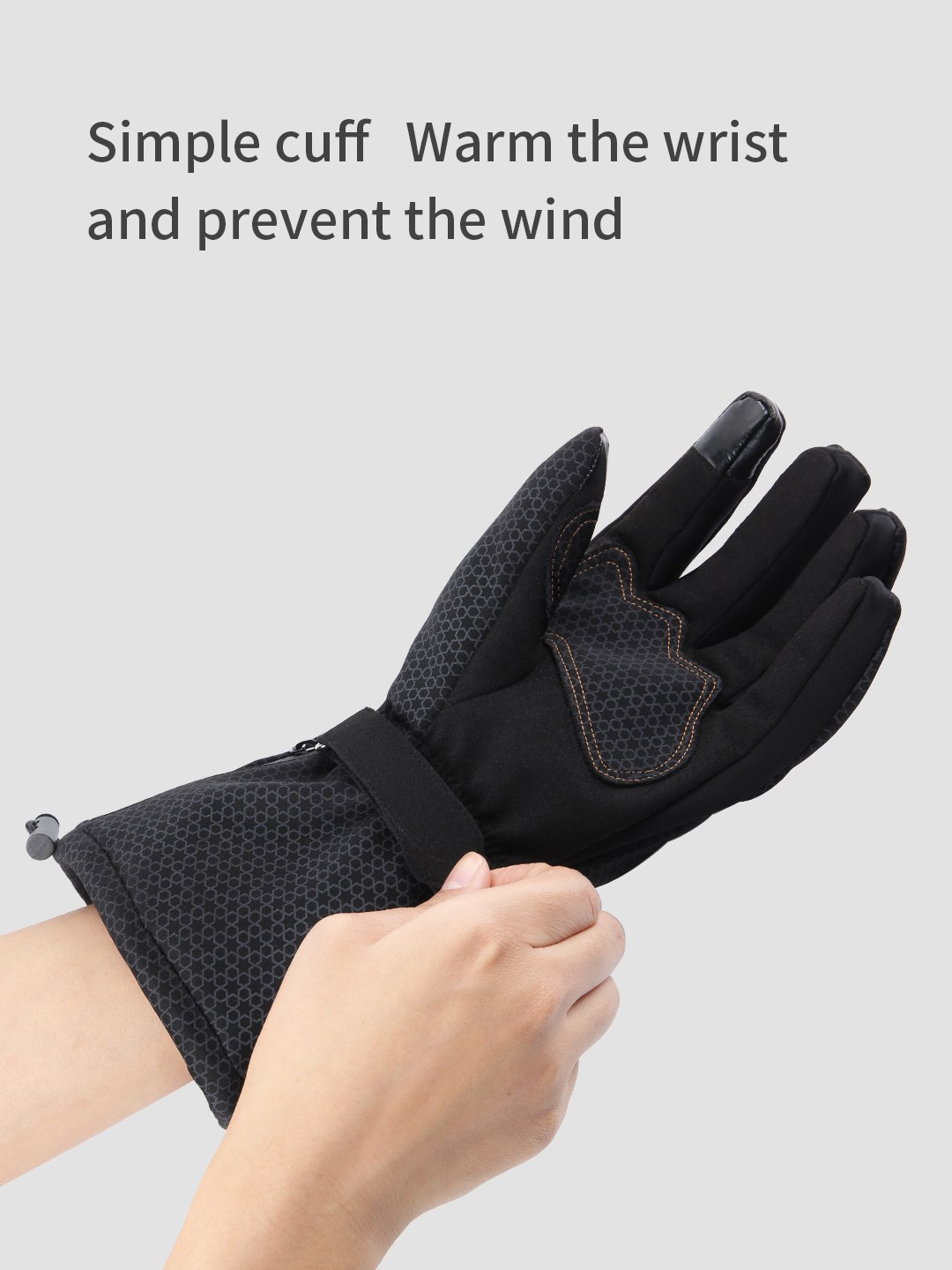

Wrist Design
Extended wrist coverage
Outer Fabric Composition
Nylon 83.8%; Spandex 16.2%
Middle Layer
Polyester 100%
Inner Layer
Polyester 100%

Models & Variants

Model / Variant
PMA-X20
Specification
Black electric heated glove with three-level temperature control, touchscreen fingertip and extended wrist design.

Customization & Supply

Customization Service
Available
Customization Options
Branding, packaging, textile finish and other OEM/ODM requirements can be discussed according to project specifications.
Commercial Notes
OEM/ODM requirements are reviewed according to glove configuration, textile construction, branding, packaging and order quantity. Final MOQ, lead time and customized specifications are subject to project confirmation.

Related Technical Resources

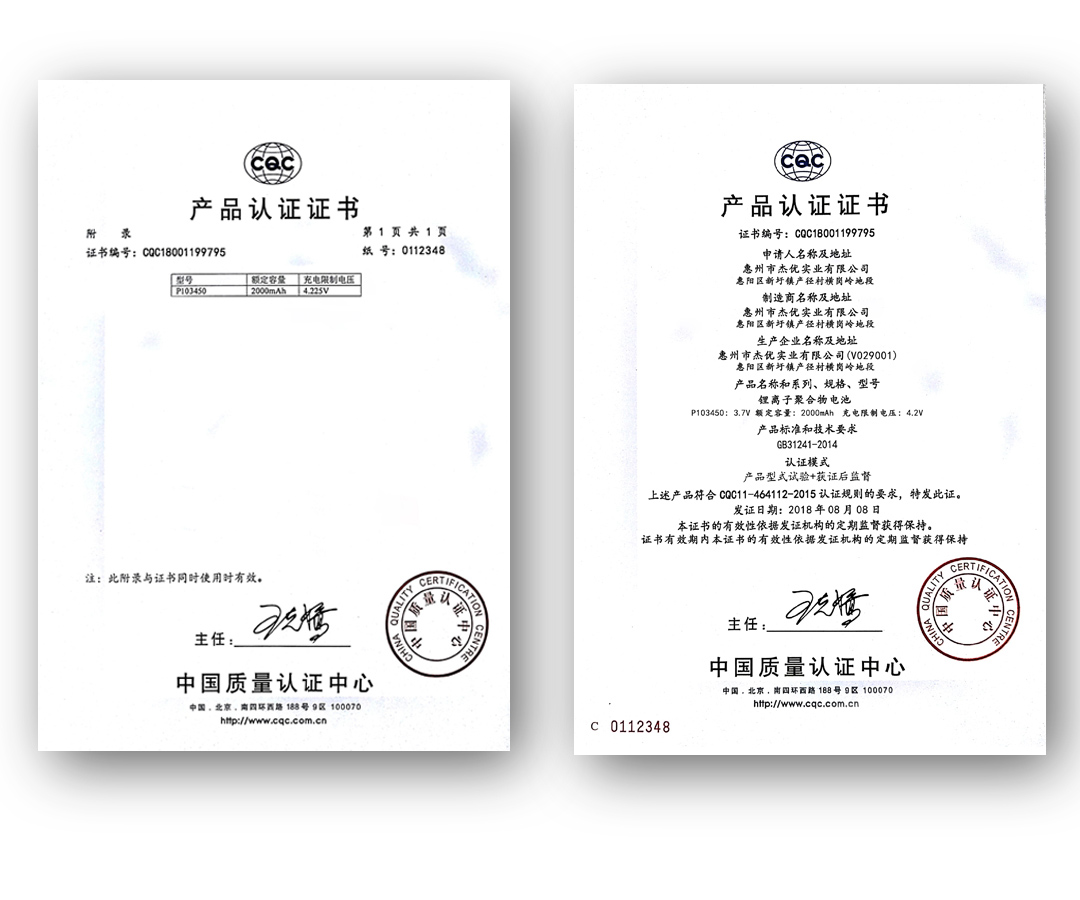

Test Report

X20 Electric Heated Gloves Test Report 1000285135-5010

Test Report associated with X20 Electric Heated Gloves.

View Report
Test Report

X20 Electric Heated Gloves Test Report ECT CQDQW 2019-11-002

Test Report associated with X20 Electric Heated Gloves.

View Report
Visual Details

Product Information

Application Views

Product in Use

X20 Electric Heated Gloves: gloves used while seated on a motorcycle.

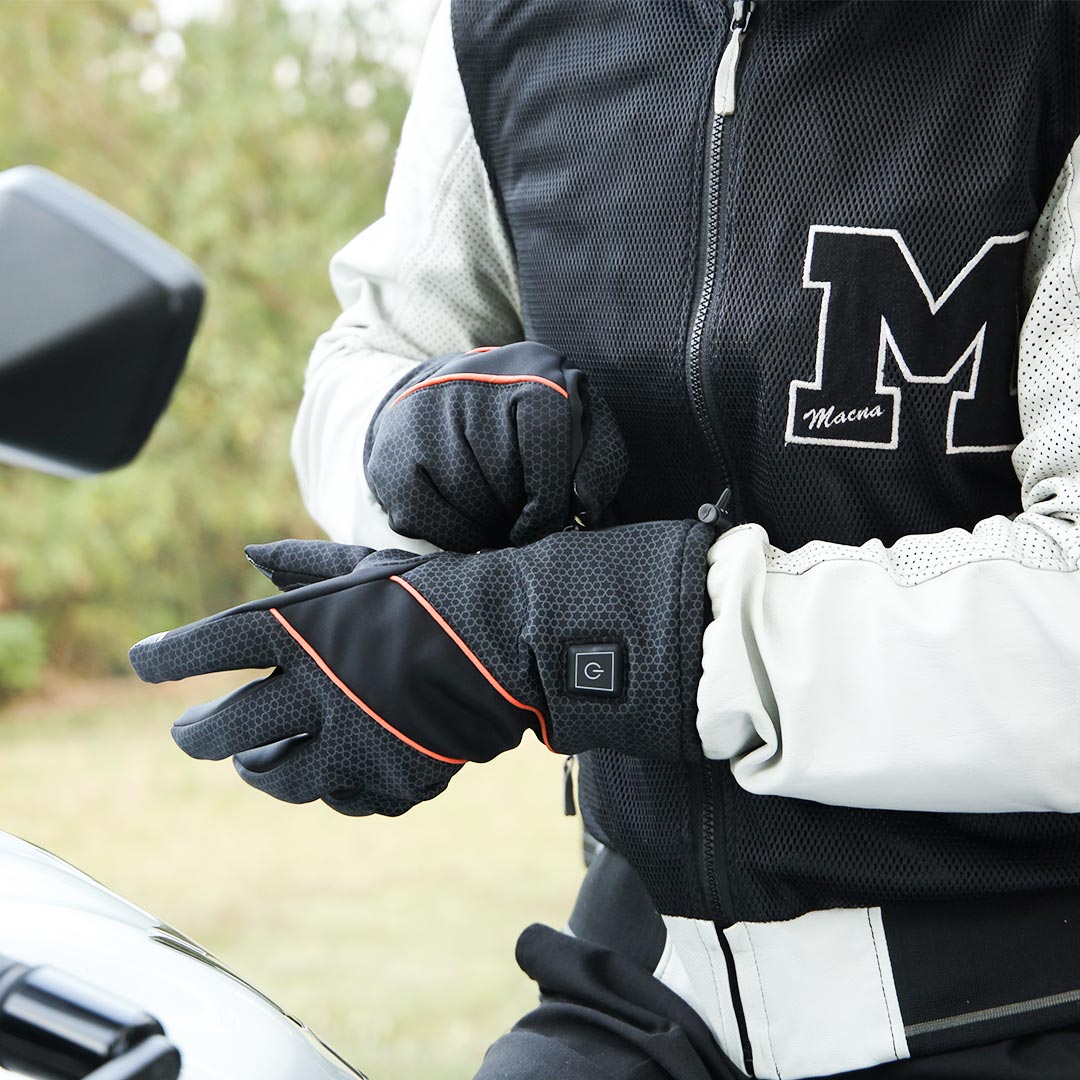

X20 Electric Heated Gloves: close-up of gloves worn with a riding jacket.
X20 Electric Heated Gloves: man wearing gloves beside a motorcycle.
X20 Electric Heated Gloves: skiing, hiking and riding examples.
