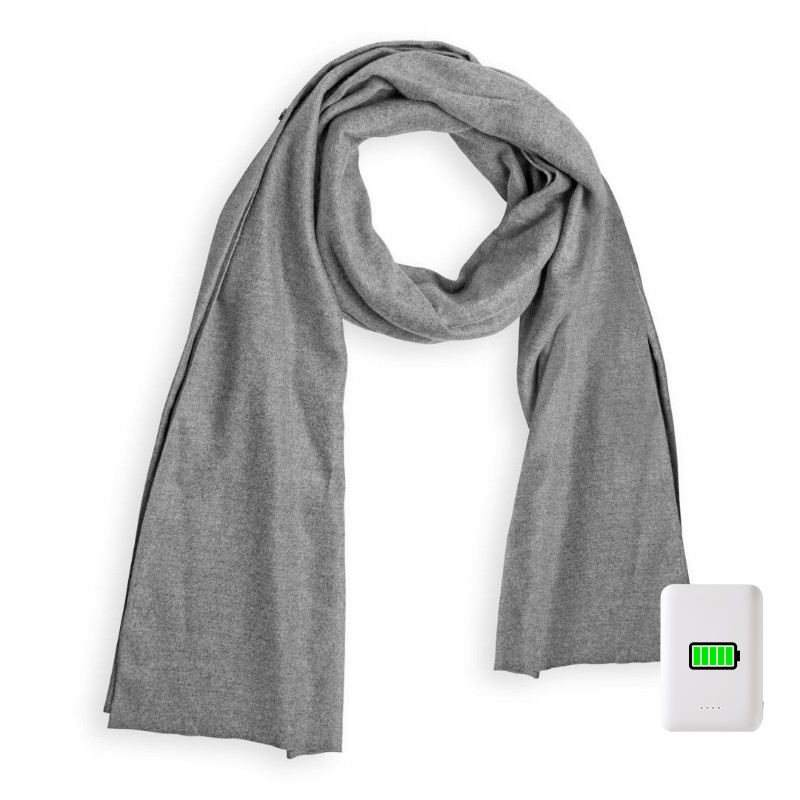

R10 Graphene Heated Scarf: gray scarf with external power pack.
R10

R10 Graphene Heated Scarf

A 5V graphene heated scarf with three temperature settings, USB power input and a 200 × 60 cm soft textile construction. Designed for neck, shoulder and shawl-style use in cold-weather and wearable heating applications.

Heating Method PI-Based Graphene Flexible Heating Film
Category
Outdoor & Wearable Heating Health & Wellness
Product Stage
Finished Product Reference
Application Market
Outdoor & Wearable Heating
Technology Type
Flexible Electric Heating
Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Key Specifications

Heating Method
PI-Based Graphene Flexible Heating Film
Heating Element
Flexible graphene heating element
Materials
100% regenerated cellulose fiber
Dimensions
200 × 60 cm
Power Source
USB · Power Bank
Control
Press and hold the power button for 3 seconds to turn on. The scarf starts at the medium temperature setting. Short press the button to switch between high, medium and low temperature levels. Press and hold until the indicator light turns off to power down.
Cleaning / Washability
Remove the power cable before washing. Wash at a water temperature not exceeding 30°C. Hand washing is recommended. If machine washing is required, use a laundry bag. Do not soak with chlorine-containing detergent. Air dry naturally and do not use a hair dryer or tumble dryer.
Rated Voltage
5V
Input
DC 5V, 1A
Temperature Levels
3 Levels
High Temperature
48–52°C
Medium Temperature
43–48°C
Low Temperature
38–42°C
Dimensions
200 × 60 cm
Weight
390.5 g ± 20 g
Material
100% regenerated cellulose fiber
Color Options
Red, Gray
Power Input
USB
Wearing Modes
Scarf, Shawl
Control Method
Single-button three-level temperature control
Power-On Operation
Press and hold for 3 seconds
Default Setting
Medium temperature

Models & Variants

Model / Variant
R10
Specification
5V, red or gray, three-level temperature control

Customization & Supply

Customization Service
Available
Customization Options
Color, textile material, heating configuration, branding, packaging and other OEM/ODM requirements can be discussed based on project specifications.
Commercial Notes
OEM/ODM requirements are reviewed according to product configuration, material, heating requirements and order quantity. Final MOQ, lead time and customized specifications are subject to project confirmation.

Related Technical Resources

Test Report

R10 Test Report

Test Report associated with PMA-R10 Graphene Heated Scalp Cap.

View Report
Test Report

R10 GB 18401 Test Report

GB 18401 Test Report associated with PMA-R10 Graphene Heated Scalp Cap.

View Report
Test Report

R10 GB 4706 Test Report

GB 4706 Test Report associated with PMA-R10 Graphene Heated Scalp Cap.

View Report
Test Report

R10 GB 4706 Test Report 02

GB 4706 Test Report associated with PMA-R10 Graphene Heated Scalp Cap.

View Report
Test Report

R10 GB 18401 Test Report 02

GB 18401 Test Report associated with PMA-R10 Graphene Heated Scalp Cap.

View Report
Test Report

R10 RoHS Test Report

RoHS Test Report associated with PMA-R10 Graphene Heated Scalp Cap.

View Report
Test Report

R10 Test Report 02

Test Report associated with PMA-R10 Graphene Heated Scalp Cap.

View Report
Visual Details

Product Information

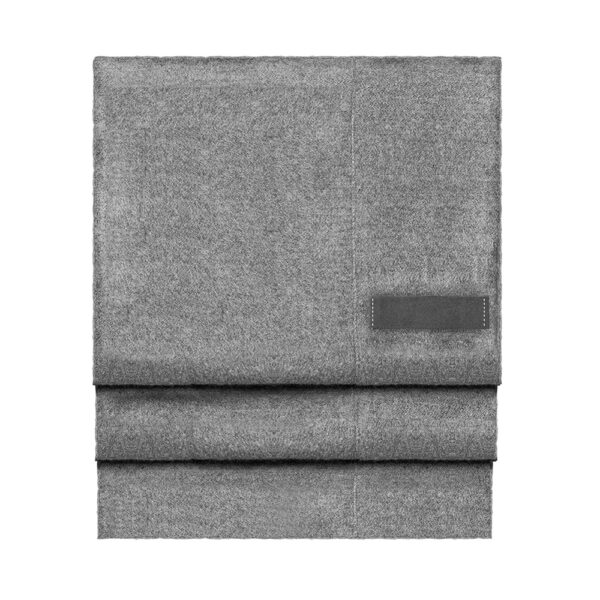

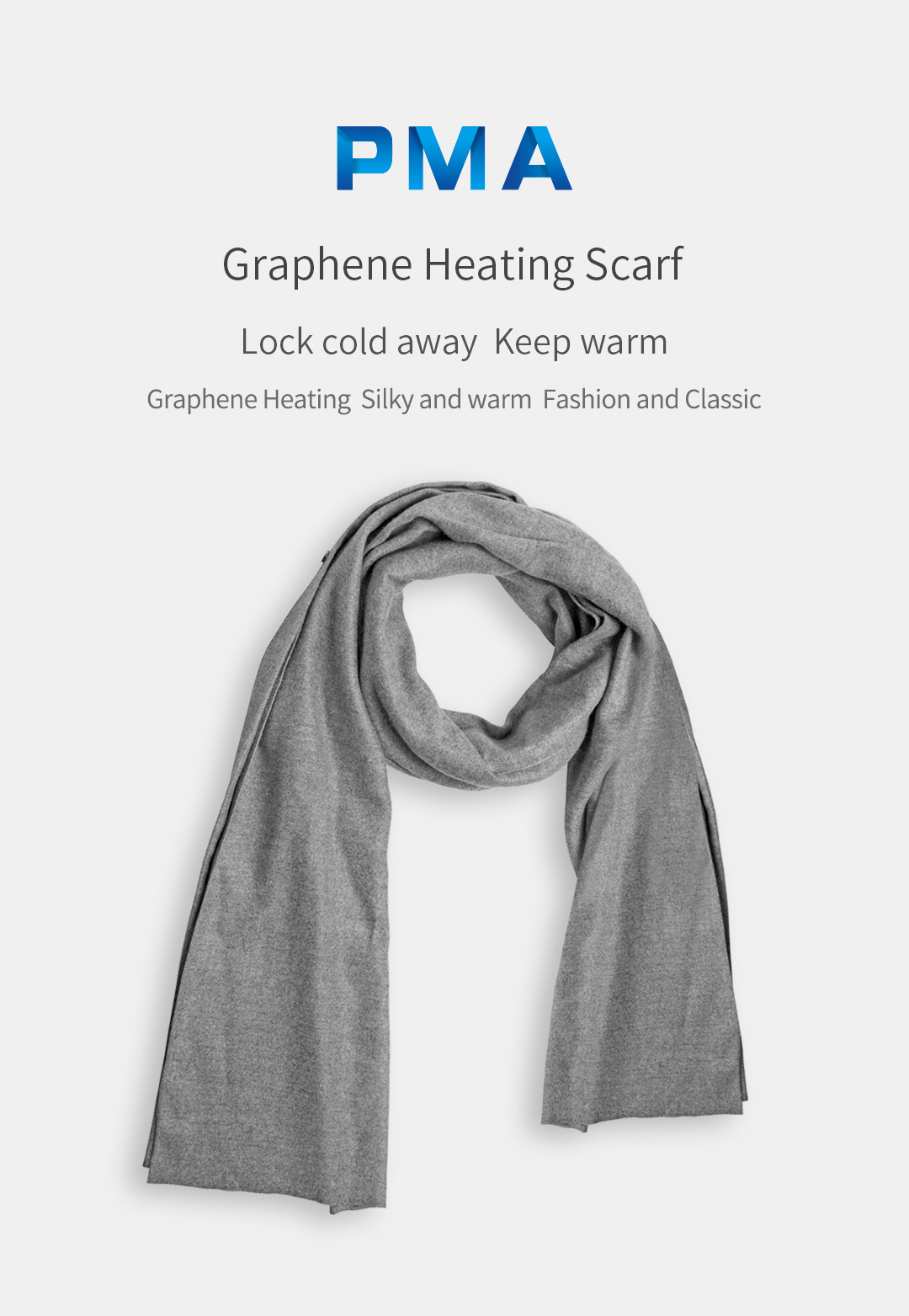

R10 Graphene Heated Scarf: gray scarf product overview.

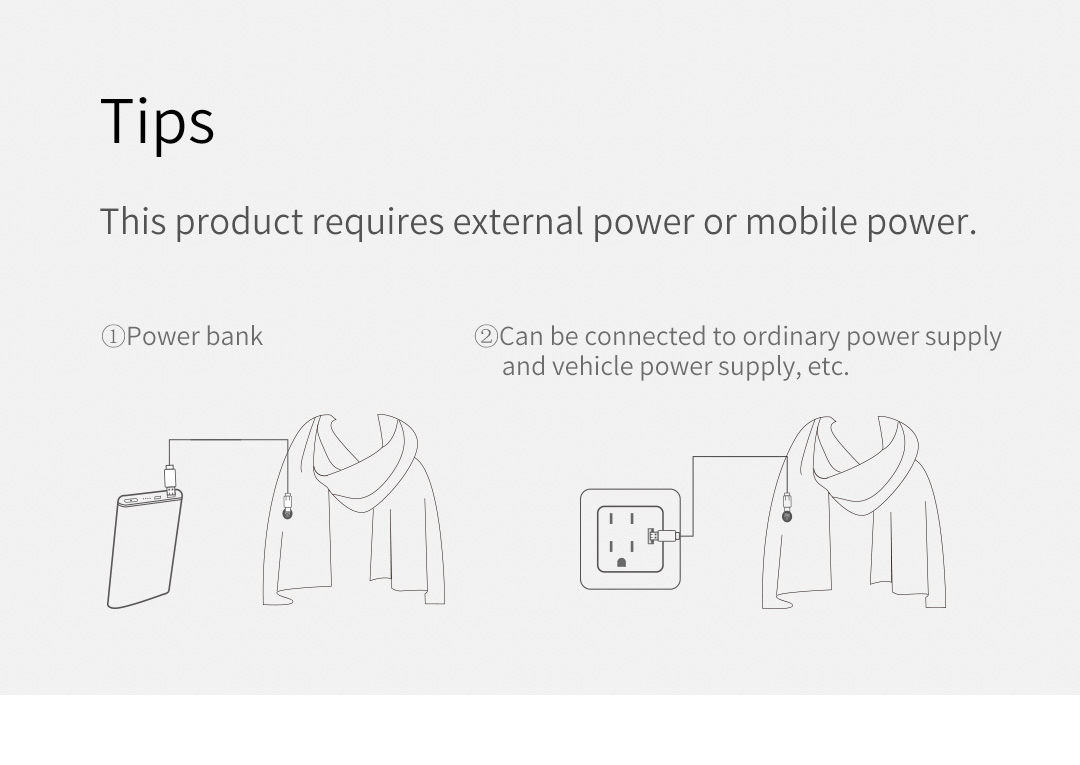

R10 Graphene Heated Scarf: external power connection diagrams.

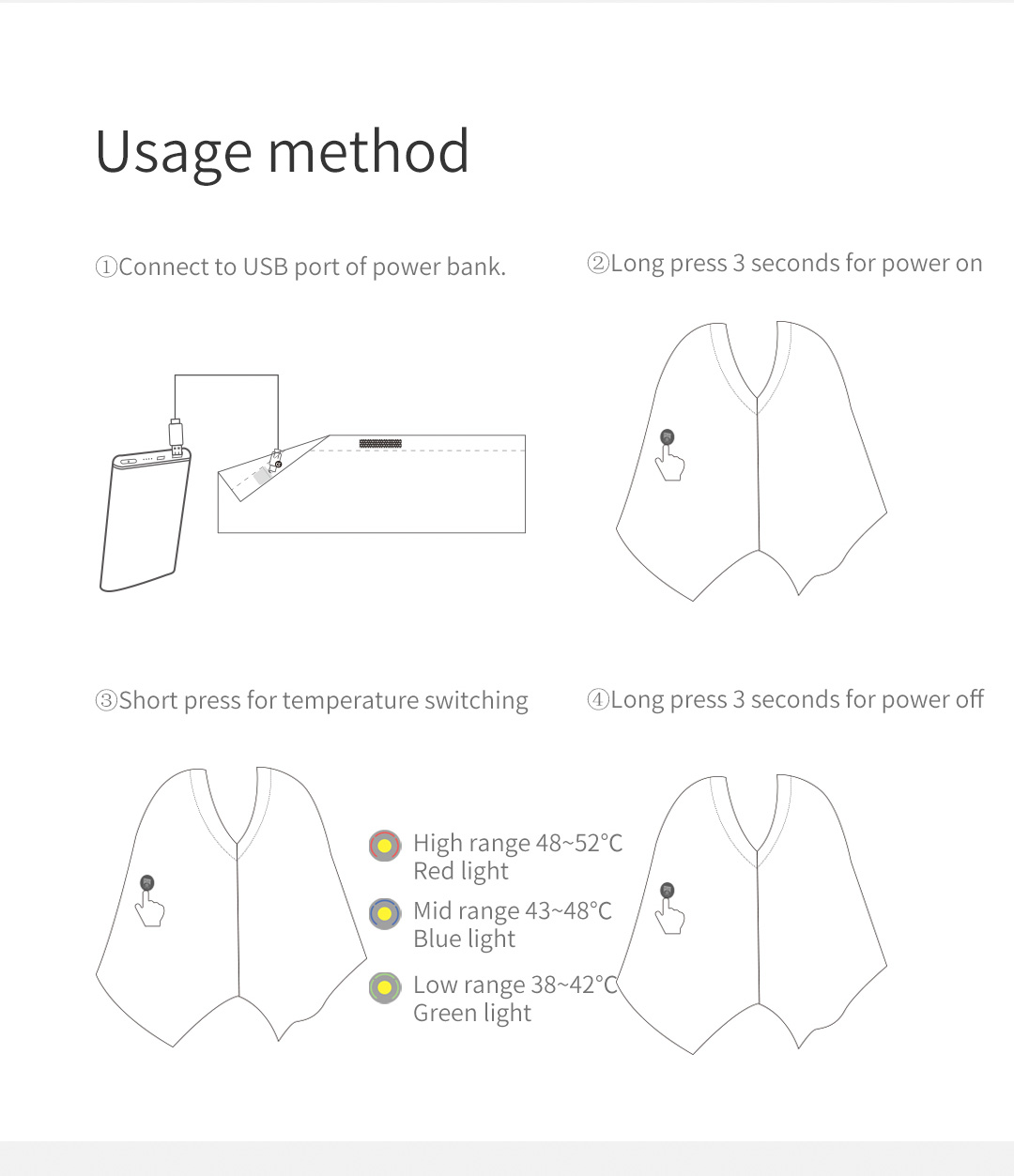

R10 Graphene Heated Scarf: connection and button operation guide.

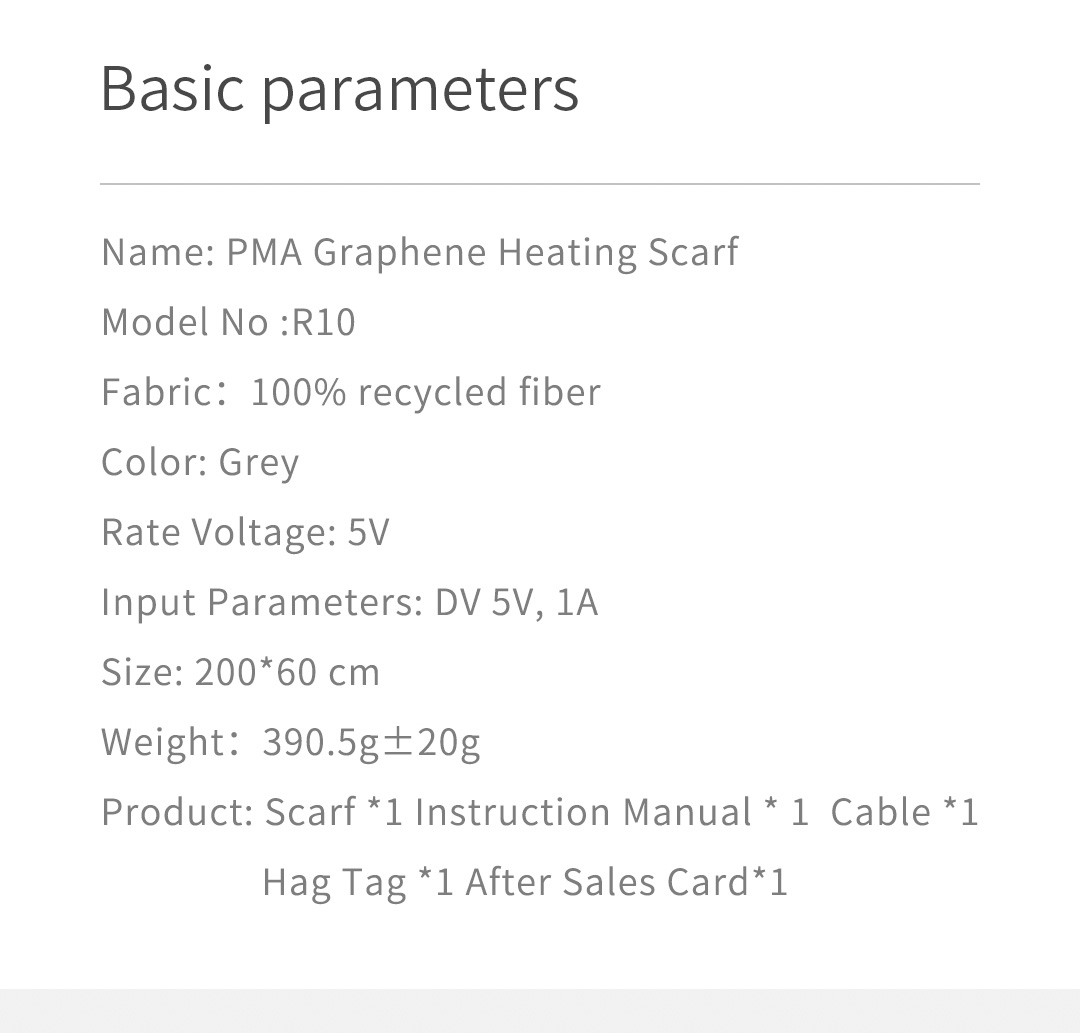

R10 Graphene Heated Scarf: product specification panel.

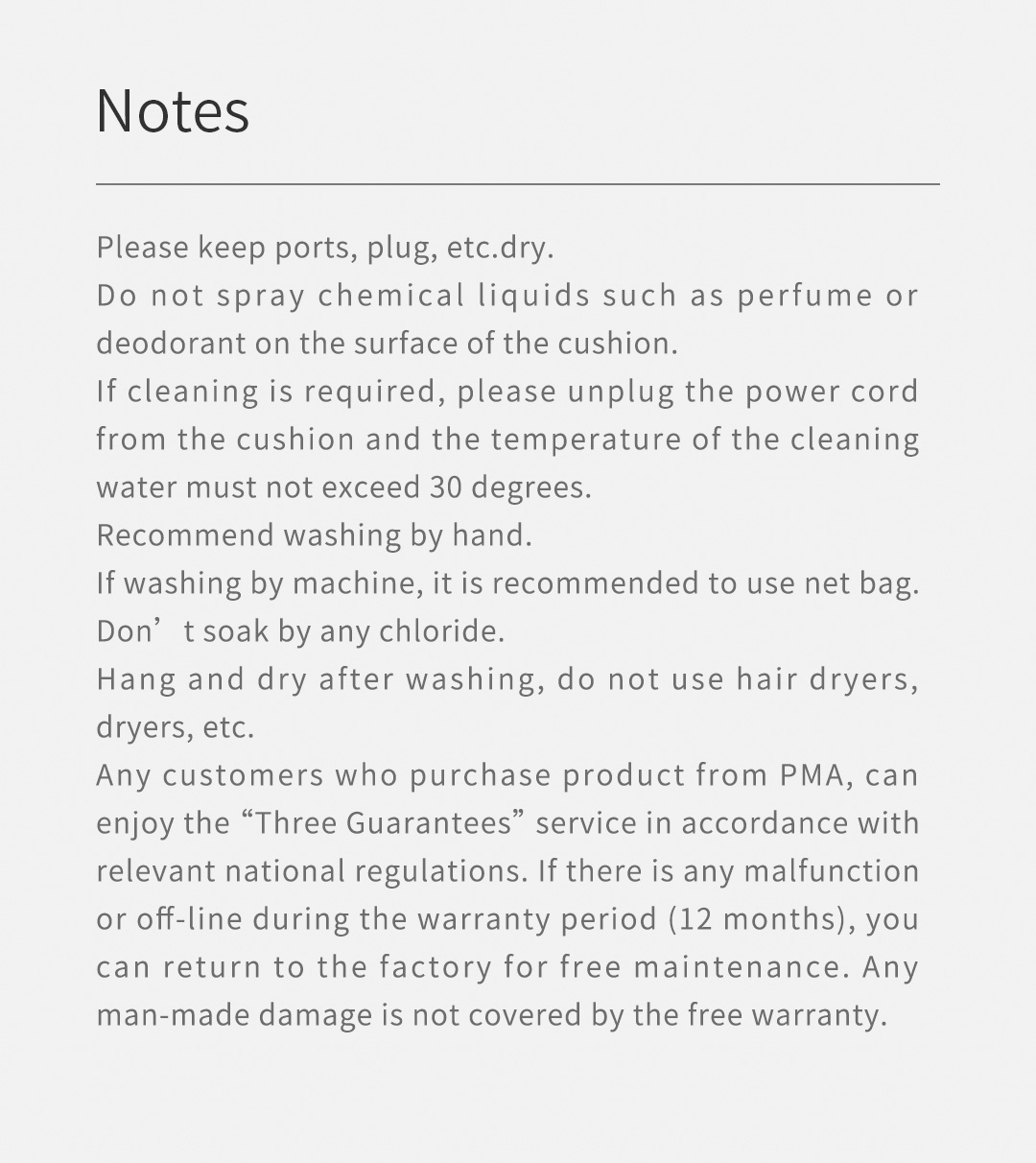

R10 Graphene Heated Scarf: printed cleaning and care notes.

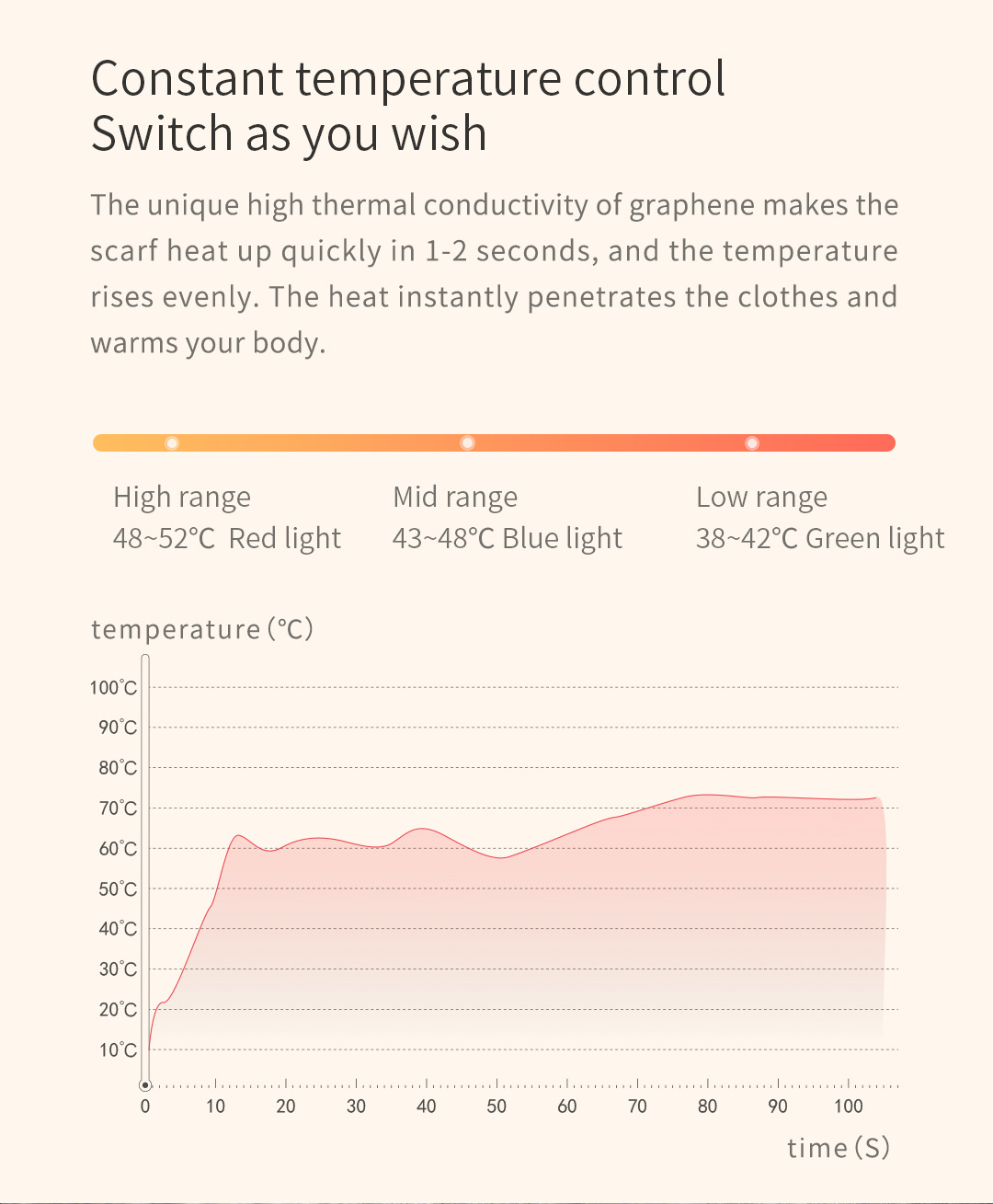

R10 Graphene Heated Scarf: temperature setting and heating curve guide.

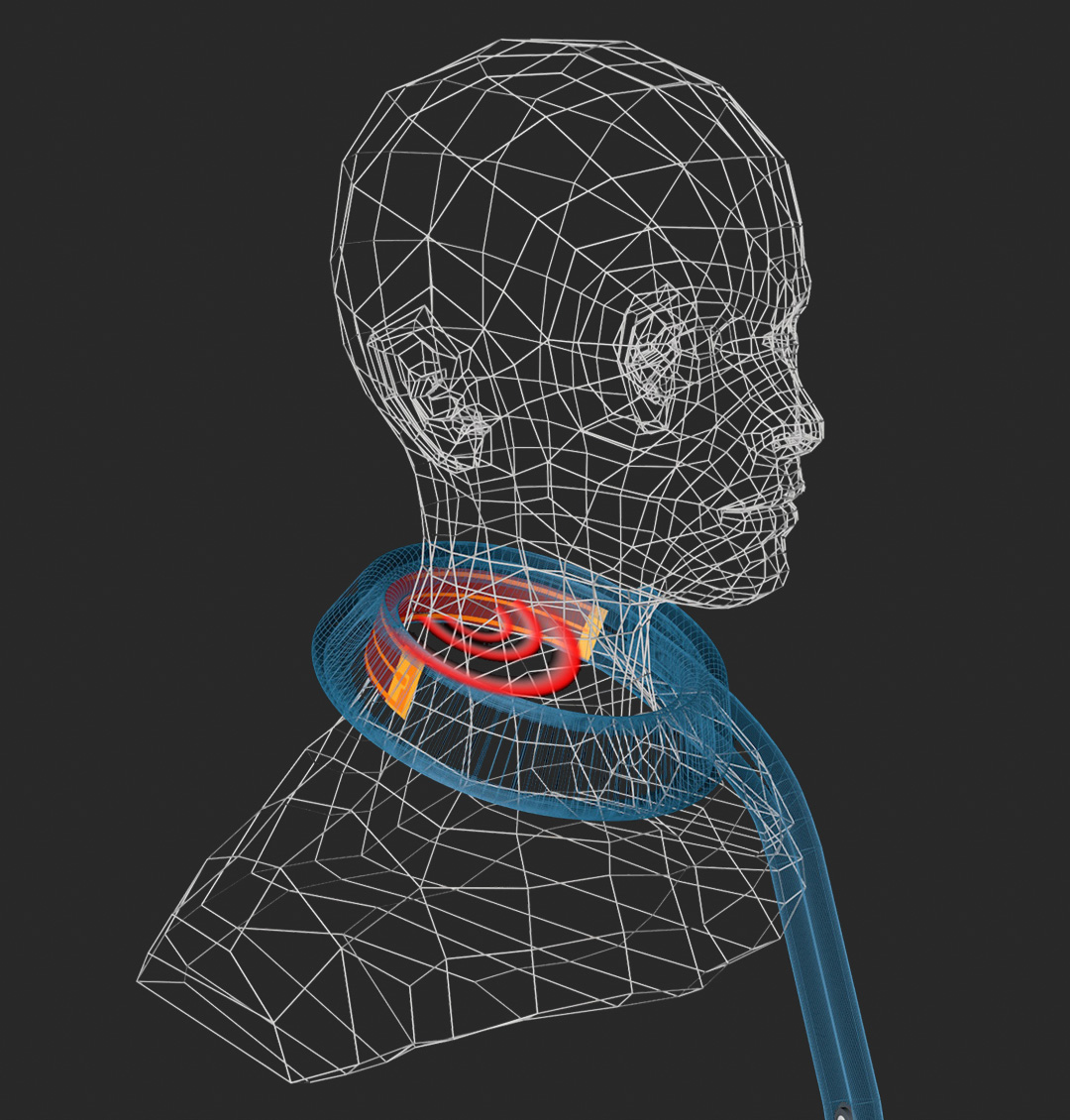

R10 Graphene Heated Scarf: neck heating zone illustration.

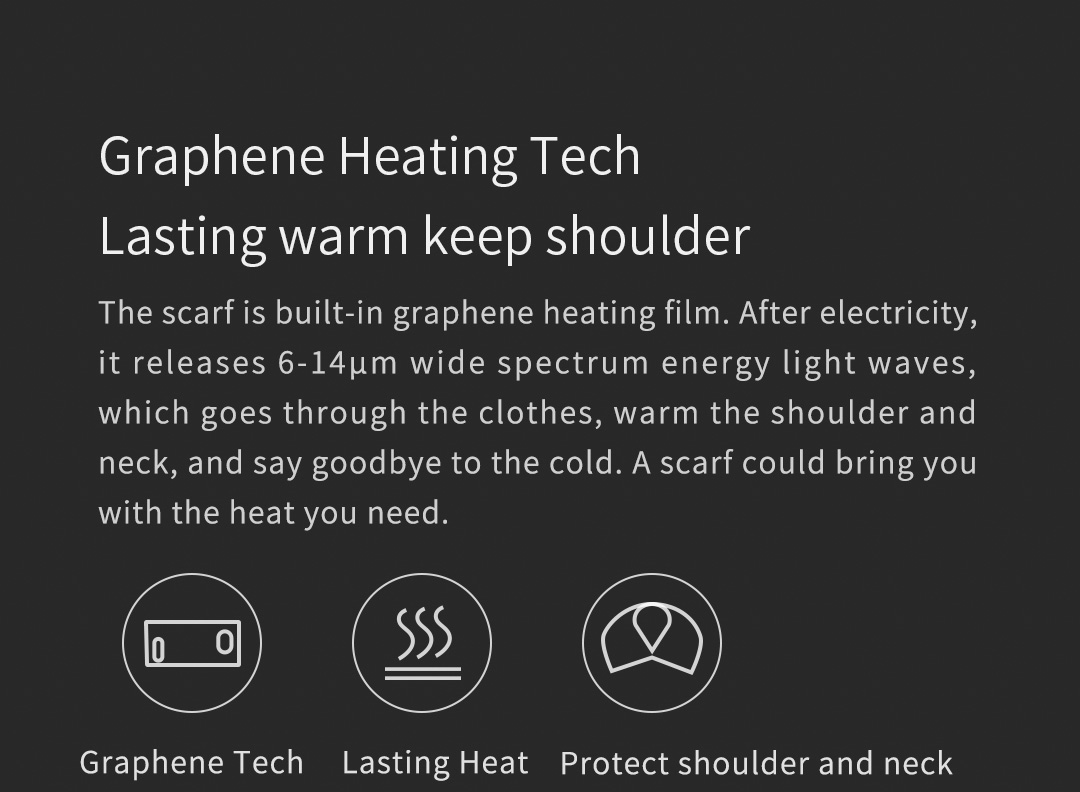

R10 Graphene Heated Scarf: heating technology information panel.
R10 Graphene Heated Scarf: scarf washing demonstration.
Application Views

Product in Use

R10 Graphene Heated Scarf: gray scarf worn as a shawl while seated.
R10 Graphene Heated Scarf: woman wearing the scarf at a laptop desk.
R10 Graphene Heated Scarf: man wearing the red scarf with a black vest.
R10 Graphene Heated Scarf: man wearing the gray scarf outdoors.
