PMA-Z20

Z20 Graphene Heated Hand Warmer

A compact 5000mAh graphene heated hand warmer with double-sided heating, three temperature levels, Type-C charging and emergency power-bank functionality.

Heating Method	PI-Based Graphene Flexible Heating Film
Category	Health & Wellness Outdoor & Wearable Heating
Product Stage	Finished Product Reference
Application Market	Outdoor & Wearable Heating
Technology Type	Flexible Electric Heating

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

The Z20 graphene heated hand warmer is a compact rechargeable warming device with double-sided graphene heating and a built-in 5000mAh battery.

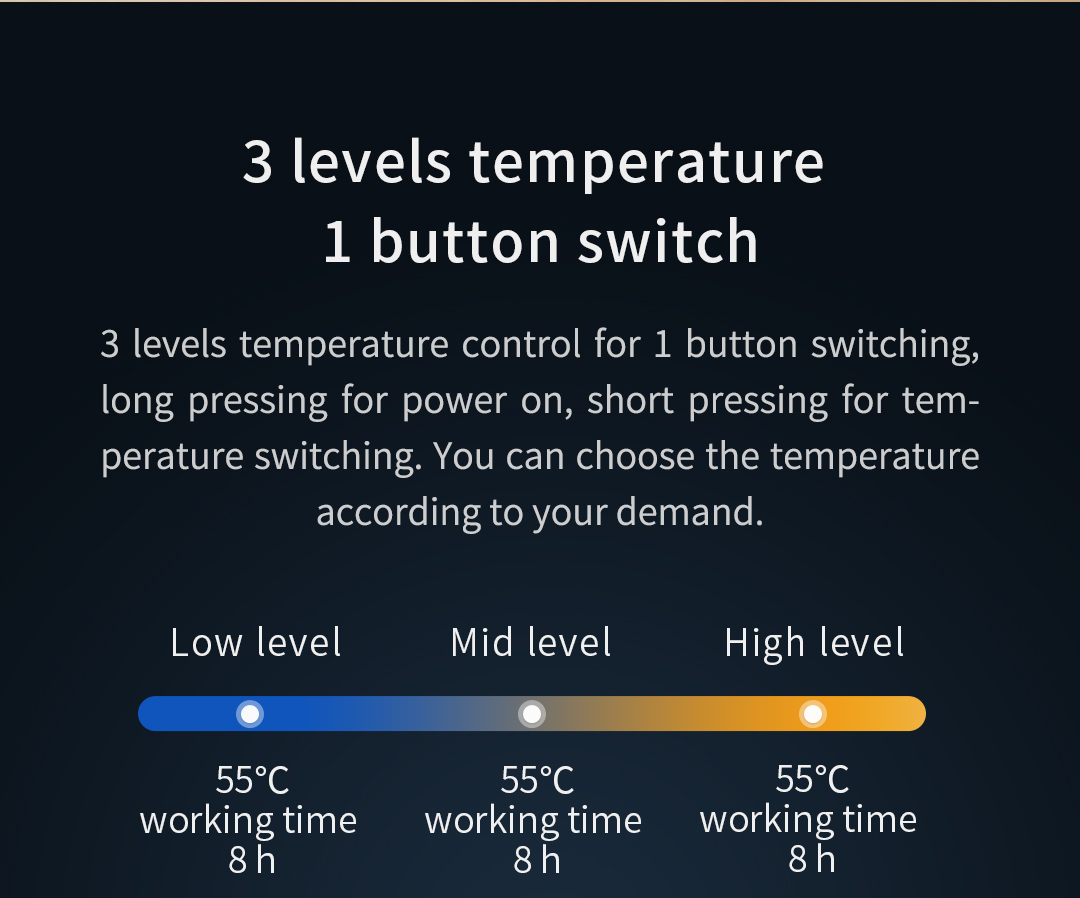

The product provides three selectable heating levels through a single control button. Long pressing switches the unit on or off, while short pressing changes the heating level. Product materials indicate rapid heating within several seconds, with the heating surface gradually reaching the selected operating temperature.

A 5000mAh battery supports cordless use and can also provide emergency charging for compatible mobile devices. The product uses a Type-C charging interface and includes charging and discharging protection.

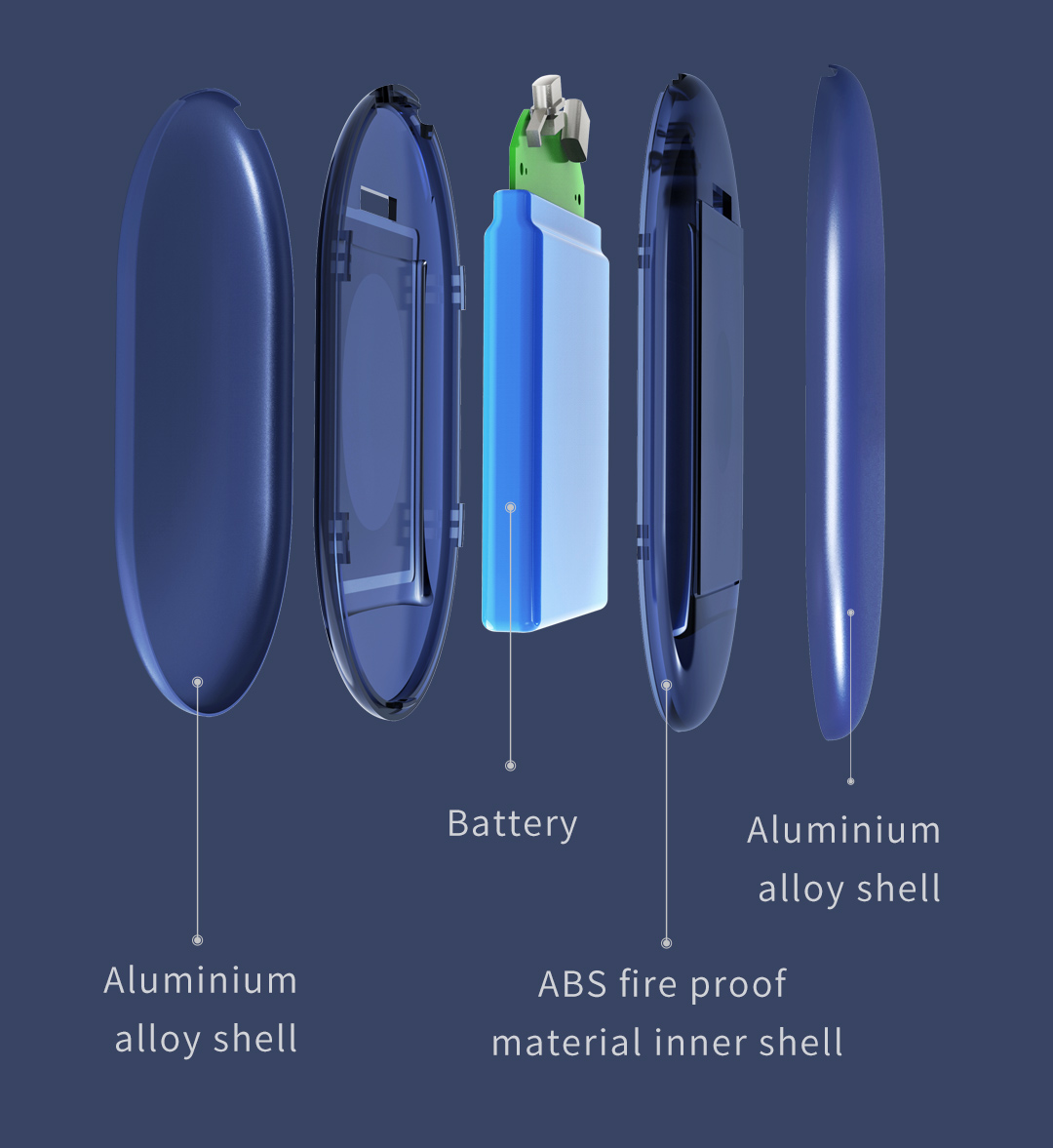

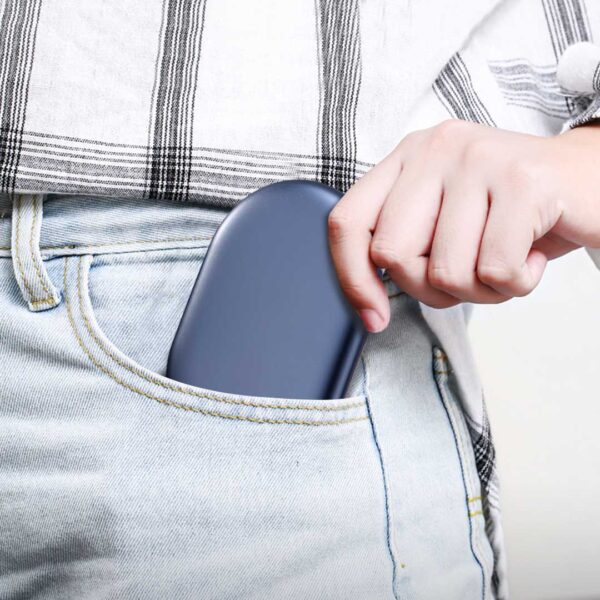

The housing combines an anodized aluminum-alloy outer shell with an ABS flame-retardant inner structure. With a compact size of 110 × 73 mm and a weight of approximately 130 g, the Z20 is easy to carry in a pocket, bag or luggage. OEM and ODM requirements such as branding, packaging and exterior color can be reviewed according to project specifications.

Key Specifications

Heating Method

PI-Based Graphene Flexible Heating Film

Heating Element

Double-sided graphene heating element

Materials

Anodized aluminum-alloy outer shell · ABS flame-retardant inner shell

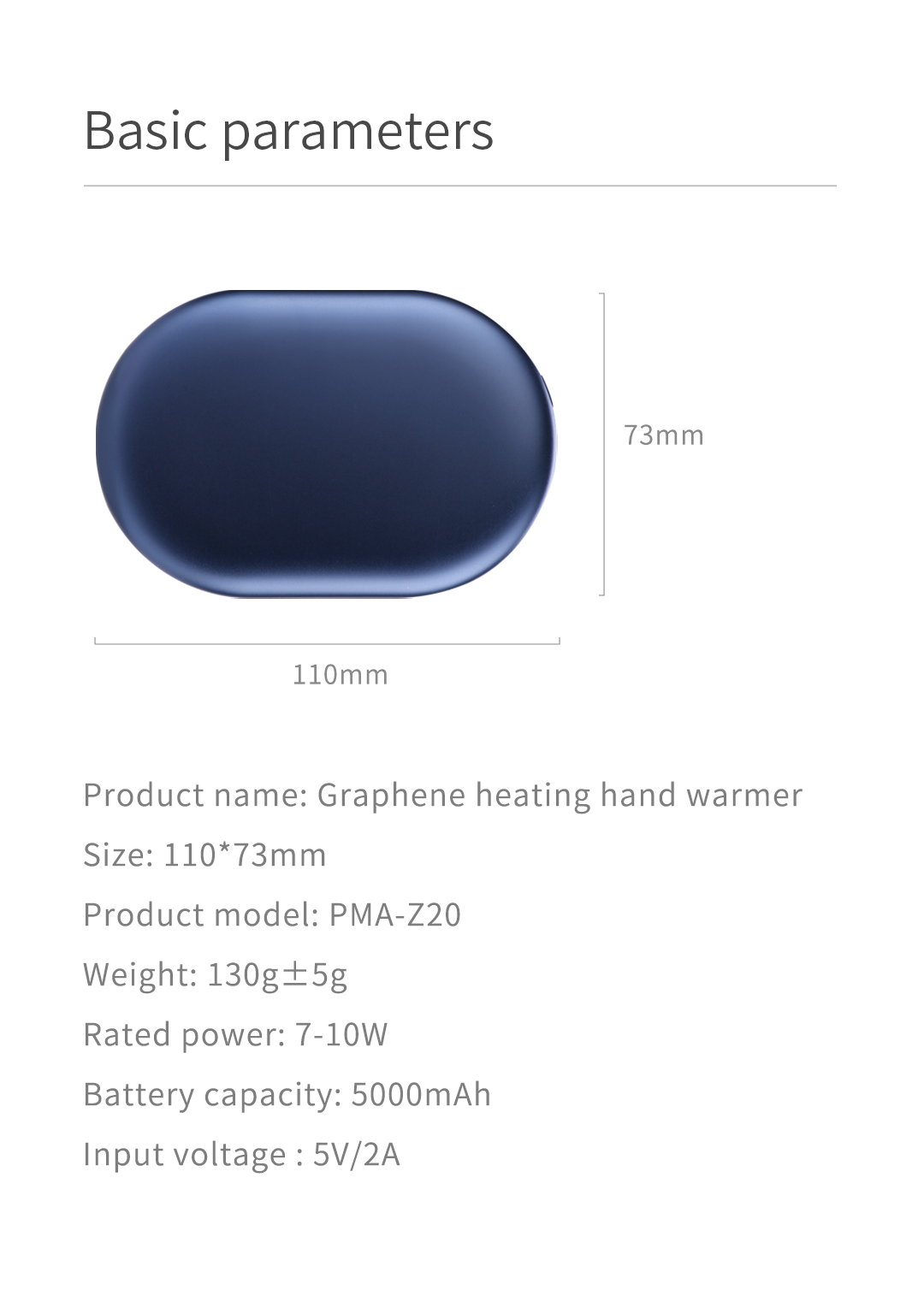

Dimensions

110 × 73 mm

Power Source

USB · Battery

Control

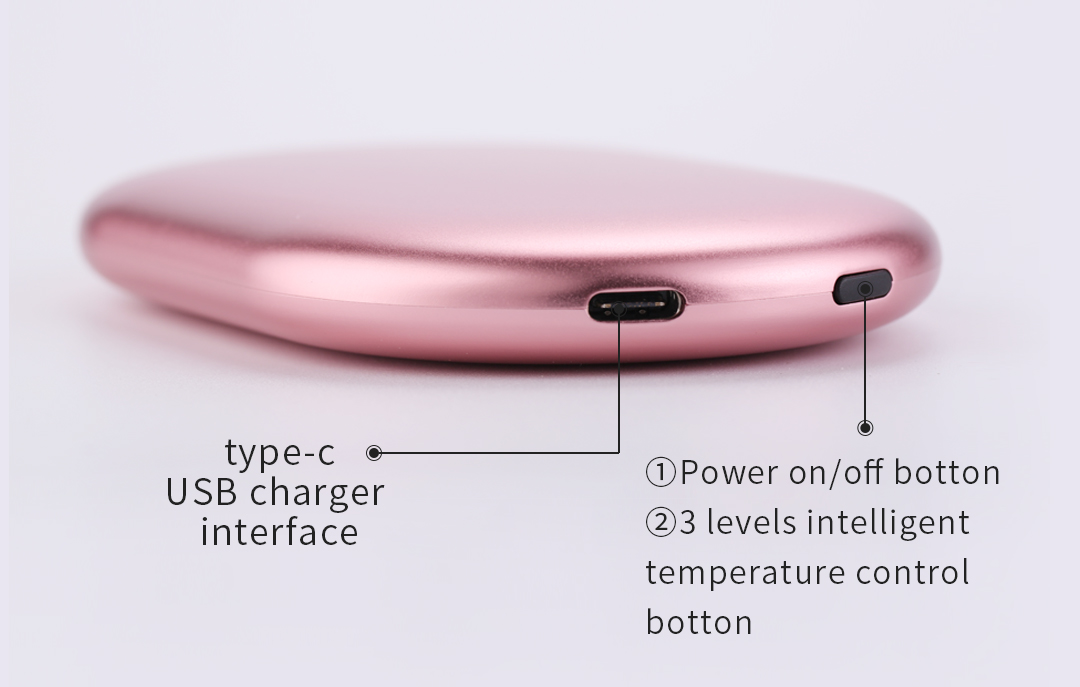

Single-button control with long press for power on/off and short press for three-level temperature switching.

Cleaning / Washability

Do not immerse or wash the product with water. Disconnect from charging before cleaning and wipe the exterior with a soft dry or slightly damp cloth. Keep moisture away from the charging interface and control components.

Input Voltage

DC 5V, 2A

Rated Power

10W

Battery Capacity

5000mAh

Dimensions

110 × 73 mm

Weight

130 g ± 5 g

Heating Levels

3 Levels

Heating Configuration

Double-sided graphene heating

Heating Response

Approximately 3–5 seconds initial heating response

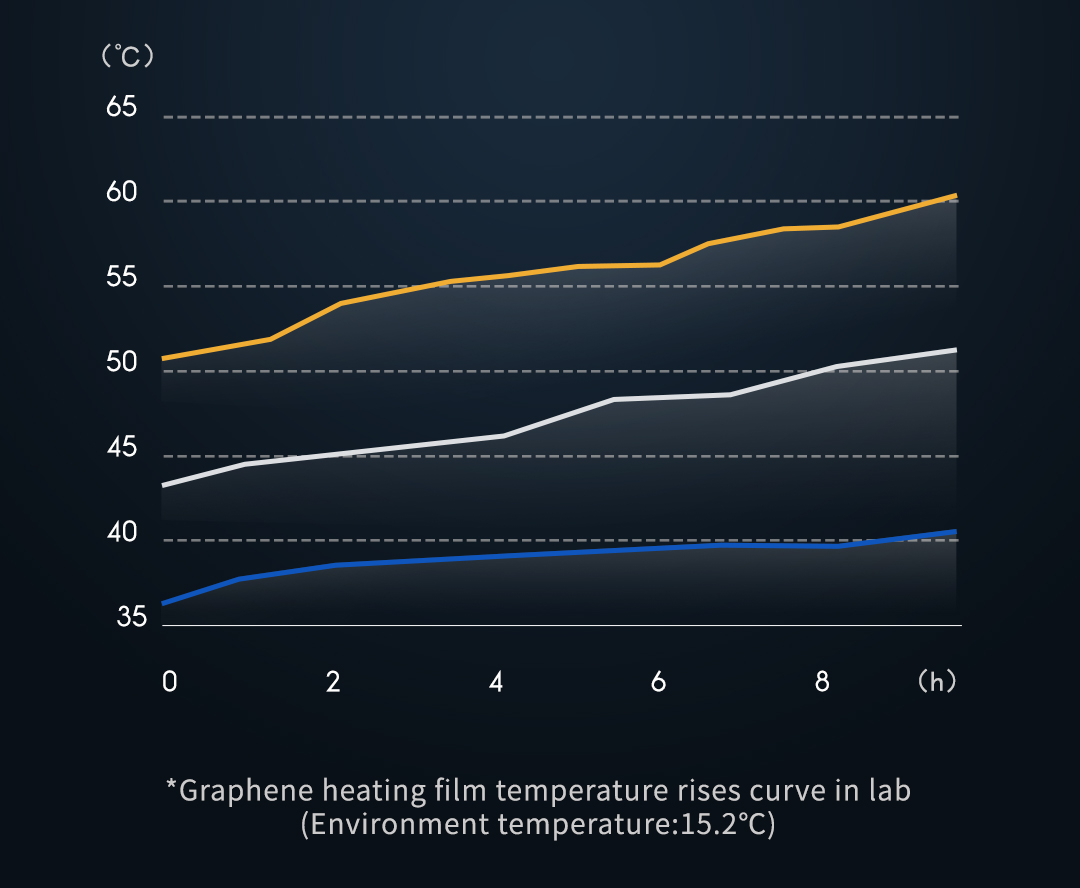

Maximum Heating Reference

Approximately 60°C at high setting

High-Level Runtime

Approximately 3–4 hours

Medium-Level Runtime

Approximately 5–6 hours

Low-Level Runtime

Approximately 7–8 hours

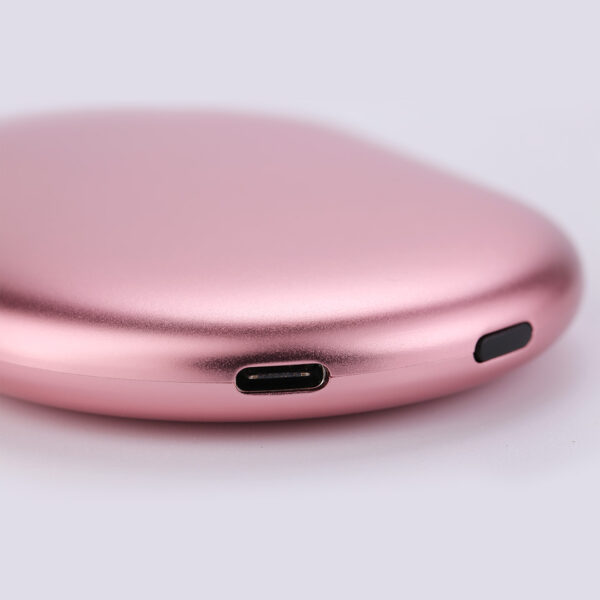

Charging Interface

USB Type-C

Power Bank Function

Supports emergency charging for compatible mobile devices

Control

Single-button three-level temperature control

Outer Shell

Anodized aluminum alloy

Inner Shell

ABS flame-retardant material

Protection

Charging, discharging, over-temperature, over-voltage and over-current protection

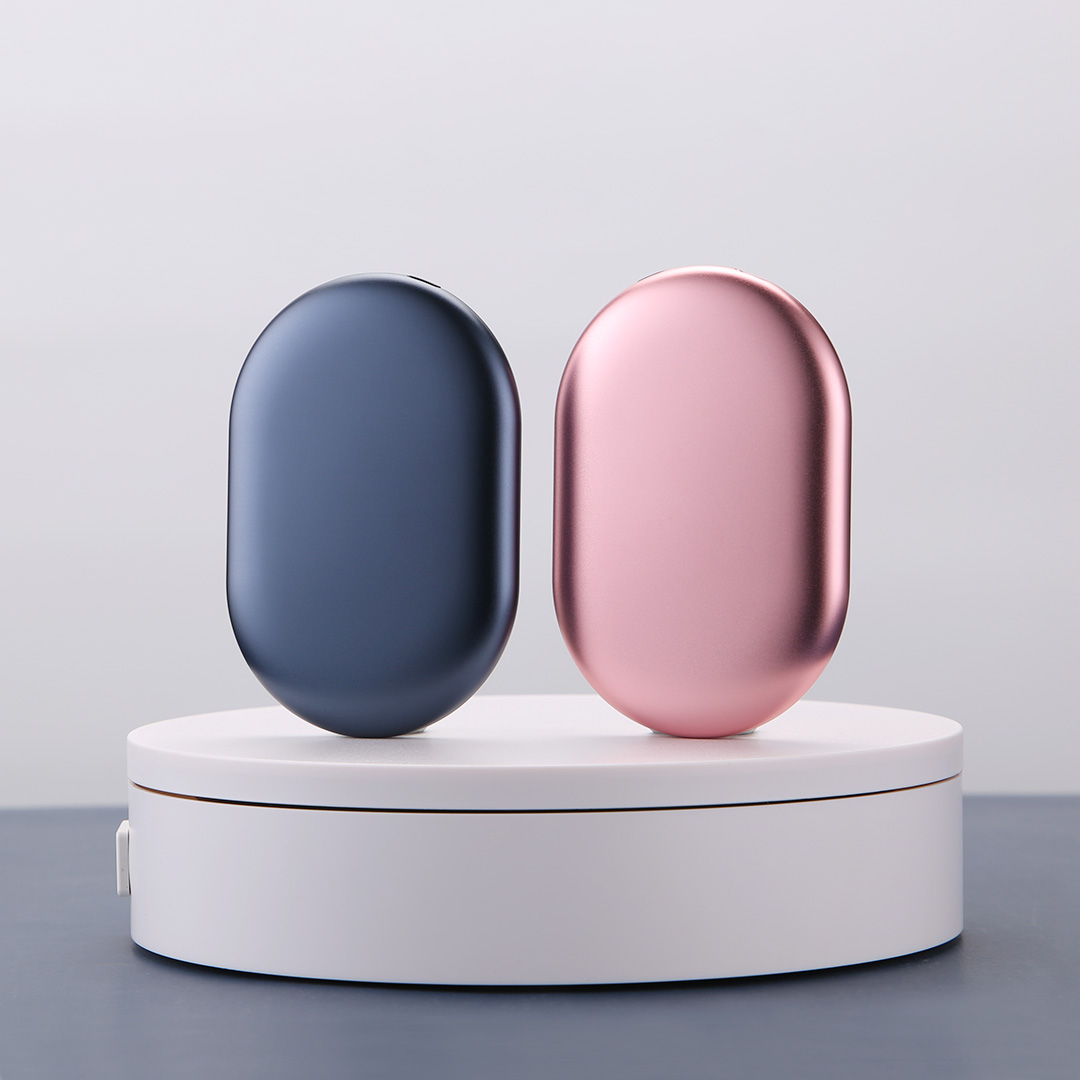

Color Options

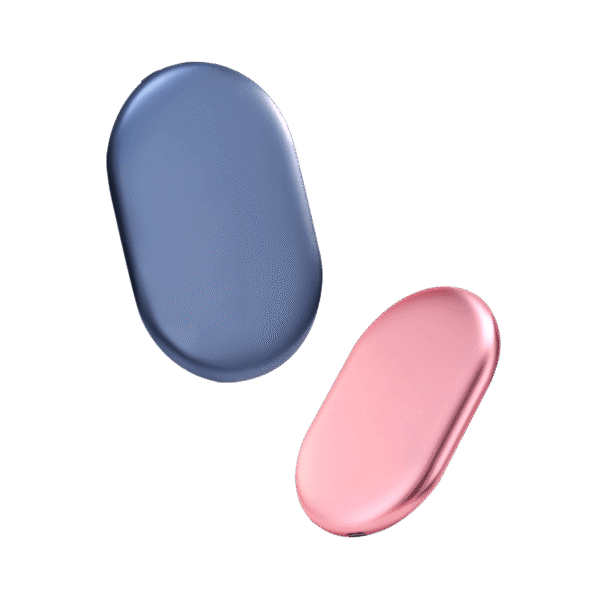

Rose Gold; Aurora Blue

Models & Variants

Model / Variant

PMA-Z20

Specification

5000mAh rechargeable graphene heated hand warmer with double-sided heating and three temperature levels.

Customization & Supply

Customization Service

Available

Customization Options

Exterior color, branding, packaging and other OEM/ODM requirements can be discussed according to project specifications.

Commercial Notes

OEM/ODM requirements are reviewed according to exterior finish, branding, packaging and order quantity. Final MOQ, lead time and customized specifications are subject to project confirmation.
