B30 Graphene Heated Massage Foot Warmer: feet inside the warmer with button being pressed.
PMA-B30

B30 Graphene Heated Massage Foot Warmer

A 5V graphene heated massage foot warmer with three temperature levels, three massage intensity settings, soft lining and a non-slip base for indoor use.

Heating Method Graphene Flexible Cloth / Fabric Heating Film
Category
Product Stage
Application Market
Technology Type
Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

The B30 graphene heated foot warmer combines 5V graphene heating with three-level vibration massage for home, office and indoor cold-weather use.

A built-in graphene heating module provides three selectable temperature levels, while the massage function also offers three intensity settings. The heating and massage functions can be controlled separately according to user preference.

The raised surrounding structure helps retain warmth around the feet and ankles, while the soft inner lining provides a comfortable contact surface. The base uses a non-slip rubber structure for stable placement on indoor floors.

With a free-size design, 5V operating voltage and 10W input power, the B30 can be used in bedrooms, living rooms, offices and other indoor environments. OEM and ODM requirements such as branding, packaging and product configuration can be reviewed according to project specifications.

Key Specifications

Heating Method
Graphene Flexible Cloth / Fabric Heating Film
Heating Element
Graphene heating module
Materials
Crystal velvet lining · non-slip rubber base

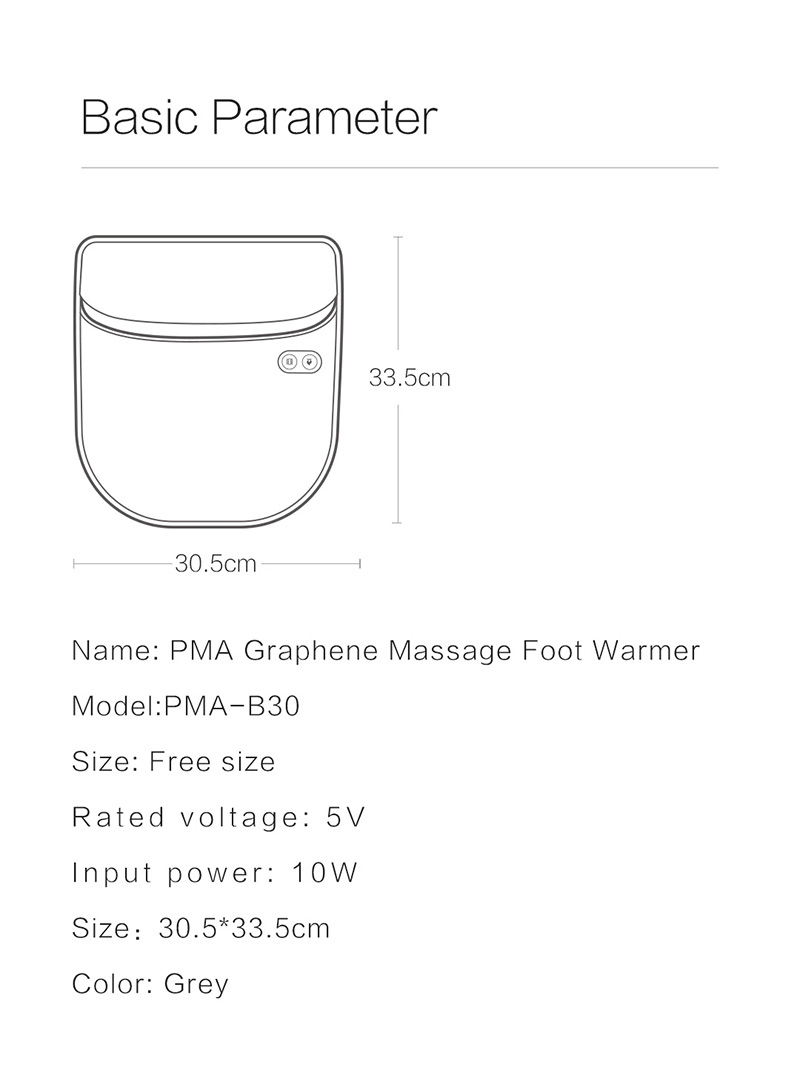

Dimensions
30.5 × 33.5 cm
Power Source
USB

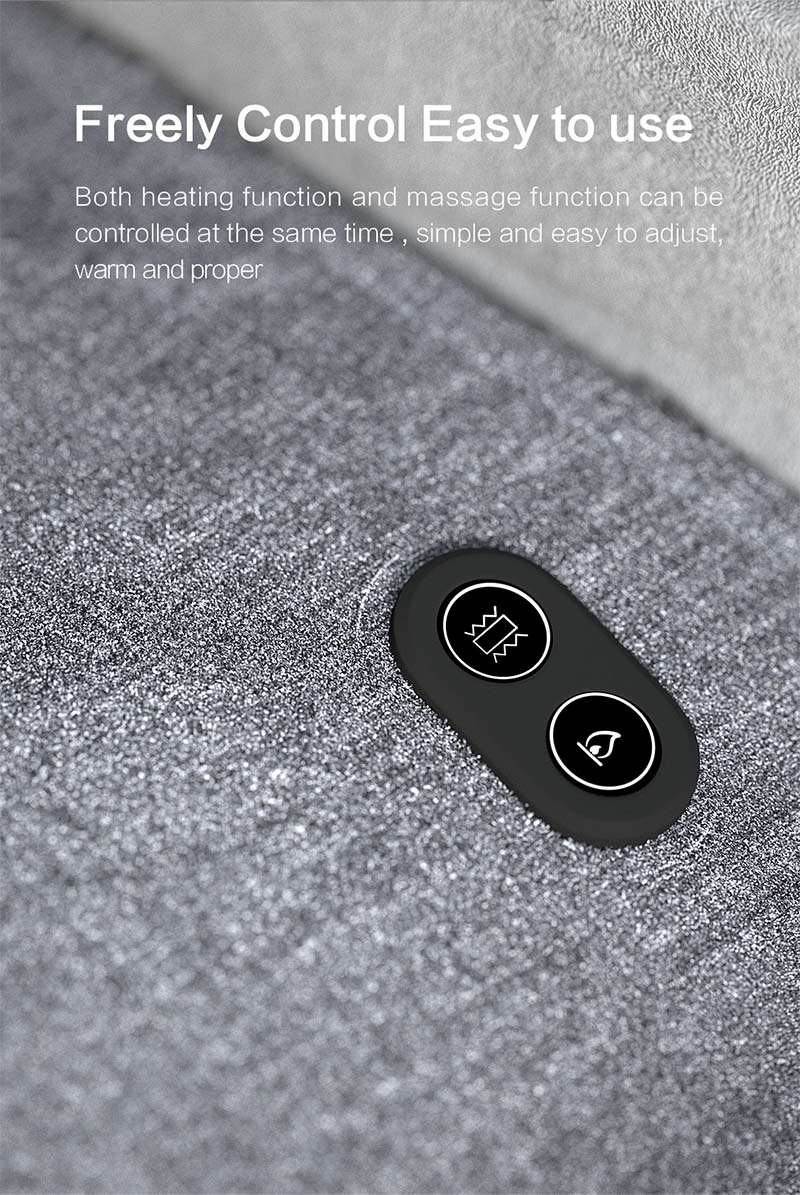

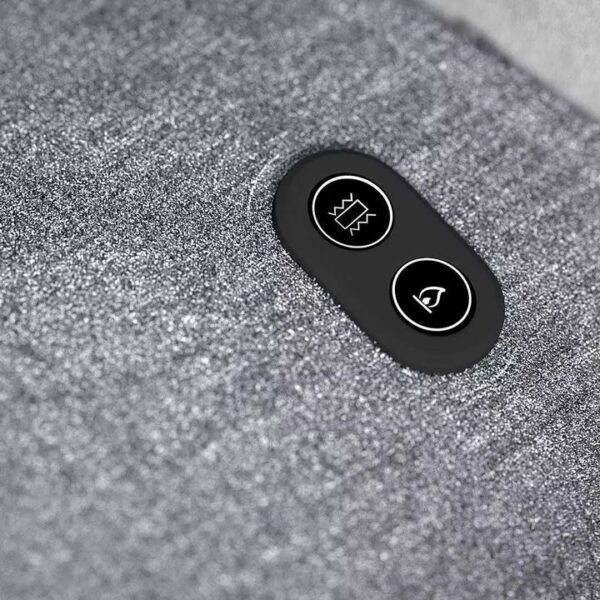

Control
Two-button control for independent heating and massage adjustment. Both temperature and vibration massage intensity can be adjusted through three levels.
Cleaning / Washability
Keep the electrical and control components dry. Clean the textile surface gently and avoid immersing the product or control components in water. Disconnect the power supply before cleaning.
Rated Voltage
5V
Input Power
10W
Dimensions
30.5 × 33.5 cm
Size
Free Size
Color
Grey
Temperature Levels
3 Levels
Low Temperature
45–50°C
Medium Temperature
50–55°C
High Temperature
55–60°C
Massage Intensity Levels
3 Levels

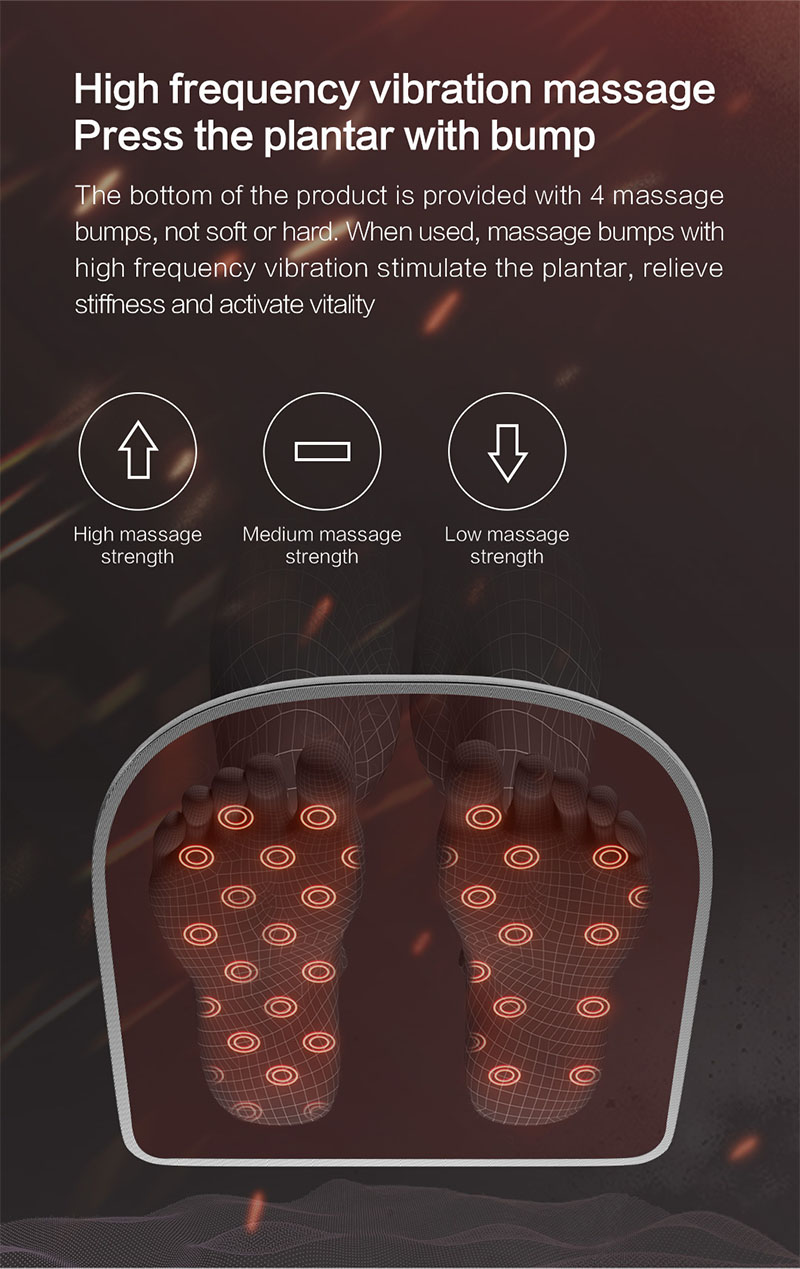

Massage Method
High-frequency vibration massage
Massage Points
4 massage bumps
Heating Element
Built-in graphene heating module
Control Functions
Independent heating and massage control
Base
Non-slip rubber base

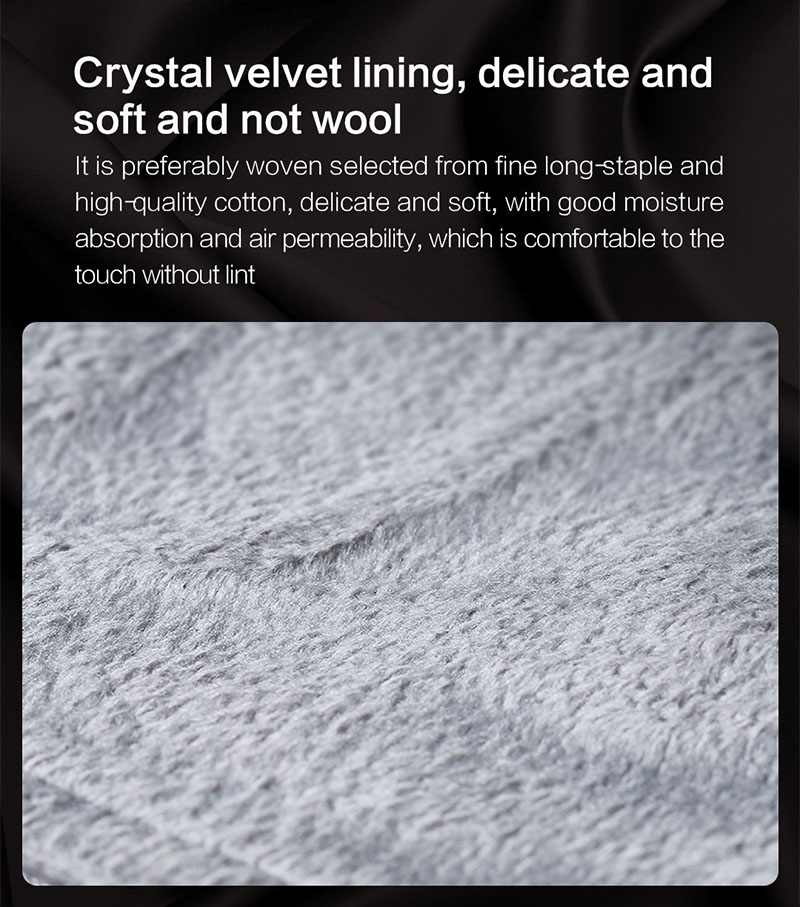

Inner Lining
Soft crystal velvet lining

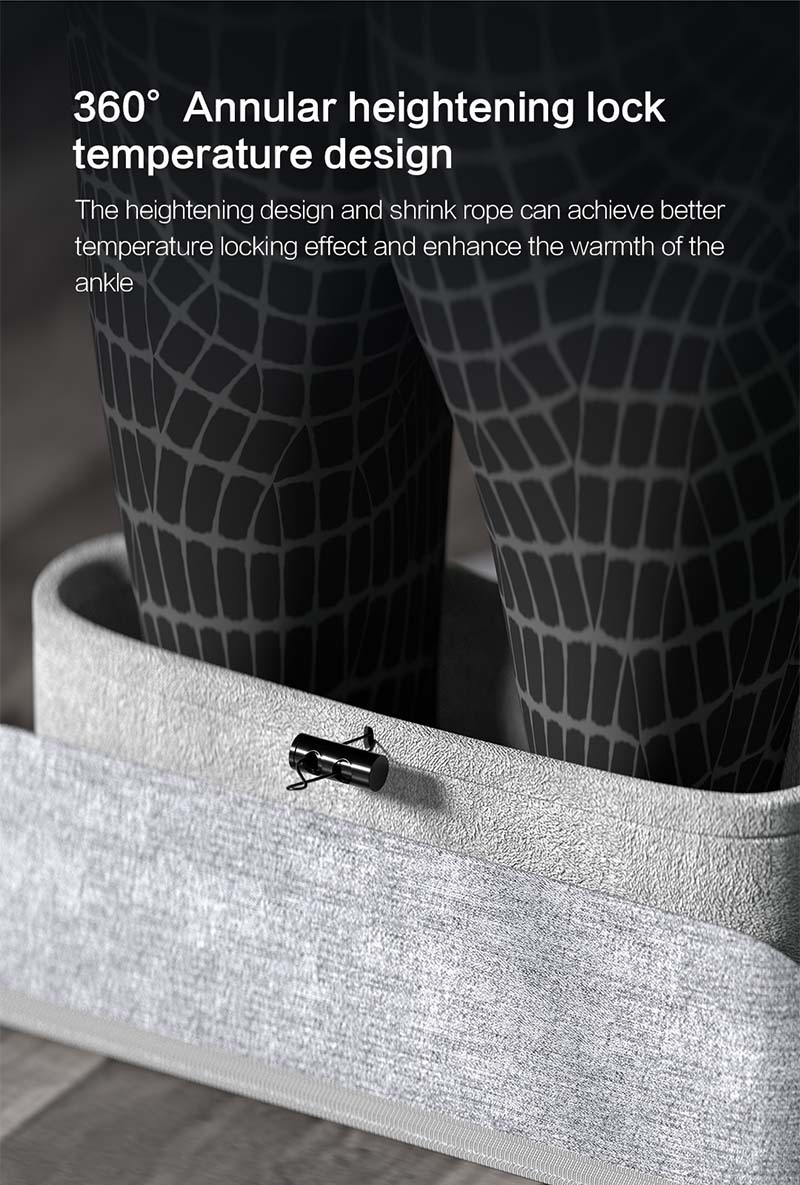

Warmth Retention Structure
Raised ankle-surround design with adjustable drawcord

Models & Variants

Model / Variant
PMA-B30
Specification
Grey graphene heated massage foot warmer with three-level heating and three-level vibration massage.

Customization & Supply

Customization Service
Available
Customization Options
Branding, packaging, textile finish, color and other OEM/ODM requirements can be discussed according to project specifications.
Commercial Notes
OEM/ODM requirements are reviewed according to product configuration, textile finish, branding, packaging and order quantity. Final MOQ, lead time and customized specifications are subject to project confirmation.
Visual Details

Product Information

Application Views

Product in Use

B30 Graphene Heated Massage Foot Warmer: office and home activity illustrations.

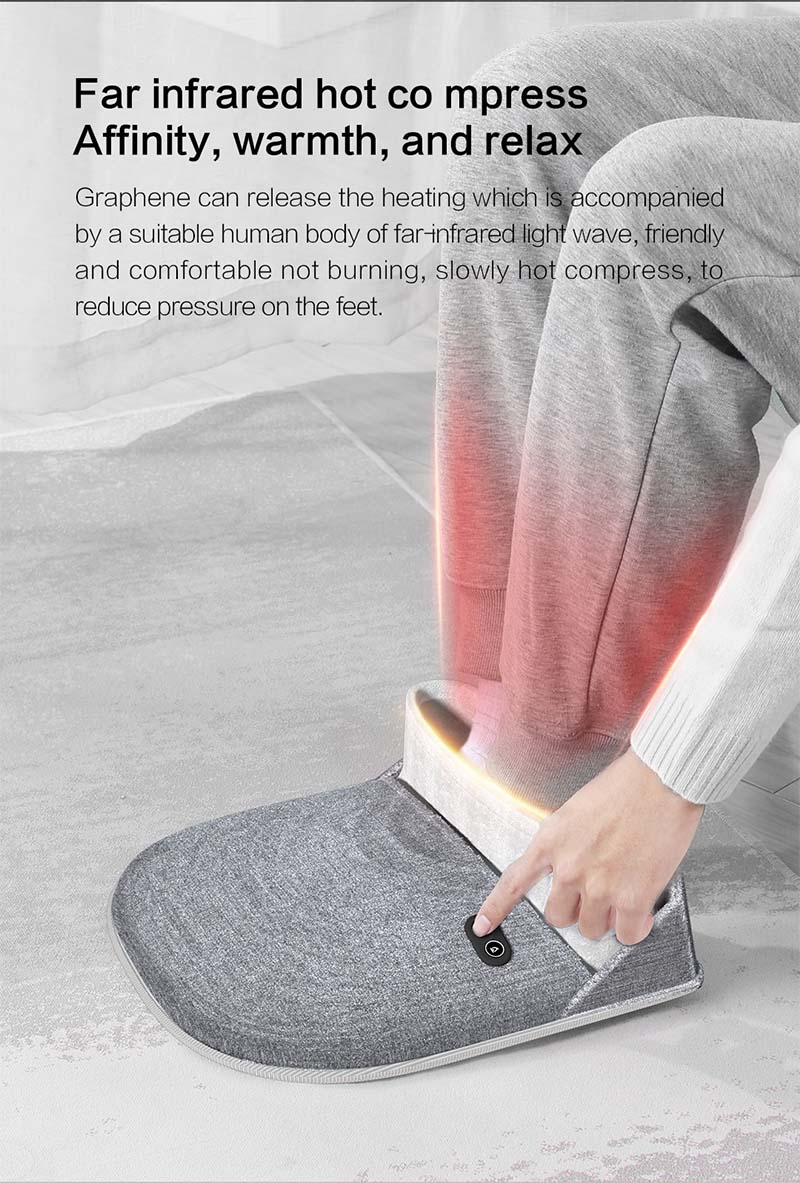

B30 Graphene Heated Massage Foot Warmer: feet warming scene and control button.

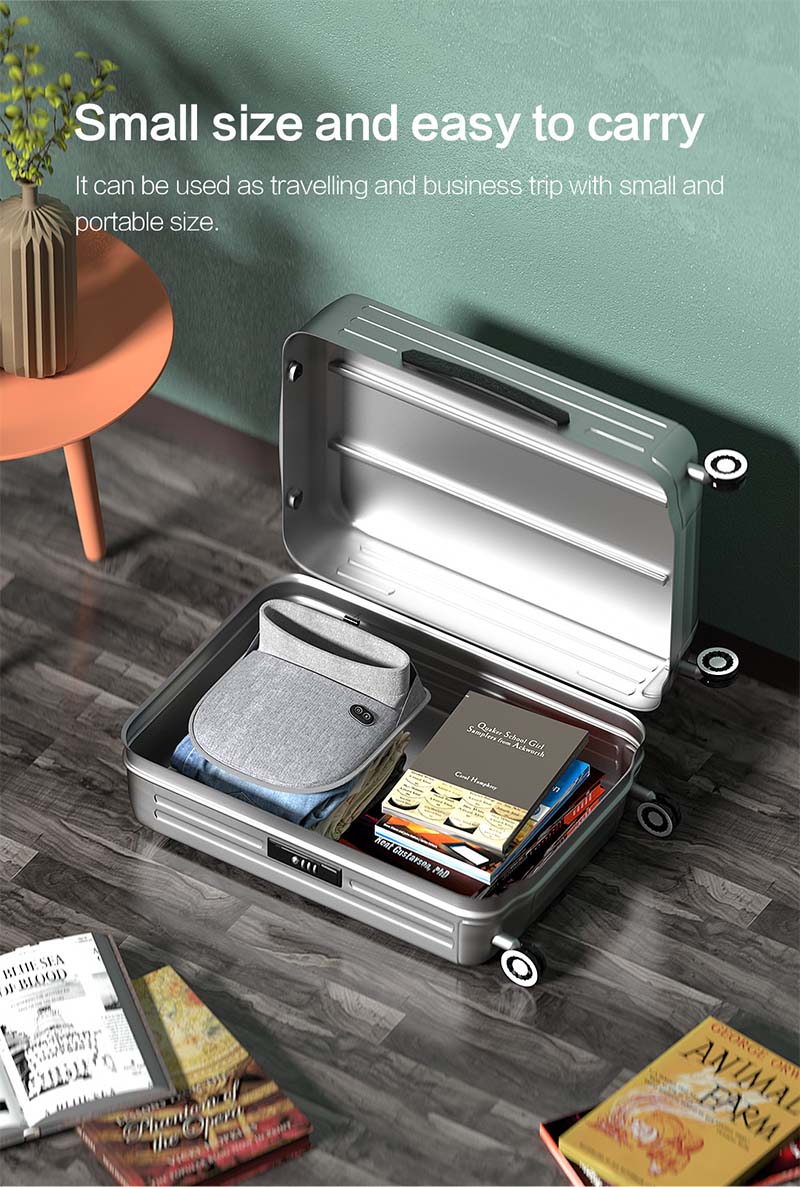

B30 Graphene Heated Massage Foot Warmer: foot warmer packed inside a suitcase.

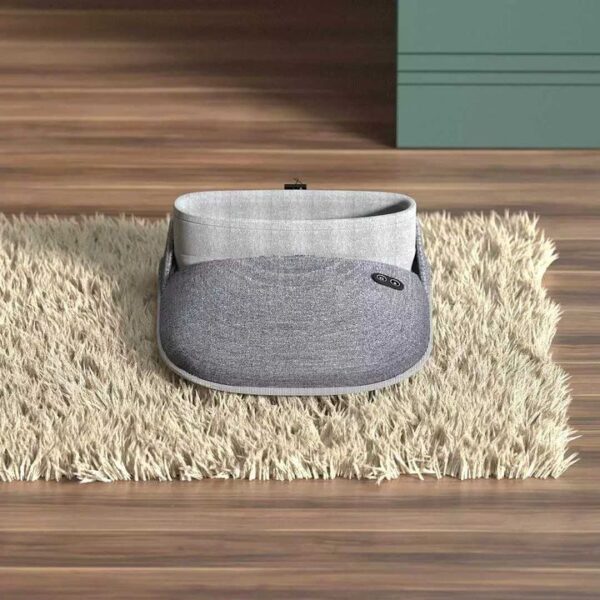

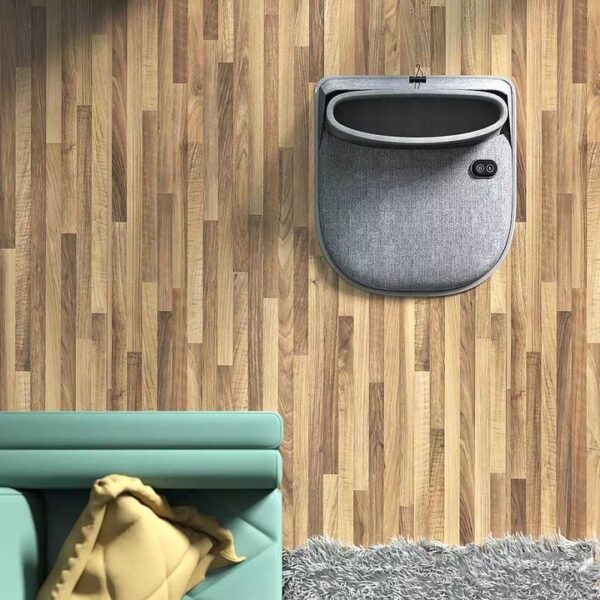

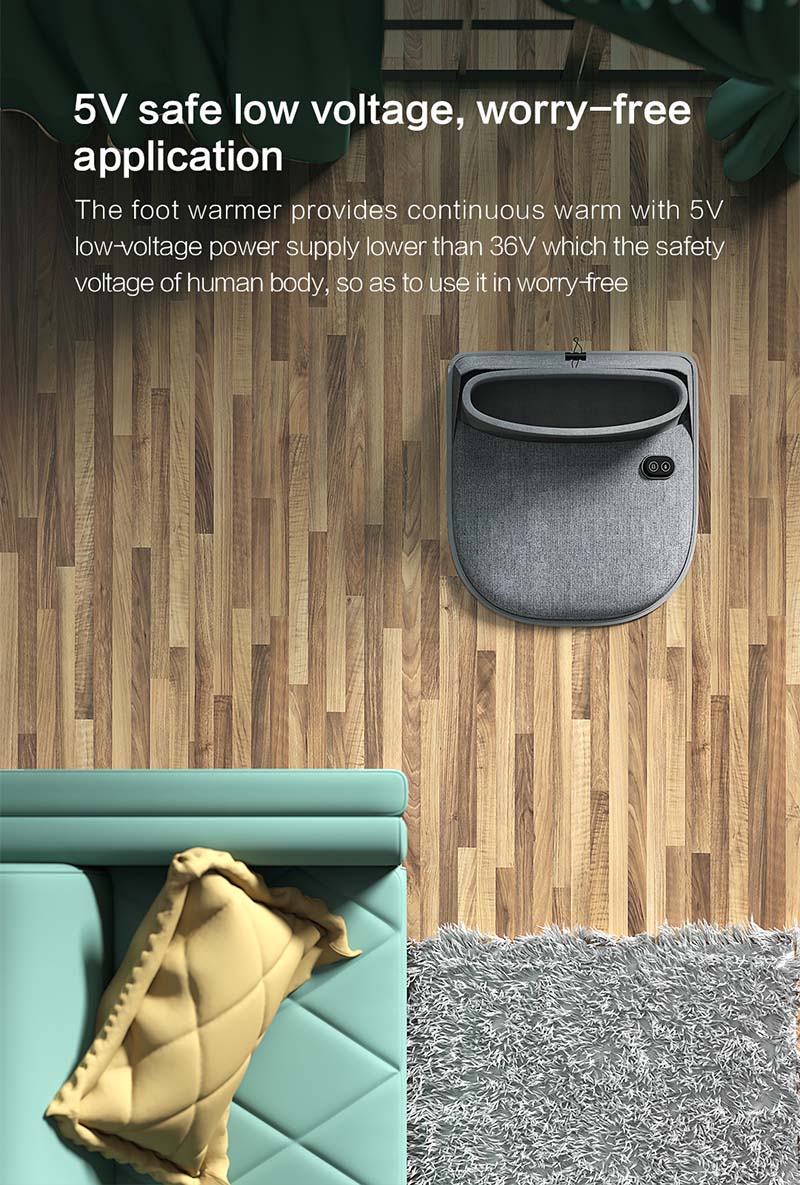

B30 Graphene Heated Massage Foot Warmer: floor placement and product overview.
