PM01

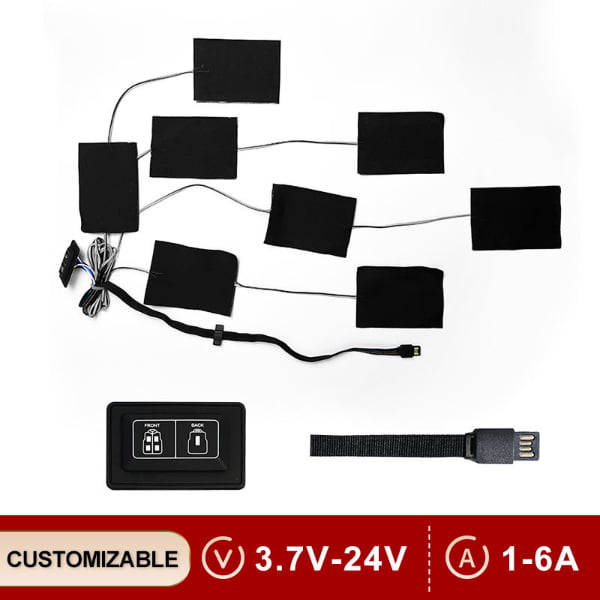

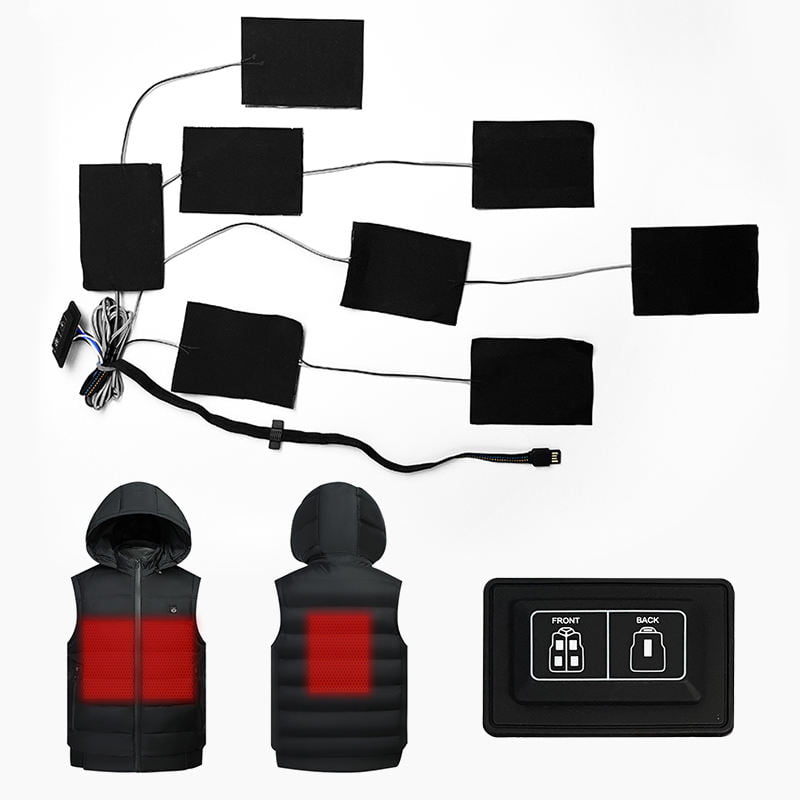

Graphene Heating Pad System for Heated Jackets & Vests
Multi-zone graphene heating pad system designed for integration into heated jackets, vests and other wearable heating products. The system combines multiple flexible heating pads, wiring and temperature-control components with customizable voltage, heating-zone and layout configurations.
| Heating Method | Graphene Flexible Cloth / Fabric Heating Film |
|---|---|
| Category | |
| Product Stage | |
| Application Market | |
| Technology Type |
Product Data
Technical & Commercial Information
Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.
Key Specifications
Heating Method
Graphene Flexible Cloth / Fabric Heating Film
Heating Element
Graphene Flexible Heating Pad Assembly
Materials
Outer / Supporting Material: Non-woven Fabric (Customizable) · Heating Element: Graphene Heating Pad (Application-specific size)
Dimensions
Heating-pad size, quantity, shape and placement can be configured according to garment design, target heating zones and application requirements.
Power Source
USB · Battery
Control
Temperature levels: High; Medium; Low
Control methods: Button Control; Display Controller
Control methods: Button Control; Display Controller
Rated Voltage
3.7–24 V
Rated Current
1–6 A depending on configuration
Connector / Interface
DC / USB / Type-C / Custom connector
Operating Temperature
35–50°C
Protection Features
Protection configuration depends on the selected controller, power supply and final application. Final protection requirements must be confirmed during engineering review.
Operating Environment
Designed for integration into wearable heating products. Final operating environment and protection requirements depend on garment construction, power system and intended application.
Storage Conditions
Store in a dry environment and protect heating pads, wiring, connectors and control components from mechanical damage, excessive moisture and improper folding.
Color / Finish
Black flexible heating-pad assembly; outer material and integration configuration can vary by project.
Models & Variants
Model / Variant
PM01
Specification
Dimensions: Custom / application-specific; Voltage: 3.7–24 V DC; Power: Customizable; Temperature: Application-specific; Notes: Multi-zone configuration available
Customization & Supply
Customization Service
Available
Customization Options
Customizable items: Shape, Dimensions, Voltage, Power, Temperature, Heating Zones, Controller, Material, accessories.
Heating-pad quantity, shape, dimensions, voltage, power, heating-zone layout, wiring, connector and control configuration can be adapted to project requirements. Final electrical, thermal and integration performance must be confirmed through engineering review and sample validation before production.
Customer inputs: Application / Garment Type: Intended garment type, use scenario and target heating areas (initial); Heating Zone Layout: Required heating zones, pad quantity and approximate placement (initial); Dimensions: Required heating-pad size and available installation area (initial); Voltage / Power Source: Required supply voltage, battery or power-source configuration (initial); Target Temperature: Required operating temperature or temperature-control range (initial); Connector / Control: Required connector, wiring, zone-control and user-interface configuration.
Private label: Available.
Packaging options: Carton - Standard protective carton packaging; inner packaging and labeling can be configured according to order requirements. (Subject to order quantity and packaging requirements).
Heating-pad quantity, shape, dimensions, voltage, power, heating-zone layout, wiring, connector and control configuration can be adapted to project requirements. Final electrical, thermal and integration performance must be confirmed through engineering review and sample validation before production.
Customer inputs: Application / Garment Type: Intended garment type, use scenario and target heating areas (initial); Heating Zone Layout: Required heating zones, pad quantity and approximate placement (initial); Dimensions: Required heating-pad size and available installation area (initial); Voltage / Power Source: Required supply voltage, battery or power-source configuration (initial); Target Temperature: Required operating temperature or temperature-control range (initial); Connector / Control: Required connector, wiring, zone-control and user-interface configuration.
Private label: Available.
Packaging options: Carton - Standard protective carton packaging; inner packaging and labeling can be configured according to order requirements. (Subject to order quantity and packaging requirements).
MOQ
Project dependent
Production Lead Time
Confirmed after specification, sample validation and order quantity are finalized.
Commercial Notes
Standard and customized heating-pad systems are available. Commercial terms, configuration, packaging, quantity and project-specific requirements are confirmed during quotation.
Tooling notes: Custom tooling or fixtures may be required for certain pad shapes, wiring layouts, assembly methods or production-volume requirements.
Tooling notes: Custom tooling or fixtures may be required for certain pad shapes, wiring layouts, assembly methods or production-volume requirements.
