5V USB Series
5V USB Graphene Heating Film

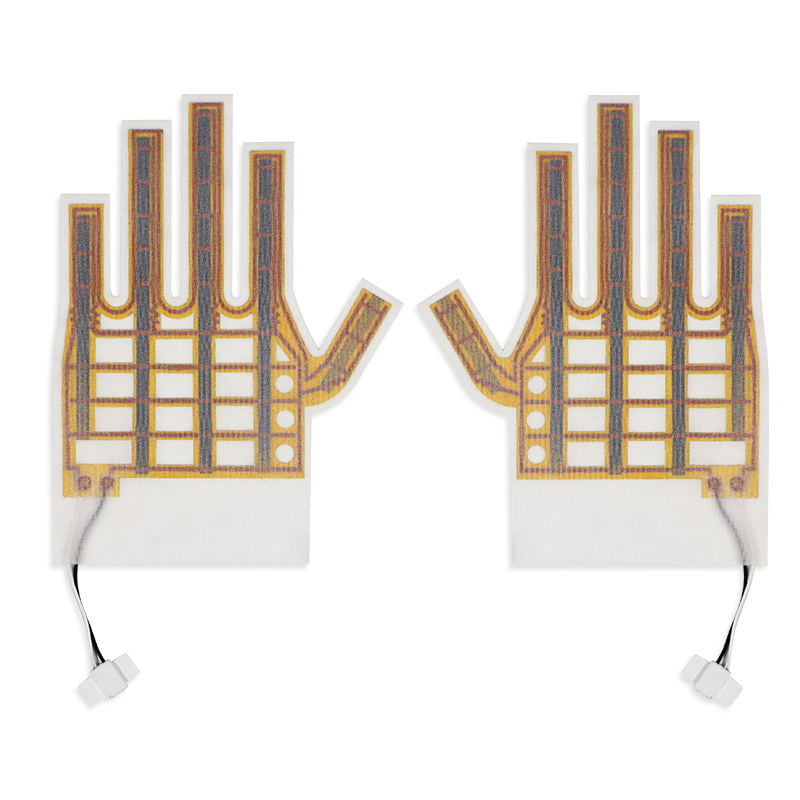

Flexible 5V USB graphene heating film designed for low-voltage heating applications. It can be integrated into wearable, textile, home and other custom heating products with application-specific size, shape and connection configurations.
| Heating Method | Graphene Flexible Cloth / Fabric Heating Film |
|---|---|
| Category | |
| Product Stage | |
| Application Market | |
| Technology Type |
Product Data
Technical & Commercial Information
Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.
Key Specifications
Heating Method
Graphene Flexible Cloth / Fabric Heating Film
Heating Element
Graphene Heating Film
Materials
Outer / Supporting Material: Non-woven Fabric (50 × 50 cm) · Heating Element: Graphene Heating Film (30 × 30 cm)
Dimensions
50 × 50 cm overall size with a 30 × 30 cm heating area. Custom sizes available subject to project requirements.
Power Source
USB · Battery
Control
Temperature levels: Low; Medium; High
Control methods: Button Control
Control methods: Button Control
Rated Voltage
5 V
Rated Current
≤ 2 A
Rated Power
8–12 W
Sheet Resistance
60–180 Ω
Connector / Interface
DC / USB / Type-C
Operating Temperature
30–45°C
Sensor Type
NTC temperature sensor
Models & Variants
Model / Variant
PM01
Specification
Dimensions: 50 × 50 cm / heating area 30 × 30 cm; Voltage: 5V DC; Power: 8-12W; Temperature: 30–45°C, 3 levels; Notes: Custom configuration available
Customization & Supply
Customization Service
Available
Customization Options
Customizable items: Shape, Dimensions, Voltage, Power, Temperature, Controller, accessories.
Custom size, shape, voltage, power, temperature-control configuration and interface options are subject to application requirements and engineering review. Final electrical and thermal performance must be confirmed through sample validation before production.
Customer inputs: Application / Intended Use: Product type and intended heating application (initial); Dimensions / Heating Area: Required overall size and effective heating area (initial); Voltage / Power: Required supply voltage, power source and target power (initial); Target Temperature: Required operating temperature or temperature range (initial); Connector / Control: Required connector, wiring and temperature-control configuration (initial).
Private label: Available.
Packaging options: Carton - Standard carton packaging.
Custom size, shape, voltage, power, temperature-control configuration and interface options are subject to application requirements and engineering review. Final electrical and thermal performance must be confirmed through sample validation before production.
Customer inputs: Application / Intended Use: Product type and intended heating application (initial); Dimensions / Heating Area: Required overall size and effective heating area (initial); Voltage / Power: Required supply voltage, power source and target power (initial); Target Temperature: Required operating temperature or temperature range (initial); Connector / Control: Required connector, wiring and temperature-control configuration (initial).
Private label: Available.
Packaging options: Carton - Standard carton packaging.
MOQ
1 pc
Commercial Notes
Standard and customized configurations are available. Commercial terms, packaging, quantity and project-specific requirements are confirmed during quotation.
