L30 graphene heated cervical neck brace with adjustable support and traction

L30

Graphene Heated Cervical Neck Brace L30

Cervical neck brace combining multi-directional support, adjustable traction and a detachable graphene heating pack with three temperature levels.

Heating Method	PI-Based Graphene Flexible Heating Film
Category	Health & Wellness Medical Devices
Product Stage	Finished Product Reference
Application Market	Health & Wellness
Technology Type	Flexible Electric Heating

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

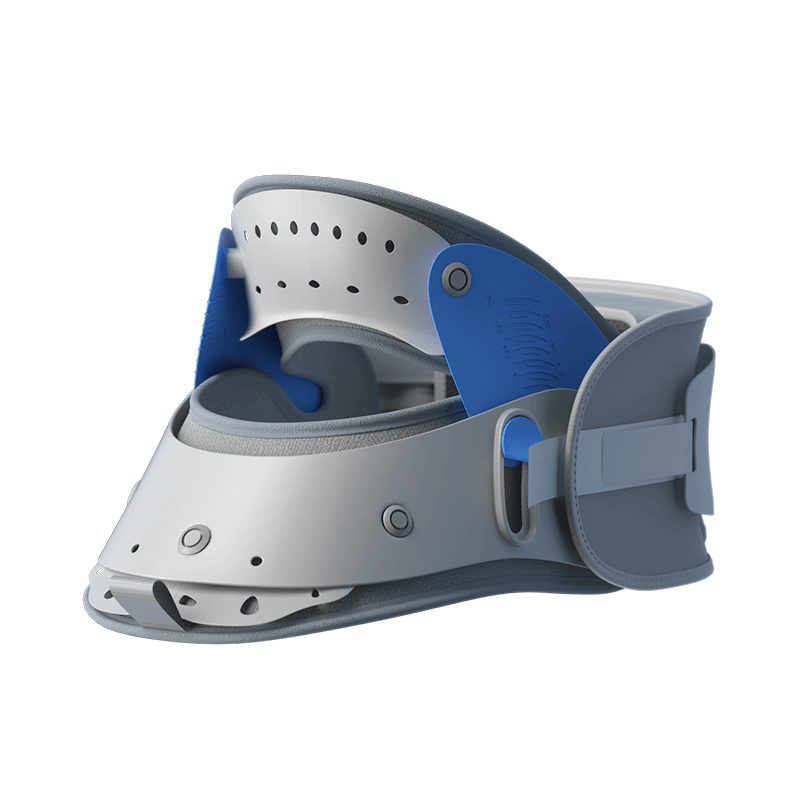

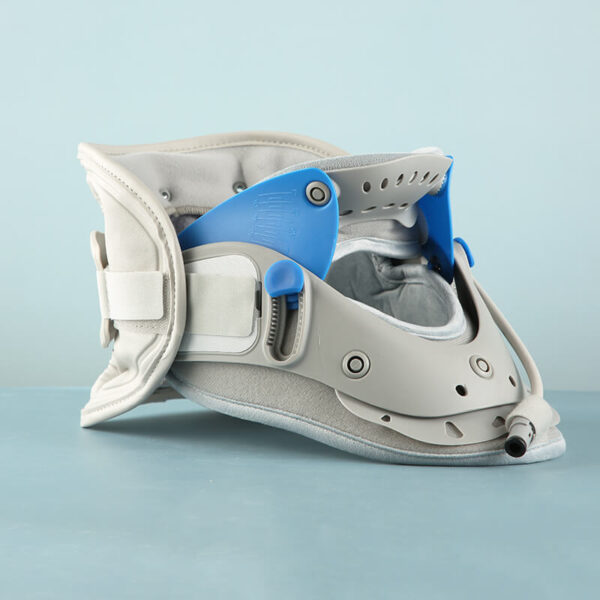

The Graphene Heated Cervical Neck Brace L30 combines cervical support, adjustable traction and localized graphene heating in a wearable neck-support structure.

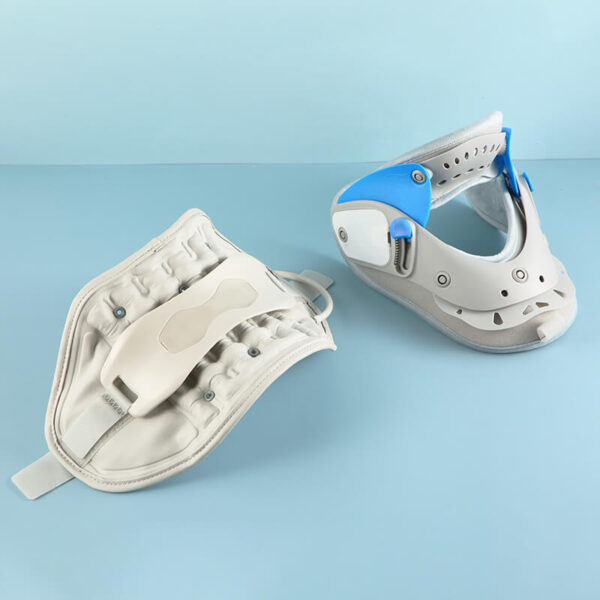

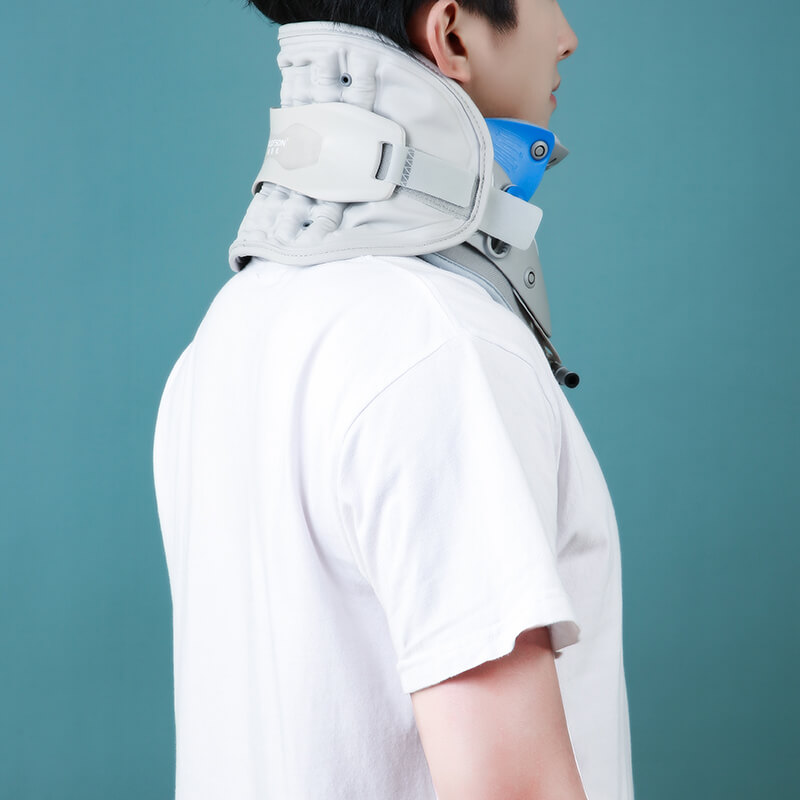

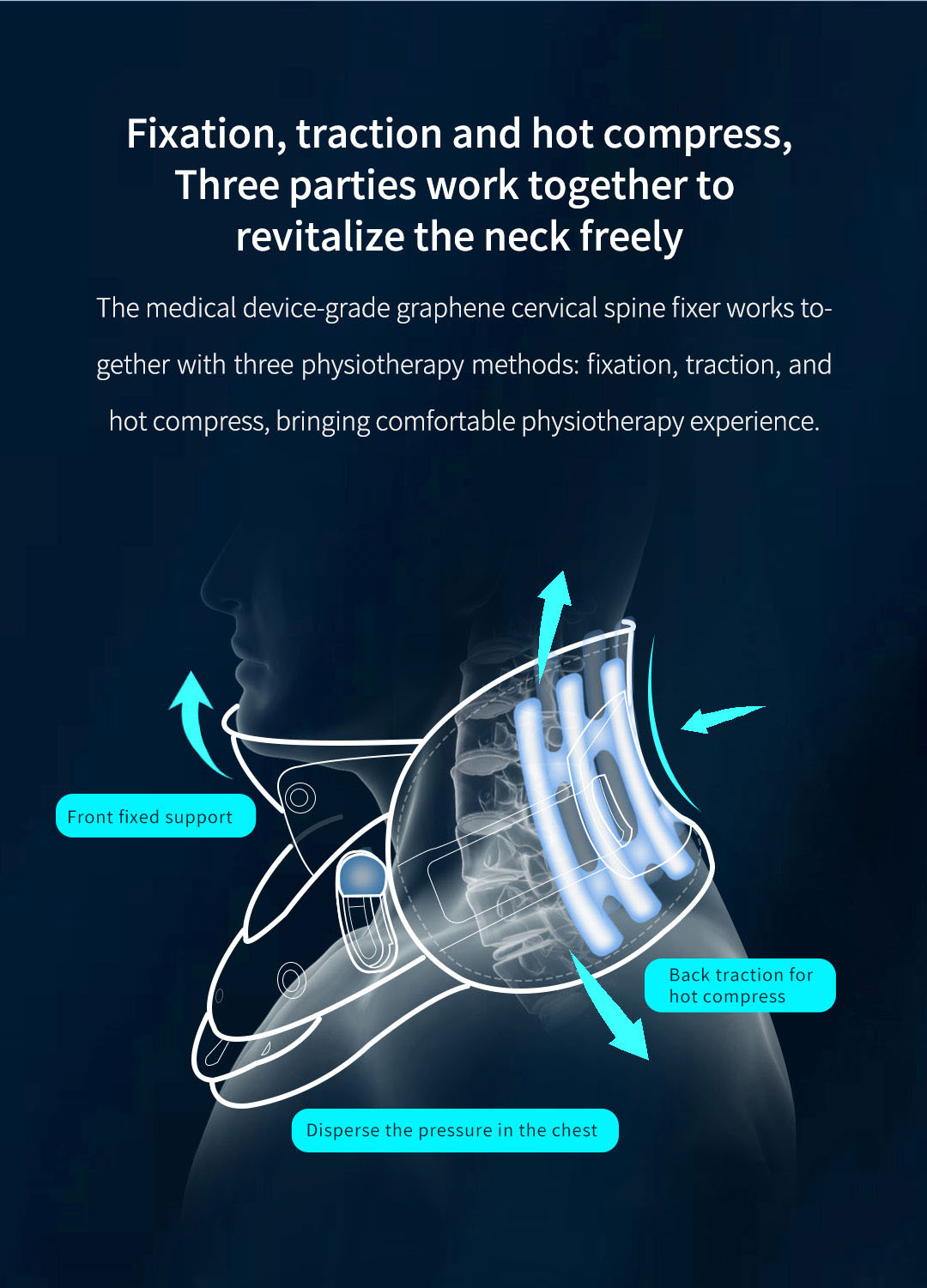

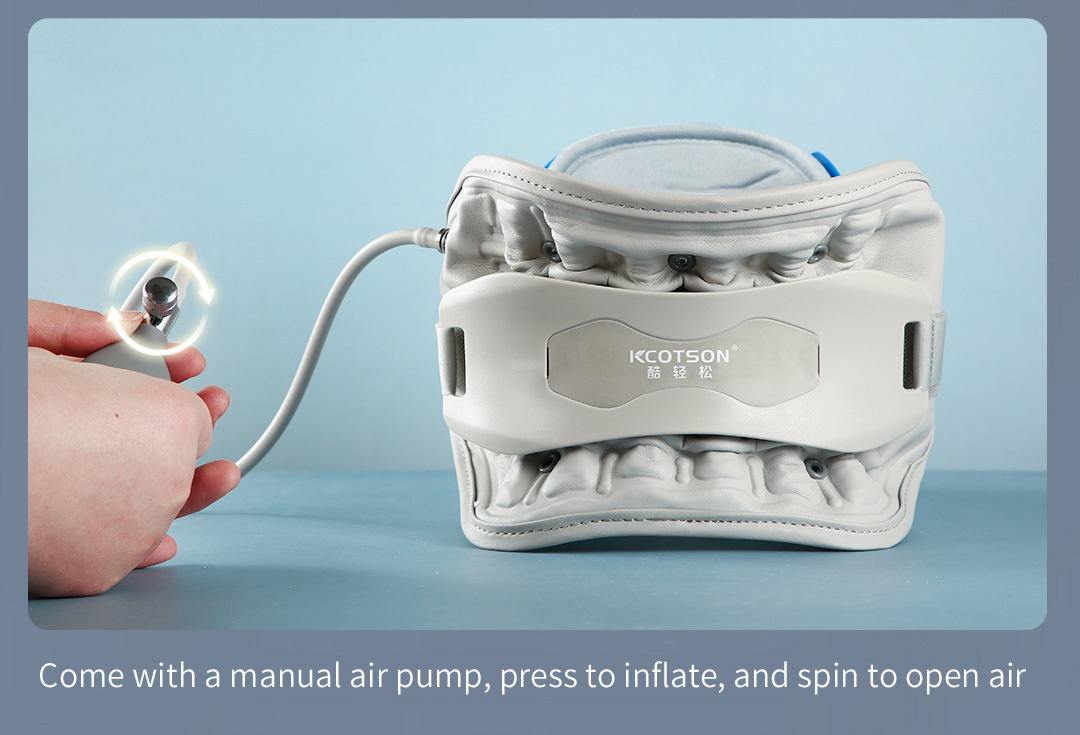

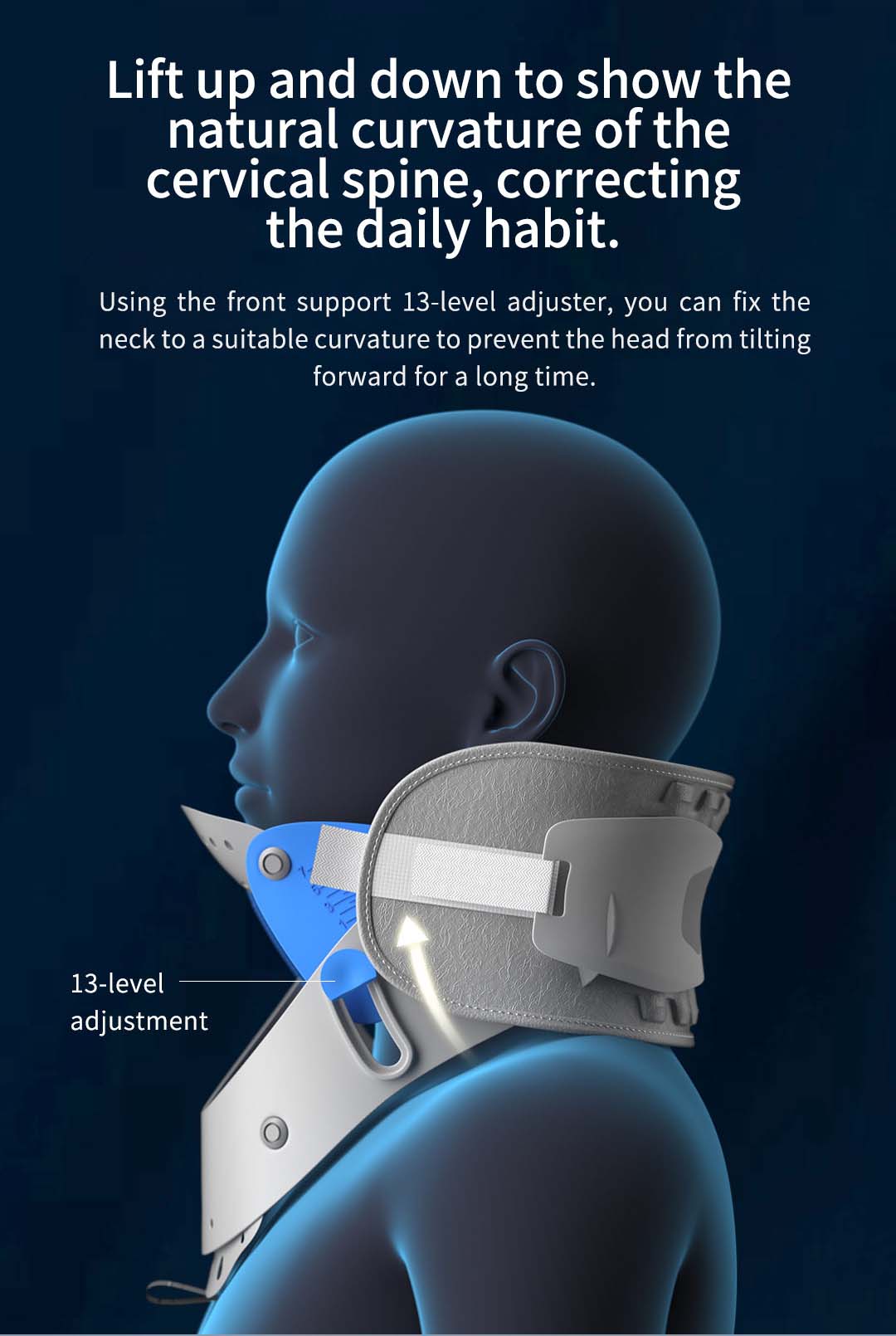

The brace provides multi-directional support around the cervical region. Its adjustable front chin support has an operating range of approximately 80°–130°, while the rear TPU air-column structure provides adjustable longitudinal support. The design distributes load across the neck and upper chest while allowing the support position to be adjusted for different users.

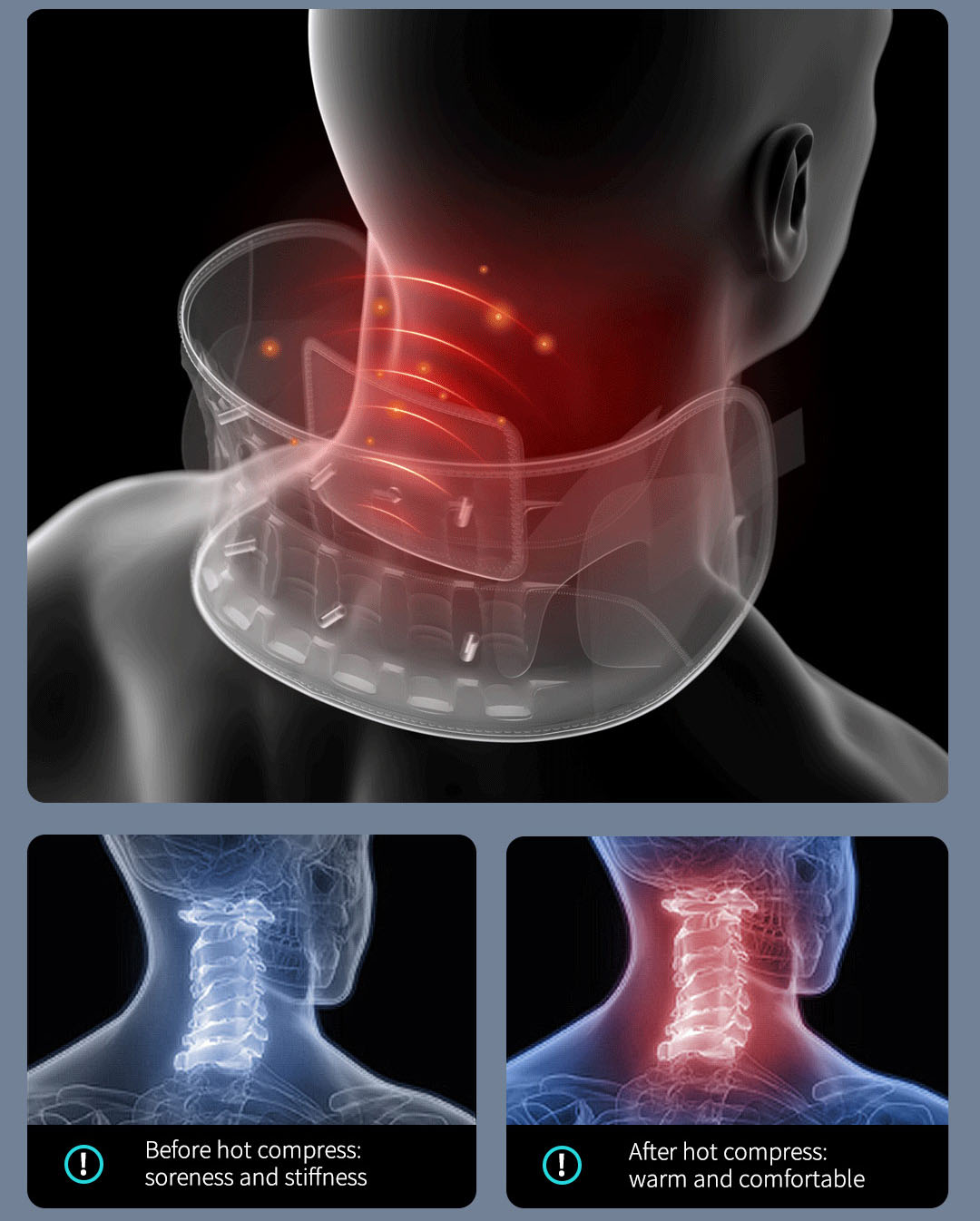

A detachable graphene heating pack provides localized warmth around the back of the neck. Three temperature settings are available: approximately 40–45°C, 50–55°C and 60–65°C. The wired controller allows the heating function to be switched on or off and the temperature level to be selected.

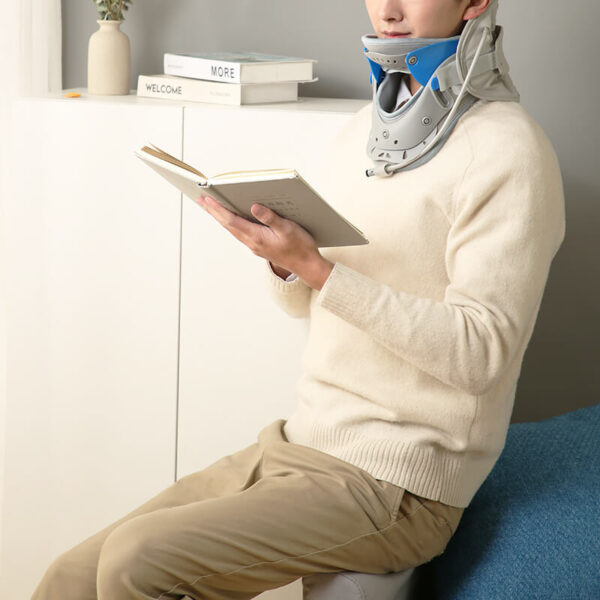

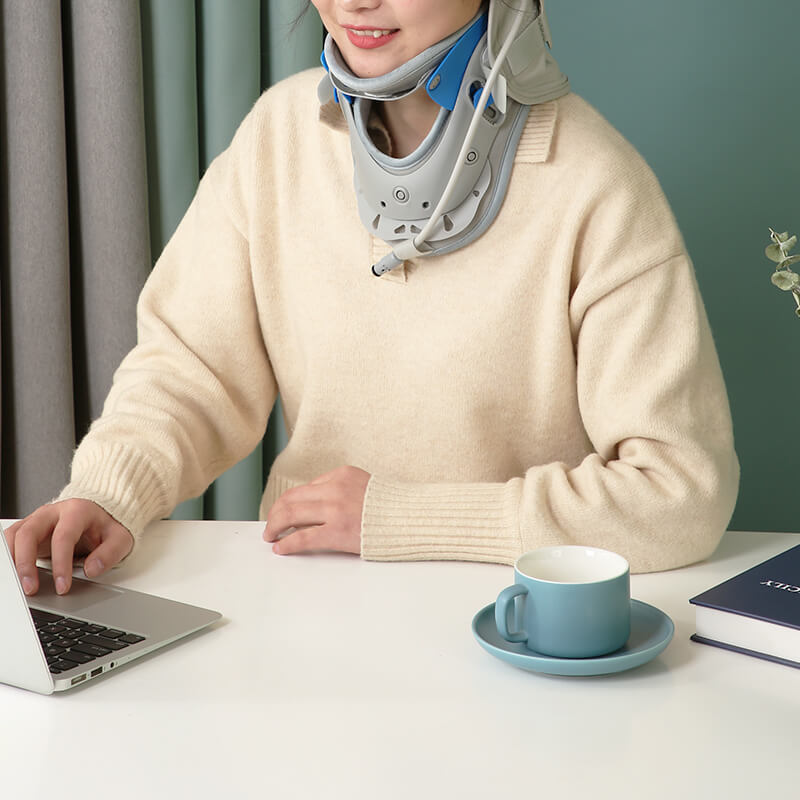

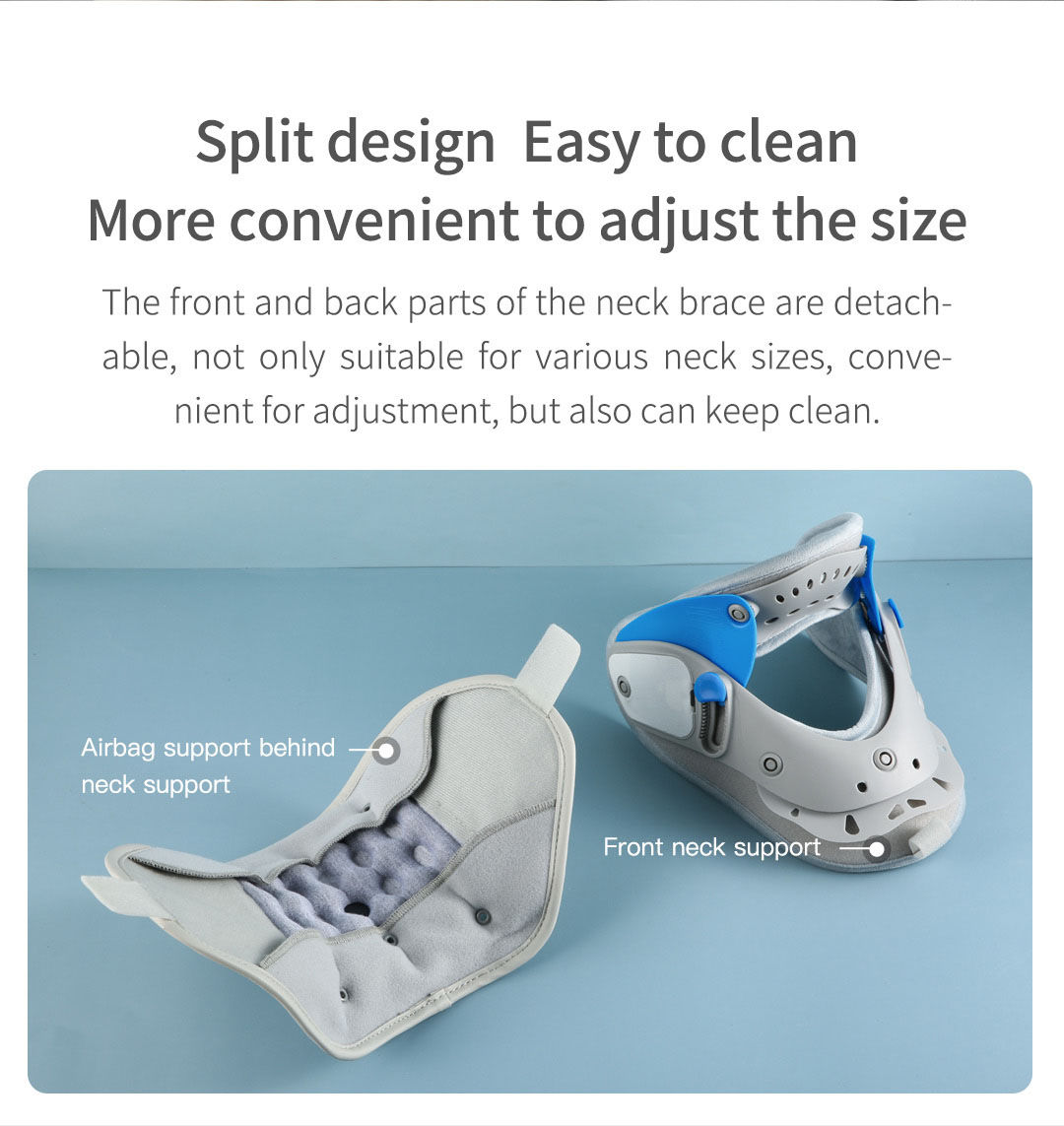

The heating pack can be removed from the brace for easier daily care. The lightweight wearable construction is designed for use during daily activities where cervical support and localized warming are required.

Model L30 is supplied as a cervical neck brace with an integrated removable heating component. Product documentation also includes model-related textile and electrical test reports.

Key Specifications

Heating Method

PI-Based Graphene Flexible Heating Film

Heating Element

Graphene heating pack

Materials

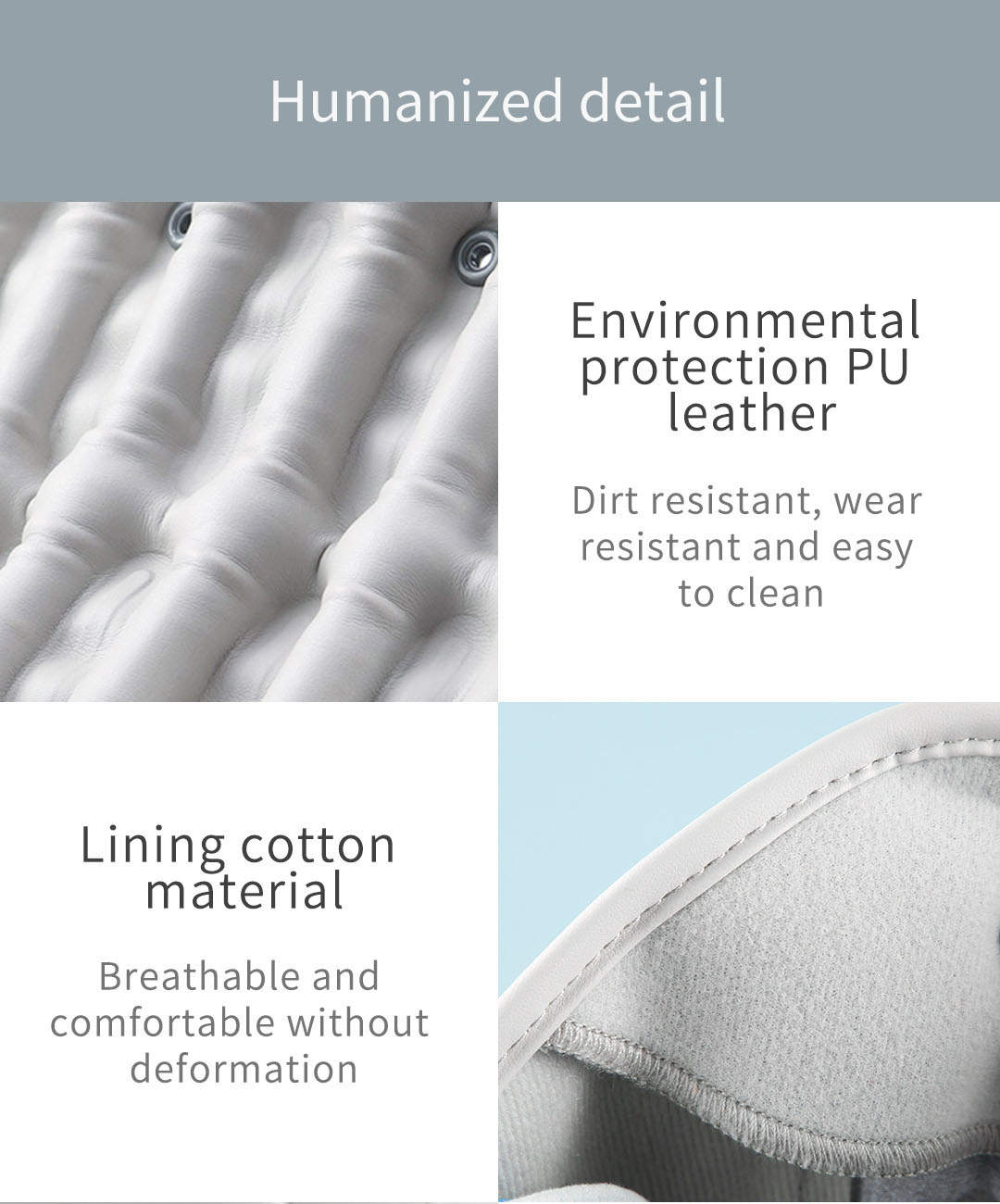

TPU air-column support structure with soft skin-contact padding and adjustable support components

Power Source

Other

Control

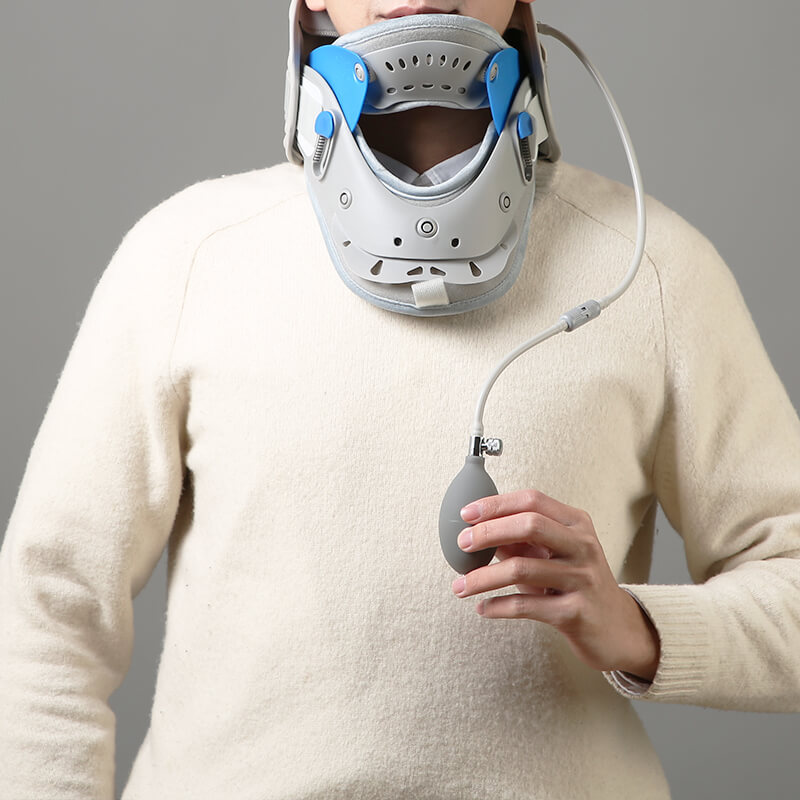

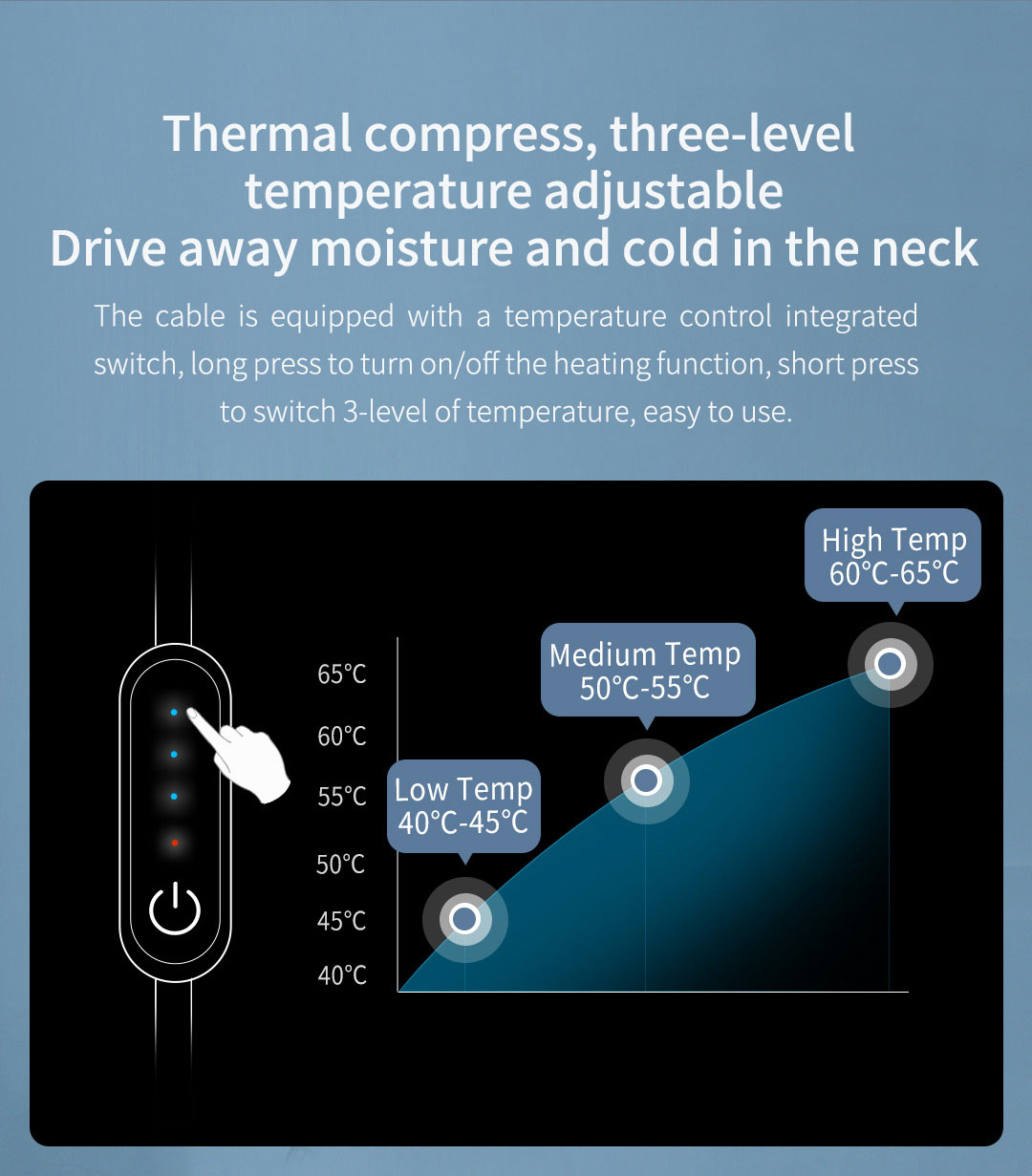

Wired temperature controller with long-press power control and short-press switching between three heating levels.

Cleaning / Washability

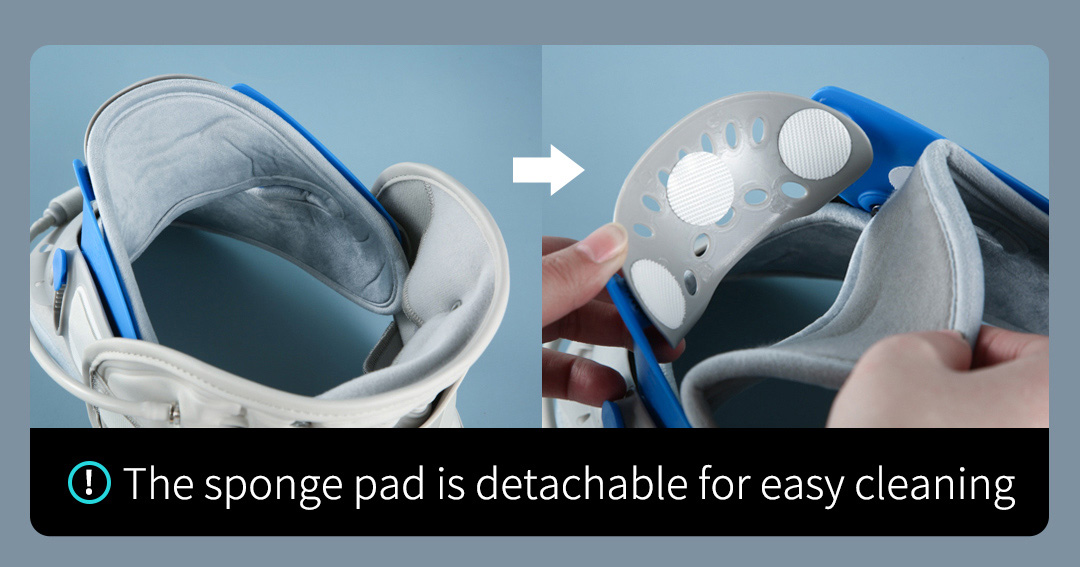

Remove the detachable heating pack before cleaning the brace. Keep electrical components dry and allow all cleaned components to dry completely before reassembly and use.

Product Type

Cervical neck brace

Heating Technology

Graphene heating

Temperature Levels

3 levels

Low Temperature

40–45°C

Medium Temperature

50–55°C

High Temperature

60–65°C

Front Chin Support Range

Approx. 80°–130°

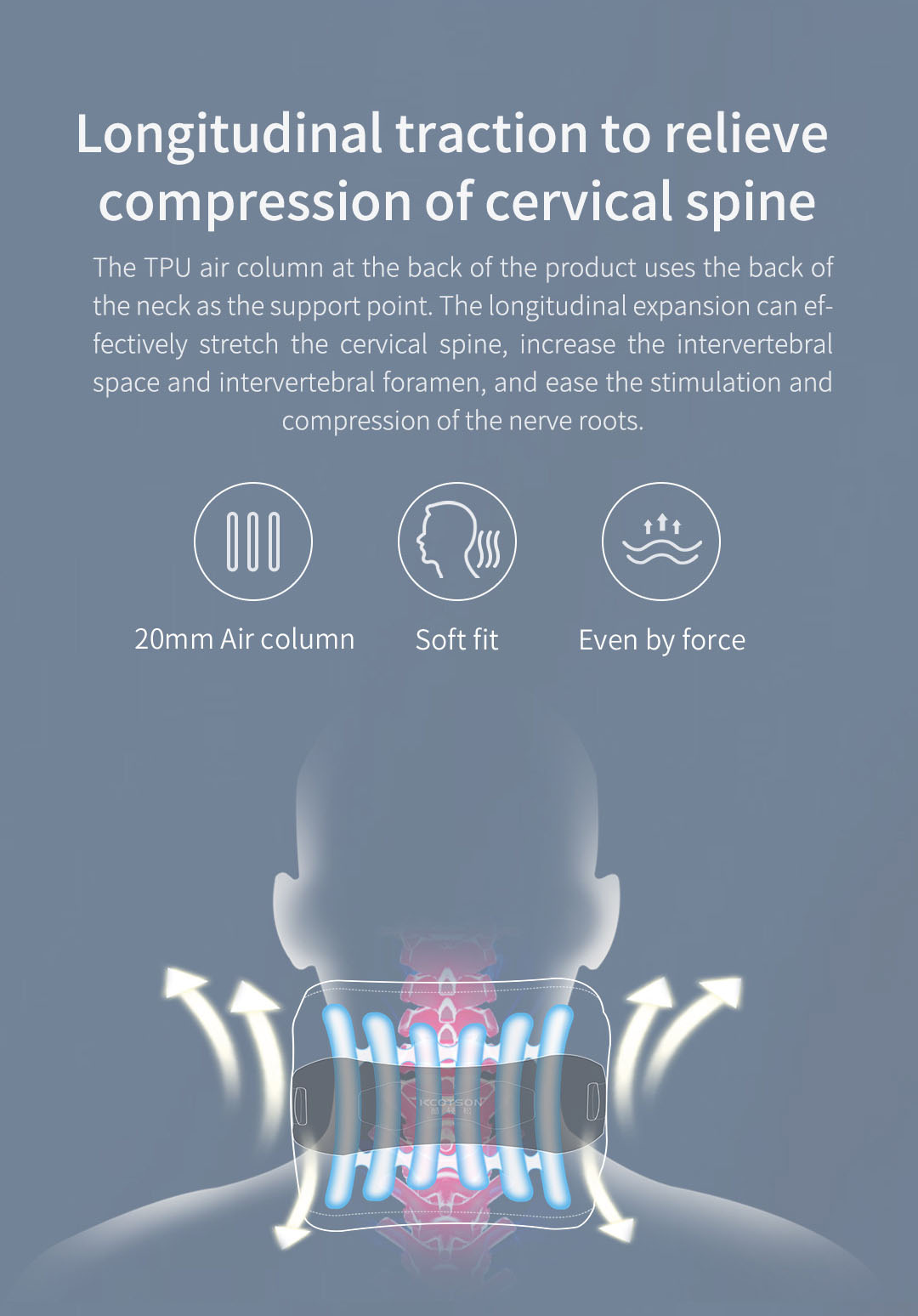

Traction Structure

Rear TPU air-column support

Air Column Size

20 mm

Support Design

360° multi-directional cervical support

Heating Pack

Detachable

Models & Variants

Model / Variant

L30

Specification

Cervical neck brace with adjustable 80°–130° front chin support, TPU air-column traction structure, detachable graphene heating pack and three temperature levels.

Customization & Supply

Customization Service

Available

Customization Options

Support structure, heating configuration, materials, color, branding and packaging can be customized according to project requirements.

MOQ

Negotiable according to customer project requirements and customization specifications.

Production Lead Time

Production lead time is confirmed according to order quantity, product configuration and customization requirements.

Commercial Notes

OEM and ODM requirements can be evaluated according to the required support structure, heating configuration, materials, branding, packaging and order quantity. Final specifications, MOQ and delivery schedule are confirmed during project review and quotation.
