PMA-A30

A30 Graphene Smart Moxibustion Device

A compact rechargeable graphene smart moxibustion device with two heating heads, three temperature levels, Type-C charging and 30-minute automatic shut-off.

Heating Method	Graphene Flexible Cloth / Fabric Heating Film
Category	Health & Wellness
Product Stage	Finished Product Reference
Application Market	Health & Wellness
Technology Type	Flexible Electric Heating

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

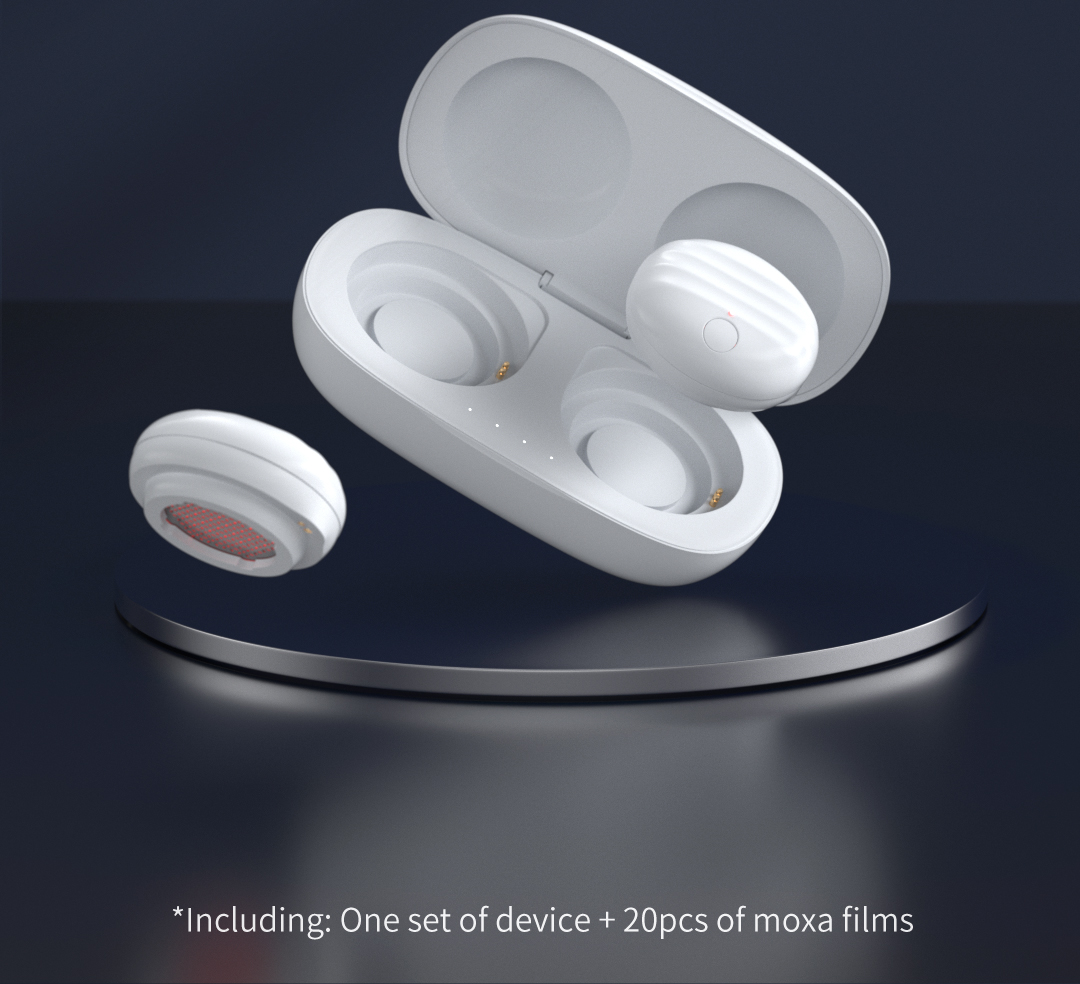

The A30 graphene moxibustion device is a compact rechargeable warming product with two independent heating heads and three-level temperature control.

Each heating head is powered by a built-in 3.7V 450mAh battery, while the charging case contains a 3.7V 2000mAh battery. The system supports Type-C charging and provides three selectable temperature levels identified by white, orange and red indicator lights.

The device operates at 5V, 1A with a rated power of 3W. A 30-minute automatic shut-off function is included to limit continuous operating time. Product materials also indicate rapid heating response and a compact magnetic charging structure for convenient storage and recharging.

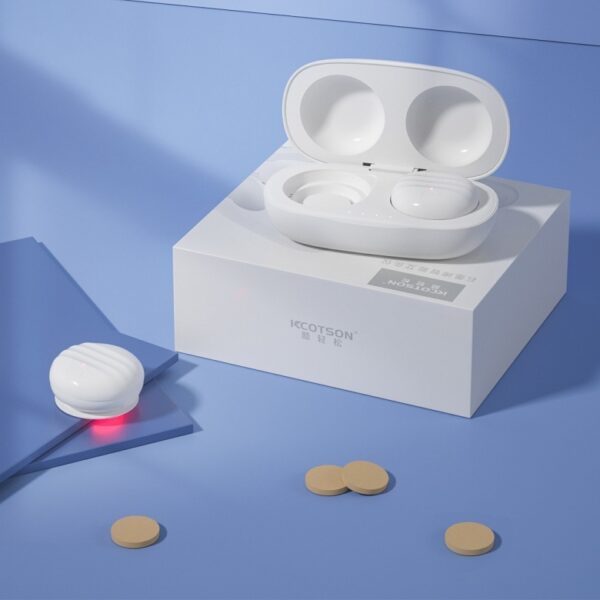

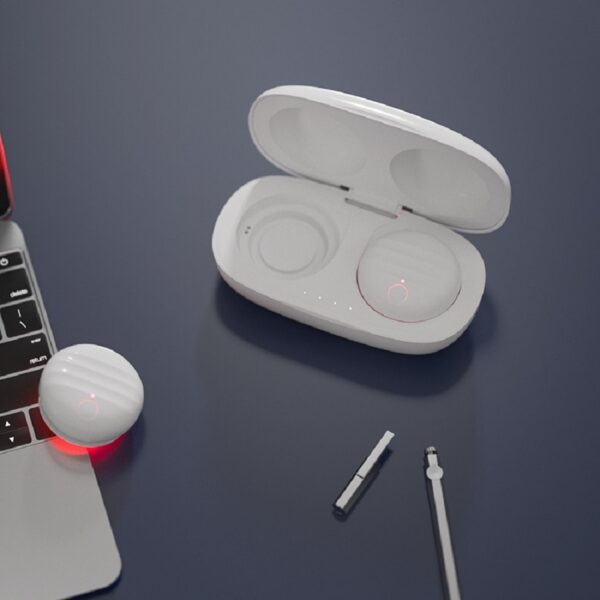

The charging case measures approximately 120 × 64 × 41 mm, while each moxibustion head measures approximately 45 × 45 × 21 mm. The portable format is suitable for use at home, in the office or while traveling.

Safety and restricted-substance test records are available for the PMA-A30. OEM and ODM requirements such as branding, packaging, exterior finish and accessory configuration can be reviewed according to project requirements.

Key Specifications

Heating Method

Graphene Flexible Cloth / Fabric Heating Film

Heating Element

Graphene heating element

Materials

Plastic housing, metal components, magnetic charging components and electronic assemblies

Dimensions

Charging case: 120 × 64 × 41 mm; heating head: 45 × 45 × 21 mm

Power Source

USB · Battery

Control

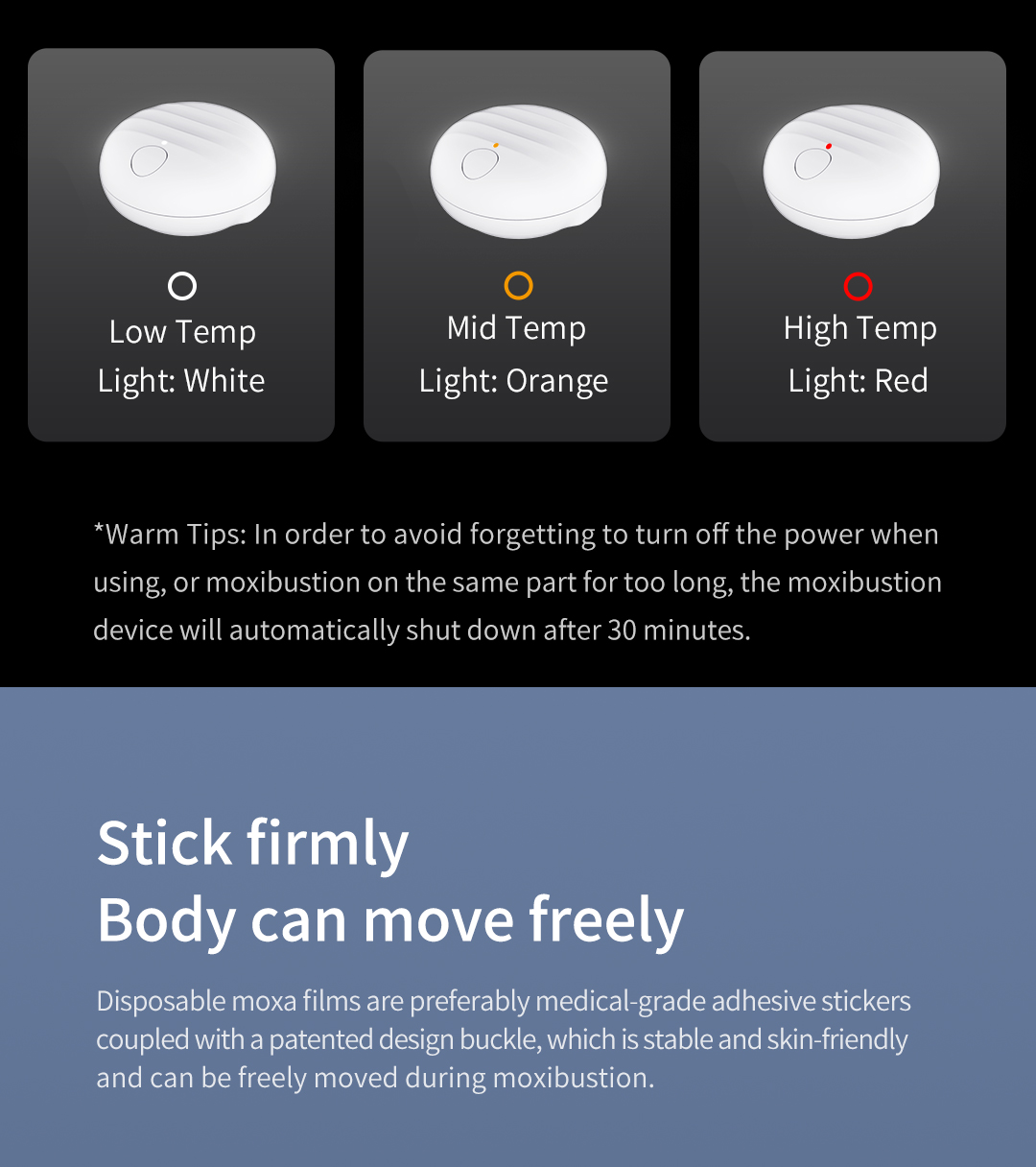

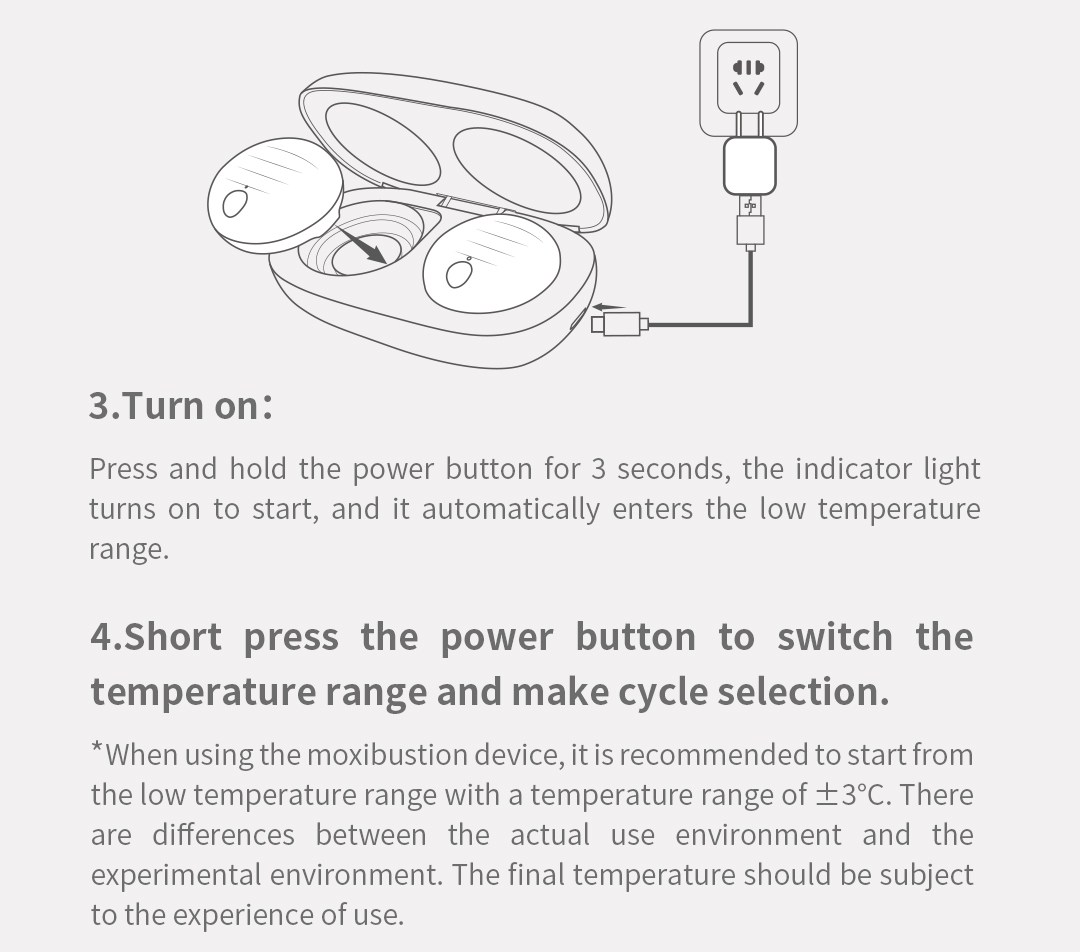

Single-button three-level temperature control with white, orange and red indicator lights for low, medium and high settings. The device automatically shuts off after approximately 30 minutes of continuous operation.

Cleaning / Washability

Do not immerse or wash the device with water. Remove the heating heads from the body before cleaning and wipe the exterior gently with a soft dry or slightly damp cloth. Keep the Type-C interface, charging contacts and electronic components dry.

Input Voltage

Input Current

Rated Power

Charging Case Size

120 × 64 × 41 mm

Heating Head Size

45 × 45 × 21 mm

Heating Heads

Heating Head Battery

3.7V 450mAh × 2

Charging Case Battery

3.7V 2000mAh

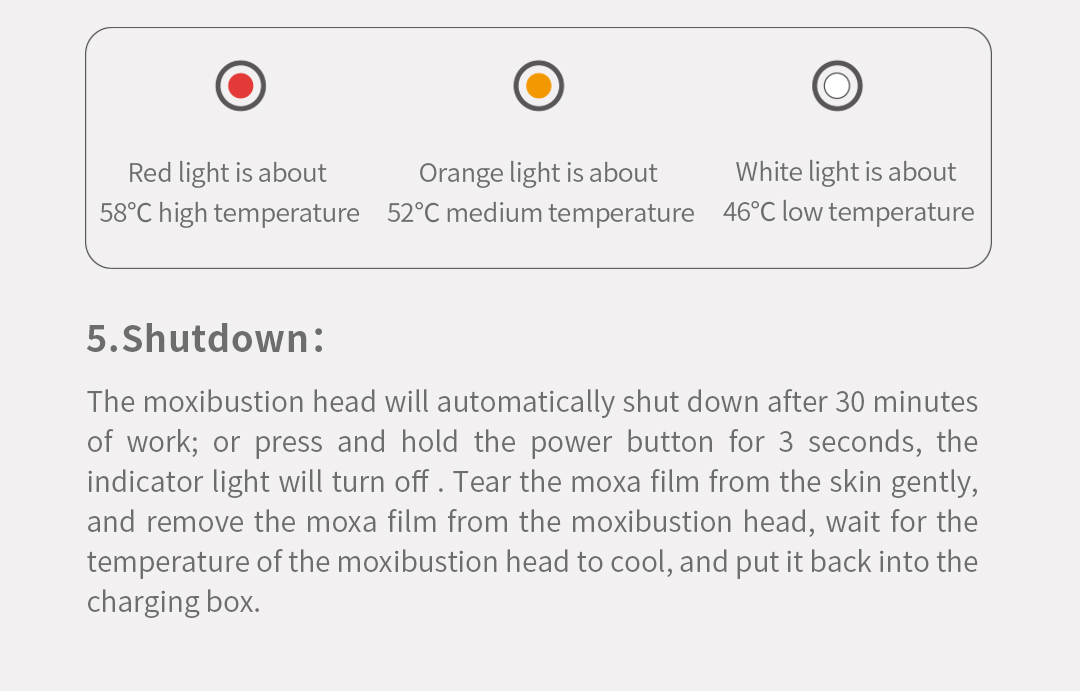

Temperature Levels

3 Levels

Low Setting Indicator

White

Medium Setting Indicator

Orange

High Setting Indicator

Red

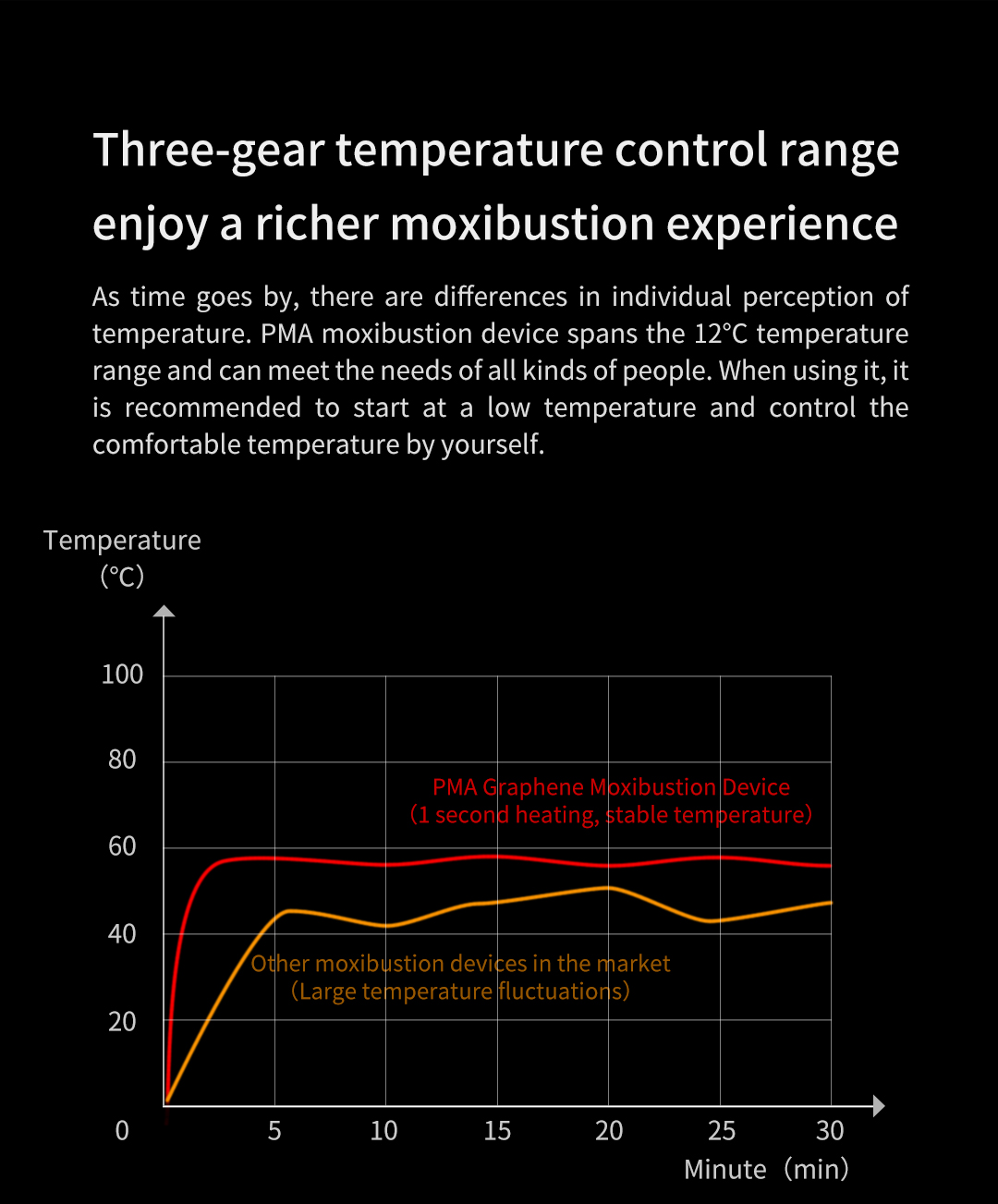

Temperature Control Range

Three-level control across an approximately 12°C adjustment range

Heating Response

Approximately 1 second initial heating response

Automatic Shut-Off

30 minutes

Charging Interface

USB Type-C

Charging Method

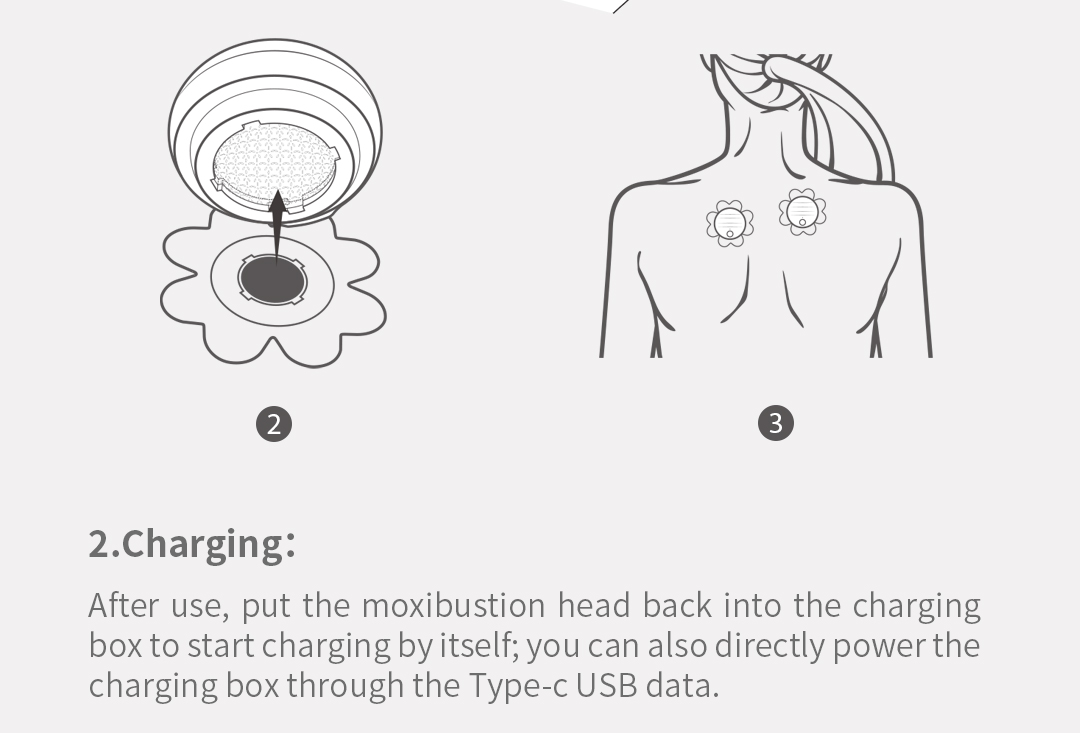

Heating heads recharge through the charging case; charging case supports Type-C input

Safety Classification

Class III appliance

Water Protection

IPX0

Mounting Method

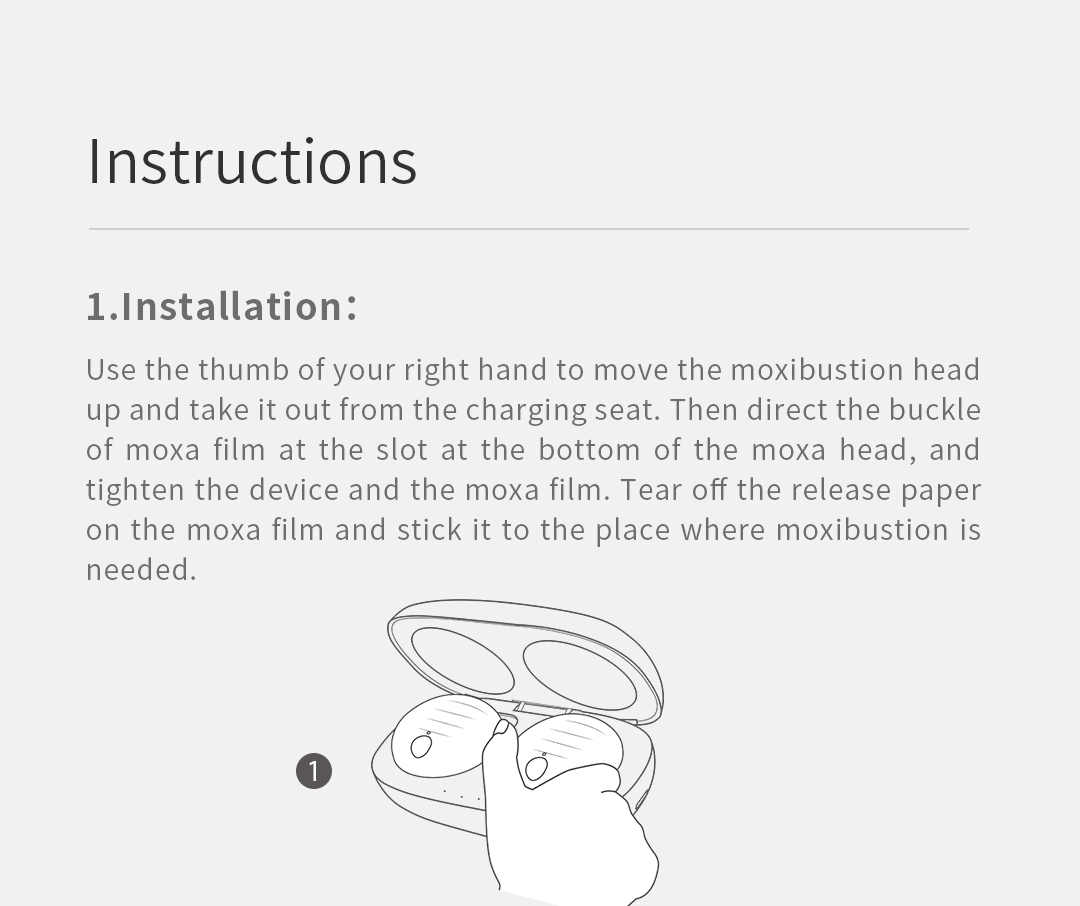

Adhesive moxa patch with buckle-style heating-head connection

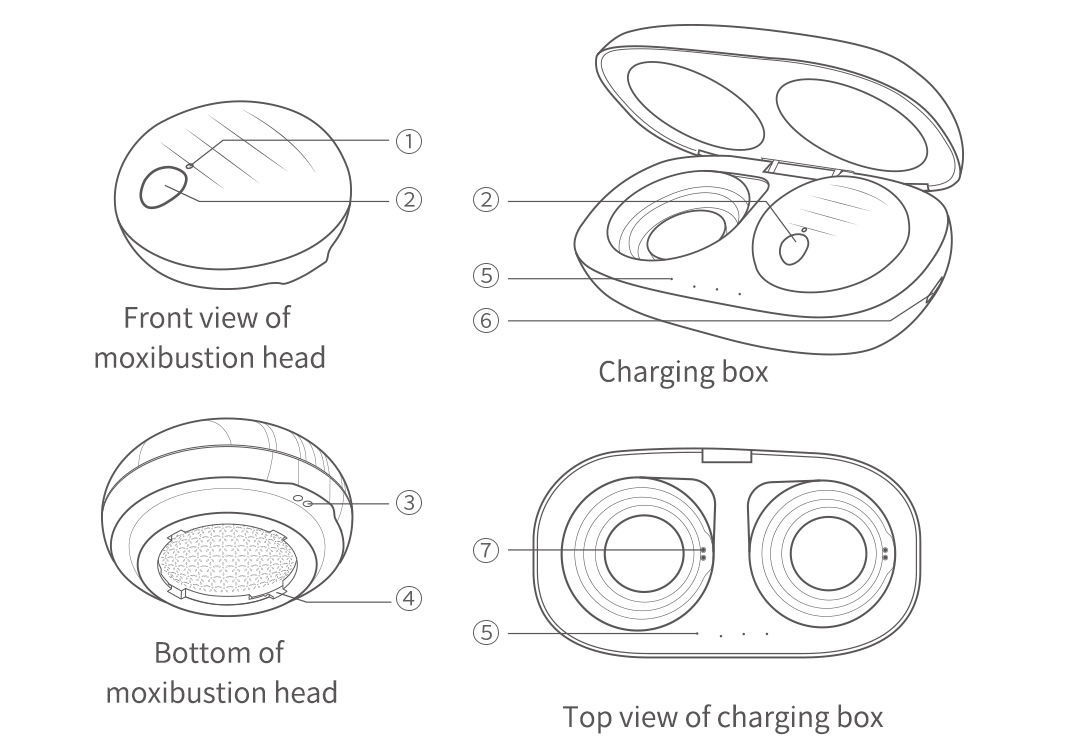

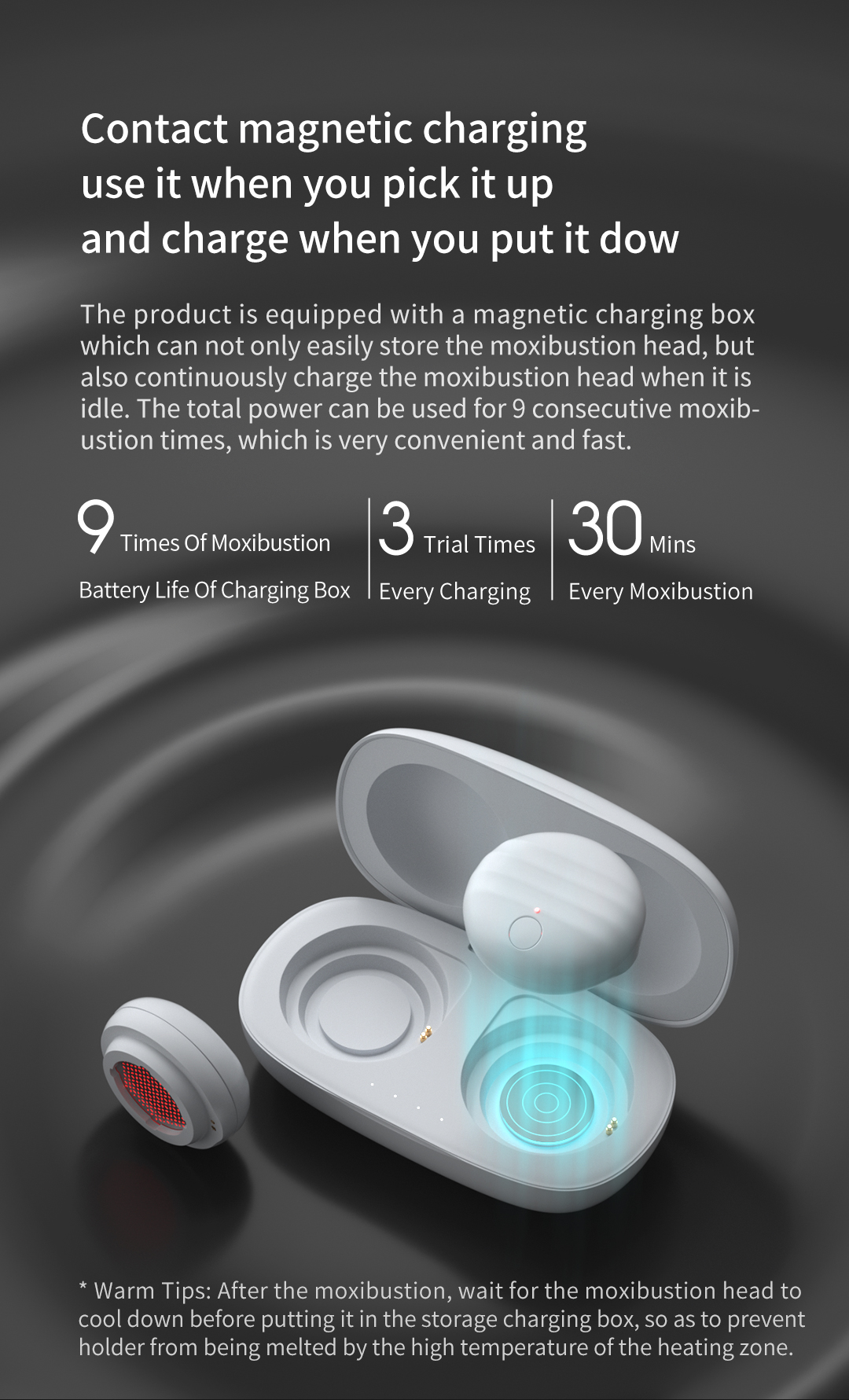

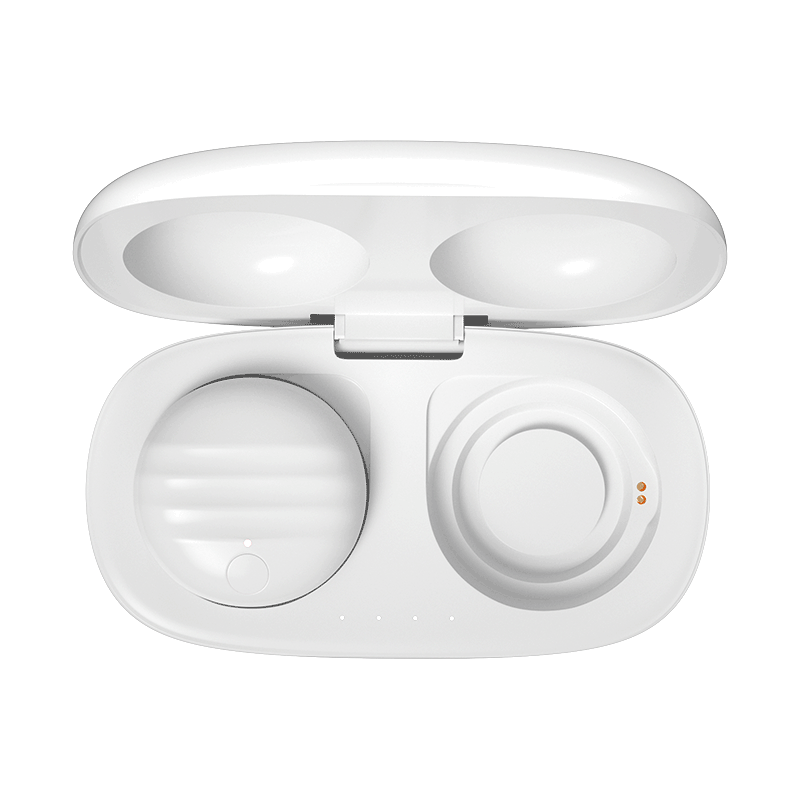

Charging Structure

Magnetic charging contact system

Models & Variants

Model / Variant

PMA-A30

Specification

Dual-head rechargeable graphene smart moxibustion device with charging case, three temperature levels and Type-C charging.

Customization & Supply

Customization Service

Available

Customization Options

Exterior finish, branding, packaging, accessory configuration and other OEM/ODM requirements can be discussed according to project specifications.

Commercial Notes

OEM/ODM requirements are reviewed according to exterior finish, branding, packaging, accessory configuration and order quantity. Final MOQ, lead time and customized specifications are subject to project confirmation.
