PMA-G10

G10 Graphene Far-Infrared Heated Knee Pad

A flexible 5V graphene heated knee pad with three temperature levels, adjustable wrap-around support and a soft textile construction for wearable personal warming.

Heating Method	Graphene Flexible Cloth / Fabric Heating Film
Category	Outdoor & Wearable Heating Health & Wellness
Product Stage	Finished Product Reference
Application Market	Health & Wellness Outdoor & Wearable Heating
Technology Type	Flexible Electric Heating

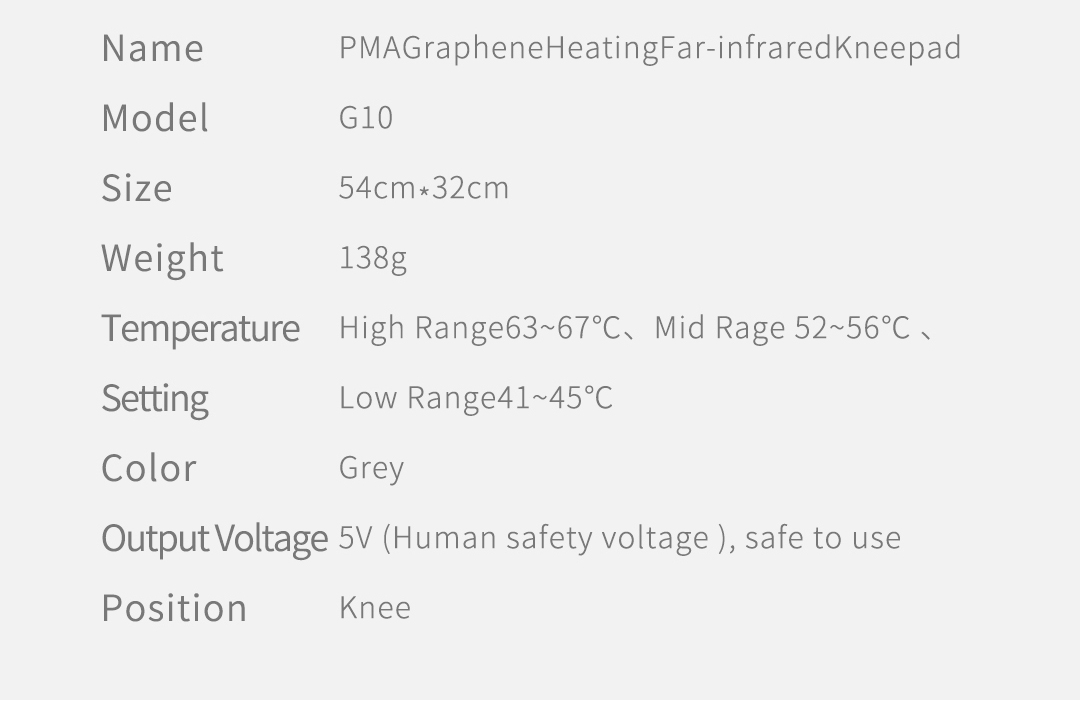

Product Data

Technical & Commercial Information

Product specifications, configuration options, documents and supporting evidence are shown where verified information is available.

Product Overview

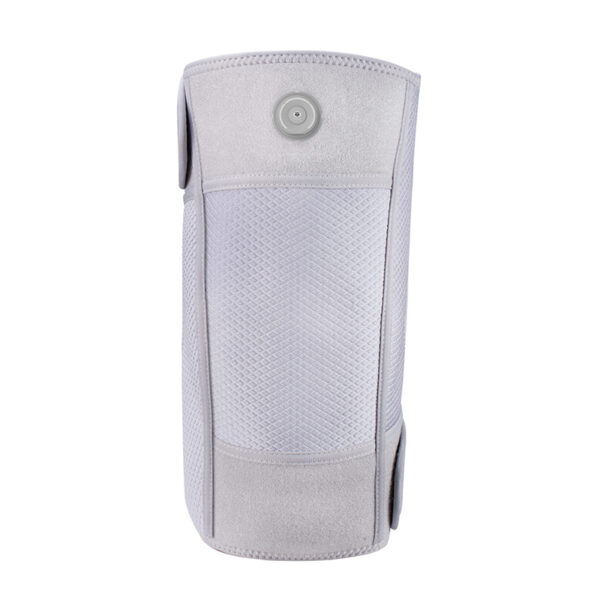

The G10 graphene heated knee pad is a flexible 5V wearable heating product designed to provide controlled warmth around the knee.

The G10 measures approximately 54 × 32 cm and weighs about 338 g. It operates from a 5V low-voltage power source, with the tested electrical input specified at 1400mA. A built-in single-button controller provides three selectable heating levels.

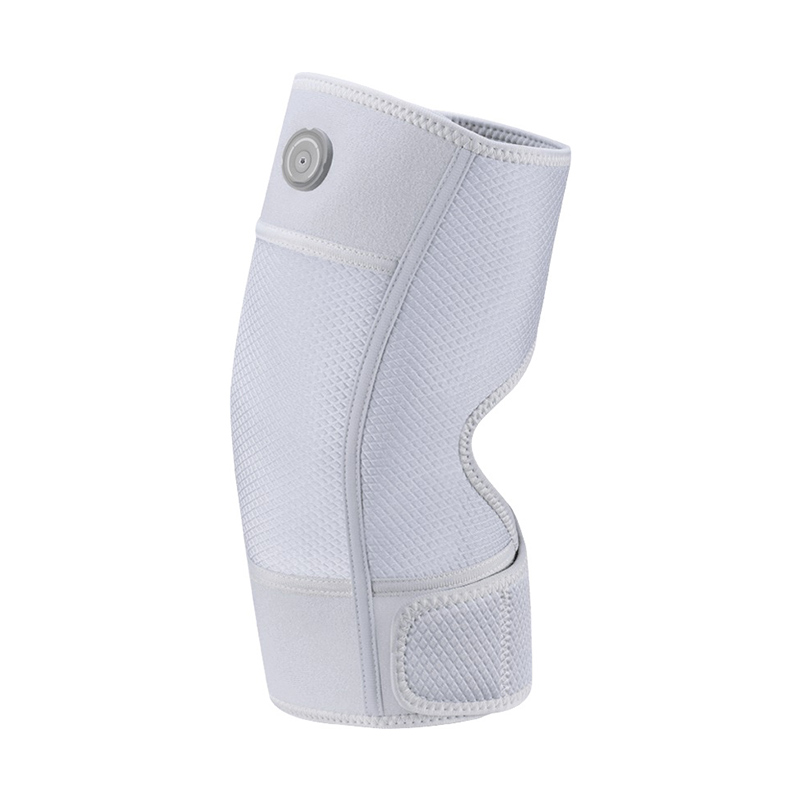

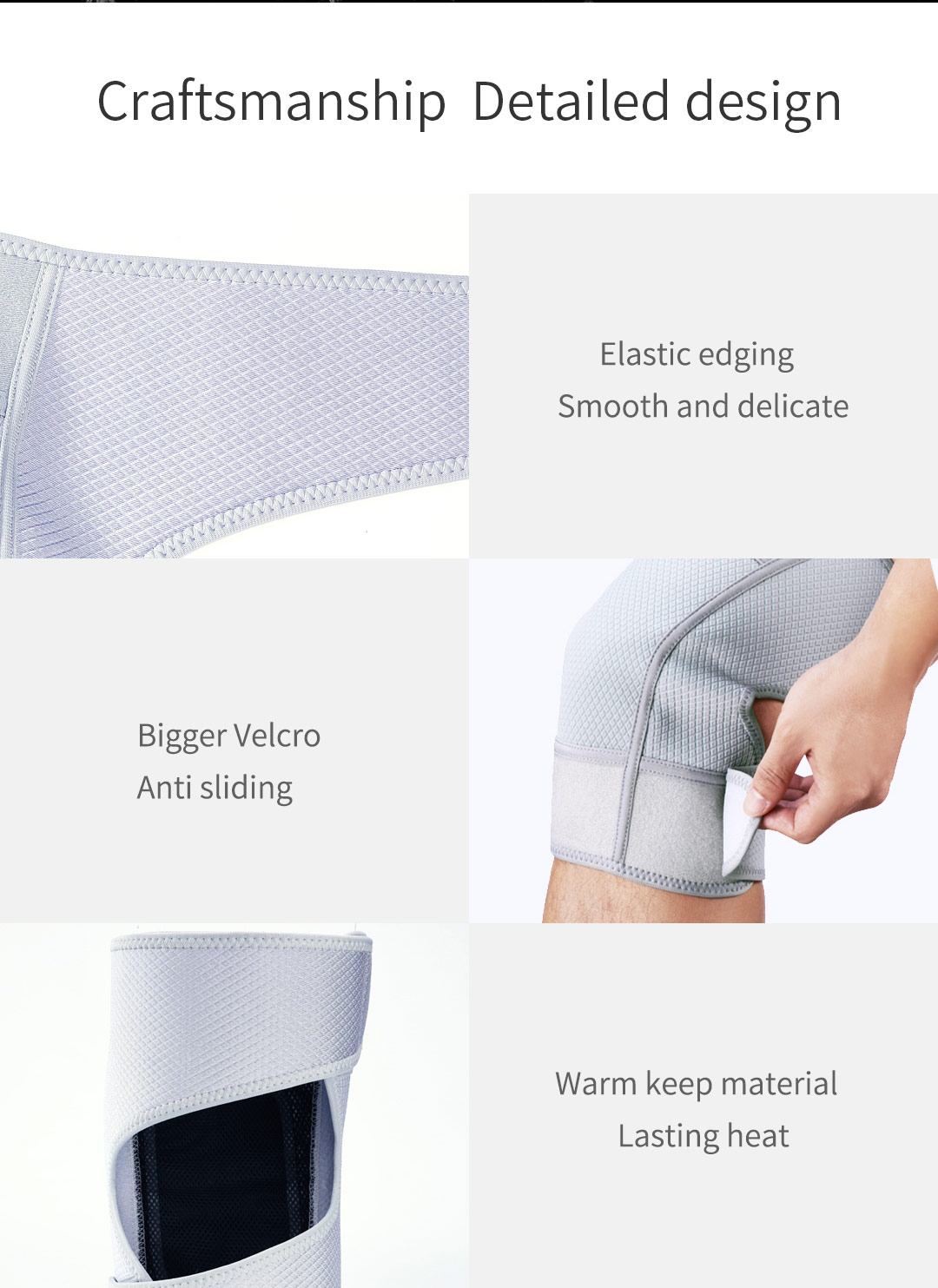

Product materials specify approximately 41–45°C for the low setting, 52–56°C for the medium setting and 63–67°C for the high setting. The flexible wrap-around structure combines elastic textile materials, hook-and-loop fastening and an integrated heating zone for adjustable positioning around the knee.

The textile components used in the G10 have been tested to GB 18401-2010 Class B requirements, and the product has also undergone electrical safety, EMC and RoHS testing. CE EMC and restricted-substance documentation is available for the PMA-G10 model.

The G10 is suitable for personal warming, indoor resting and wearable cold-weather applications. OEM and ODM requirements such as textile material, exterior color, branding, packaging, heating configuration and related control requirements can be reviewed according to project specifications.

Key Specifications

Heating Method

Graphene Flexible Cloth / Fabric Heating Film

Heating Element

Graphene heating module

Materials

Polyester, nylon and spandex textile components with mesh lining and elastic support structure

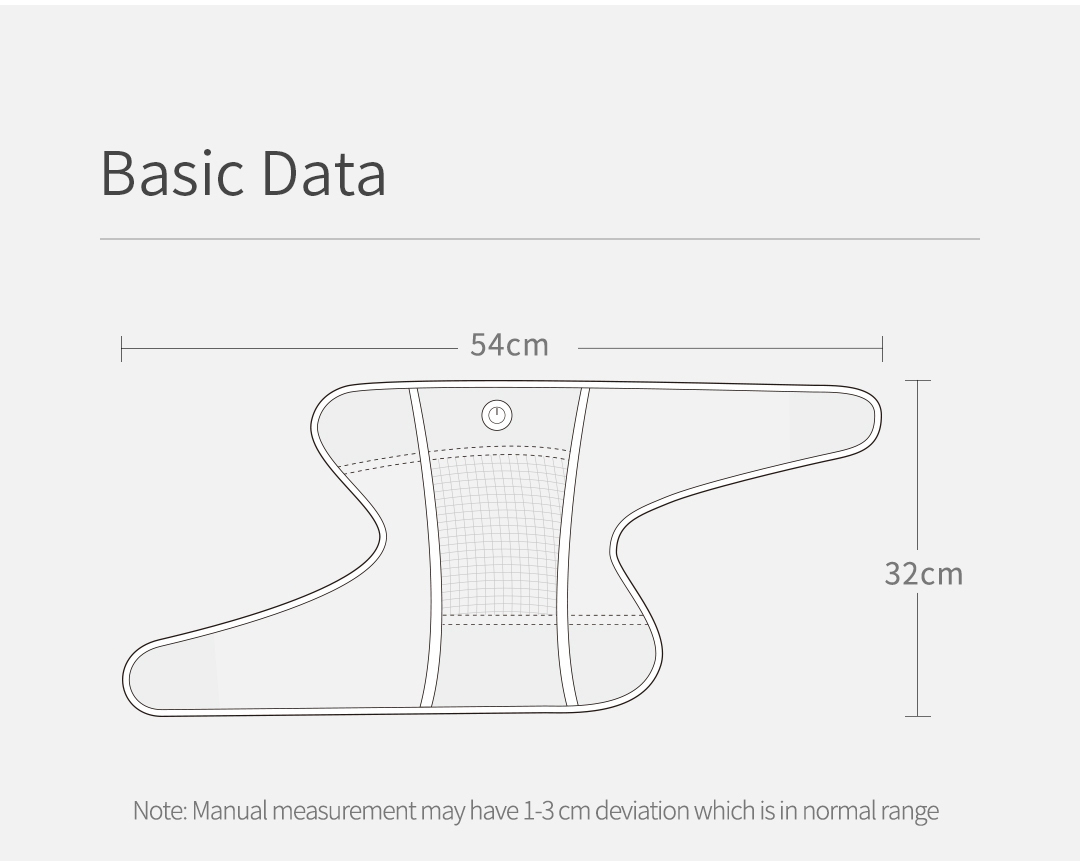

Dimensions

54 × 32 cm

Power Source

USB · Power Bank · Adapter

Control

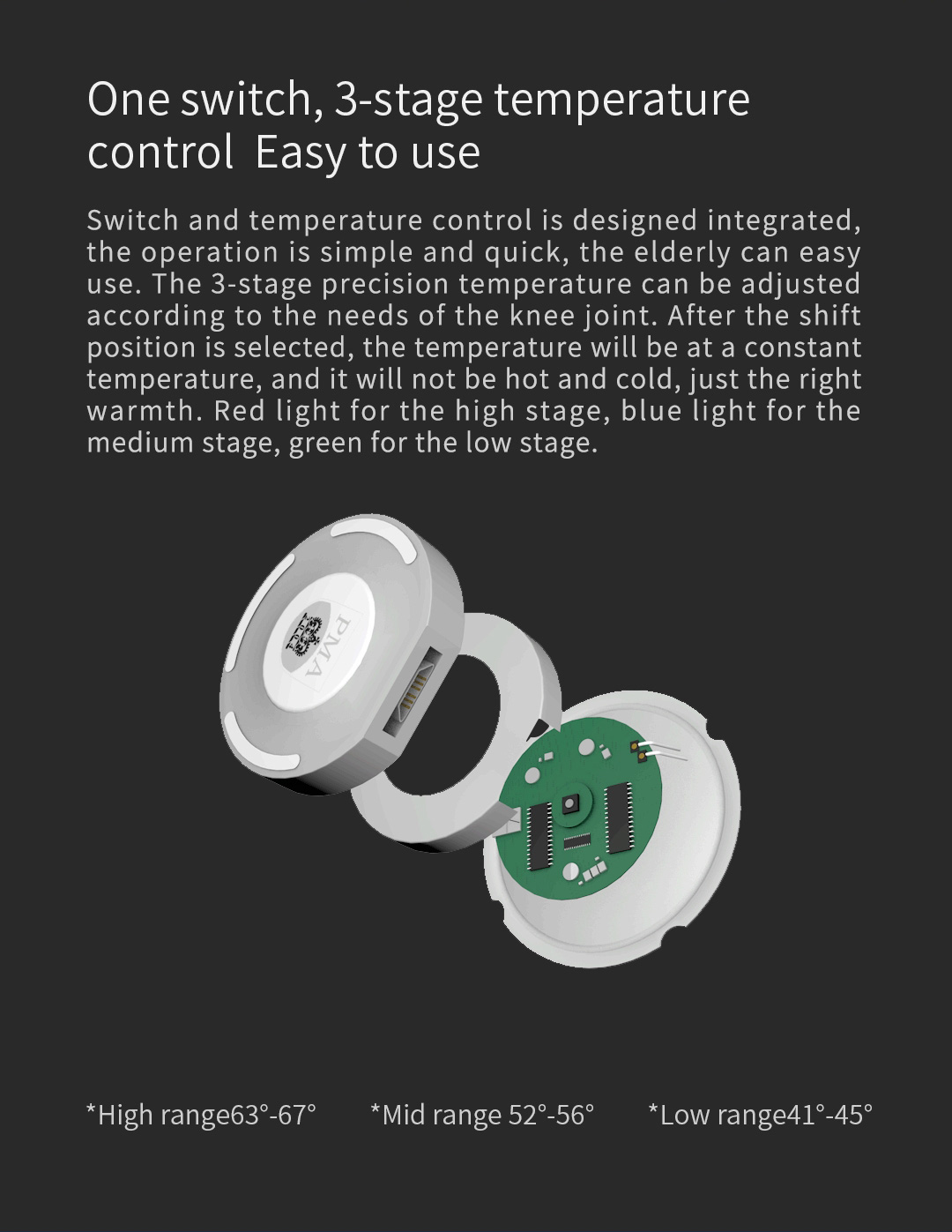

Single-button three-level temperature control with low, medium and high settings. The specified temperature ranges are approximately 41–45°C, 52–56°C and 63–67°C respectively.

Cleaning / Washability

Disconnect the product from the power source before cleaning. Hand wash gently with water below approximately 30°C and avoid damaging the controller, connector and heating components. Do not use aggressive machine washing or wringing. Allow the product to dry completely before reconnecting to power.

Input Voltage

Input Current

1400mA

Dimensions

54 × 32 cm

Weight

338 g

Color

Grey

Temperature Levels

3 Levels

Low Temperature

41–45°C

Medium Temperature

52–56°C

High Temperature

63–67°C

Control Type

Single-button three-level temperature control

Heating Element

Graphene heating module

Product Position

Knee

Support Structure

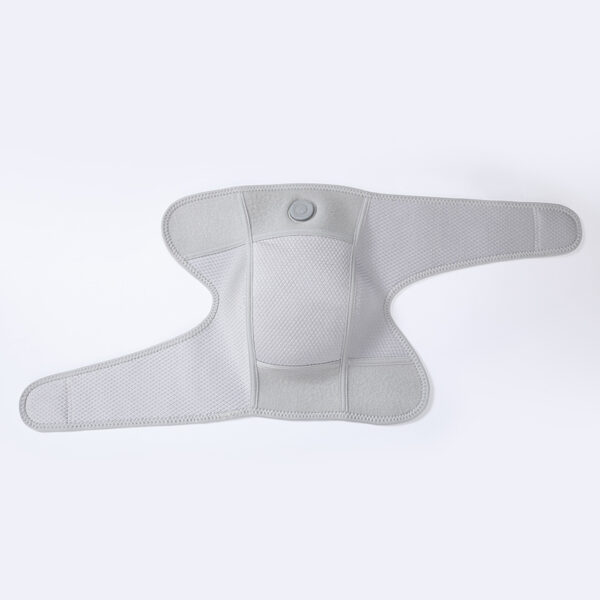

Flexible wrap-around knee support

Fastening System

Adjustable hook-and-loop fastening

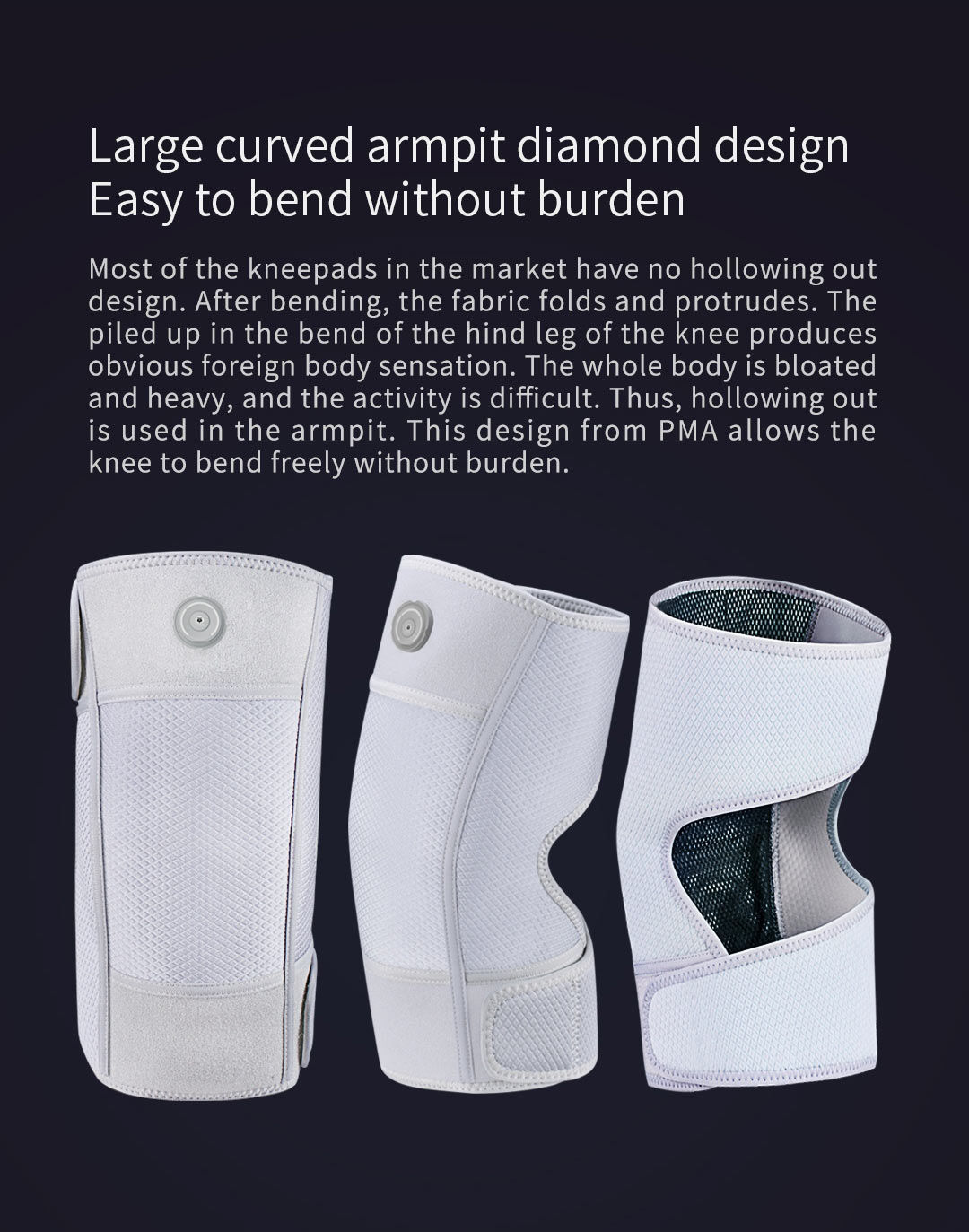

Flexibility

Flexible construction designed to bend with knee movement

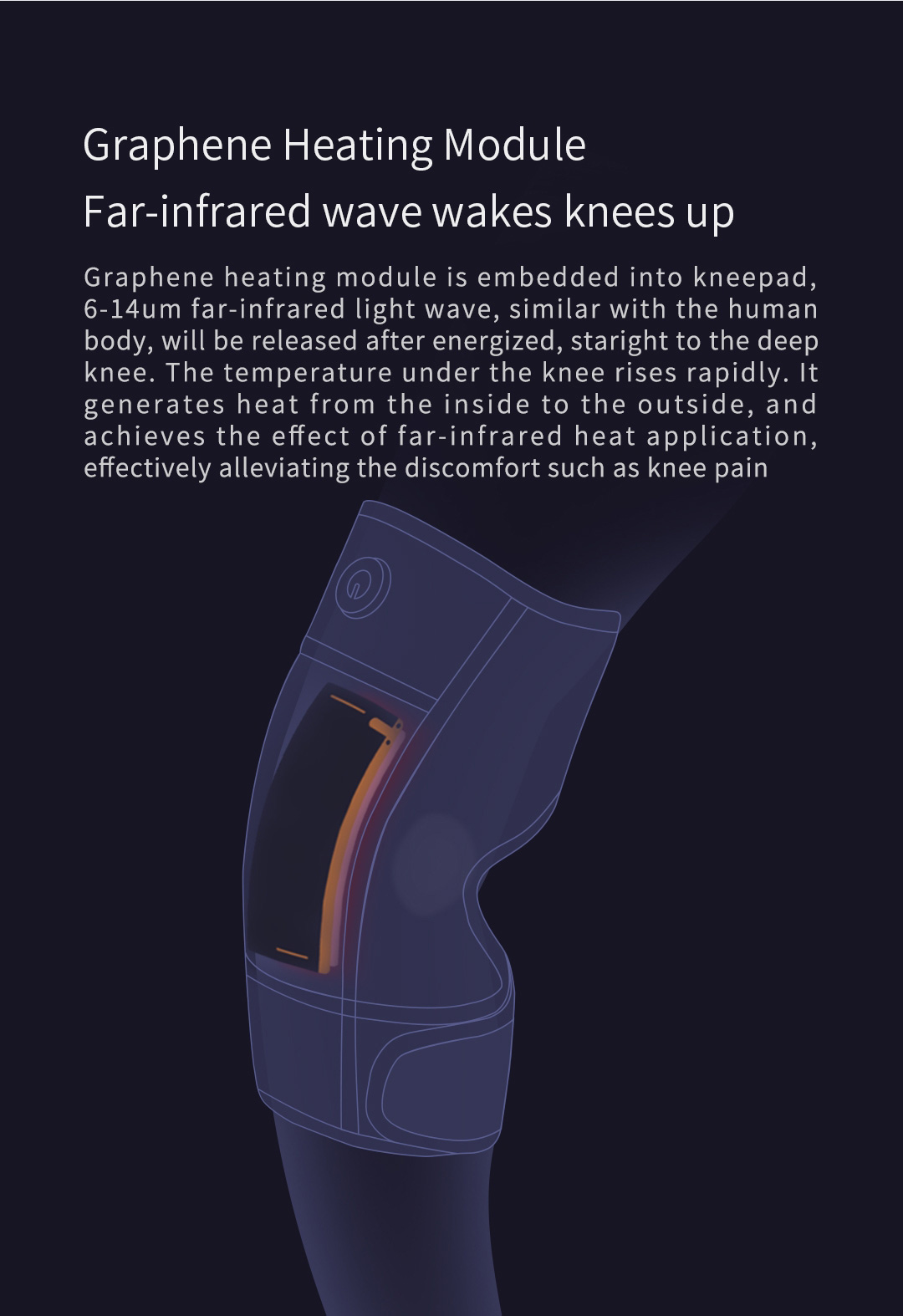

Heating Zone

Integrated front knee heating zone

Grey Embossed Fabric - Tested Sample

Polyester 88.4%; Spandex 11.6%

Grey-Green Fabric - Tested Sample

Nylon 89.8%; Spandex 10.2%

Grey Lining - Tested Sample

Polyester 88.7%; Spandex 11.3%

Grey-Green Lining - Tested Sample

Polyester 100%

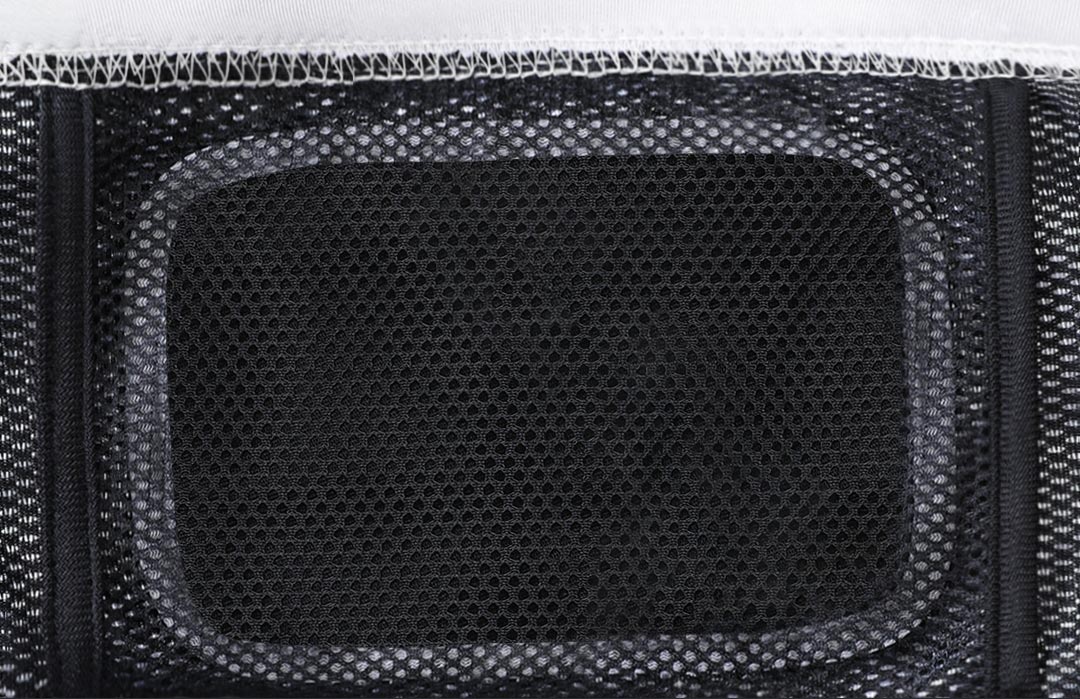

Black Mesh Lining - Tested Sample

Polyester 100%

Silver-Black Inner Layer - Tested Sample

Nylon 73.3%; Polyester 26.7%

Models & Variants

Model / Variant

PMA-G10

Specification

Grey graphene far-infrared heated knee pad, 54 × 32 cm, with three-level temperature control and flexible wrap-around construction.

Customization & Supply

Customization Service

Available

Customization Options

Textile material, exterior color, size configuration, heating-zone design, branding, packaging and other OEM/ODM requirements can be discussed according to project specifications.

Commercial Notes

OEM/ODM requirements are reviewed according to textile structure, size, heating configuration, exterior finish, branding, packaging and order quantity. Final MOQ, lead time and customized specifications are subject to project confirmation.
